6GK5124-0BA00-2AC2 SIEMENS SCALANCE XC124 Unmanaged IE Switch 24x RJ45 Ports Original Brand New

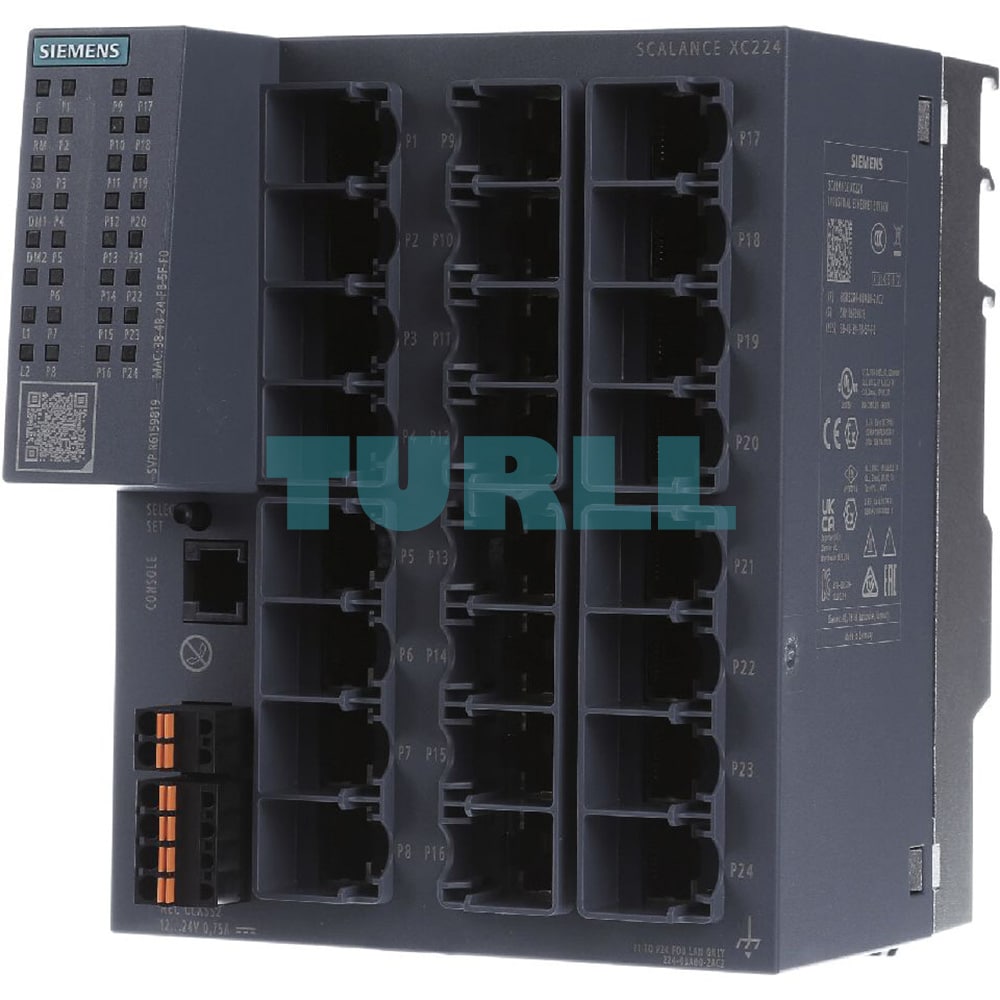

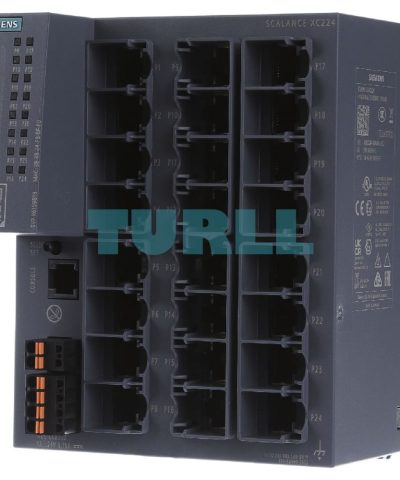

SIEMENS SCALANCE XC124 – 6GK5124-0BA00-2AC2

SCALANCE XC124 unmanaged IE switch, 24x 10/100 Mbit/s RJ45 ports, with LED diagnostics, error-signaling contact (with configurable SET button), and redundant 24 V DC power input. Manual available as a download.

Overview

The unmanaged Industrial Ethernet switches of the SCALANCE XC-100 product line are optimized for setting up 10/100 Mbps industrial networks in line and star topologies at the machine level.

Connection to stations can be configured via electrical RJ45 ports or optical ST/BFOC/SC ports

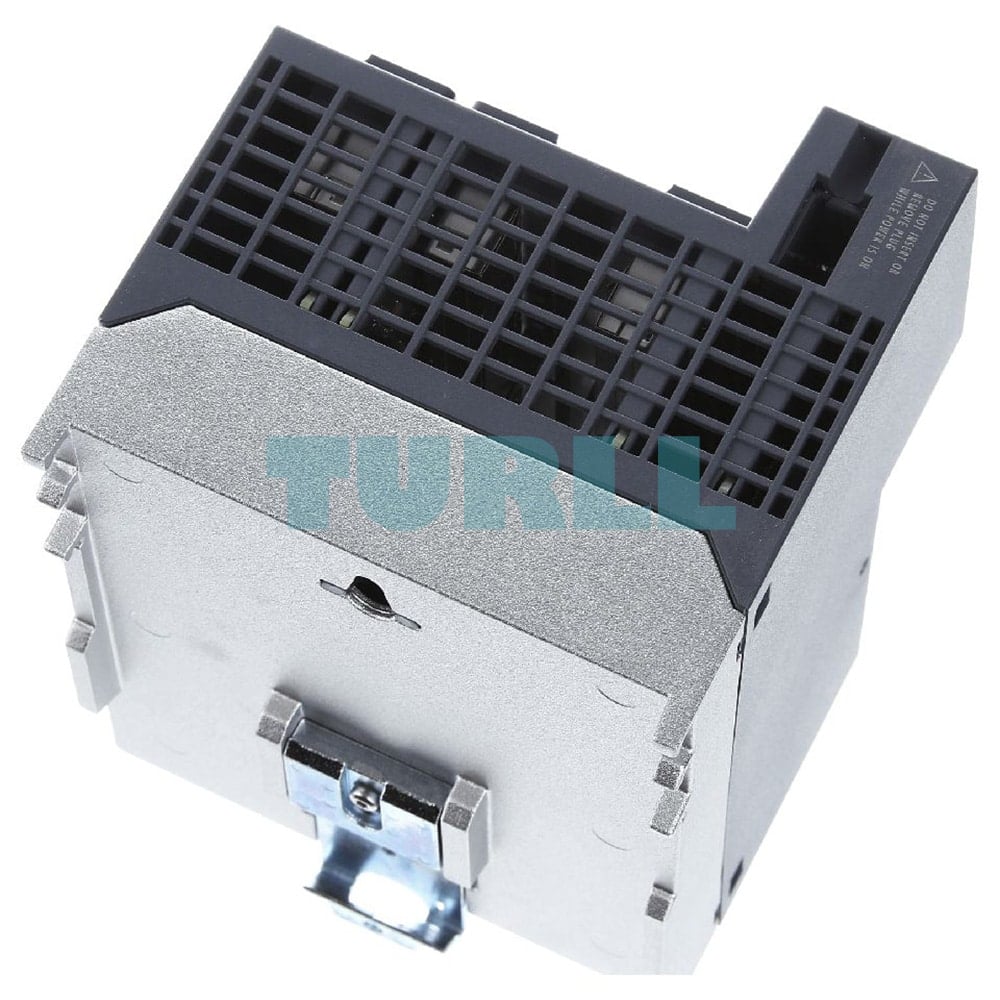

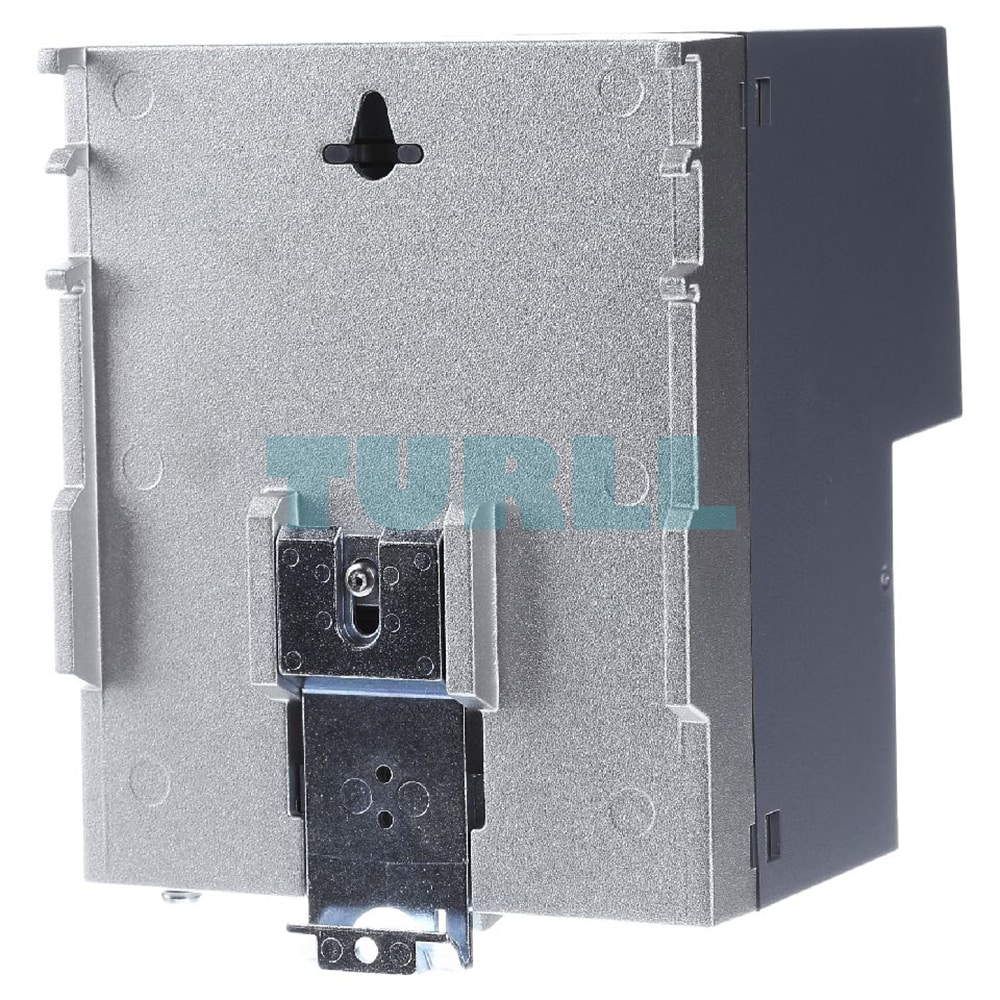

DIN rail mounting supported on SIMATIC S7-300 or S7-1500, and wall mounting if needed
All RJ45 ports use securing collars for strain relief and stable industrial-grade locking
Redundant power supply enhances operational reliability
Raised LED indicators for power, communication, and link diagnostics
Error signaling contact easily adjustable using the SET button on the front panel

Product Variants

• SCALANCE XC106-2: 6 x RJ45 + 2 x ST/BFOC
• SCALANCE XC106-2: 6 x RJ45 + 2 x SC
• SCALANCE XC108: 8 x RJ45
• SCALANCE XC116: 16 x RJ45
• SCALANCE XC124: 24 x RJ45
• SCALANCE X108PoE: 8-port PoE variant (external PSU)

Design Features

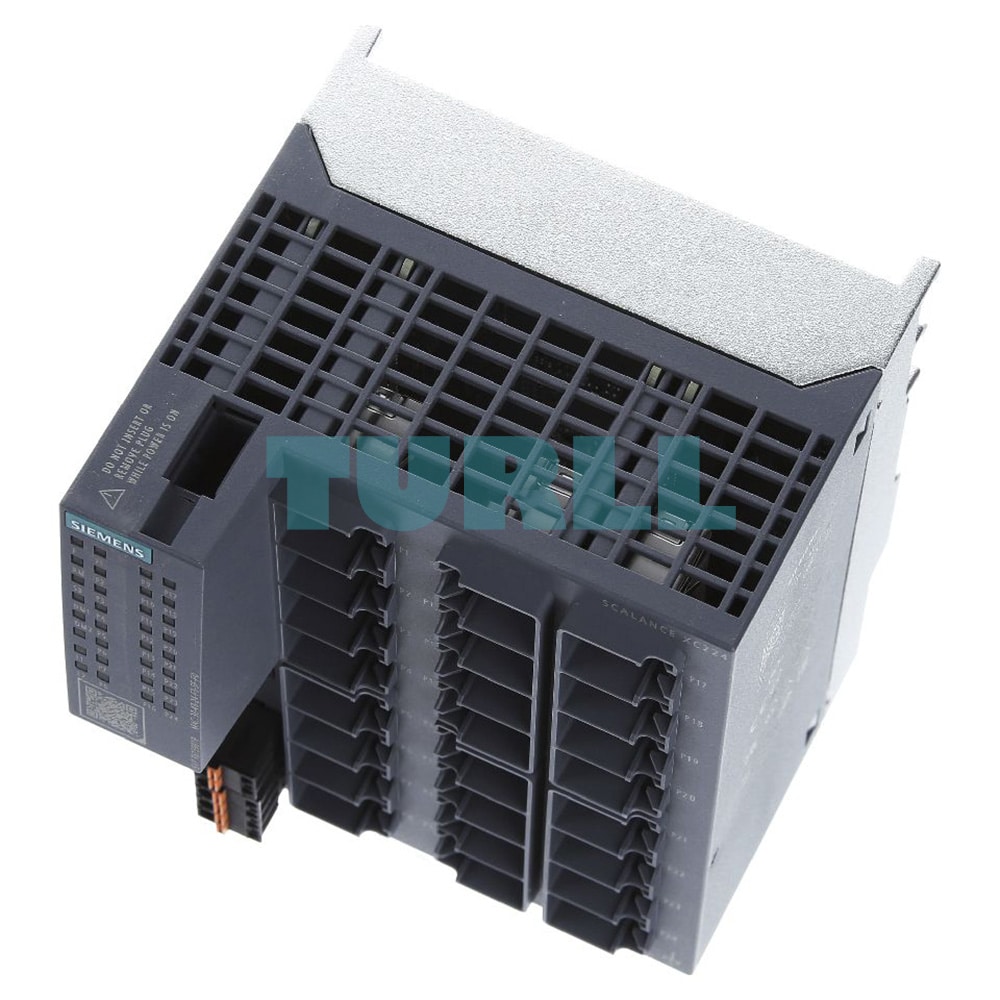

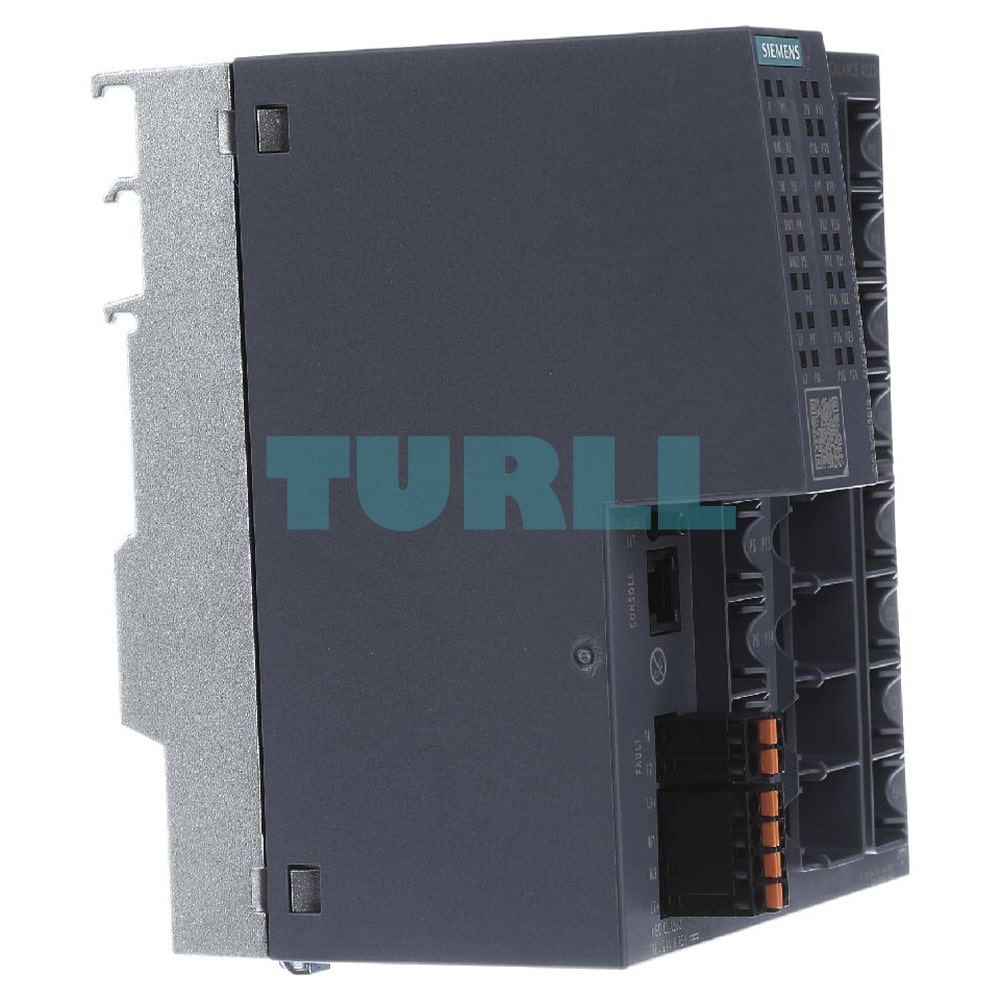

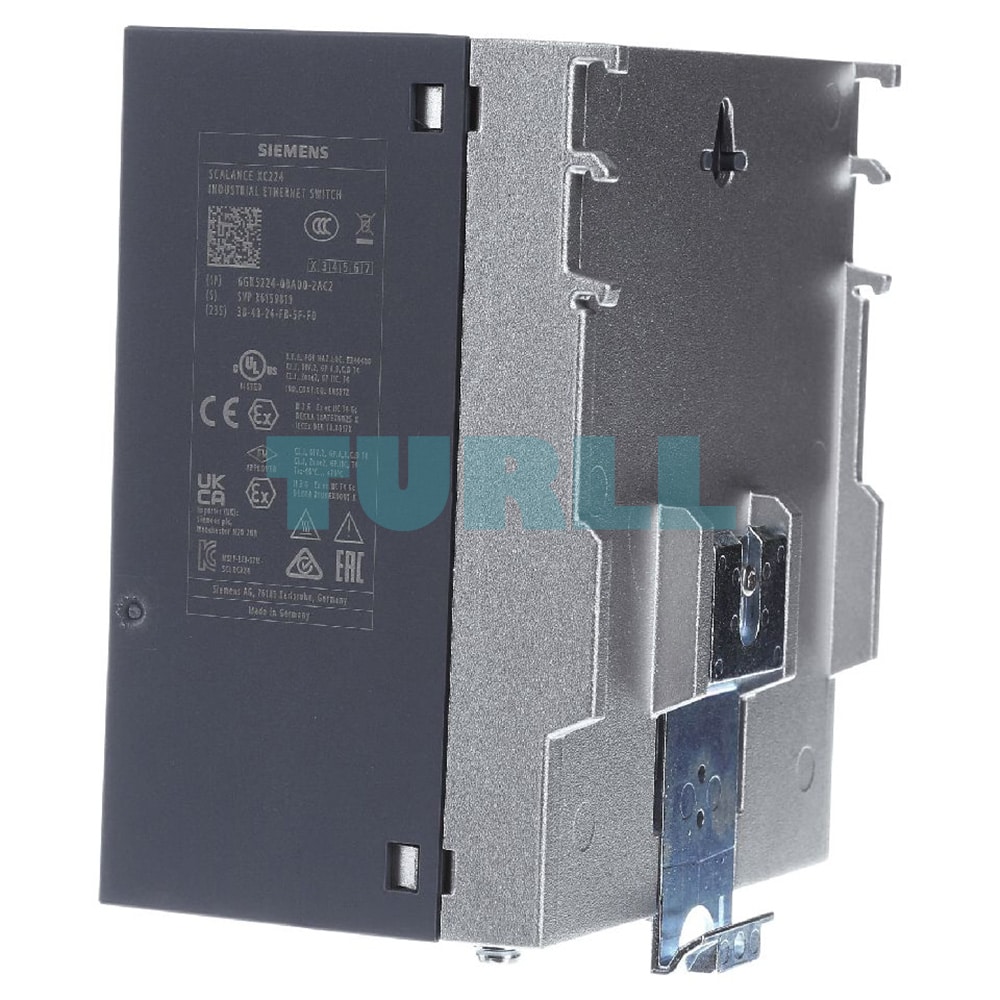

The SCALANCE XC-100 series features a metal rear enclosure with compact housing designed for seamless integration into SIMATIC automation systems.

• 4-pin terminal block for redundant 24 V DC power
• 2-pin terminal block for floating error signal contact
• SET button for configuring signal mask per diagnostics behavior
• All diagnostic and signal LEDs are placed visibly for easy status monitoring
• Designed for use with IE FC RJ45 plug 180

Port Types Available

• 10/100 BaseTX RJ45: autosensing, autocrossing, cable length up to 100 m
• (Other variants may include 100 BaseFX ST/BFOC or SC optical ports up to 5 km)

Product code: 6GK5124-0BA00-2AC2
