6GK5202-2BB10-2BA3 SIEMENS SCALANCE X202-2IRT Managed IE IRT Switch Original Brand New

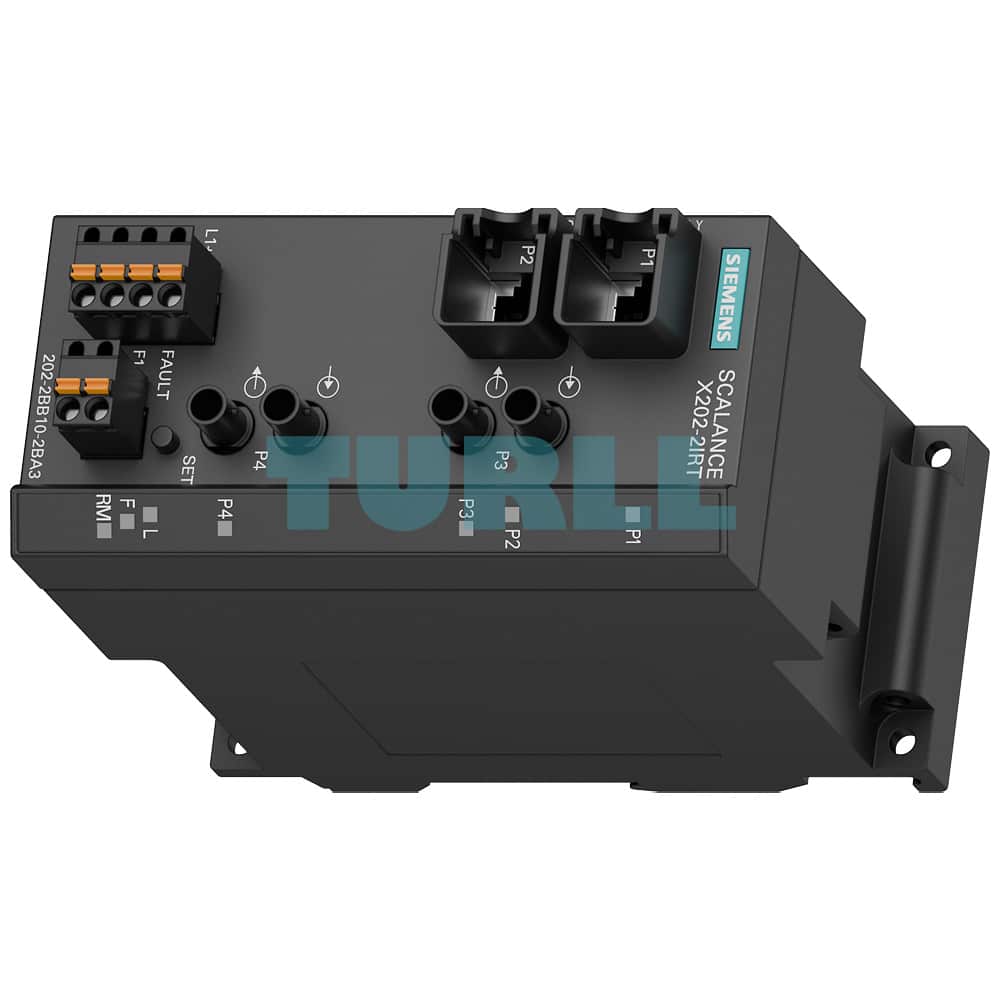

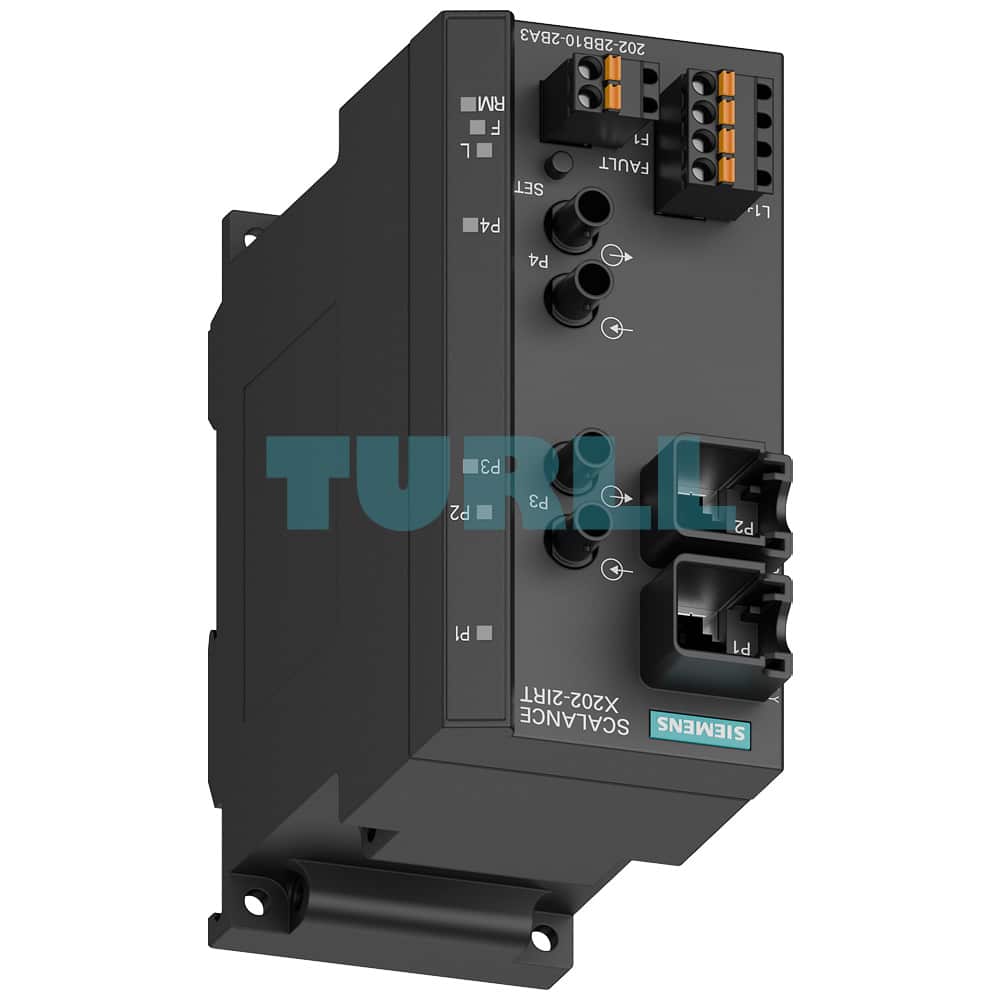

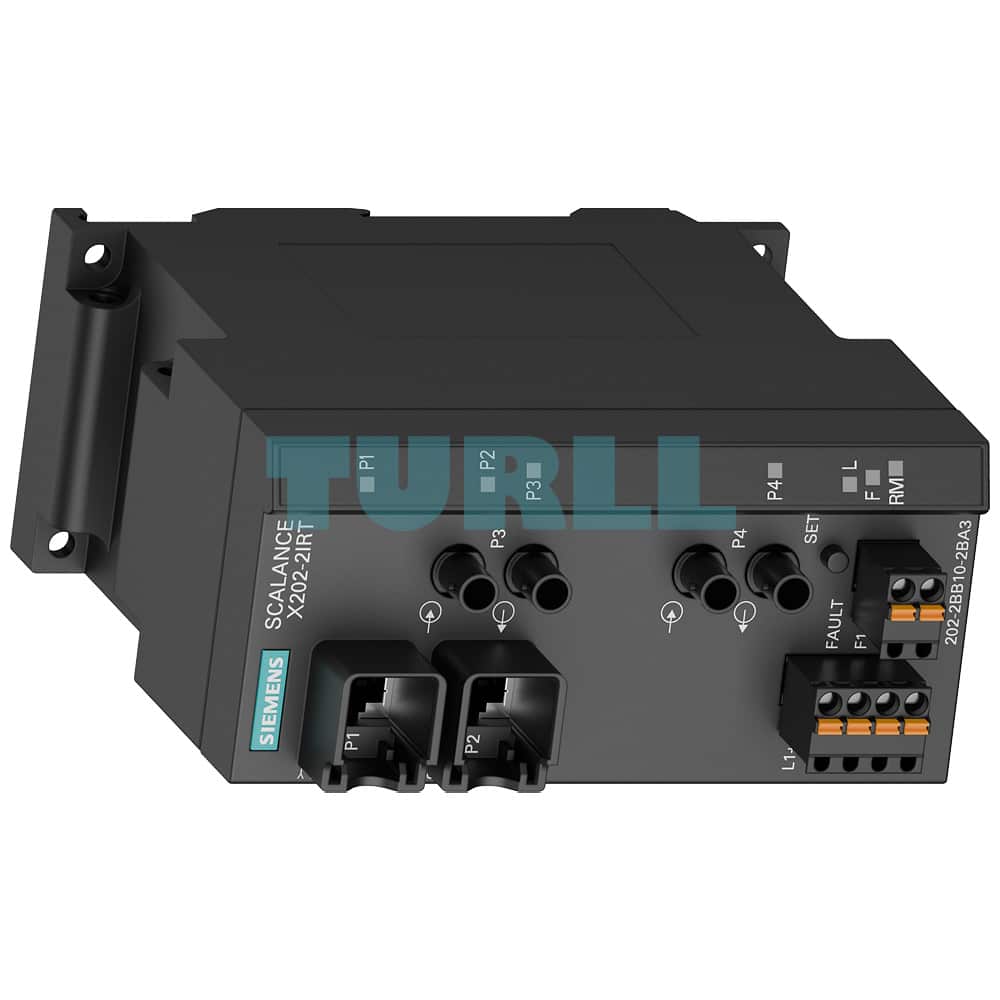

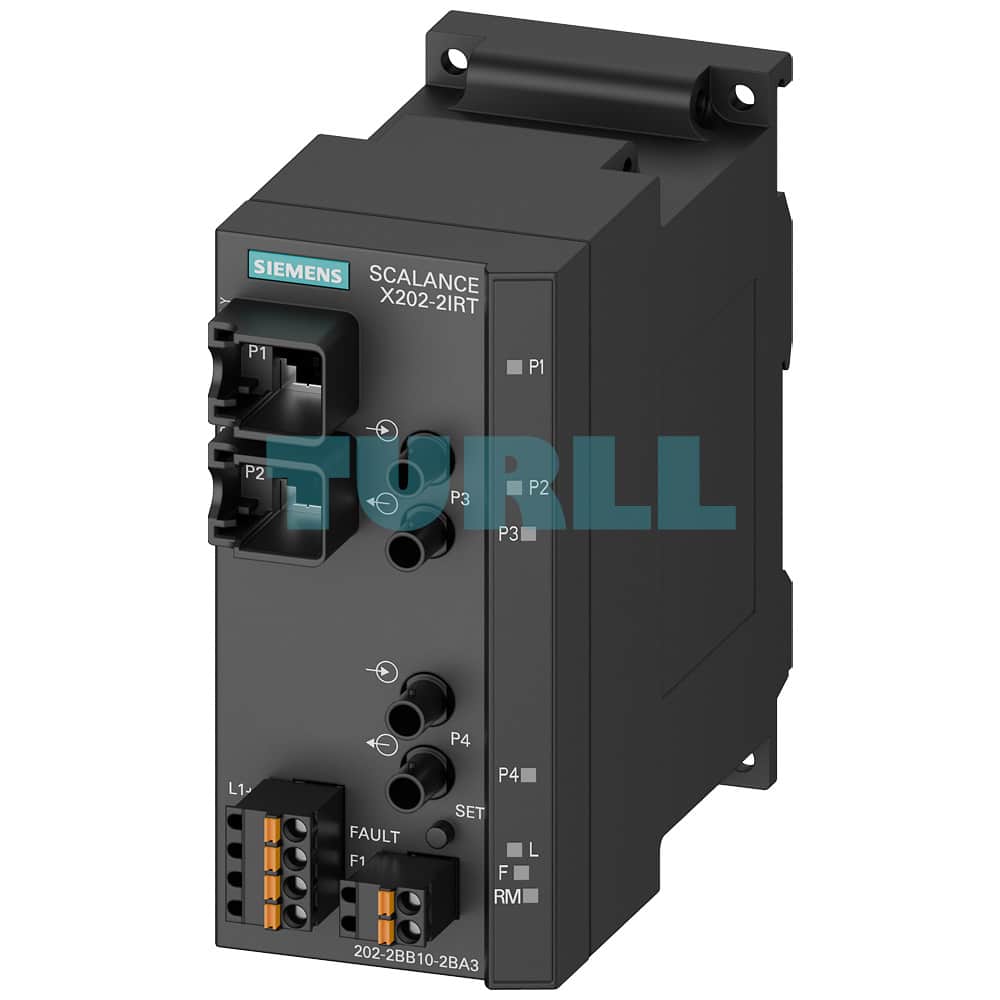

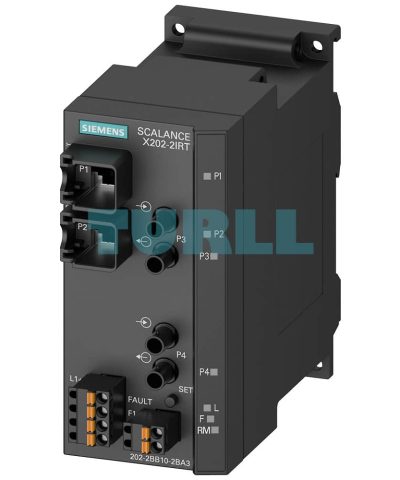

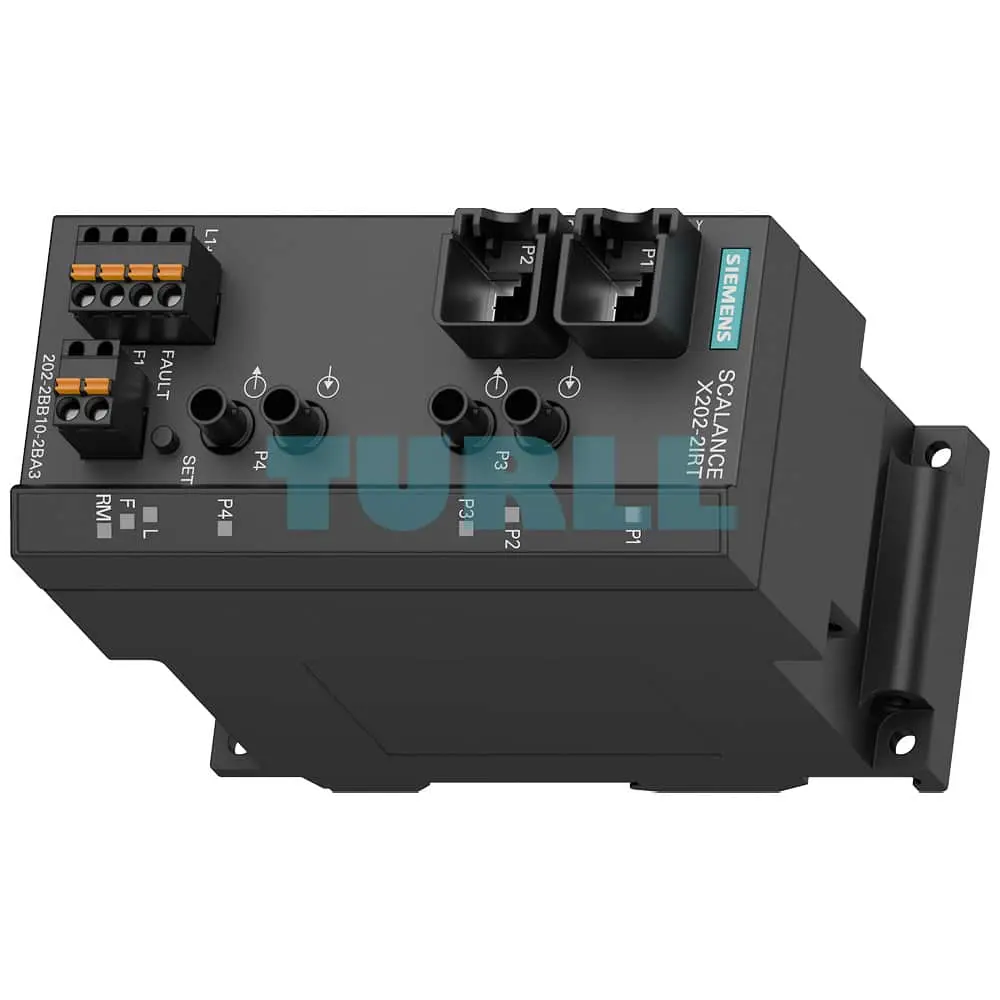

SIEMENS SCALANCE X202-2IRT – 6GK5202-2BB10-2BA3

SCALANCE X202-2IRT managed IE IRT switch with 2x 10/100 Mbps RJ45 ports and 2x 100 Mbps multimode BFOC fiber ports. Equipped with error signaling contact (SET button), redundant power input, PROFINET IO device functionality, and integrated Redundancy Manager. Delivered with electronic manual on CD-ROM. C-PLUG optional.

Overview

The SCALANCE X-200IRT PRO series is designed for building isochronous real-time (IRT) Industrial Ethernet networks using line, star, or ring topologies with 10/100 Mbps data rates.

• Hybrid copper + multimode fiber (BFOC) connection
• Integrated Redundancy Manager enables fast, seamless network recovery (MRP/MRPD)
• Optimized switching: supports both “Cut Through” and “Store & Forward”
• Diagnostics via PROFINET, SNMP, web server, or SINEC NMS
• Remote alerts supported via automated email
• Suitable for control cabinet installation with compact DIN rail-compatible housing

Product Variants

• SCALANCE X204 IRT PRO – 4x RJ45 ports (IP65/67, push-pull)
• SCALANCE X202-2P IRT PRO – 2x RJ45 + 2x POF SC RJ ports (IP65/67)
• SCALANCE X201-3P IRT PRO – 1x RJ45 + 3x POF SC RJ ports (IP65/67)
• SCALANCE X202-2IRT – 2x RJ45 + 2x multimode BFOC (this unit)

Design Features

• Rugged metal enclosure for industrial environments
• Front-facing LED diagnostics for power, link, and data traffic
• SET pushbutton for configuring signaling contact behavior
• Supports both cabinet-mounted and SIMATIC rail installation
• Industrial connectors with strain and bend relief mechanisms

Port Types Available

• 2 x RJ45 10/100 BaseTX (electrical): autosensing, autocrossing
• 2 x BFOC 100 Mbps (multimode fiber): up to 5 km reach

Product code: 6GK5202-2BB10-2BA3
