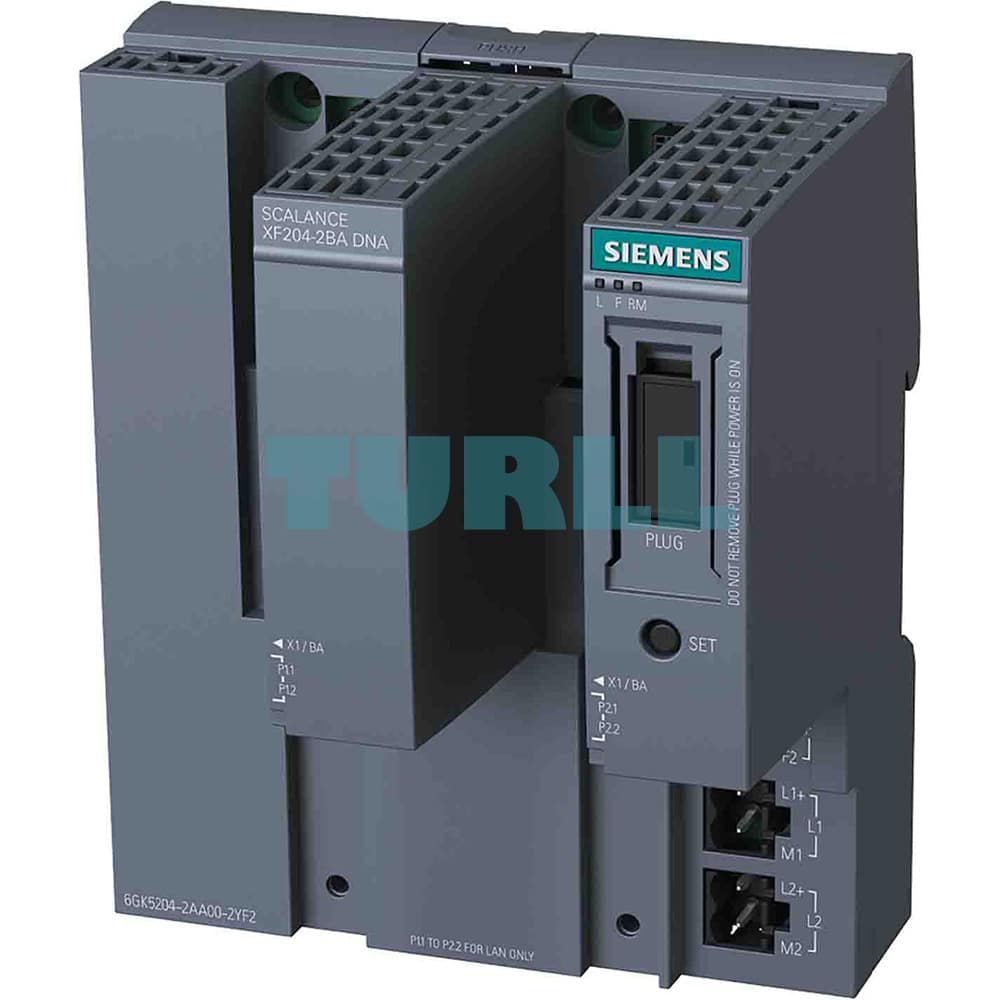

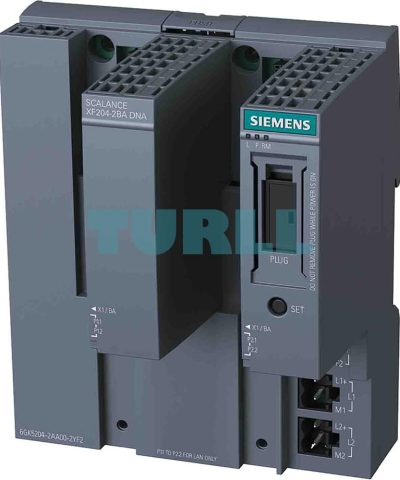

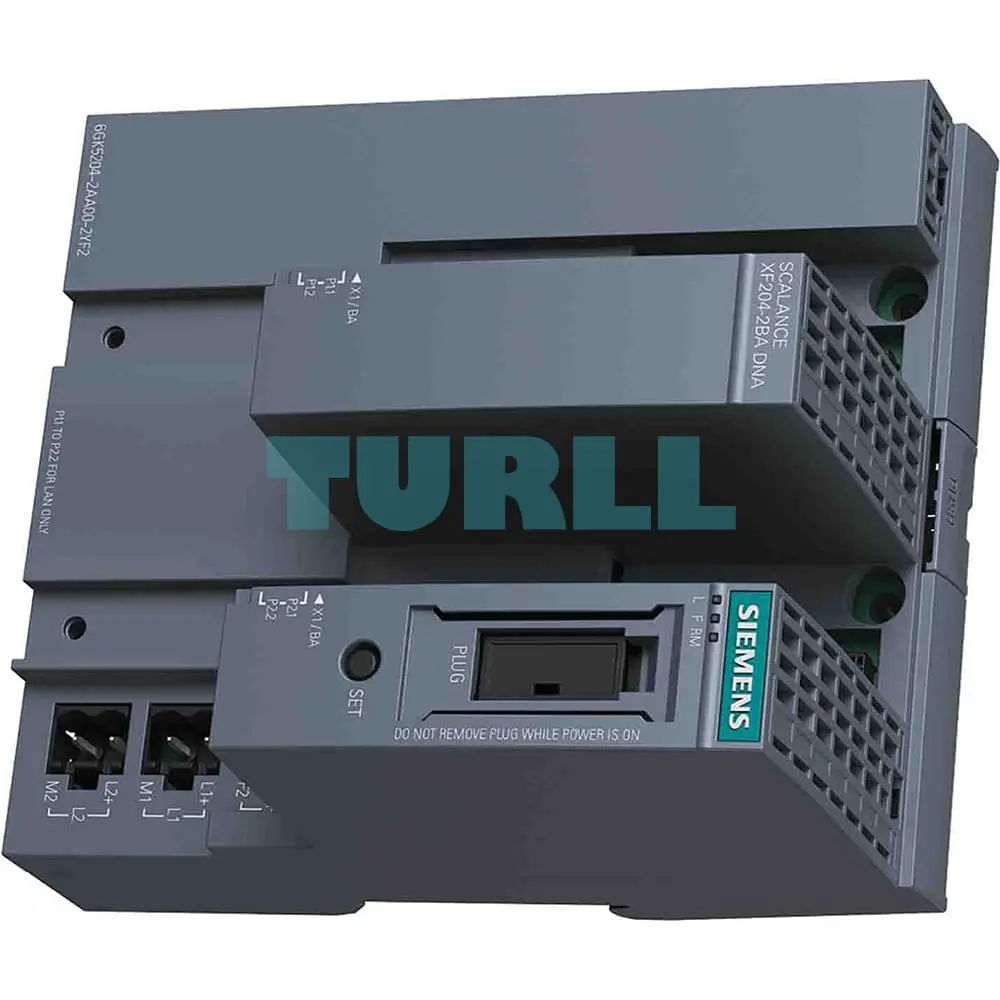

6GK5204-0BA00-2YF2 SIEMENS SCALANCE XF204-2BA DNA Managed IE Y-Switch Dual Network Access Original Brand New
$1,301.61
6GK5204-0BA00-2YF2 is a SIEMENS SCALANCE XF204-2BA DNA managed Y-switch for PROFINET networks with dual BusAdapter slots, IEC 62443-4-2 certified, conformal coating, DNA functionality, and extended temperature operation from –40 °C to +70 °C.
SIEMENS SCALANCE XF204-2BA DNA – 6GK5204-0BA00-2YF2
Managed Industrial Ethernet switch with dual network access (DNA) capability, certified to IEC 62443-4-2. Equipped with 2x BusAdapter slots and delivered with 2x BA 2×RJ45 HA pre-assembled, the unit offers 4x 10/100 Mbps RJ45 ports, error signaling contact via SET button, redundant 24 V DC supply, and conformal coating for harsh environments. Extended temperature range from –40 °C to +70 °C. PROFINET device with full diagnostics and DVD manual.
Overview
The SCALANCE XF204-2BA DNA is a compact DIN rail switch specifically designed for redundant SIMATIC S7-400H and S7-1500H systems. It links redundant R1 PROFINET systems to S2 field-level rings via DNA (Dual Network Access) or Y-switch functionality.
Highlights:
- Combines redundant PROFINET ring (MRP) and high-availability R1 system
- 2 modular BusAdapter interfaces (2 ports each)
- Conformal-coated PCBs, –40 to +70 °C operation, max. 4000 m altitude
- NAMUR NE 21-compliant for process automation
- Supports S2 + CiR / H-CiR device firmware
- Seamless integration into SIMATIC PCS 7 and PCS neo
Compatible BusAdapters
Supports flexible configuration with adapters including:
- BA 2×RJ45, BA 2×FC, BA 2×SCRJ, BA 2×LC
- BA SCRJ/RJ45, BA SCRJ/FC, BA LC/FC, BA LC/RJ45
- BA 2×RJ45VD HA, and others as per function status
Product Version

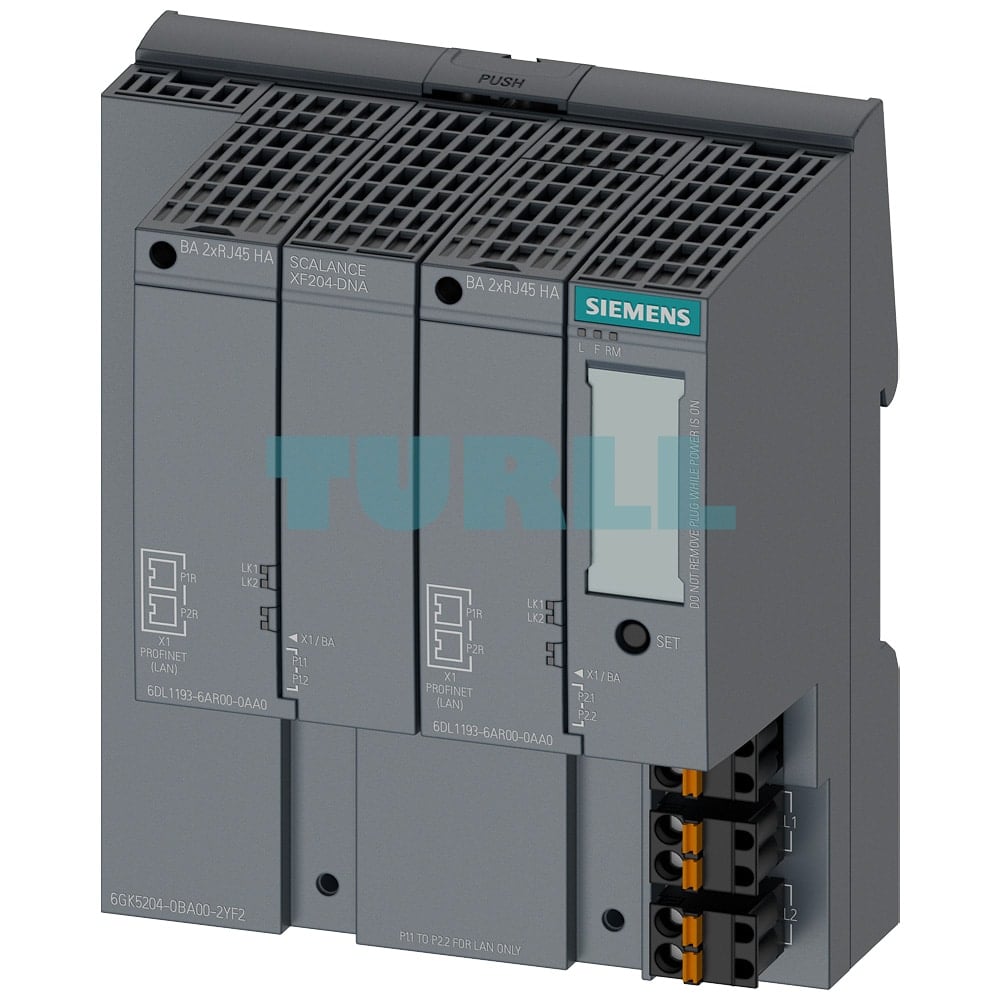

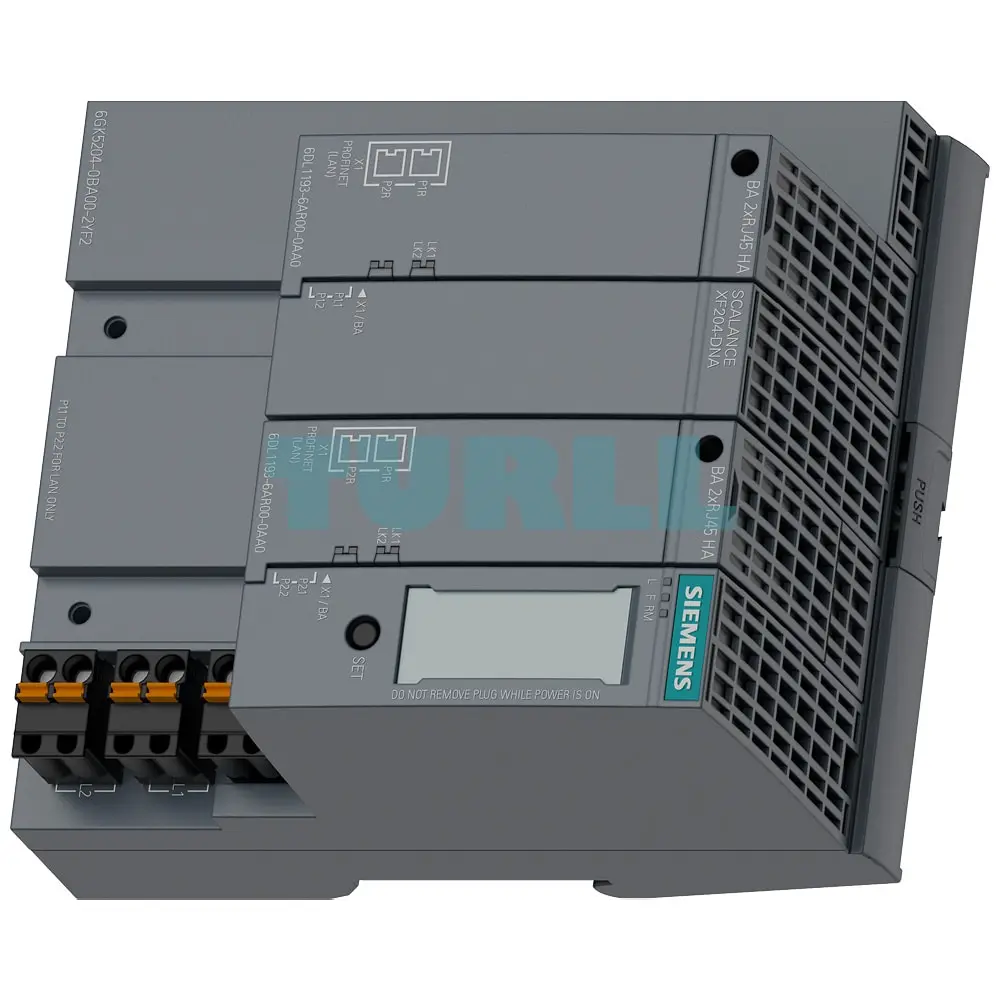

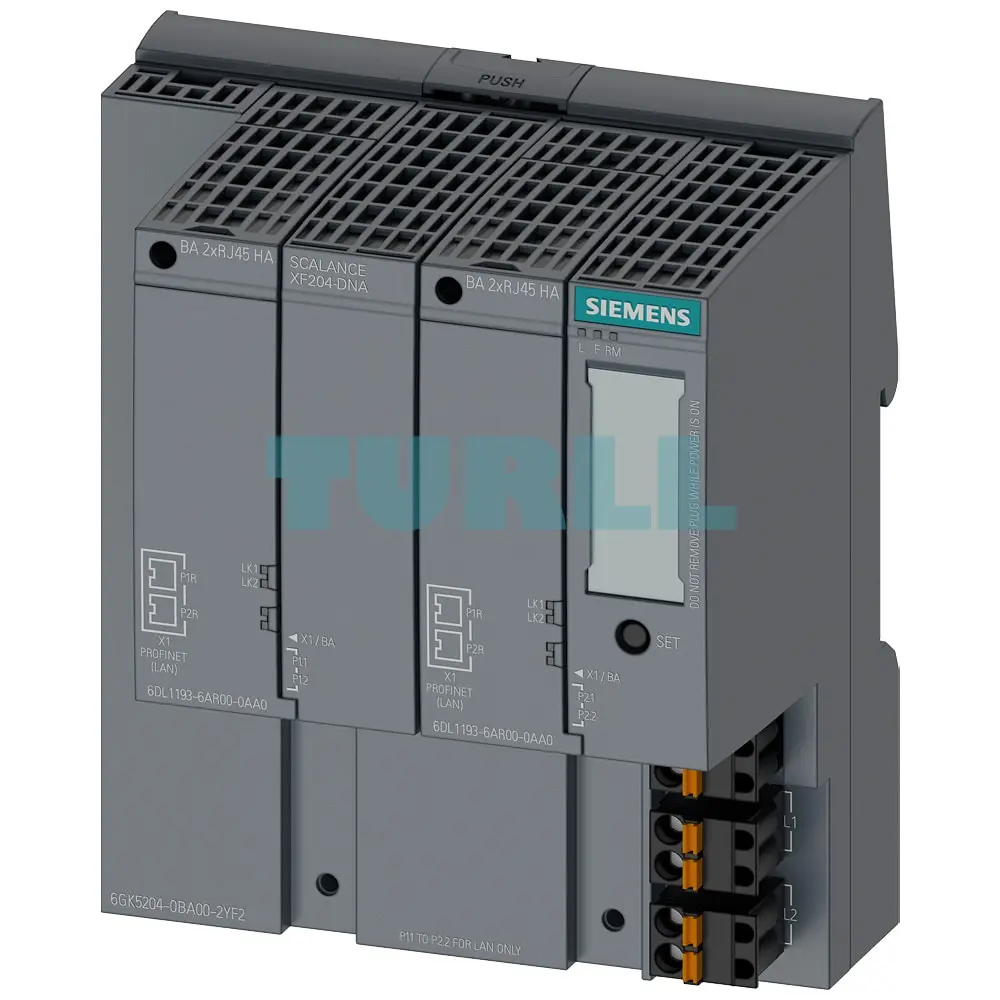

SCALANCE XF204-2BA DNA – delivered with 2x BusAdapters BA 2×RJ45 HA pre-installed
Design
- SIMATIC ET 200SP-style enclosure (100 mm width)
- IP20 rugged plastic housing for small cabinet integration
- Mounting via standard DIN rail
- LED diagnostics row: power, traffic, link, error, signal
- 4-pin power terminal for dual 24 V DC input
- SET pushbutton for signal mask setup
Port Types Available
- Through BusAdapters:
- RJ45 10/100 Mbps ports with autosensing/autocrossing
- Optional optical ports via SCRJ, LC, or FC adapters
Product code: 6GK5204-0BA00-2YF2
More Siemens products available at turll.com
| Weight | 0.385 kg |
|---|---|
| Dimensions | 190 × 250 × 141 mm |
