6GK5204-0GA00-1UF2 SIEMENS SCALANCE XF204G Layer 2 Managed Gigabit IE Switch Original Brand New

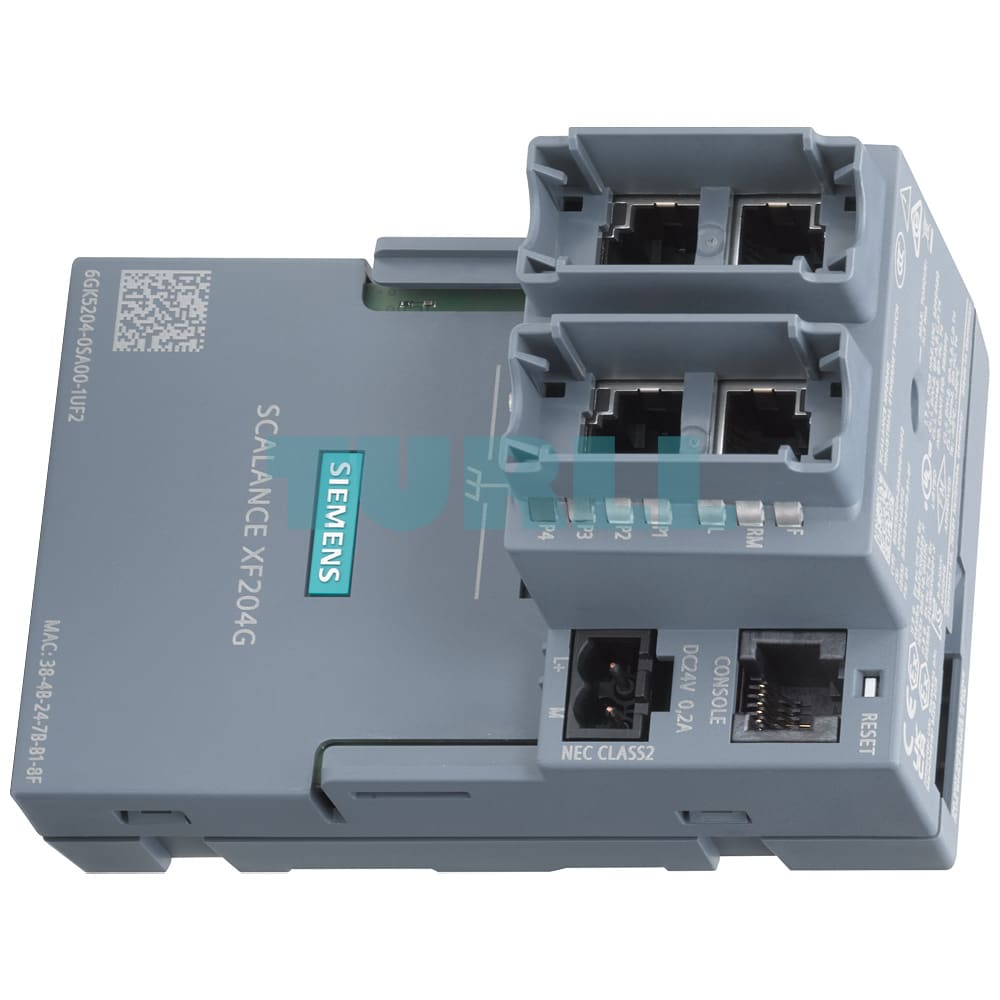

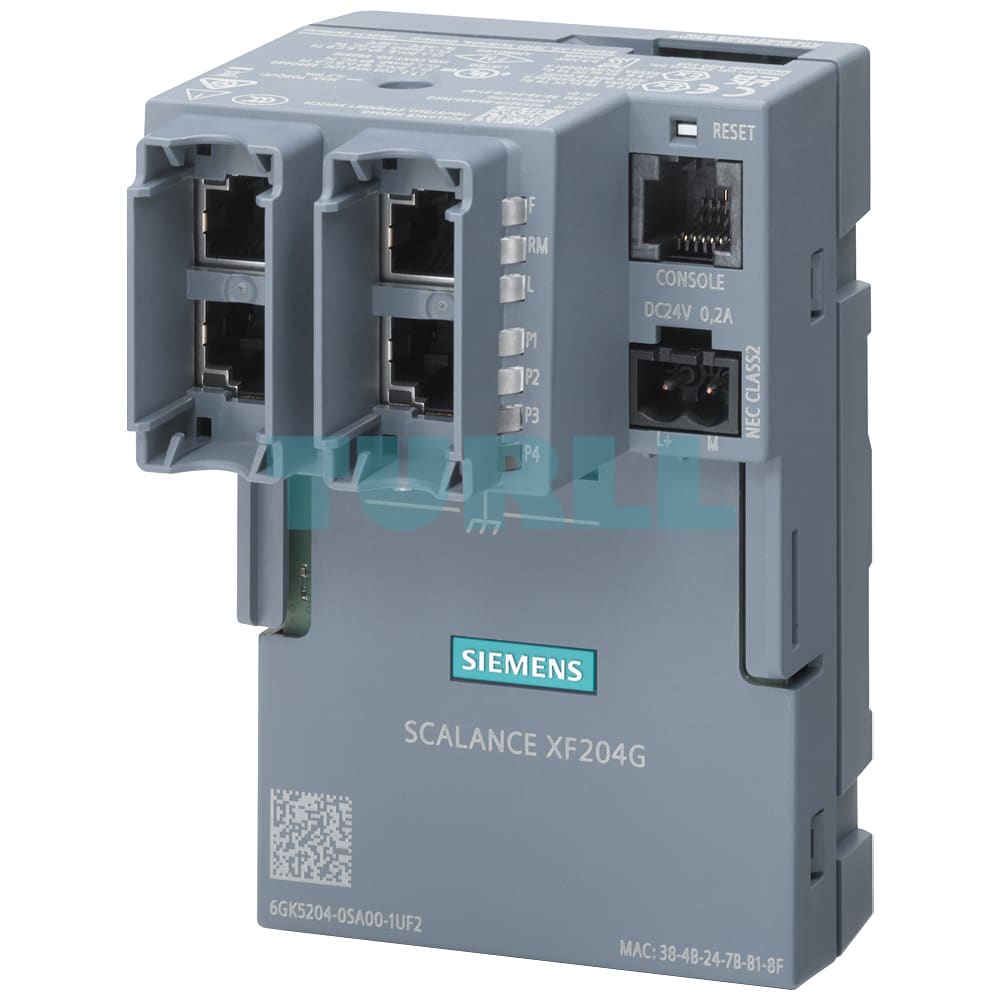

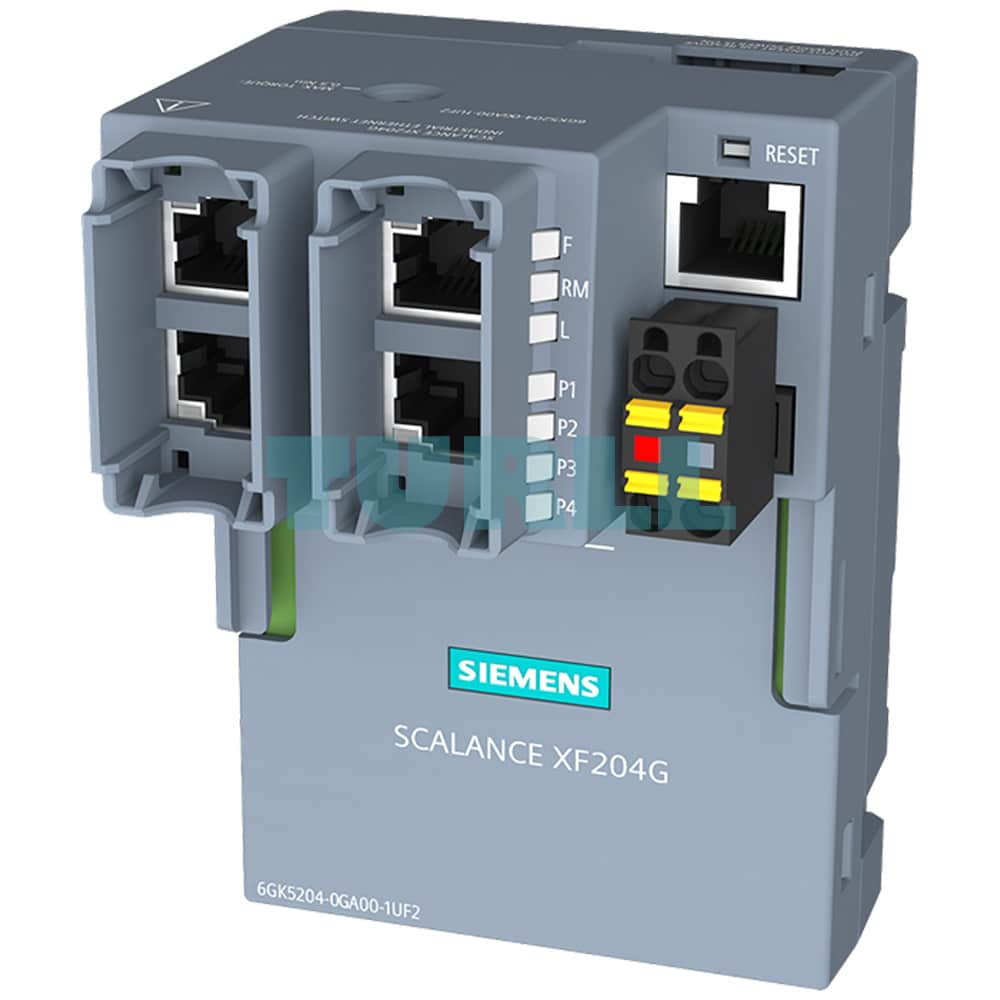

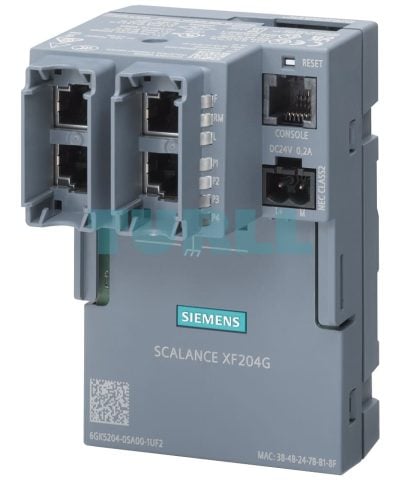

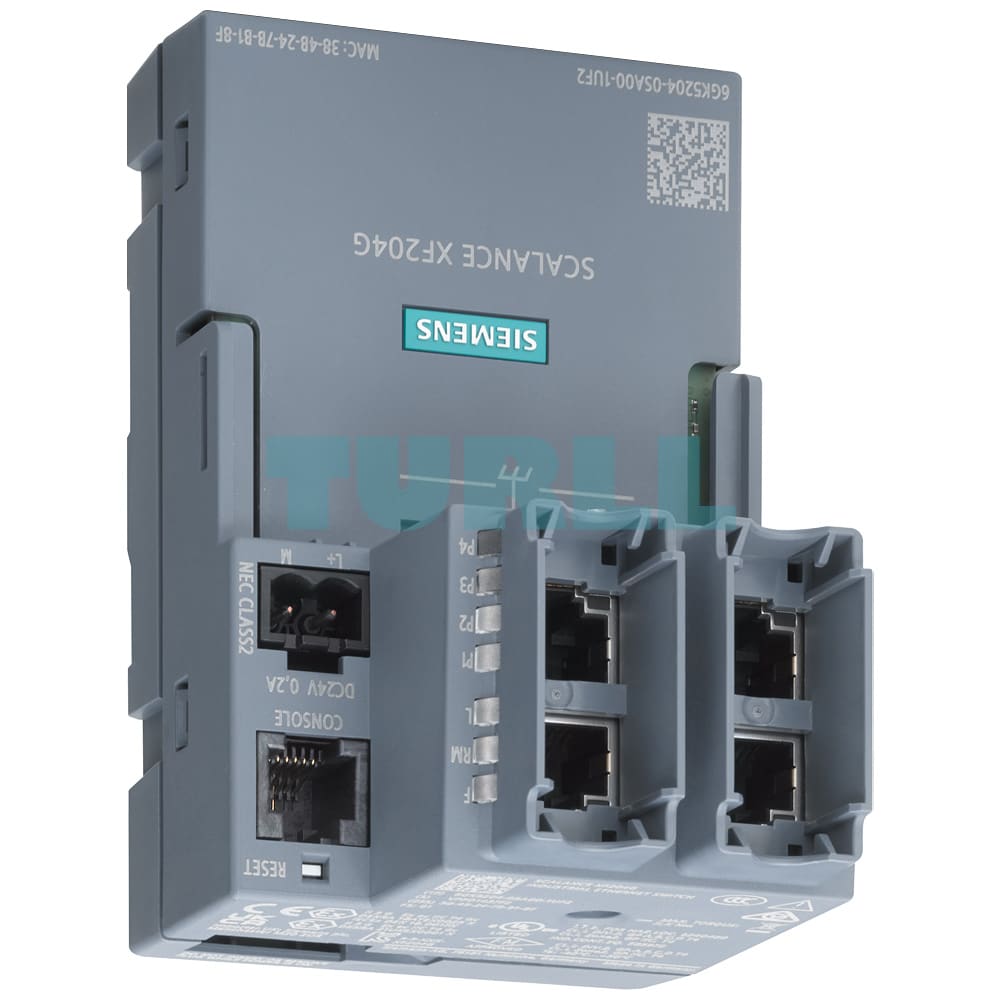

SIEMENS SCALANCE XF204G – 6GK5204-0GA00-1UF2

Managed Layer 2 Industrial Ethernet switch from the SCALANCE XF-200 series, equipped with 4x RJ45 ports supporting 10/100/1000 Mbps and 1x console port. Designed for DIN rail or wall mounting (holding plate sold separately), it supports PROFINET diagnostics, redundancy, and includes a C-PLUG slot. Operating temperature 0 °C to +60 °C.

Overview

SCALANCE XF204G is a compact gigabit-capable managed switch for configuring fast Ethernet or gigabit topologies in line, star, or ring layouts.

• 4x auto-negotiating RJ45 ports for high-speed data transmission
• Integrated Redundancy Manager for MRP fast media recovery
• Compact SIMATIC ET 200S-format housing fits small control panels
• Diagnostic access via PROFINET, SNMP, web server, and SINEC NMS
• Status and fault alerts via LED, SET button, or email notification
• Compatible accessories:
  • DIN rail holding plate: 6GK5980-2HA00-0AA1
  • Operator station mounting plate: 6GK5980-2HA10-0AA1

Product Variants

• SCALANCE XF204G – 4x RJ45 10/100/1000 Mbps (this unit)
• SCALANCE XF204 – 4x RJ45 10/100 Mbps
• SCALANCE XF204-2 – 4x RJ45 + 2x ST/BFOC
• SCALANCE XF206-1 – 6x RJ45 + 1x ST/BFOC
• SCALANCE XF208 – 8x RJ45 10/100 Mbps

Design

• IP20-rated slim-profile enclosure
• 4-pin terminal block for redundant 24 V DC supply
• 2-pin terminal for floating error signaling contact
• Diagnostic LED row: power, link status, data activity, signaling
• SET button for on-site signal configuration
• DIN rail/wall mounting supported (accessory required)

Port Types Available

• 4 x 10/100/1000BaseTX RJ45 ports
  • Autosensing/autocrossover
  • Supports IE FC RJ45 plug 180, up to 100 m
• 1 x Console port for configuration and diagnostics

Product code: 6GK5204-0GA00-1UF2
