6GK5206-1BC00-2AF2 SIEMENS SCALANCE XF206-1 Flat Managed IE Switch with Fiber Port Original Brand New

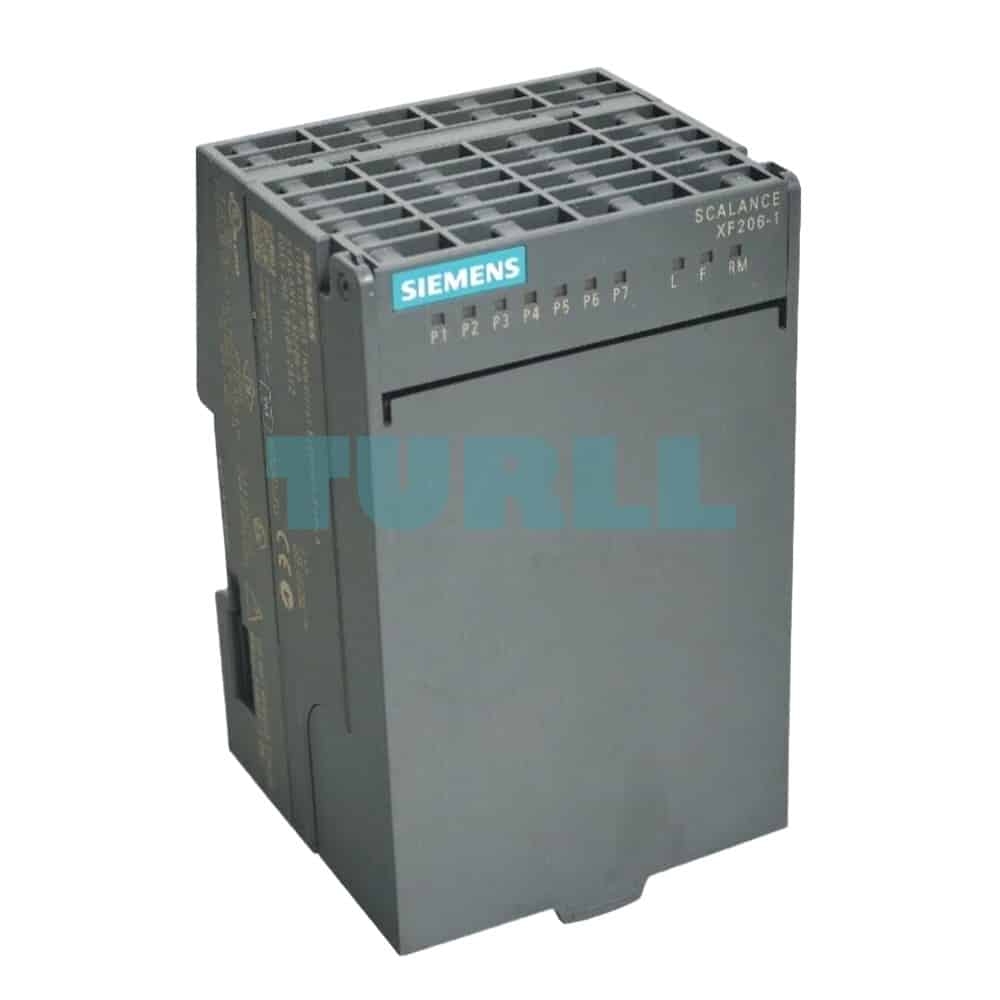

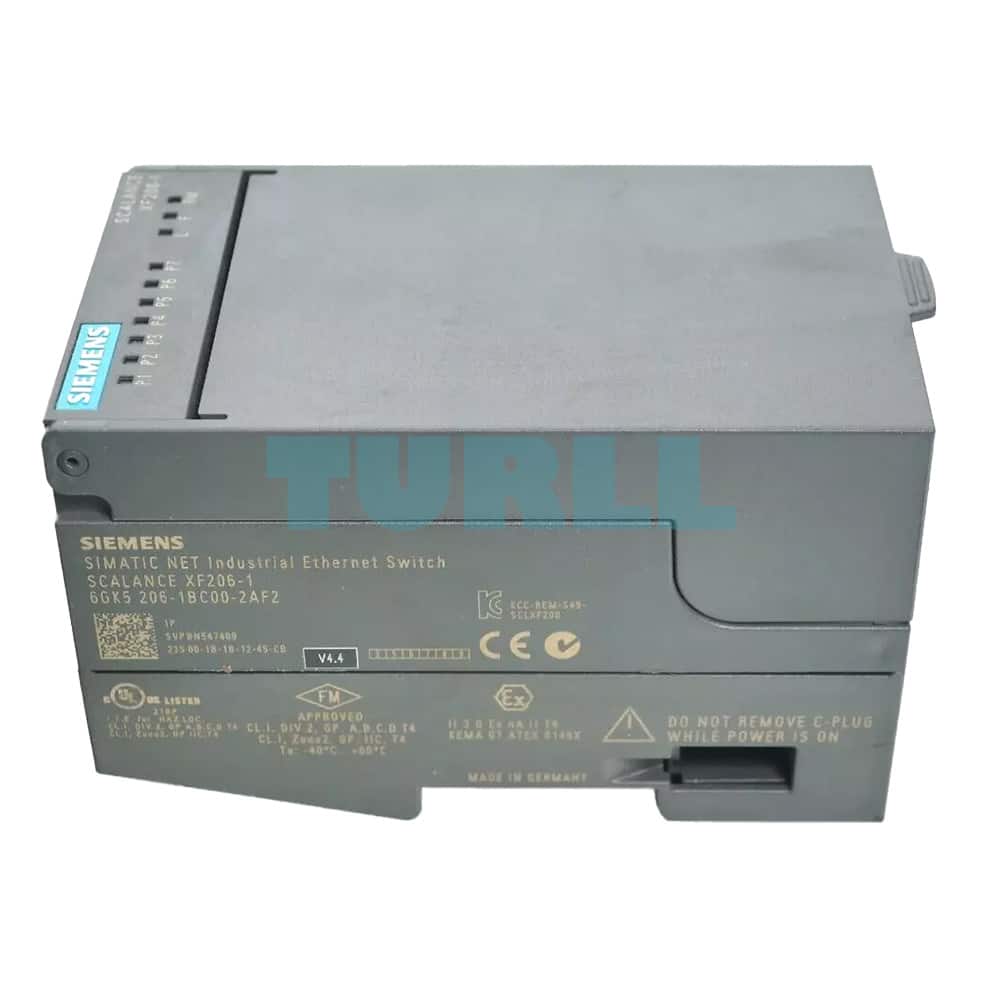

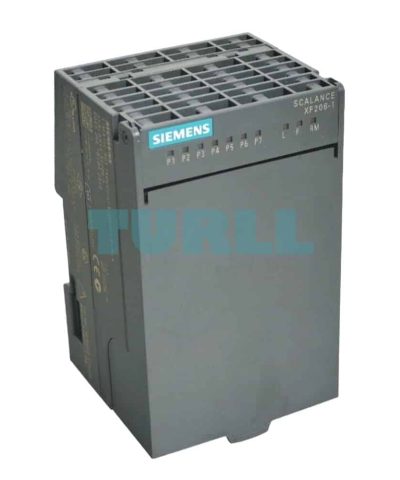

SIEMENS SCALANCE XF206-1 – 6GK5206-1BC00-2AF2

Managed flat-form Industrial Ethernet switch from the SCALANCE XF-200 family, equipped with 6x 10/100 Mbps RJ45 ports and 1x 100 Mbps ST/BFOC fiber port. Includes Redundancy Manager, error signaling contact with configurable SET button, redundant 24 V DC power input, and PROFINET IO diagnostics. Supplied with electronic manual on CD-ROM. C-PLUG optional.

Overview

SCALANCE XF206-1 is designed for compact, high-reliability control cabinet integration. It enables line, star, or ring topologies with both copper and fiber interfaces for enhanced flexibility.

• Built-in Redundancy Manager for MRP recovery
• ST/BFOC fiber port for EMI-resilient long-range networking
• Diagnostic access via SNMP, integrated web server, or SINEC NMS
• Durable, secure RJ45 latch system for vibration-prone environments
• Ideal for integration with SIMATIC ET 200S

Product Variants

• XF206-1 (this unit): 6x RJ45 + 1x ST/BFOC
• XF204-2: 4x RJ45 + 2x ST/BFOC
• XF204G: 4x RJ45 10/100/1000 Mbps
• XF204 / XF208: 4 or 8 RJ45 10/100 Mbps

Design

• SIMATIC ET 200S-style slim housing for small panels
• DIN rail installation (IP20 rated)

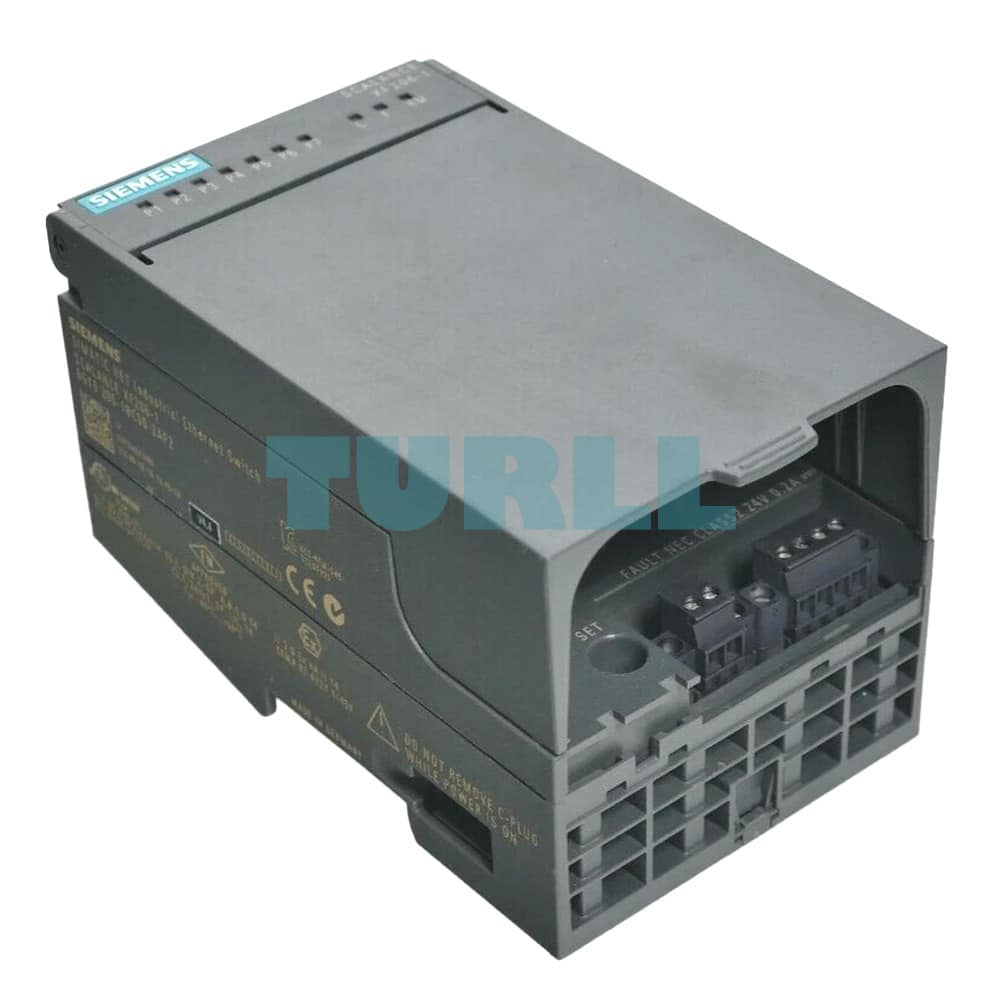

• 4-pin terminal for dual 24 V DC supply
• 2-pin floating contact terminal for error signaling
• LED row for real-time status (power, data, link, signal)
• Local diagnostics control via SET button

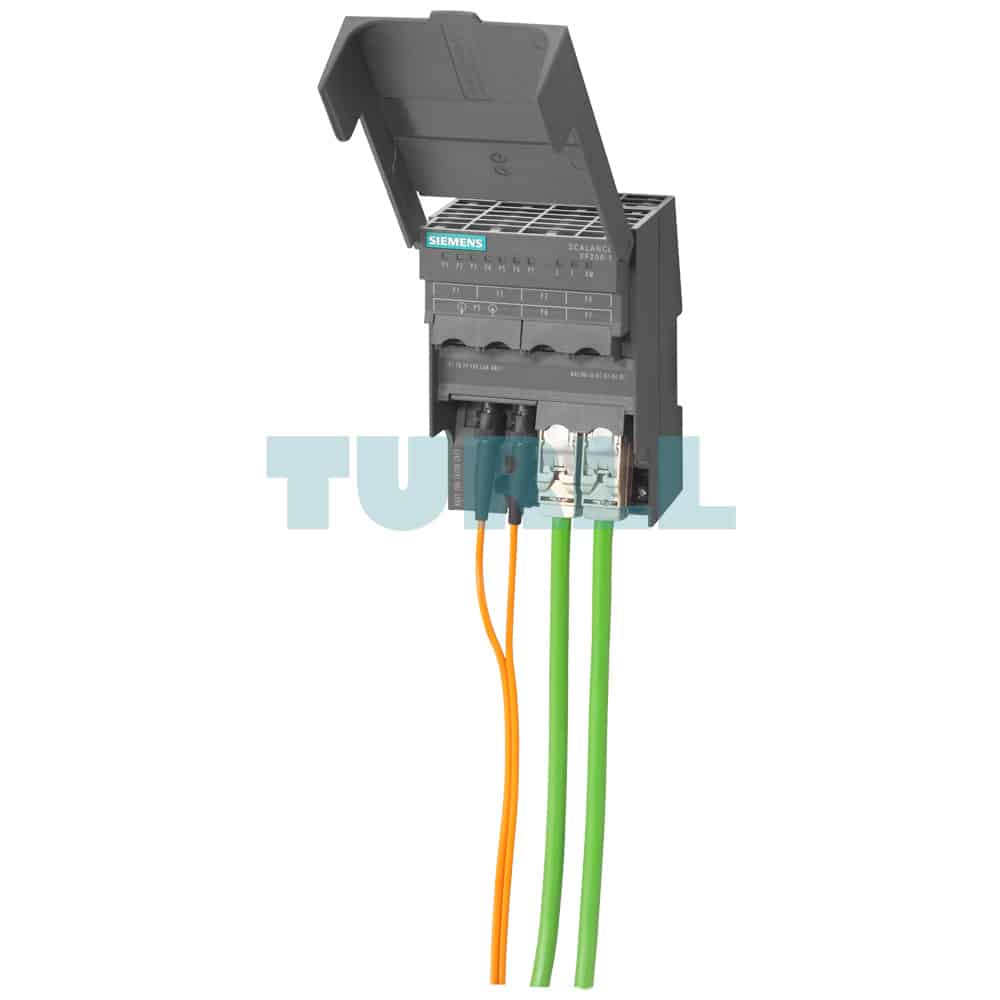

Port Types Available

• 6 x 10/100BaseTX RJ45 ports
  • Auto-negotiation / autocrossover
• 1 x 100BaseFX ST/BFOC fiber port
  • Multimode fiber support up to 5 km

Product code: 6GK5206-1BC00-2AF2
