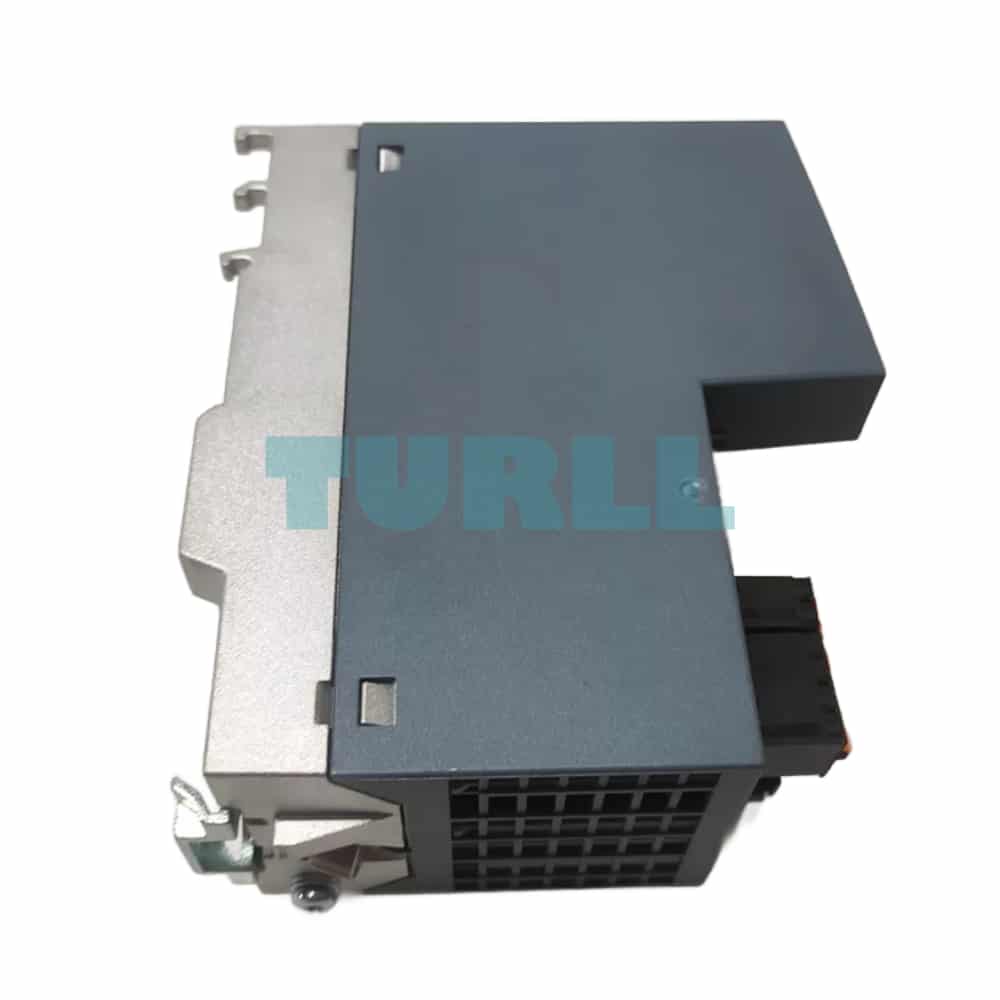

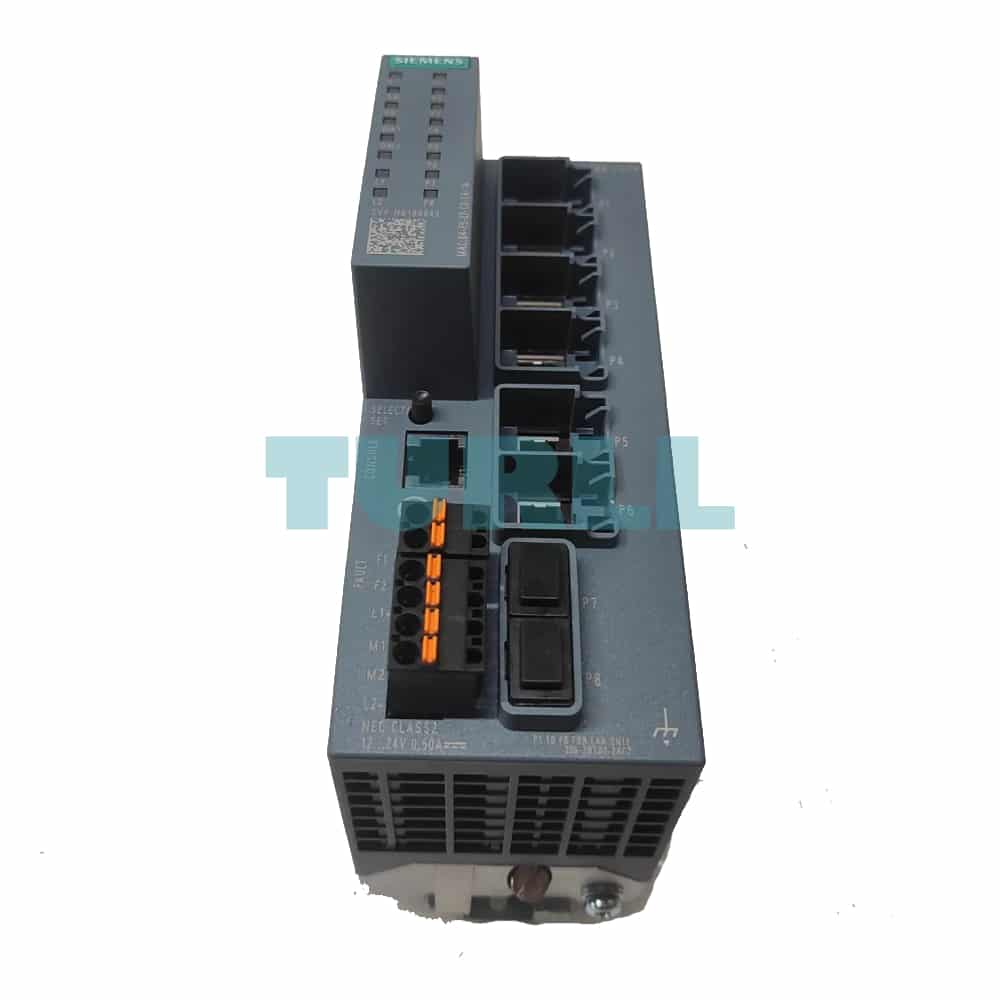

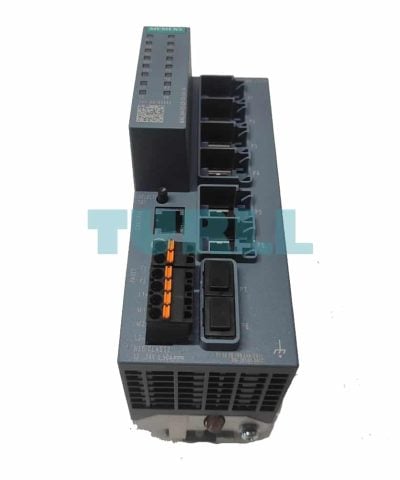

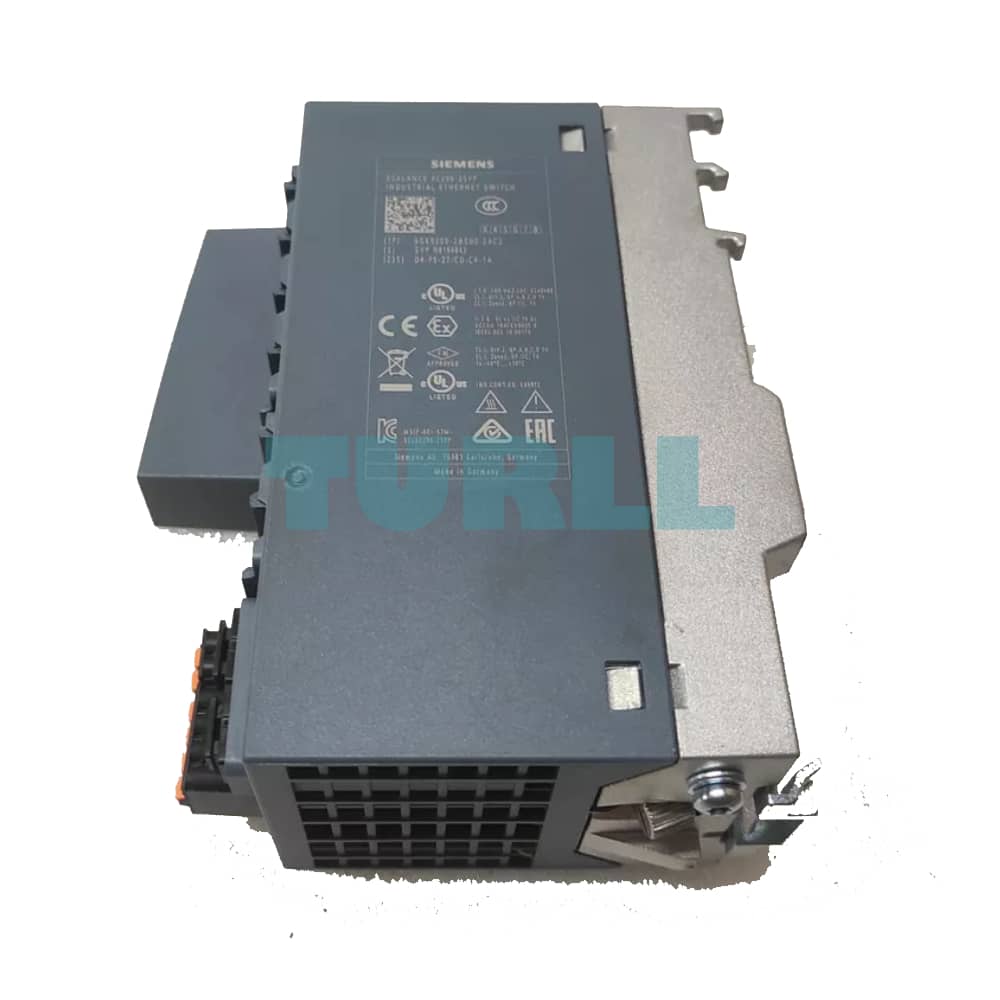

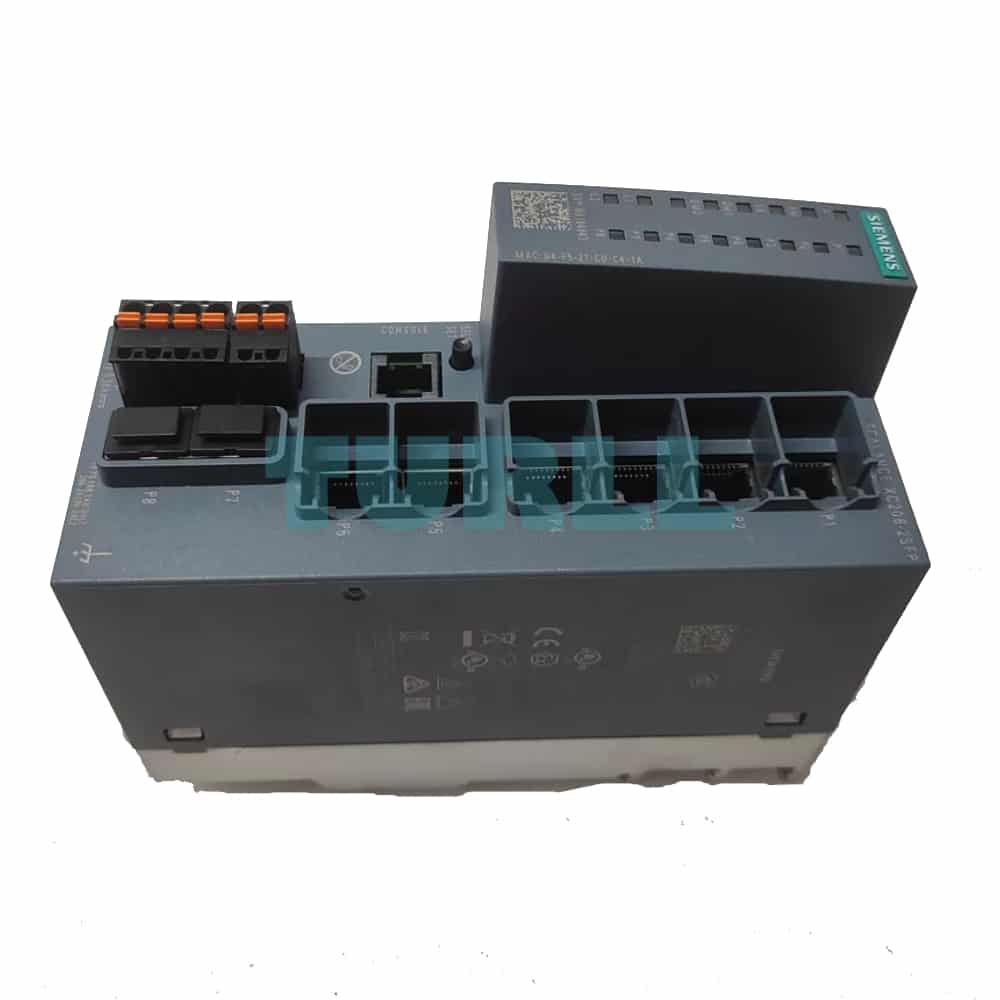

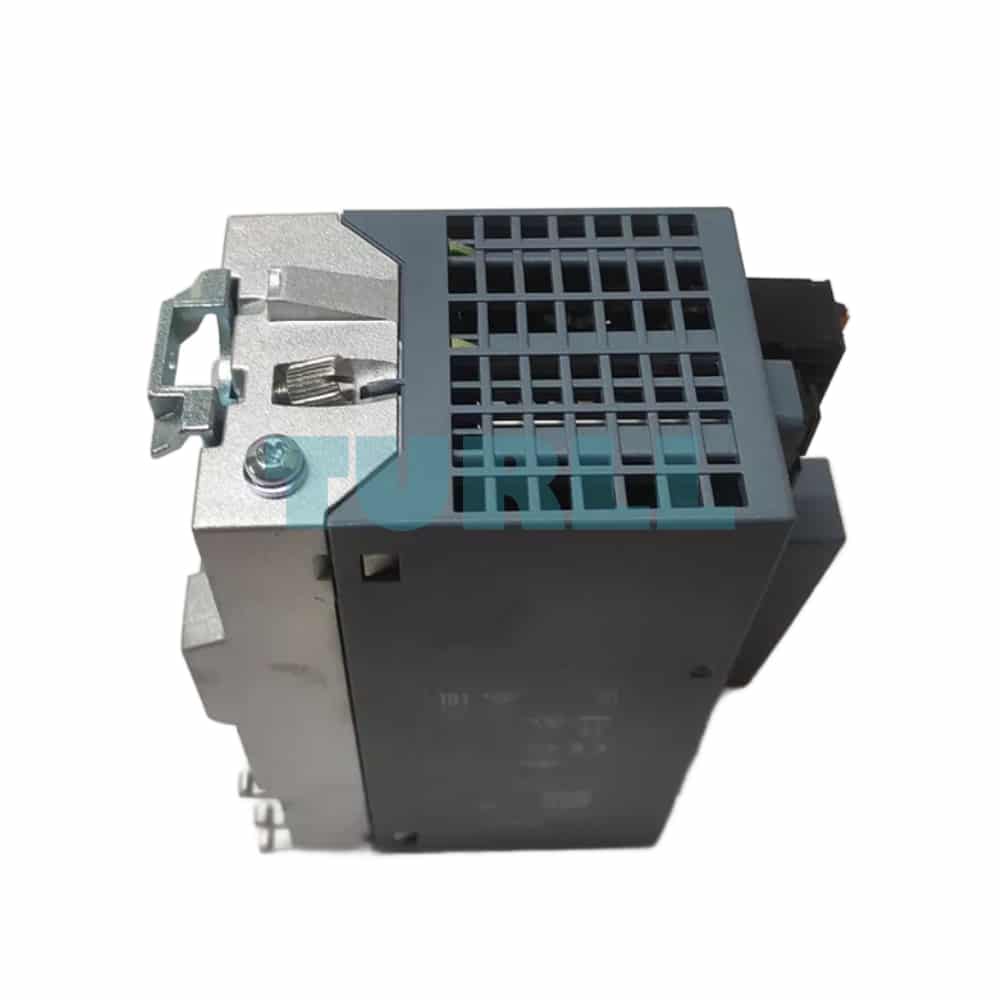

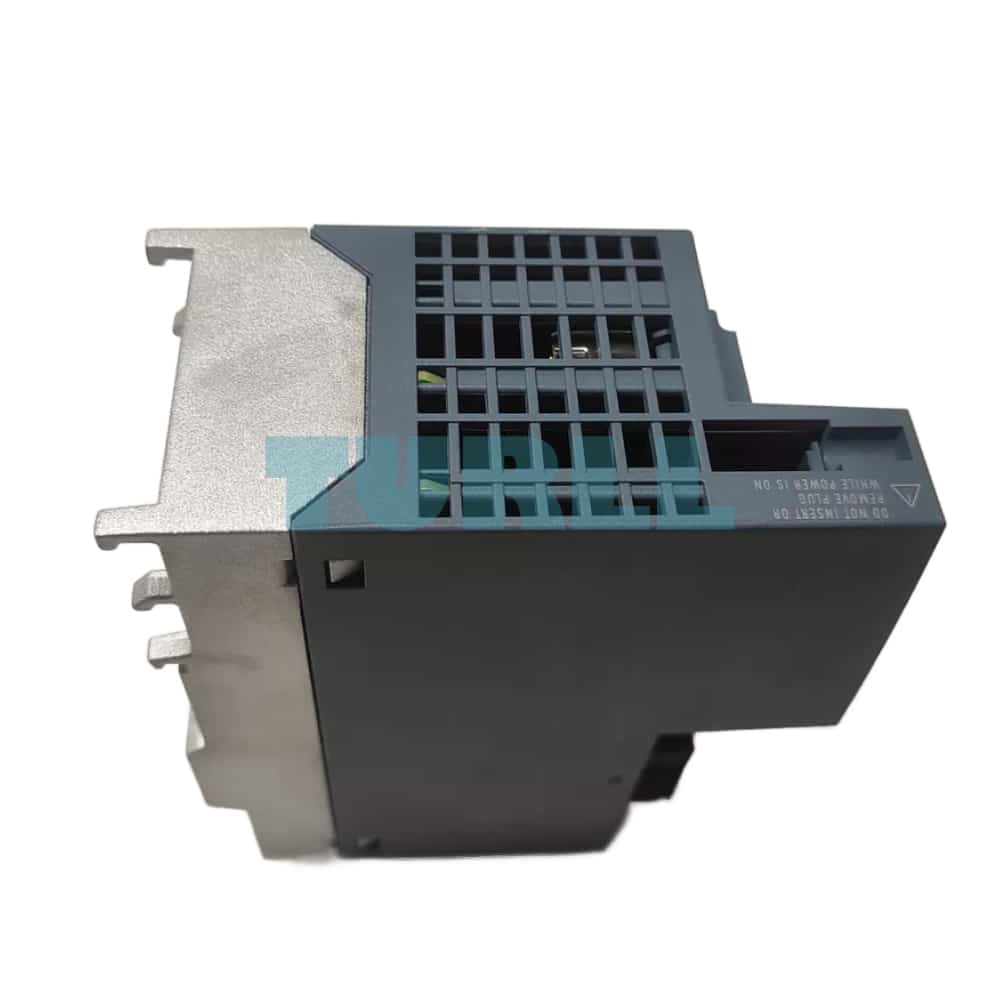

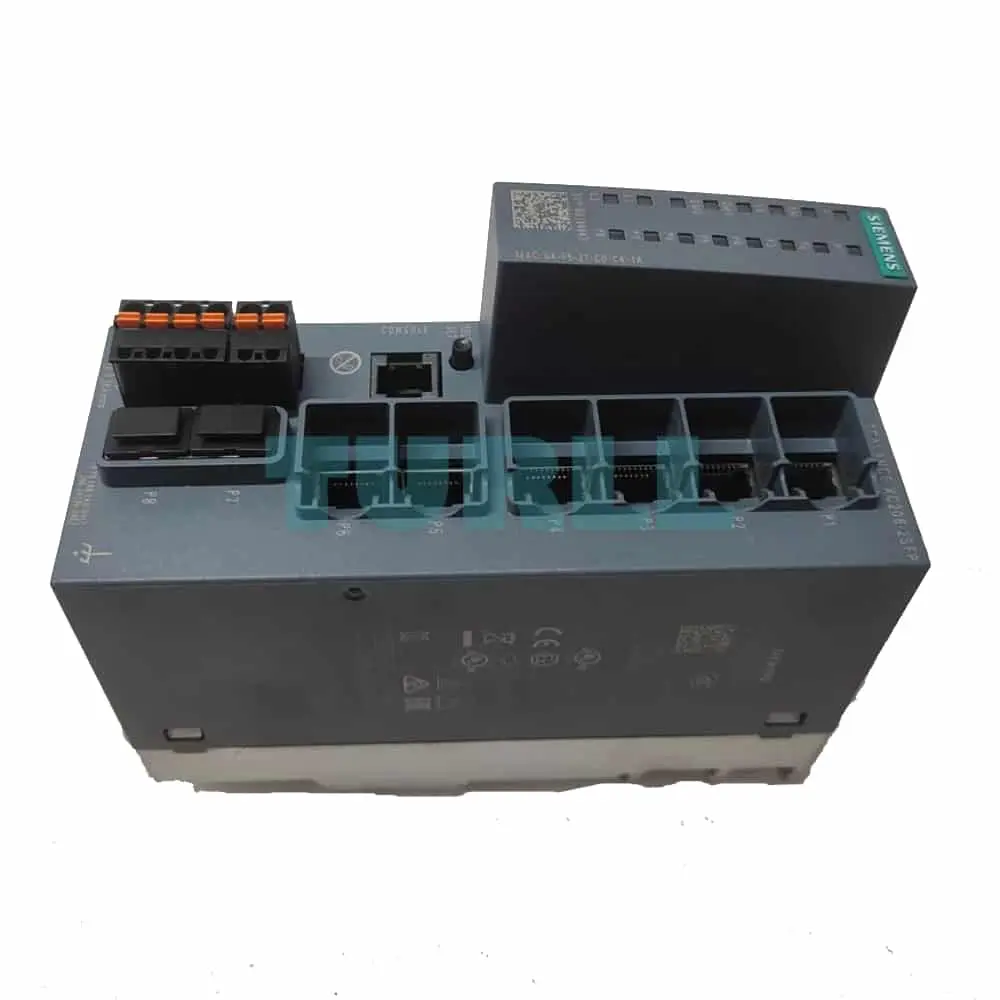

6GK5206-2BS00-2AC2 Siemens SCALANCE XC206-2SFP Original Brand New

The managed Industrial Ethernet switches of the SCALANCE XC-200 product line are optimized for setting up Industrial Ethernet networks with data transfer rates of 10/100/1000 Mbps as well as 2 x 10 Gbps (SCALANCE XC206-2G PoE and XC216-3G PoE only) in line, star and ring topology. More information:

• Rugged enclosure in SIMATIC S7-1500 format, for mounting on DIN rails and SIMATIC S7-300 and S7-1500 mounting rails, or for direct wall mounting
• Electrical or optical connection to stations or networks according to port characteristics of the devices
• Versions with transfer rates up to 10 Gbps optical or 1 Gbps electrical
• Combo ports for the flexible use of interfaces: A combo port consists of an electric port and an SFP slot. Only one of the two ports can ever be active. If an SFP plug-in transceiver is inserted, the electric port is deactivated
• Rugged station connections with industry-standard RJ45 plug-in connectors that offer additional strain and bending strain relief thanks to latching on the enclosure
• Redundant power supply
• Console port for direct access to device
• Display of comprehensive operating mode and status information via LEDs and selection pushbuttons
• Signaling contact for connecting to an error signaling system
• Slot for optional C-PLUG removable data storage medium for easy device replacement without additional equipment such as a Field PG
• Grounding screw for external ground connection
• Flexible use in the automation environment due to switchover between the two industry protocols PROFINET and EtherNet/IP in the device
• Extensive diagnostics options: Full integration in PROFINET and EtherNet/IP diagnostics, SNMP access, integrated web server and automatic email transmission function for remote diagnostics and signaling via the network
• Integration into the SINEC NMS Network Management System for end-to-end network diagnostics with central firmware management
• Virtual LANs (VLAN) for easy structuring of large networks into smaller, logical subnetworks. Reasons for the subdivision into logical subnetworks are, for example, separation of the Ethernet networks to reduce the broadcast load, separation of sensitive areas from the main network, and subdivision of the network into logical working groups
• By learning the multicast sources and destinations (IGMP, Internet Group Management Protocol Snooping), SCALANCE XC-200 switches can also filter multicast data traffic and thus limit the load on the network
• Integrated security functions offer protection against unauthorized network access and configuration (e.g. authentication via IEEE 802.1X/ RADIUS)
• The PoE versions support Power over Ethernet (PoE). This allows nodes such as WLAN access points (e.g. SCALANCE W) or cameras (e.g. SIMATIC MV500) to be supplied with power in addition to data. Depending on the version, the PoE switches are supplied with power either via 24 V DC or via 54 V DC.
• A PoE power budget of 120 W is available for the PoE 24 V DC versions. With the 54 V DC versions, a power budget of up to 300 W can be realized using a 54 V DC power supply. The available power budget can be distributed to the PoE ports as required. Up to 30 W power per port according to IEEE802.3at and up to 60 W power according to IEEE802.3bt are supported with 2x PoE ports
• Technical inspectorate certification according to IEC 62443-4-2 for implementing secure system architectures.

Product versions

Switches with PROFINET delivery state:

• Switches with electrical ports:
  • SCALANCE XC208;
    With 8x RJ45 ports 10/100 Mbps, for mounting in control cabinet
  • SCALANCE XC208G;
    With 8x RJ45 ports 10/100/1000 Mbps, for mounting in control cabinet
  • SCALANCE XC216;
    With 16x RJ45 ports 10/100 Mbps, for mounting in the control cabinet
  • SCALANCE XC224;
    With 24x RJ45 ports 10/100 Mbps, for mounting in the control cabinet
• Switches with electrical and optical ports:
  • SCALANCE XC206-2;
    With 6x RJ45 ports 10/100 Mbps and 2x ST/BFOC ports 100 Mbps
  • SCALANCE XC206-2;
    With 6x RJ45 ports 10/100 Mbps and 2x SC ports 100 Mbps
  • SCALANCE XC206-2SFP;
    With 6x RJ45 ports 10/100 Mbps and 2x SFP plug-in transceivers with 100 or 1000 Mbps
  • SCALANCE XC206-2SFP G;
    With 6x RJ45 ports 10/100/1000 Mbps and 2x SFP plug-in transceivers 1000 Mbps
  • SCALANCE XC216-4C;
    With 12x RJ45 ports 10/100 Mbps and 4x Gigabit combo ports
    (either 10/100/1000 Mbps RJ45 port or SFP plug-in transceiver 1000 Mbps can be used)
  • SCALANCE XC216-4C G;
    With 12x RJ45 ports 10/100/1000 Mbps and 4x Gigabit combo ports
    (either 10/100/1000 Mbps RJ45 port or SFP plug-in transceiver 1000 Mbps can be used)
  • SCALANCE XC224-4C G;
    With 20x RJ45 ports 10/100/1000 Mbps and 4x Gigabit combo ports
    (either 10/100/1000 Mbps RJ45 port or SFP plug-in transceiver 1000 Mbps can be used)
• Switches with EtherNet/IP delivery state:
  • SCALANCE XC206-2SFP G;
    With 6x RJ45 ports 10/100/1000 Mbps and 2x SFP plug-in transceivers 1000 Mbps
  • SCALANCE XC208G;
    With 8x RJ45 ports 10/100/1000 Mbps, for mounting in control cabinet
  • SCALANCE XC216-4C G;
    With 12x RJ45 ports 10/100/1000 Mbps and 4x Gigabit combo ports
    (either 10/100/1000 Mbps RJ45 port or SFP plug-in transceiver 1000 Mbps can be used)
  • SCALANCE XC224-4C G;
    With 20x RJ45 ports 10/100/1000 Mbps and 4x Gigabit combo ports
    (either 10/100/1000 Mbps RJ45 port or SFP plug-in transceiver 1000 Mbps can be used)
• PoE switches with delivery state PROFINET with 24 V DC infeed (PoE power budget 120 W):
  • SCALANCE XC206-2G PoE;
    With 2x SFP ports: Support for 1000 or 10,000 Mbps SCALANCE SFPs and 6x PoE RJ45 ports 10/100/1000 Mbps,
    2x of which up to 60 W per PoE port (802.3bt) and 4x of which up to 30 W per PoE port (802.3at)
  • SCALANCE XC208G PoE;
    With 2x RJ45 10/100/1000 Mbps and 6x PoE RJ45 ports 10/100/1000 Mbps,
    2x of which 60 W per PoE port (802.3bt) and 4x of which up to 30 W per PoE port (802.3at)
  • SCALANCE XC216-3G PoE;
    With 3x SFP ports: 2x support for 1000 or 10,000 Mbps SCALANCE SFPs and 1x 1000 Mbps SCALANCE SFP and 2x RJ45 10/100/1000 Mbps and 14x PoE RJ45 ports 10/100/1000 Mbps, 2x of which up to 60 W per PoE port (802.3bt) and 12x of which up to 30 W per PoE port (802.3at)
• PoE switches with delivery state PROFINET with 54 V DC infeed (PoE power budget: 300 W):
  • SCALANCE XC206-2G PoE;
    With 2x SFP ports: Support for 1000 or 10,000 Mbps SCALANCE SFPs and 6x PoE RJ45 ports 10/100/1000 Mbps,
    2x of which up to 60 W per PoE port (802.3bt) and 4x of which up to 30 W per PoE port (802.3at)
  • SCALANCE XC208G PoE;
    with 2x RJ45 10/100/1000 Mbps and 6x PoE RJ45 ports 10/100/1000 Mbps,
    2x of which up to 60 W per PoE port (802.3bt) and 4x of which up to 30 W per PoE port (802.3at)
  • SCALANCE XC216-3G PoE;
    With 3x SFP ports: 2x support for 1000 or 10,000 Mbps SCALANCE SFPs and 1x 1000 Mbps SCALANCE SFP and 2x RJ45 10/100/1000 Mbps and 14x PoE RJ45 ports 10/100/1000 Mbps, 2x of which up to 60 W per PoE port (802.3bt) and 12x of which up to 30 W per PoE port (802.3at)

Benefits

• Operational reliability in industrial environments, e.g. due to rugged enclosure, redundancy, temperature range from -40 °C to +70 °C
• Increased plant availability thanks to:
  • Redundant power supply
  • Redundant network structures based on fast media redundancy HRP and MRP
  • Standby redundancy between HRP rings
  • Redundant coupling of MRP rings with MRP interconnection
  • Prevention of loops by standard STP, RSTP and MSTP mechanisms, and loop detection
  • Improved reconfiguration times for redundant connection of MRP rings in RSTP networks through RSTP+ function
  • SFP plug-in transceivers can be replaced or expanded during operation
  • Easy device replacement by means of plug-in C‑PLUG removable data storage medium
  • Link aggregation (IEEE 802.3ad) for parallel use of ports to increase transfer rate and failure safety
• Easy monitoring and diagnostics due to separate diagnostics station with integrated LEDs, signaling contact, web browser, traps and email transmission
• Integration into the SINEC NMS network management system for integrated network diagnostics with central firmware management
• Reduced engineering expenditure for PLC/HMI due to integration into the SIMATIC system fault message concept
• Configuration in the TIA Portal as well as in web-based management (WBM)
• Easy integration in process and system diagnostics with PROFINET or EtherNet/IP
• Integration of SCALANCE XC-200 switches in existing network management systems, such as SINEC NMS, through SNMP access
• Easy integration in the process and system diagnostics with PROFINET via SIMATIC PCS 7 and PCS neo
• Reliable plug-in connection thanks to rugged, industry-standard device connection in conjunction with industry-standard FastConnect connectors
• Integration of switches through support of S2 system redundancy and H-Sync in SIMATIC S7-1500R/H systems
• Easy and cost-saving supply of connected cameras (e.g. SIMATIC MV500 IP or Ident cameras), WLAN access points (e.g. SCALANCE W) or localization components (e.g. SIMATIC RTLS gateways) with data and power on a single cable by using the PoE standard (Power over Ethernet, PoE versions)
• Optimal use of PoE power budget through PoE Power Management. The available PoE power budget can be distributed by the user to the PoE ports as desired
• Realization of high-performance networks over long distances
