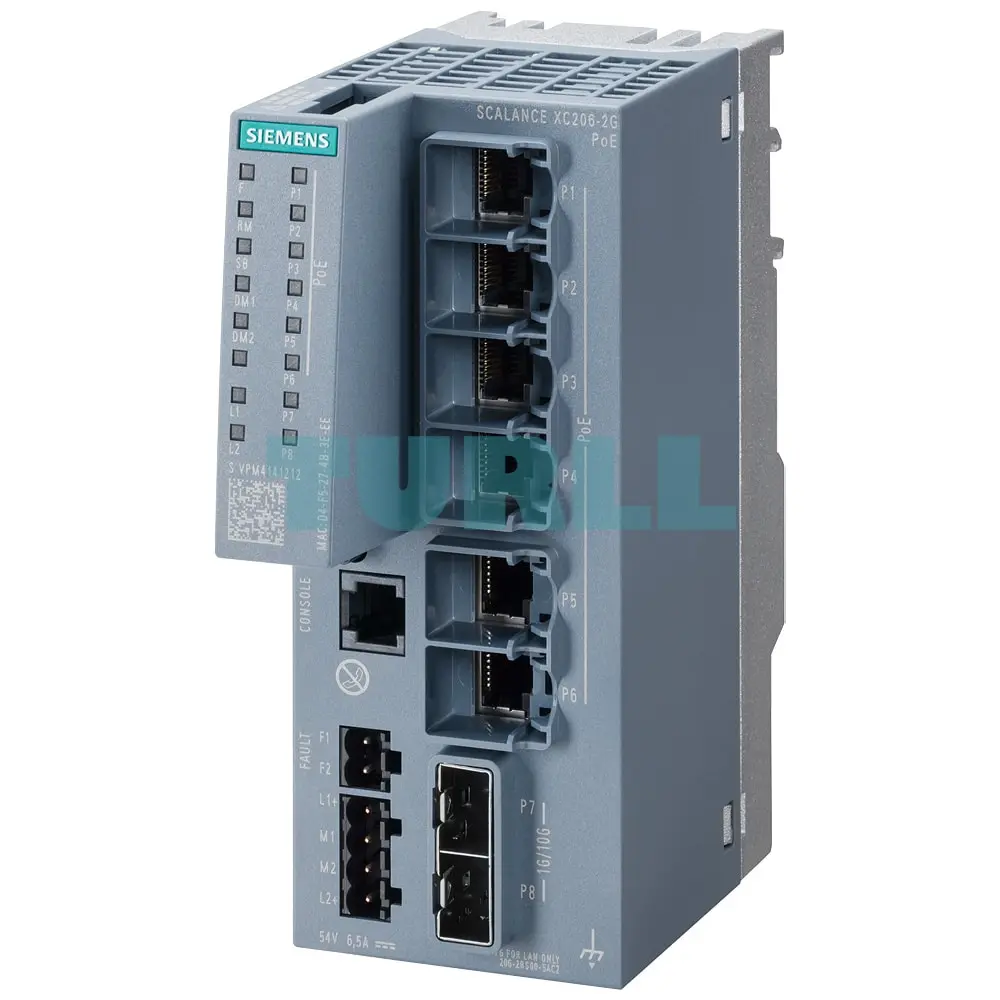

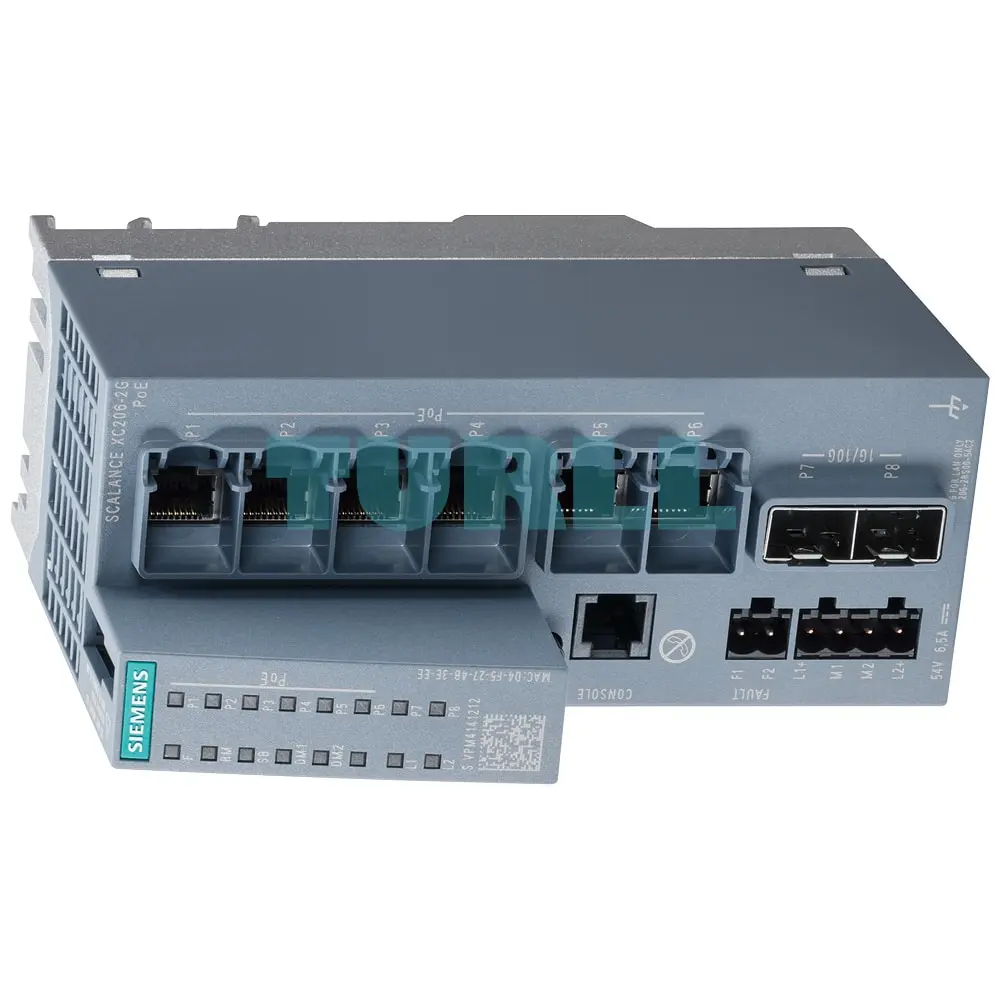

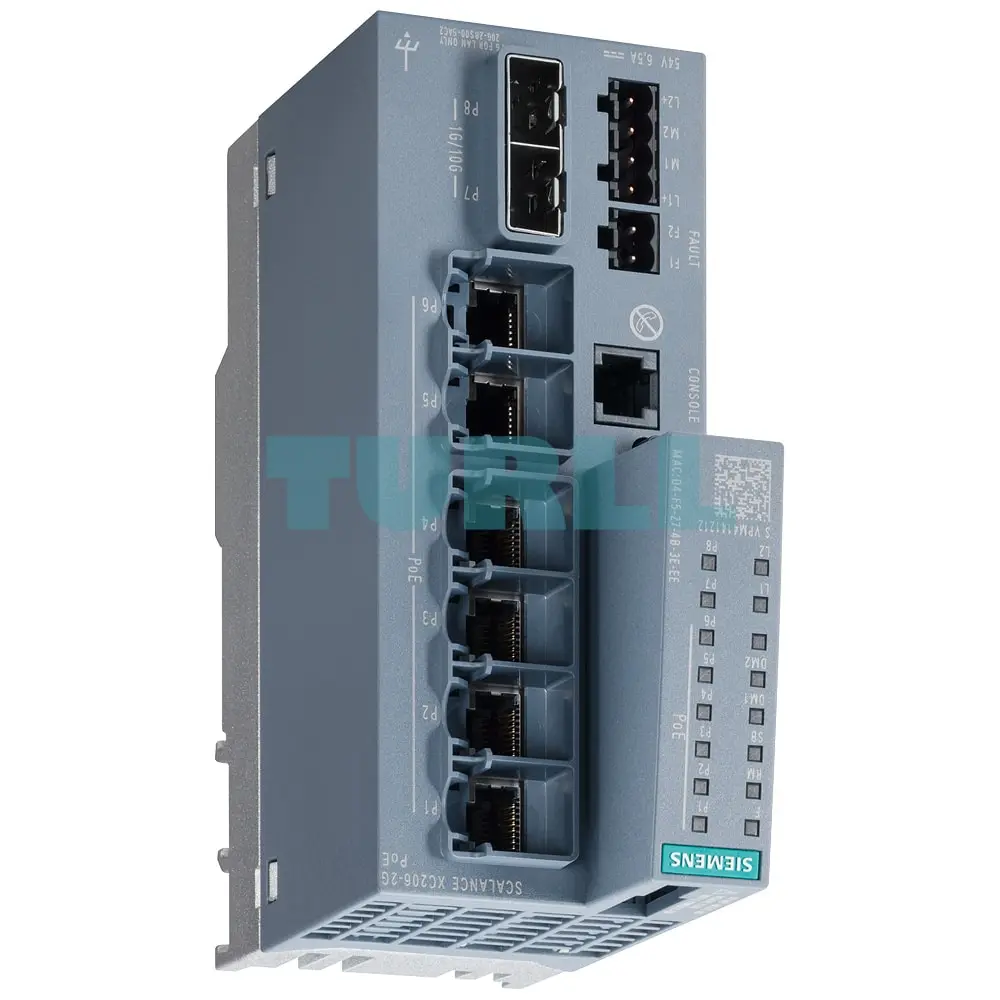

6GK5206-2RS00-5AC2 SIEMENS SCALANCE XC206-2G PoE Exclusive Managed IE Switch Brand New Original

6GK5206-2RS00-5AC2 SIEMENS SCALANCE XC206-2G PoE Exclusive Managed IE Switch Brand New Original

SCALANCE XC206-2G PoE manageable Layer 2 IE PoE switch; IEC 62443-4-2 certified; 6x 10/100/1000 Mbps RJ45 PoE ports (IEEE802.3at); 2 ports support IEEE802.3bt; 2x 1,000/10,000 Mbps SFP+; PoE support for 54 V DC infeed; 240 W PoE power budget; 1x console port; diagnostics LED; redundant power supply; temperature range -40 °C to +60 °C; DIN rail/S7/wall mounting; redundancy functions; VLAN, RSTP; PROFINET and EtherNet/IP compliant; C-PLUG slot; IEEE 1588v2 PTP

Overview

The Siemens SCALANCE XC206-2G PoE (6GK5206-2RS00-5AC2) is an exclusive managed Layer 2 Industrial Ethernet switch with integrated Power over Ethernet (PoE), designed for high-speed, secure, and power-distributed industrial networks. It features six RJ45 PoE ports supporting 10/100/1000 Mbps, including two ports compliant with IEEE802.3bt for up to 60 W per port, and two SFP+ slots supporting 1 Gbps and 10 Gbps fiber connectivity.

This model supports 54 V DC PoE infeed with a total power budget of 240 W, distributed across all PoE ports. Certified to IEC 62443-4-2, it ensures robust cybersecurity and supports both PROFINET and EtherNet/IP protocols. With IEEE 1588v2 PTP support, it enables precise time synchronization for automation systems.

The rugged housing supports DIN rail, SIMATIC S7-300/S7-1500, or wall mounting. Additional features include redundant power supply, C-PLUG slot for fast replacement, and advanced diagnostics via LEDs, SNMP, web interface, and console port. The XC206-2G PoE is an exclusive solution for industrial Ethernet infrastructure requiring high power, high speed, and high reliability.

Key Features

• 6 x 10/100/1000 Mbps RJ45 PoE ports (IEEE802.3at/3bt)
• 2 x 1,000/10,000 Mbps SFP+ fiber ports
• 240 W PoE power budget (54 V DC infeed)
• IEC 62443-4-2 certified for industrial cybersecurity
• IEEE 1588v2 PTP support for time synchronization
• PROFINET and EtherNet/IP protocol support
• Redundant power supply and C-PLUG slot
• Operating temperature: –40 °C to +60 °C
• DIN rail, SIMATIC S7, or wall mounting
• VLAN, RSTP, and redundancy functions

Product Code: 6GK5206-2RS00-5AC2
