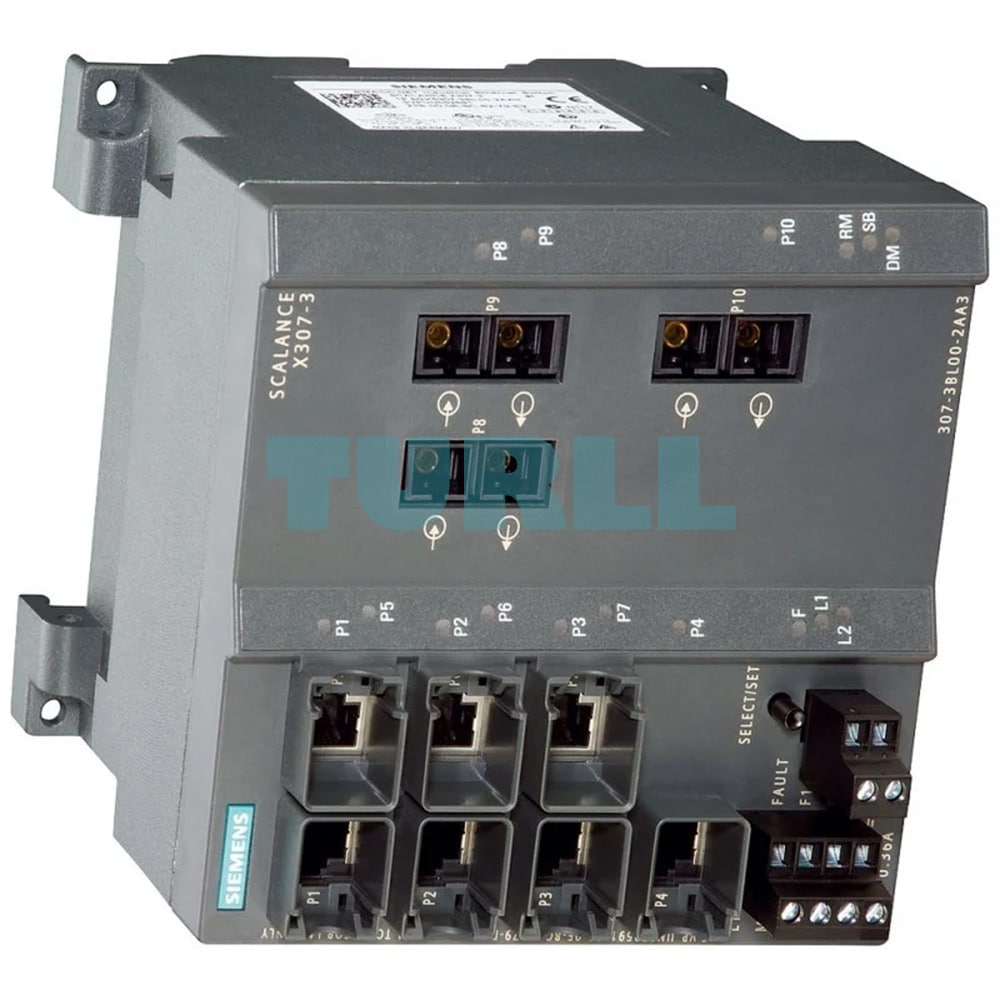

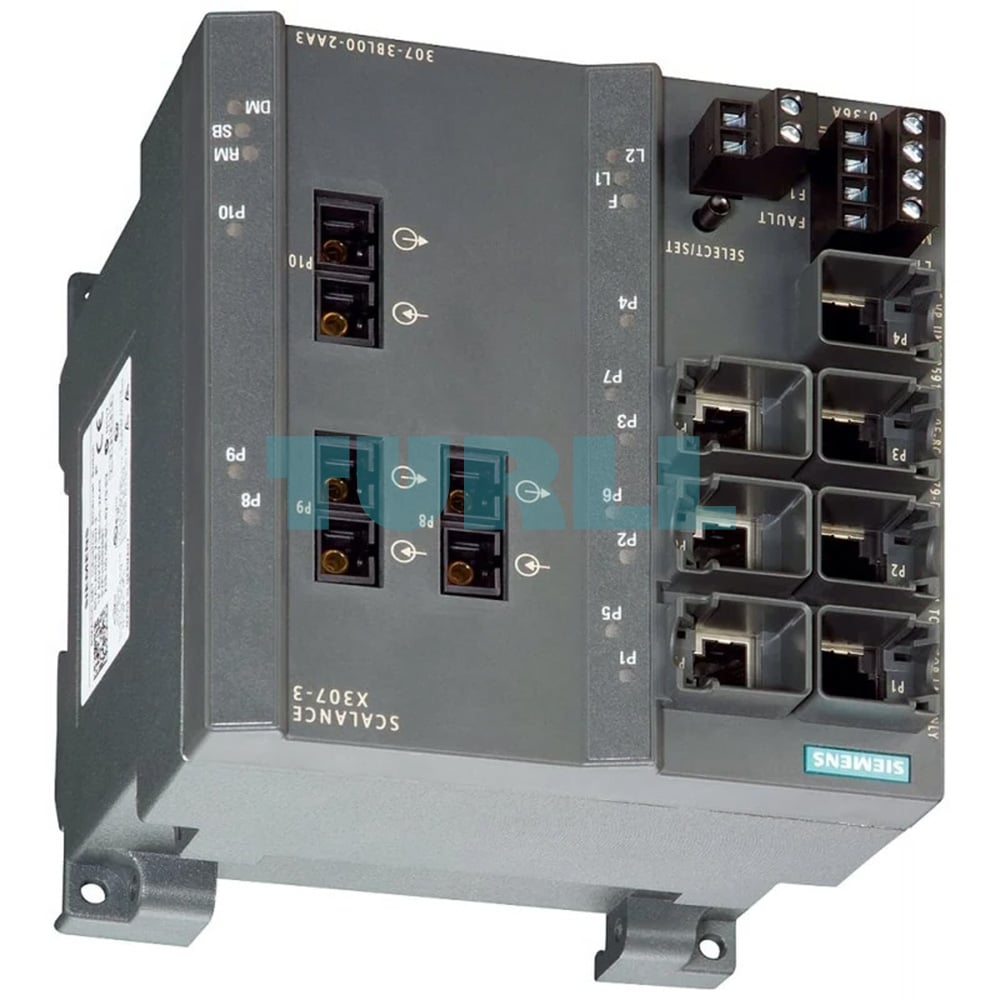

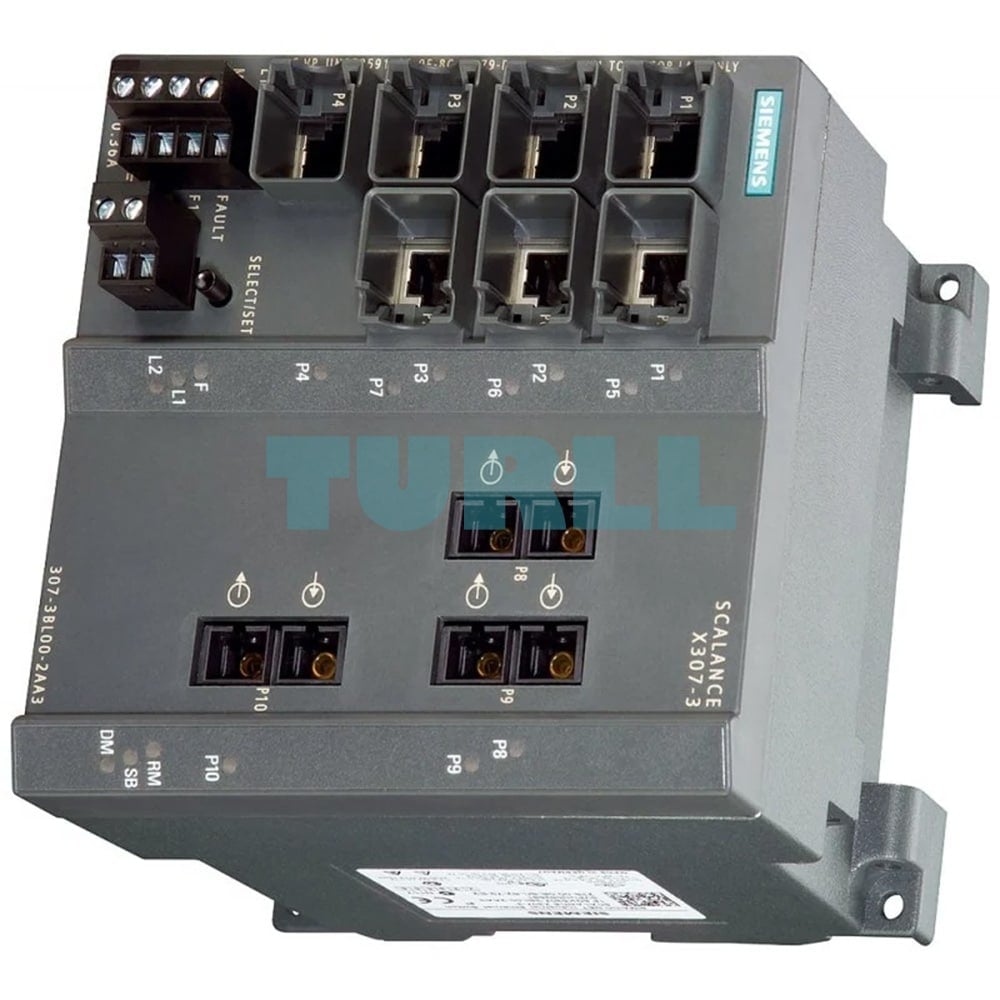

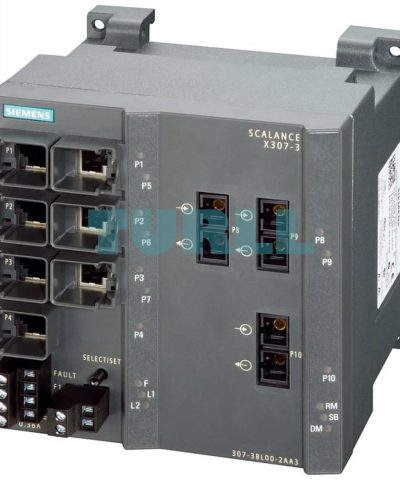

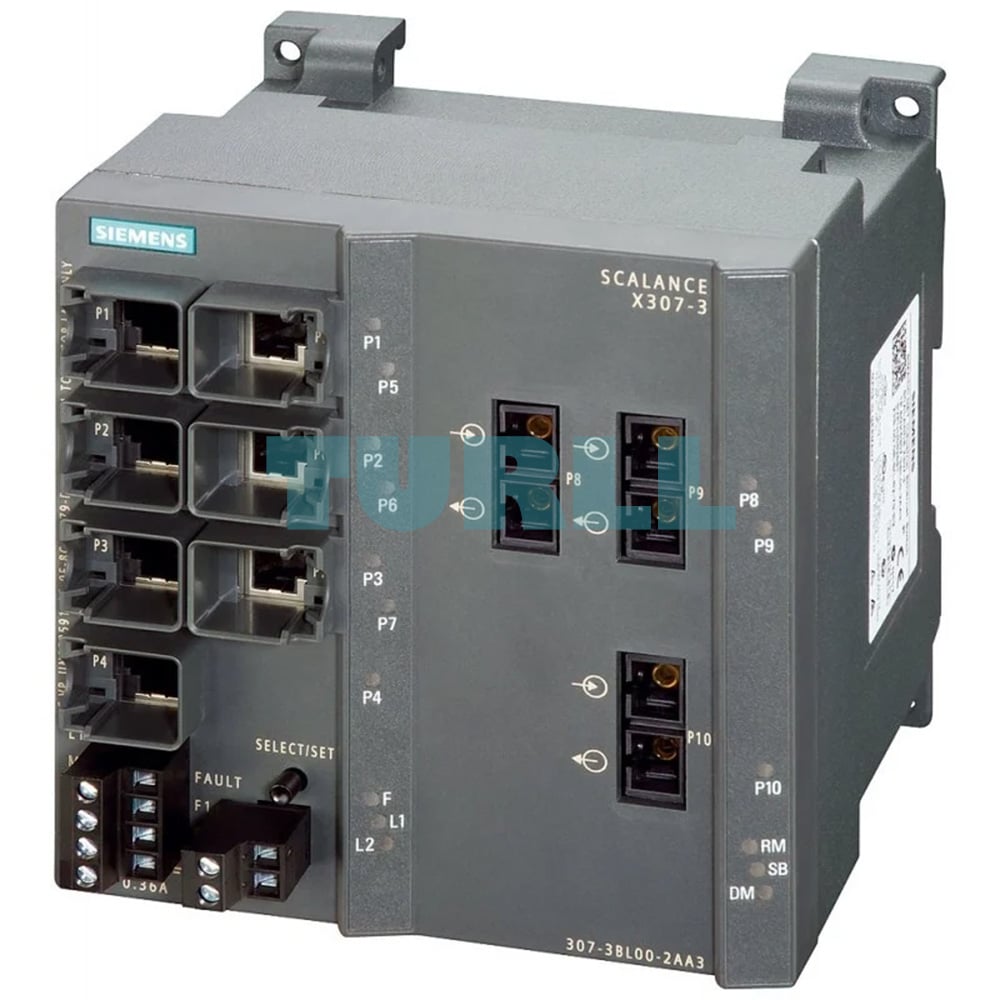

6GK5307-3BM10-2AA3 SIEMENS SCALANCE X307-3LD Managed Plus IE Switch with Long-Distance Fiber Original Brand New

SIEMENS SCALANCE X307-3LD – 6GK5307-3BM10-2AA3

Industrial Ethernet managed plus switch featuring 3x 1000 Mbps SC single-mode fiber ports for long-distance communication and 7x 10/100 Mbps RJ45 ports for field-level integration. Offers full Layer 2 management, redundancy capabilities, diagnostics via LEDs and PROFINET, and includes C-PLUG for fast configuration recovery.

Overview

SCALANCE X307-3LD enables secure and resilient networking across long distances via single-mode fiber while maintaining broad field connectivity via copper ports.

• 3x SC fiber optic ports supporting 1000 Mbps over single-mode for extended reach
• 7x RJ45 ports for edge-level integration
• Integrated redundancy manager for bumpless ring recovery
• Diagnostics and management through PROFINET, SNMP, web server
• Supports RSTP, VLAN segmentation, IGMP snooping for optimized traffic management
• Select/Set pushbutton for signaling contact configuration
• Delivered with C-PLUG for simplified replacement and configuration backup

Design

• DIN-rail mountable compact housing
• 24 V DC redundant power supply support
• LED indicators for port status, link activity, power, and diagnostics
• Floating signal contact output for external alerting
• Industrial-grade single-mode fiber connectivity

Port Types Available

• 3 x 1000BaseFX SC (single-mode fiber optic)
  • Optimized for long-distance backbone applications
• 7 x 10/100BaseTX RJ45
  • Autosensing/autocrossover, IE FC Plug-compatible

Product code: 6GK5307-3BM10-2AA3
