6GK5324-0GG10-1HR2 SIEMENS SCALANCE XR324-12M Exclusive Managed IE Switch Brand New Original

6GK5324-0GG10-1HR2 SIEMENS SCALANCE XR324-12M Exclusive Managed IE Switch Brand New Original

SCALANCE XR324-12M managed IE switch; 19" rack-mountable; 12x 100/1000 Mbit/s 2-port media modules (electrical or optical); LED diagnostics; error signaling contact; select/set pushbutton; PROFINET IO device; integrated redundancy manager; network management; office features (RSTP, VLAN, IGMP); C-PLUG included; 24 V DC power supply; rear-facing ports

Overview

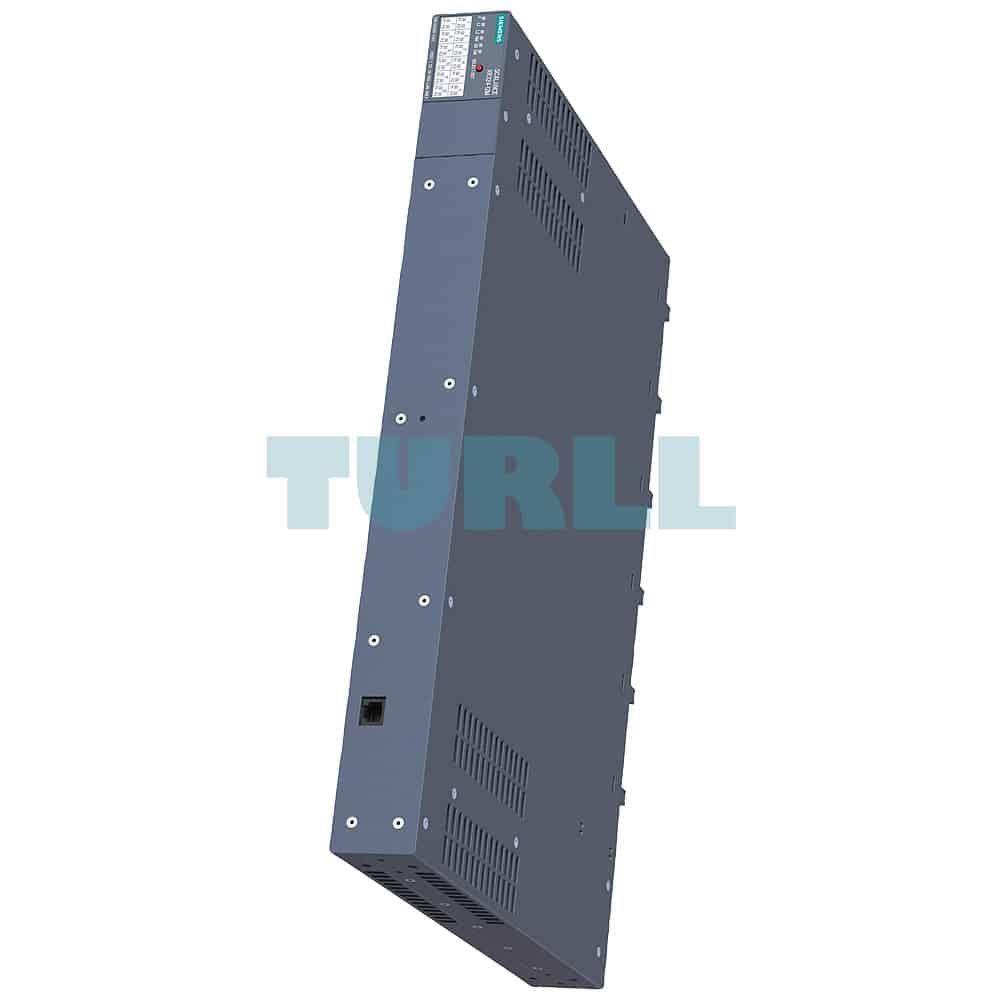

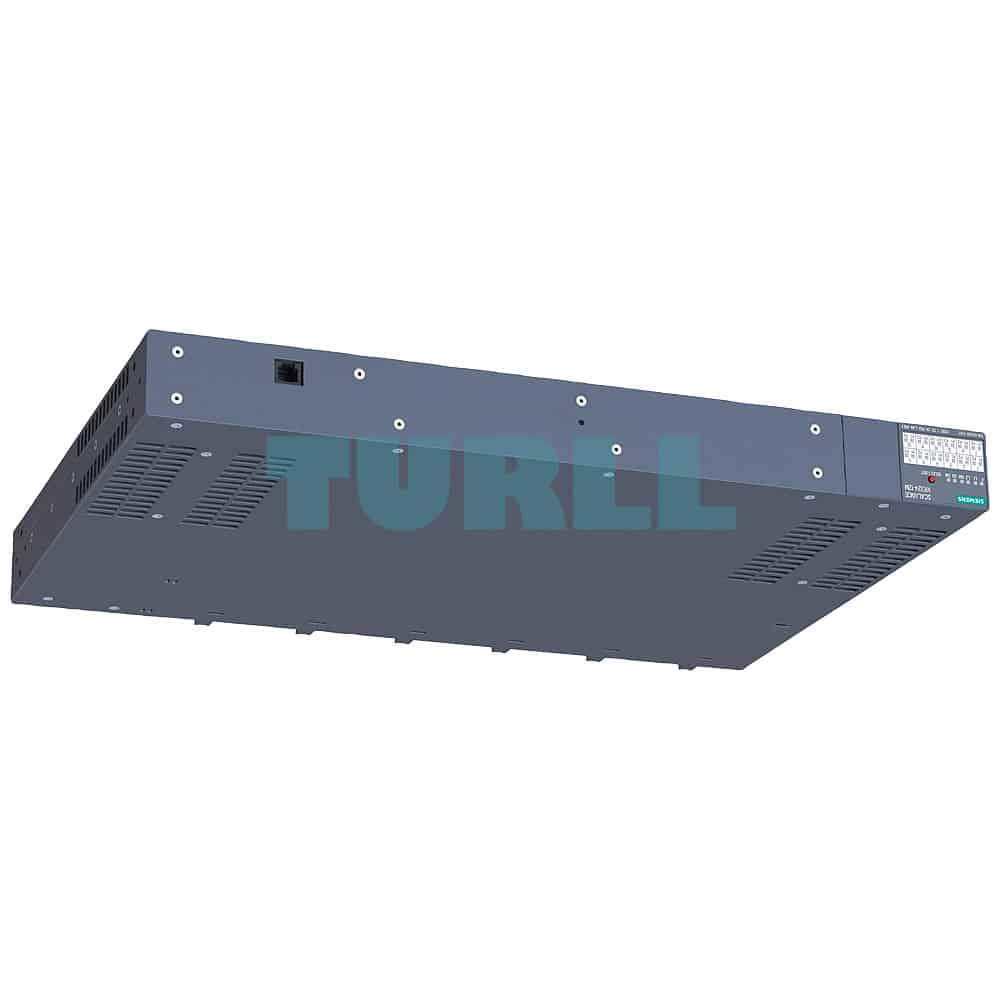

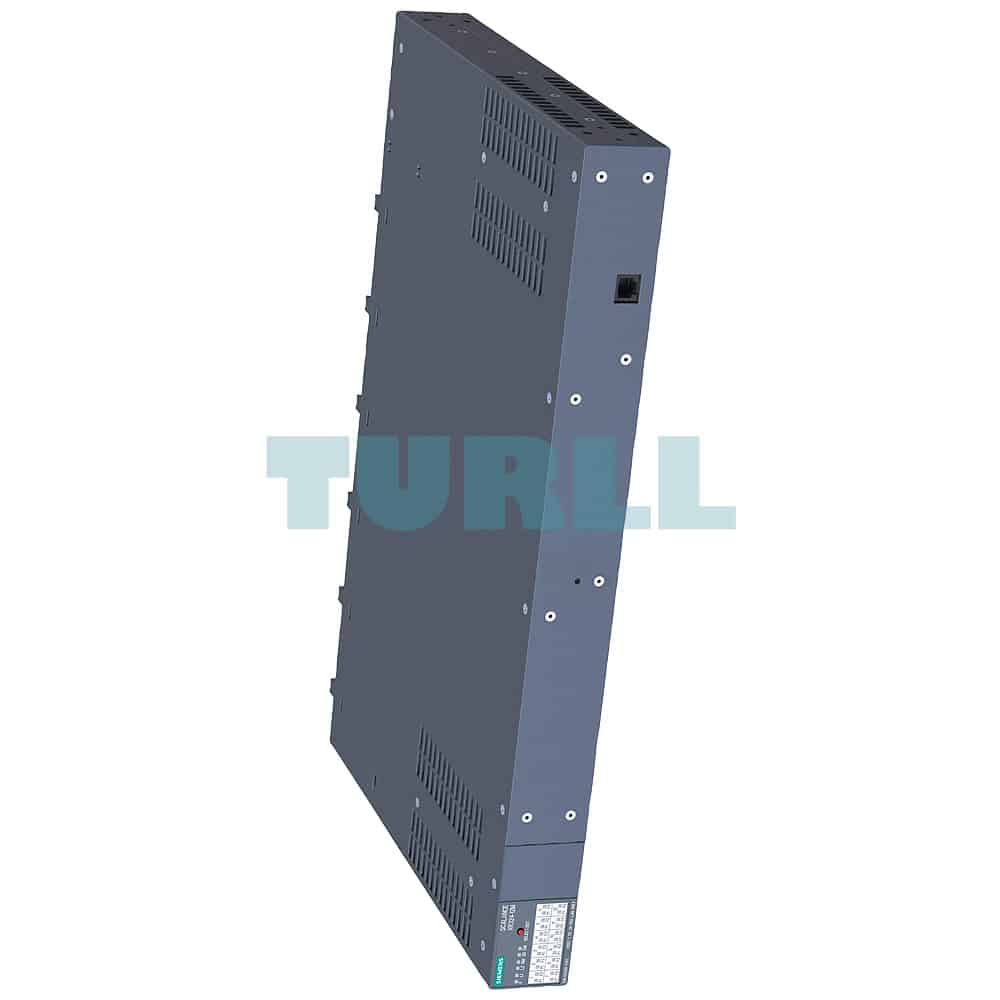

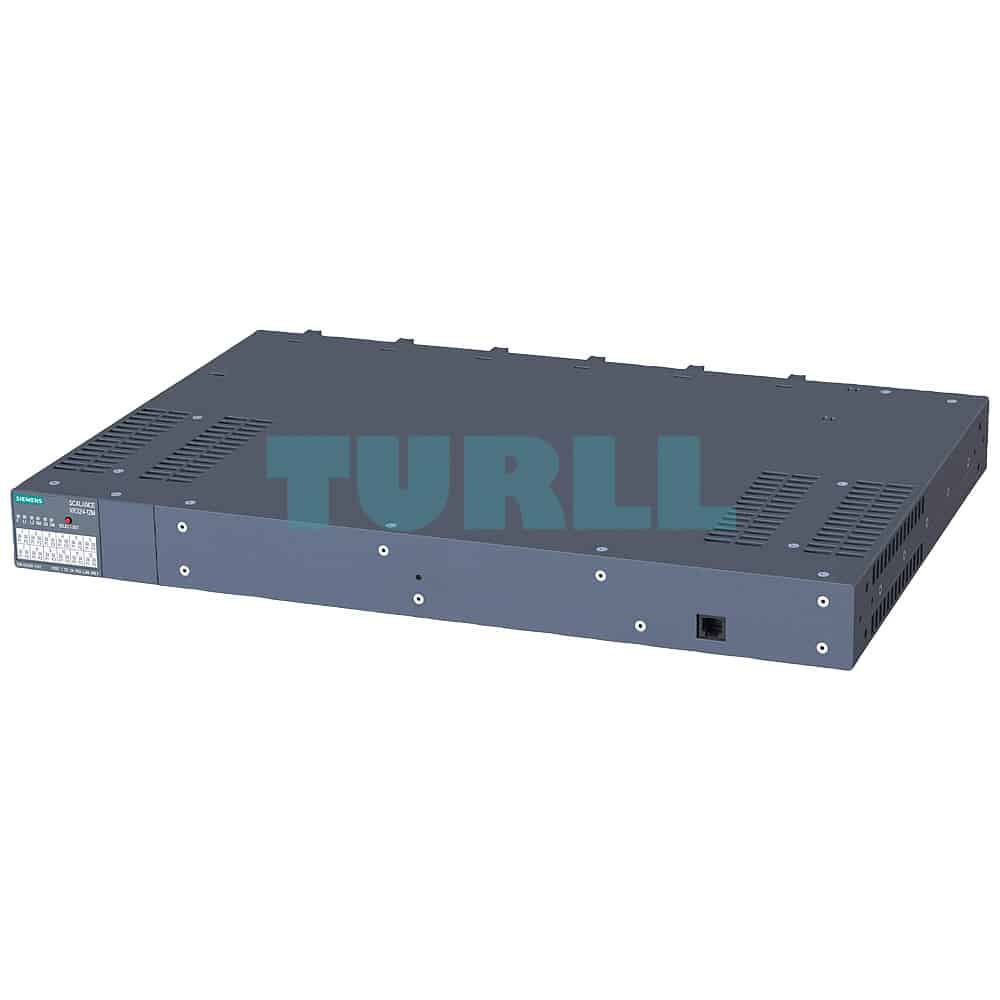

The Siemens SCALANCE XR324-12M (6GK5324-0GG10-1HR2) is an exclusive 19-inch rack-mounted managed Layer 2 Industrial Ethernet switch designed for modular, high-density networking in industrial control cabinets. It supports up to 24 ports via 12 dual-port media modules, configurable as electrical or optical interfaces.

Certified to IEC 62443-4-2, this model includes integrated redundancy management, LED diagnostics, and a C-PLUG for easy configuration backup. With PROFINET IO support and default EtherNet/IP compatibility, the XR324-12M is ideal for scalable, secure, and flexible industrial network architectures. This variant features rear-facing ports for optimized cable routing in rack installations.

Key Features

• 12 x 2-port media module slots (100/1000 Mbps; electrical or optical)
• 19" rack-mountable design with rear-facing ports
• IEC 62443-4-2 certified for industrial cybersecurity
• Integrated redundancy manager and network diagnostics
• PROFINET IO device; EtherNet/IP compatible
• LED diagnostics and select/set pushbutton
• Redundant 24 V DC power supply via 4-pin terminal block
• Console port (RJ11) and signaling contact (2-pin terminal)
• VLAN, RSTP, IGMP snooping, ACL, IEEE 802.1X
• Operating temperature: –40 °C to +70 °C
• C-PLUG included for fast device replacement

Product Code: 6GK5324-0GG10-1HR2 More Siemens products at Turll.com
