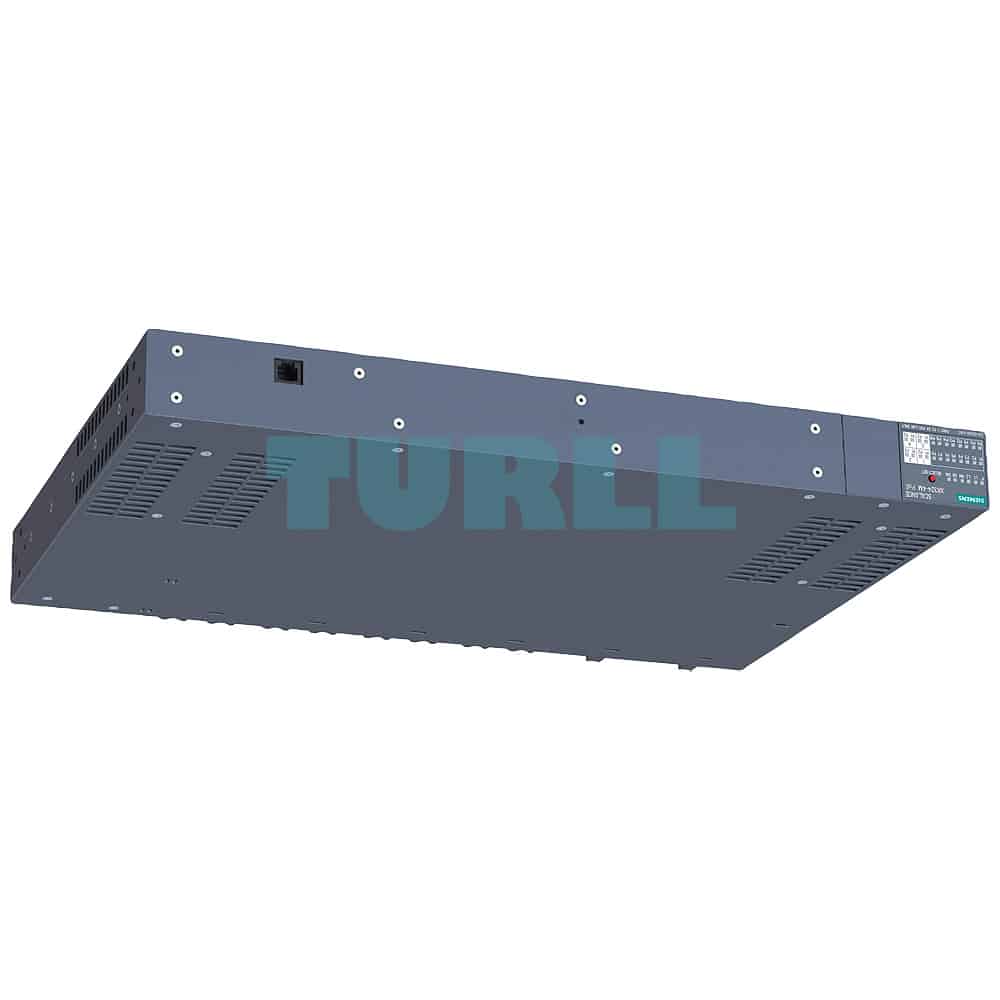

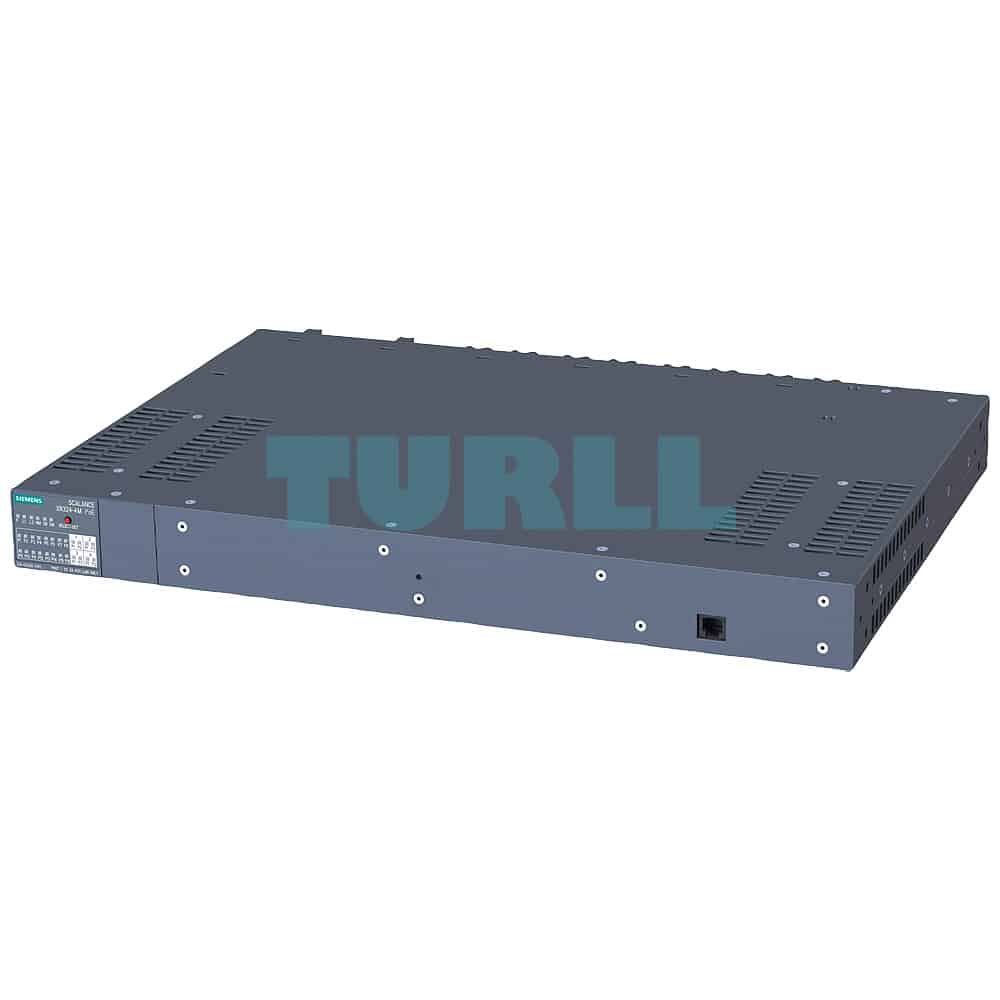

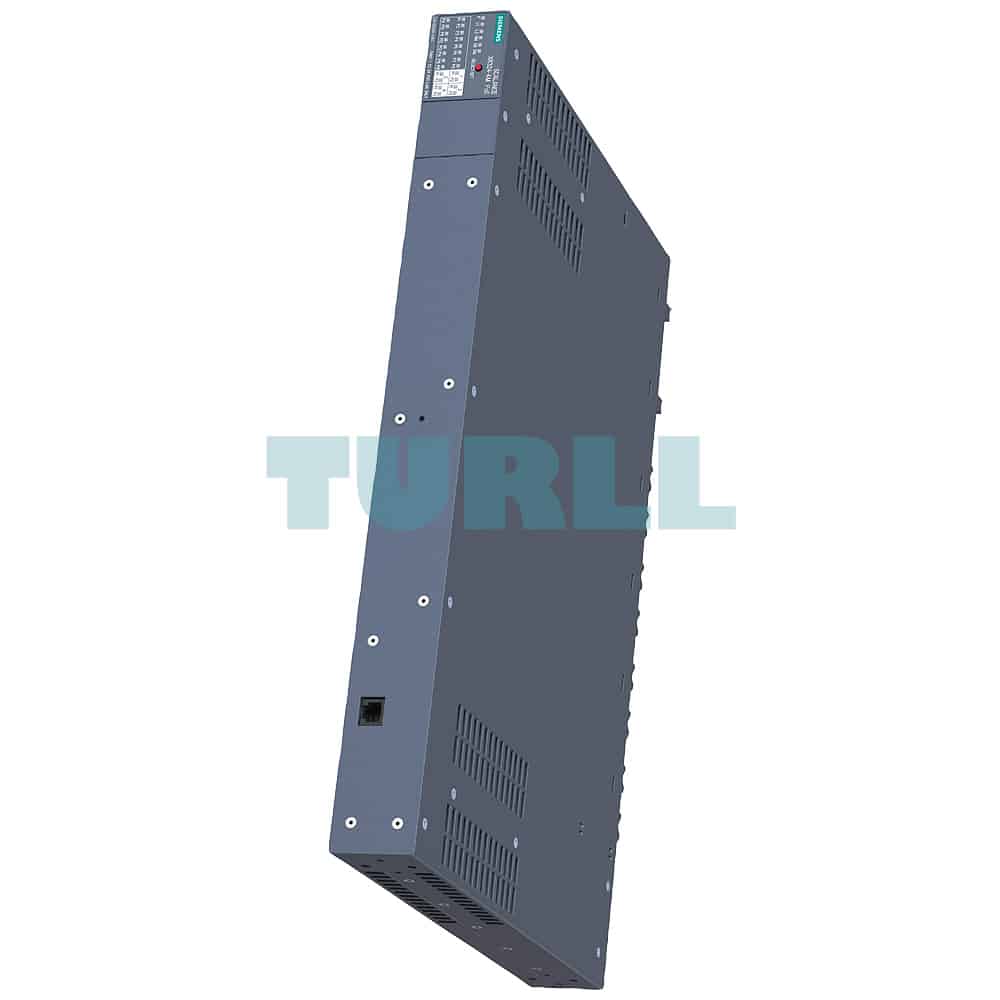

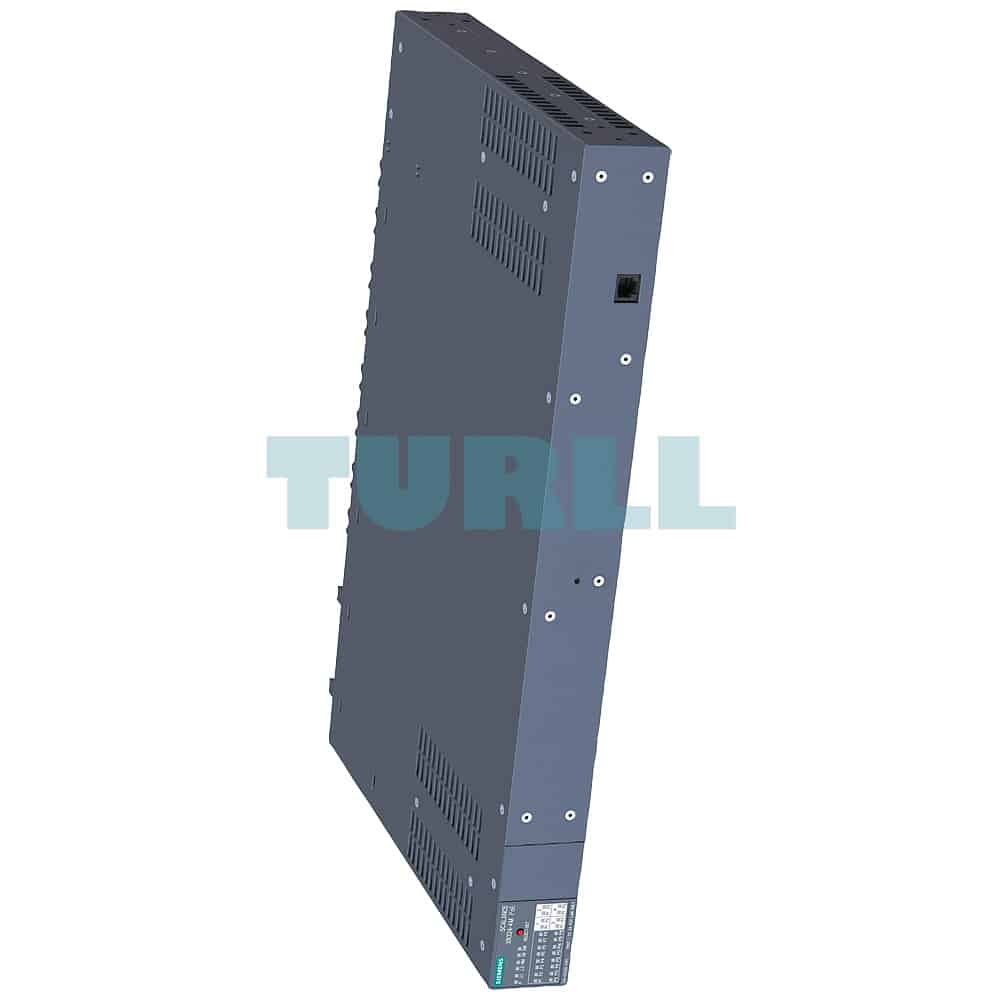

6GK5324-4QG10-1HR2 SIEMENS SCALANCE XR324-4M PoE Exclusive Managed IE Switch Brand New Original

6GK5324-4QG10-1HR2 SIEMENS SCALANCE XR324-4M PoE Exclusive Managed IE Switch Brand New Original

SCALANCE XR324-4M PoE managed IE switch; 19″ rack-mountable; 8x 10/100/1000 Mbit/s RJ45 electrical ports with PoE; 8x 10/100/1000 Mbit/s RJ45 electrical ports without PoE; 4x 10/100/1000 Mbit/s 2-port media modules (electrical or optical); LED diagnostics; error signaling contact; select/set pushbutton; PROFINET IO device; 24 V DC power supply; rear-facing ports

Overview

The Siemens SCALANCE XR324-4M PoE (6GK5324-4QG10-1HR2) is an exclusive 19-inch rack-mounted managed Layer 2 Industrial Ethernet switch designed for high-performance networking with integrated Power over Ethernet (PoE) capability. It features 8 gigabit RJ45 ports with PoE, 8 additional gigabit RJ45 ports without PoE, and 4 more ports via dual-port media modules, configurable as electrical or optical interfaces.

With a 24 V DC power input and rear-facing ports, this variant is optimized for rack-based installations and PoE device deployment. It supports PROFINET IO diagnostics, LED-based status indication, and integrated redundancy management. The XR324-4M PoE is an exclusive solution for scalable, secure, and power-enabled industrial networks.

Key Features

• 8 x 10/100/1000 Mbps RJ45 electrical ports with PoE
• 8 x 10/100/1000 Mbps RJ45 electrical ports without PoE
• 4 x 10/100/1000 Mbps via 2-port media modules (electrical or optical)
• IEC 62443-4-2 certified for industrial cybersecurity
• 24 V DC power supply
• Rear-facing ports for optimized rack integration
• Integrated redundancy manager and diagnostics
• PROFINET IO device; EtherNet/IP compatible
• LED diagnostics and select/set pushbutton
• Console port and signaling contact
• VLAN, RSTP, IGMP snooping, ACL, IEEE 802.1X
• Operating temperature: –40 °C to +70 °C
• 19″ rack-mountable with rugged enclosure

Product Code: 6GK5324-4QG10-1HR2
