6GK5416-4GR00-2AM2 SIEMENS SCALANCE XM416-4C Exclusive Managed Modular IE Switch Brand New Original

6GK5416-4GR00-2AM2 SIEMENS SCALANCE XM416-4C Exclusive Managed Modular IE Switch Brand New Original

SCALANCE XM416-4C managed modular IE switch; 16x 10/100/1000 Mbps RJ45; 4x 100/1000 Mbps SFP; 4 combo ports (RJ45/SFP); total 16 usable ports; expandable to 24 electrical or optical ports; DIN rail/S7 mounting; PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP); C-PLUG included; integrated Layer 3 routing

Overview

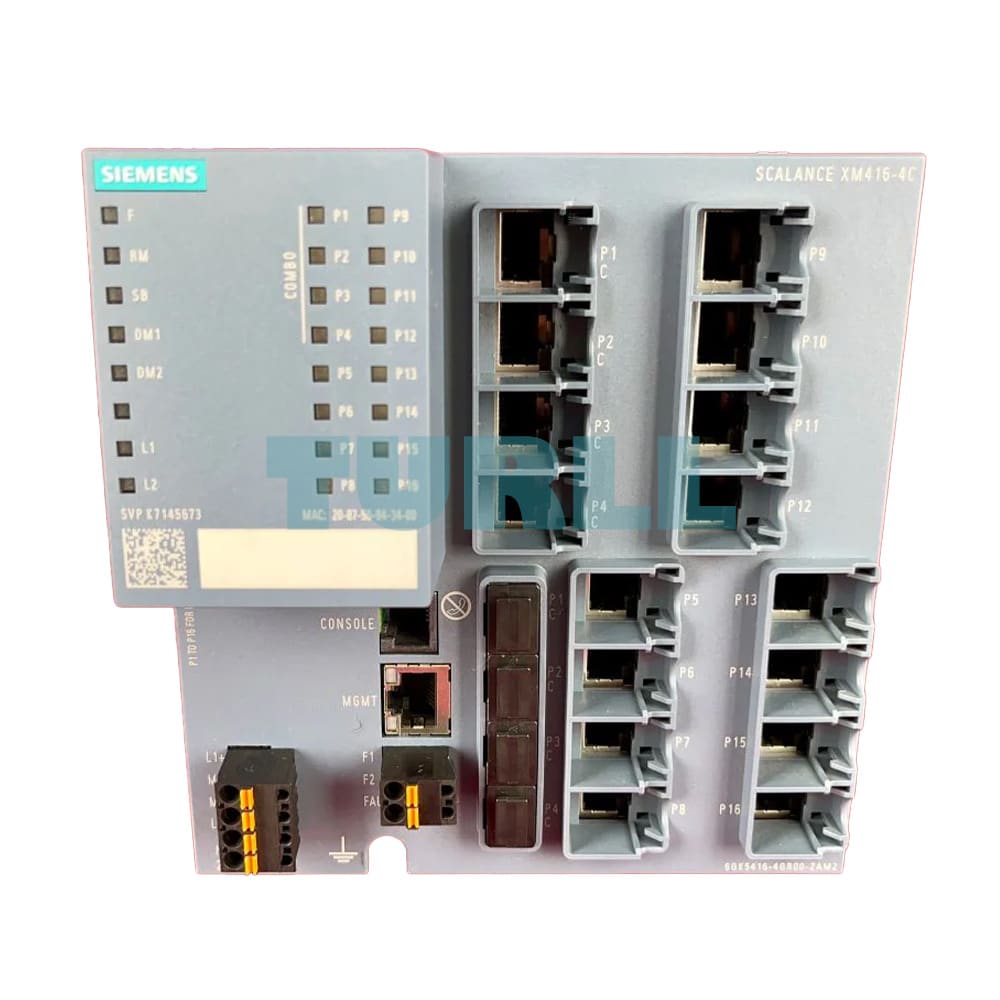

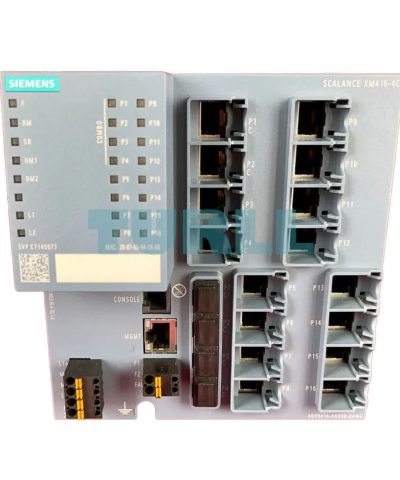

The Siemens SCALANCE XM416-4C (6GK5416-4GR00-2AM2) is an exclusive modular managed Industrial Ethernet switch designed for scalable and flexible network architectures. It features 16 RJ45 ports, including 4 combo ports that can alternatively be used as SFP optical ports. A total of 16 ports can be used simultaneously, and the system is expandable up to 24 ports using compatible port extenders.

This Layer 3-capable switch supports PROFINET IO, redundancy protocols, and advanced office features such as VLAN segmentation and IGMP snooping. With DIN rail or S7 mounting options and integrated C-PLUG for configuration backup, the XM416-4C is ideal for high-performance industrial automation networks.

Key Features

• 16 x 10/100/1000 Mbps RJ45 ports
• 4 x 100/1000 Mbps SFP ports (combo configuration)
• Total 16 usable ports (RJ45 or SFP)
• Expandable to 24 ports via port extenders
• Integrated Layer 3 routing (static, dynamic, redundant)
• PROFINET IO diagnostics
• Redundancy protocols: STP, RSTP, MSTP, VRRP, HRP, MRP
• VLAN, IGMP snooping, ACL, SNMP, IEEE 802.1X
• DIN rail or S7 mounting rail
• C-PLUG included
• IP20 protection; fanless design
• Operating temperature: –40 °C to +70 °C
• Dimensions: 140 x 125 x 147 mm
• Net weight: approx. 1.6 kg

Product Code: 6GK5416-4GR00-2AM2 More Siemens products at Turll.com
