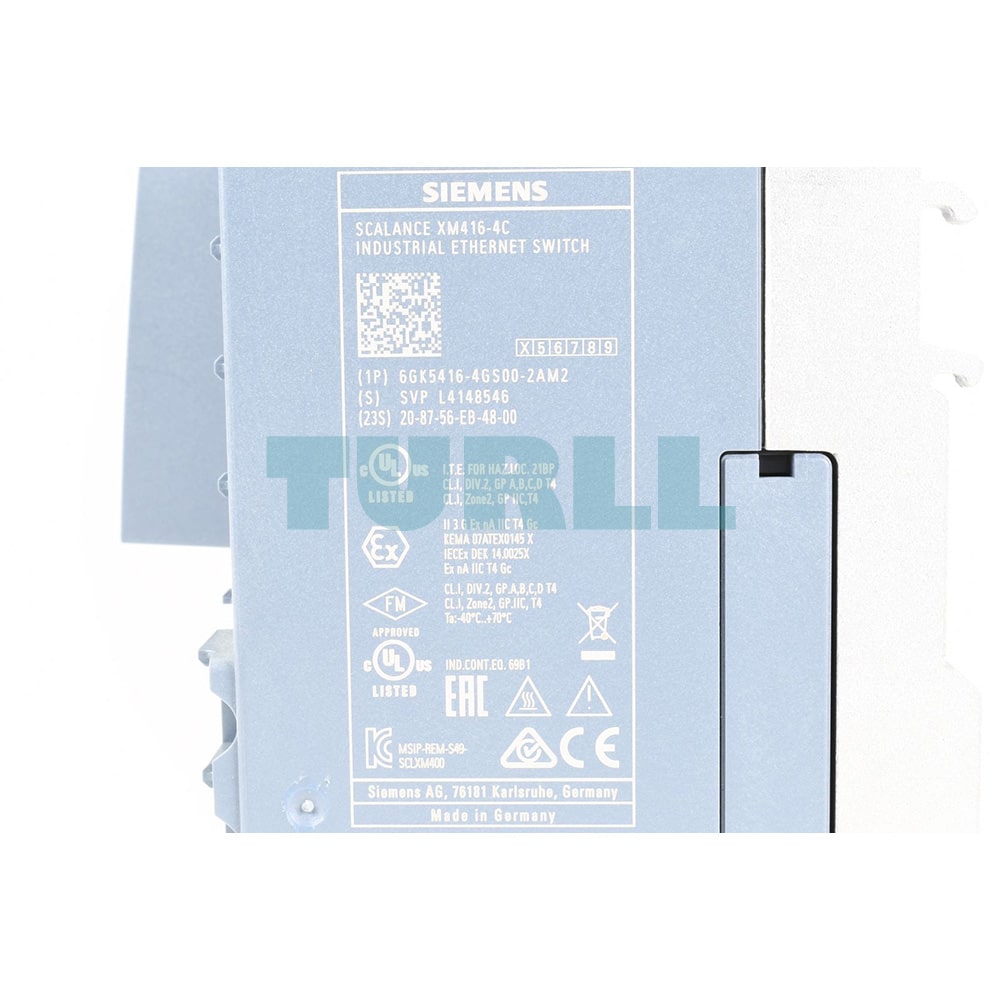

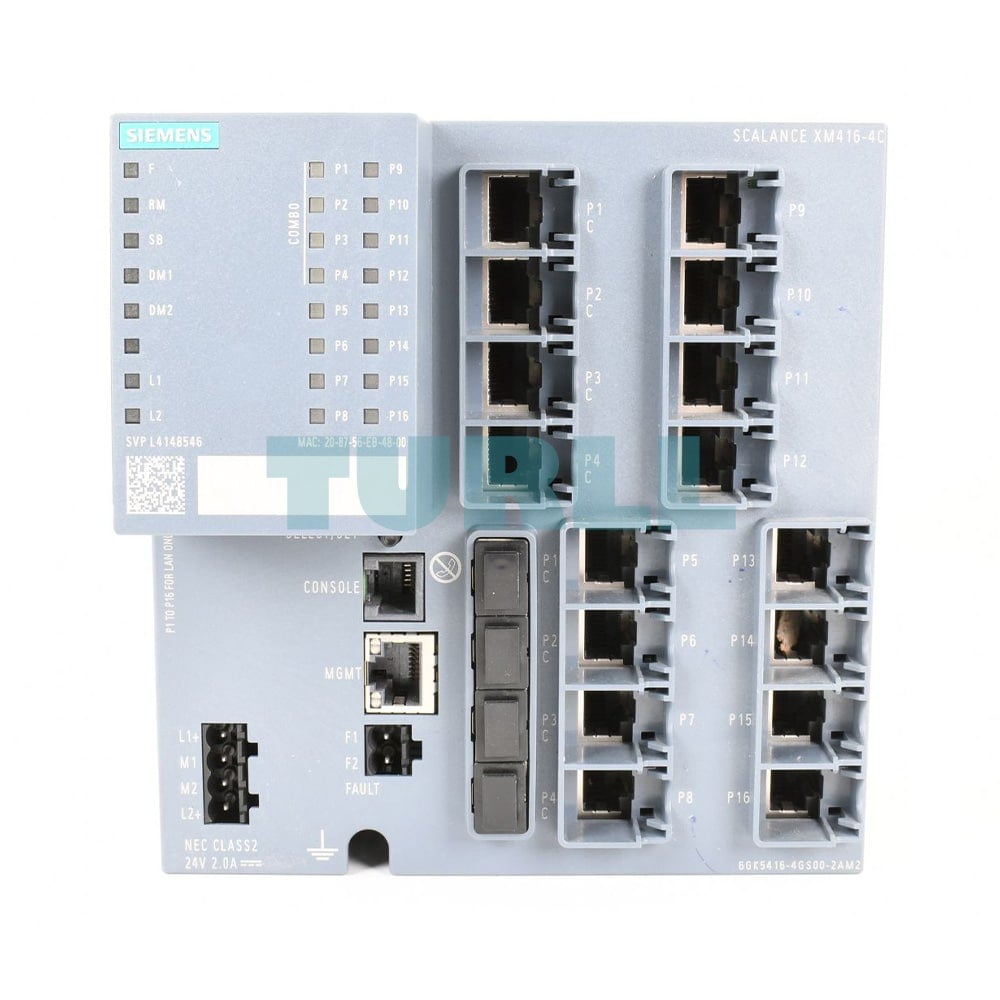

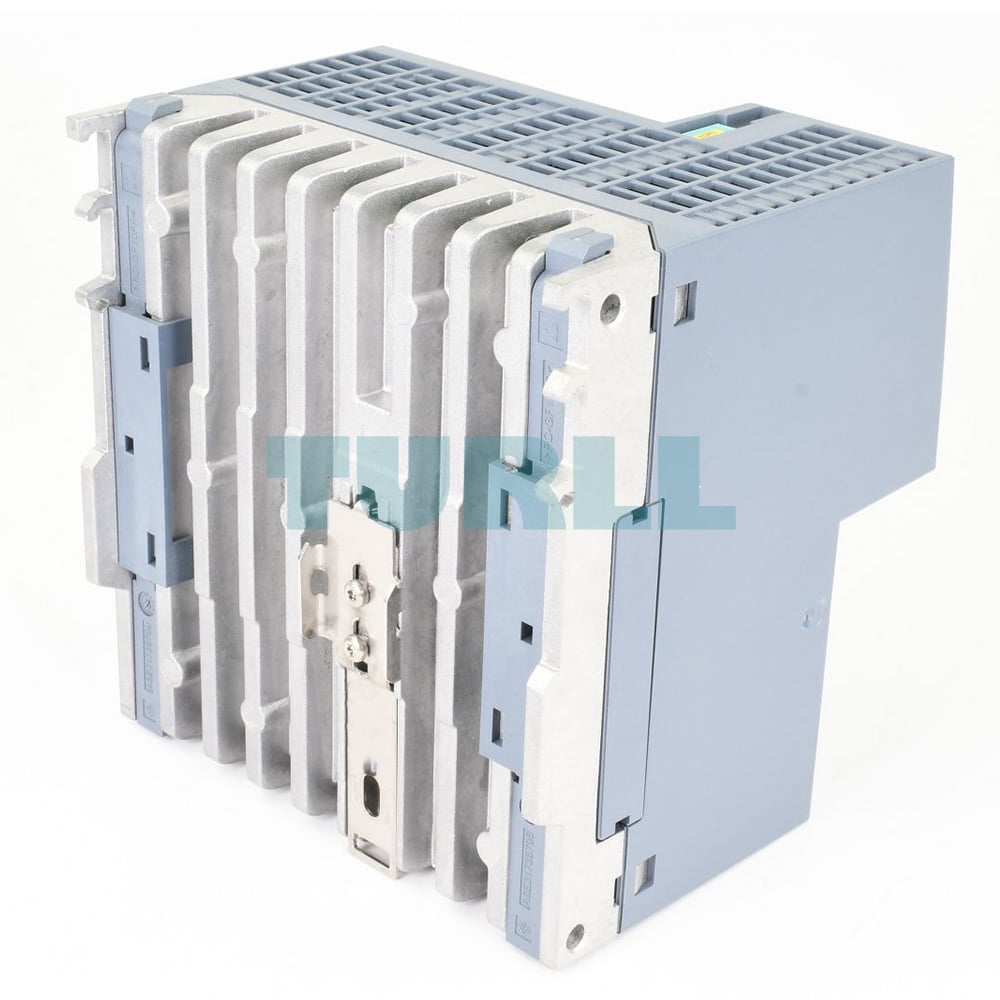

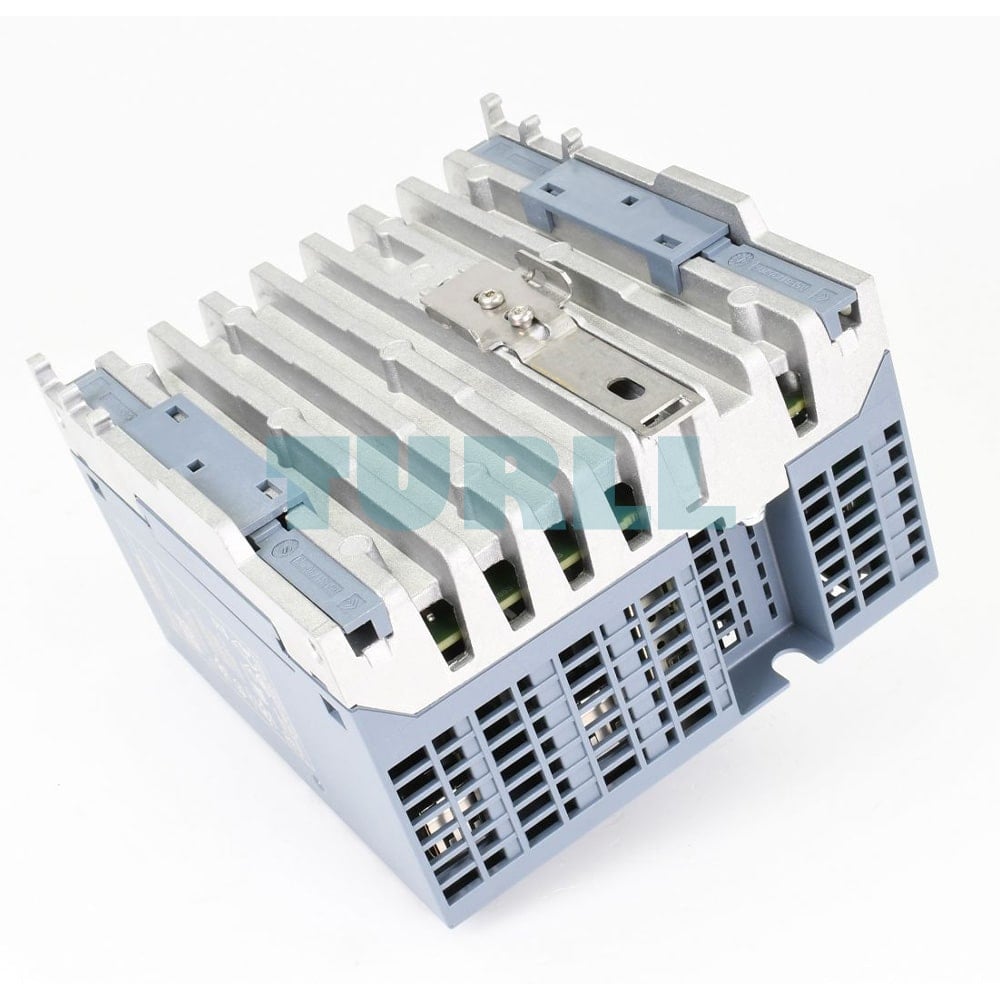

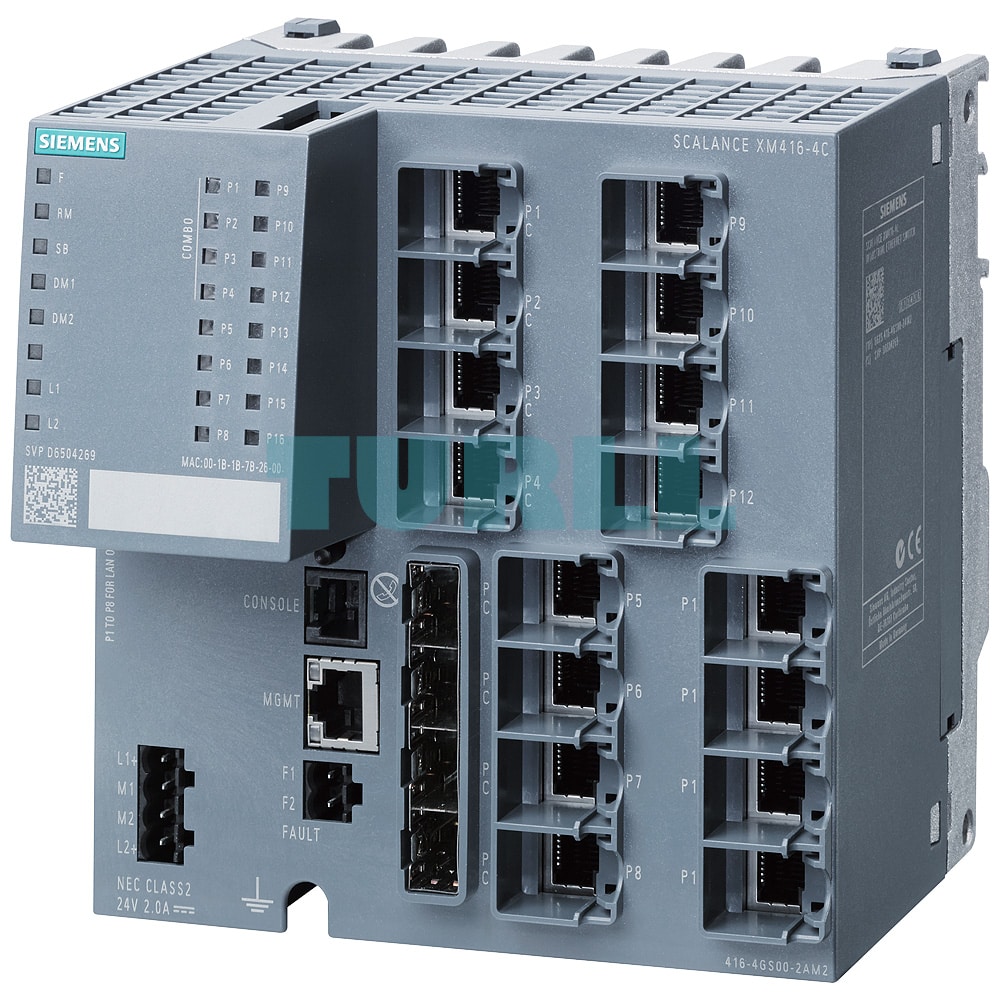

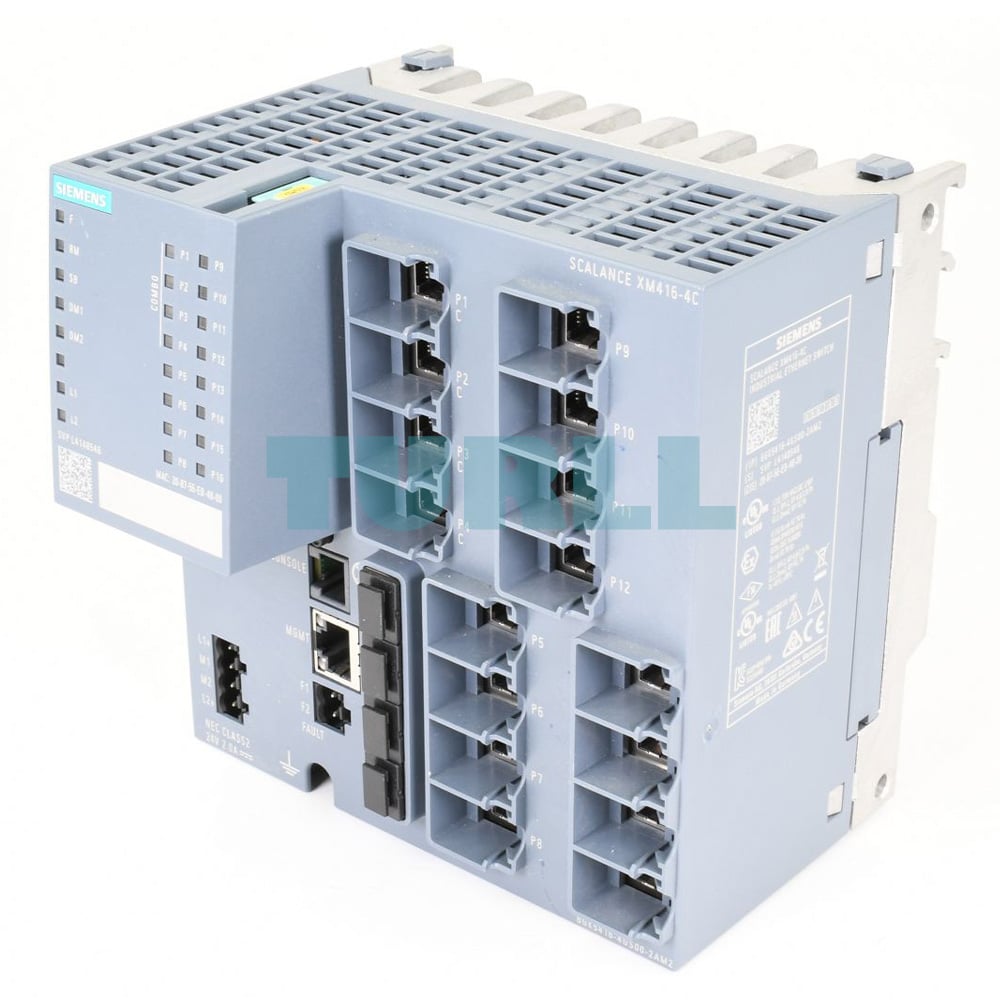

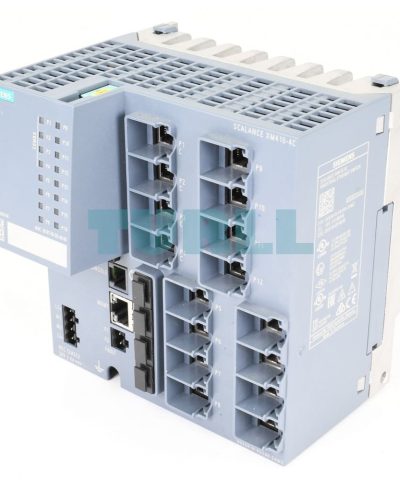

6GK5416-4GS00-2AM2 SIEMENS SCALANCE XM416-4C Exclusive Managed Modular IE Switch Brand New Original

6GK5416-4GS00-2AM2 SIEMENS SCALANCE XM416-4C Exclusive Managed Modular IE Switch Brand New Original

SCALANCE XM416-4C managed modular IE switch; 16x 10/100/1000 Mbps RJ45; 4x 100/1000 Mbps SFP; 4 combo ports (RJ45/SFP); total 16 usable ports; expandable to 24 electrical or optical ports; DIN rail/S7 mounting; PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP); C-PLUG included; Layer 3 routing available via Key-Plug

Overview

The Siemens SCALANCE XM416-4C (6GK5416-4GS00-2AM2) is an exclusive modular managed Industrial Ethernet switch designed for scalable and flexible network architectures. It features 16 RJ45 ports, including 4 combo ports that can alternatively be used as SFP optical ports. A total of 16 ports can be used simultaneously, and the system is expandable up to 24 ports using compatible port extenders.

Layer 3 routing is available via Key-Plug XM-400, enabling advanced routing protocols such as OSPF, VRRP, and RIP. The switch supports PROFINET IO, redundancy protocols, and office features like VLAN segmentation and IGMP snooping. With DIN rail or S7 mounting options and integrated C-PLUG for configuration backup, the XM416-4C is ideal for high-performance industrial automation networks.

Key Features

• 16 x 10/100/1000 Mbps RJ45 ports
• 4 x 100/1000 Mbps SFP ports (combo configuration)
• Total 16 usable ports (RJ45 or SFP)
• Expandable to 24 ports via port extenders
• Layer 3 routing available via Key-Plug XM-400
• PROFINET IO diagnostics
• Redundancy protocols: STP, RSTP, MSTP, VRRP, HRP, MRP
• VLAN, IGMP snooping, ACL, SNMP, IEEE 802.1X
• DIN rail or S7 mounting rail
• C-PLUG included
• IP20 protection; fanless design
• Operating temperature: –40 °C to +70 °C
• Dimensions: 140 x 125 x 147 mm
• Net weight: approx. 1.6 kg

Product Code: 6GK5416-4GS00-2AM2 More Siemens products at Turll.com
