6GK5432-0GR00-2AC2 SIEMENS SCALANCE XC432 Exclusive Managed Layer 3 IE Switch Brand New Original

6GK5432-0GR00-2AC2 SIEMENS SCALANCE XC432 Exclusive Managed Layer 3 IE Switch Brand New Original

SCALANCE XC432 managed Layer 3 IE switch; 32x 10/100/1000 Mbps RJ45 ports; LED diagnostics; error signaling contact with select/set button; PROFINET IO device; network management; redundancy functions; office features (RSTP, VLAN, IGMP); CLP included; DIN rail/S7 mounting rail

Overview

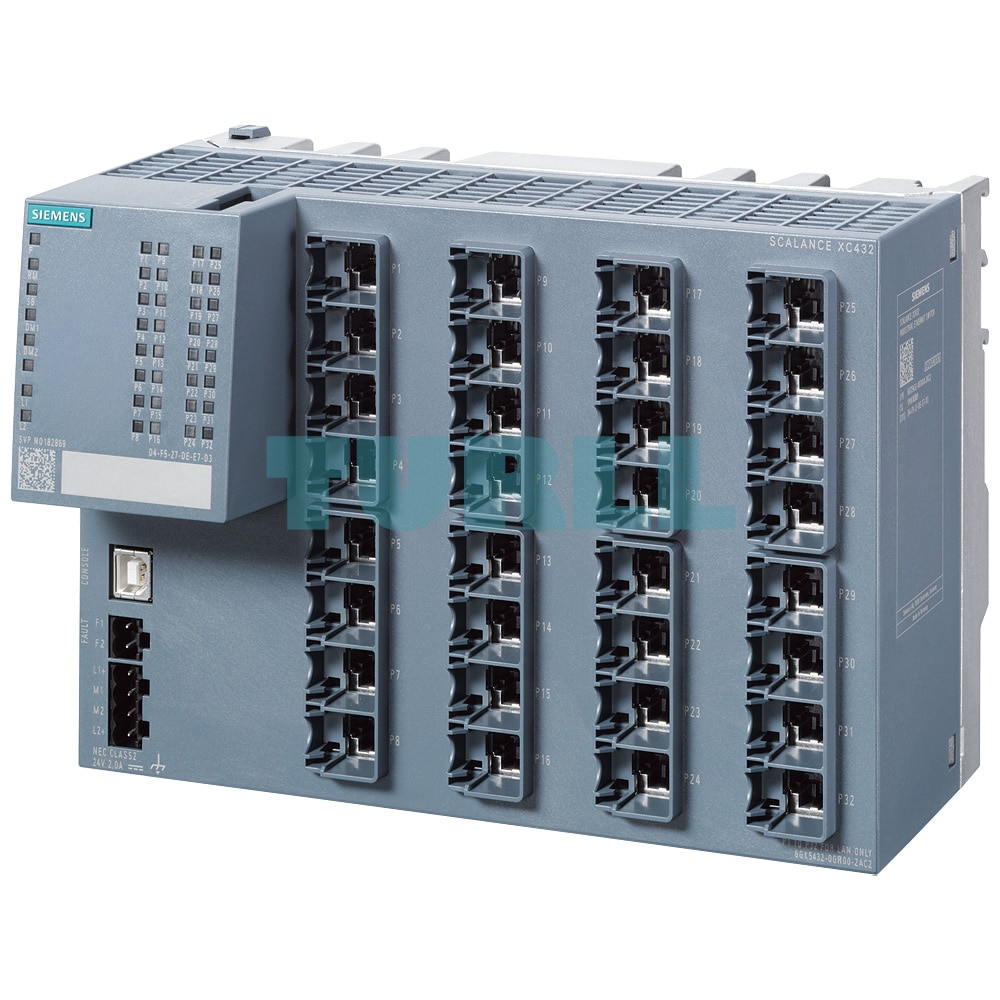

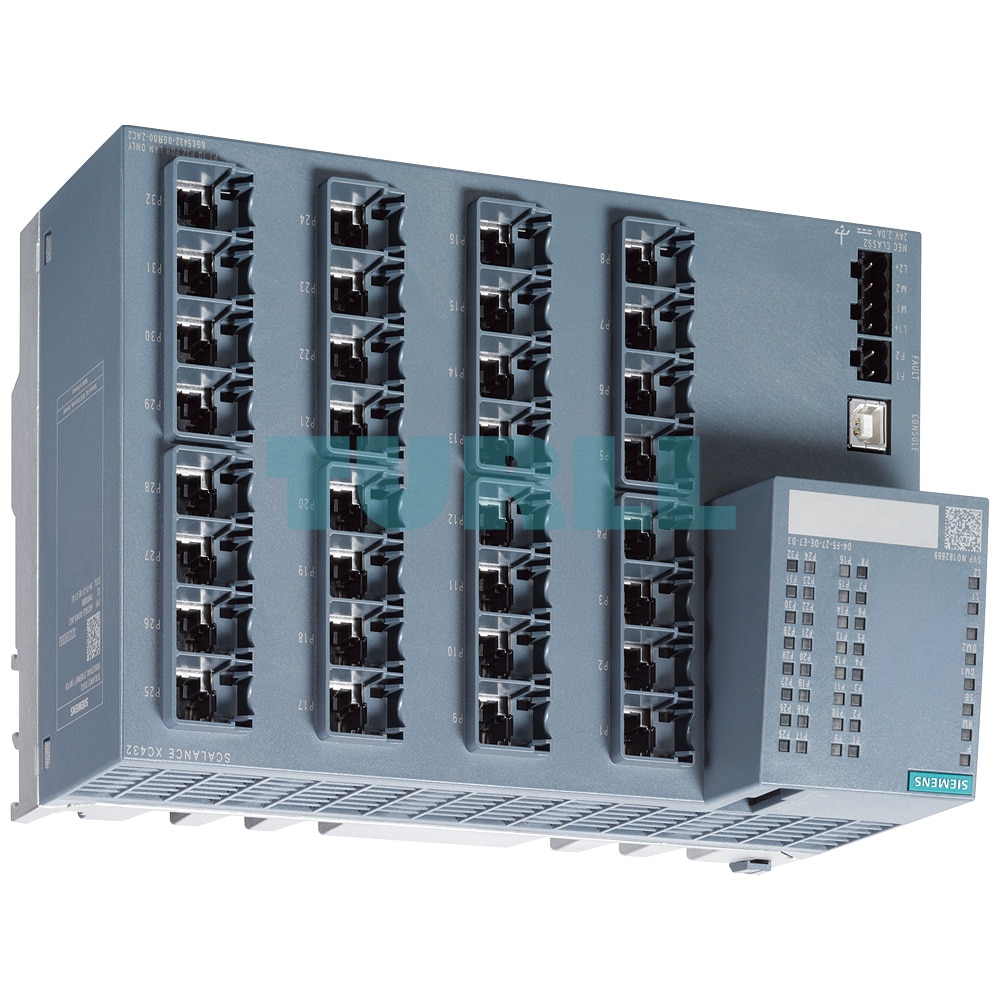

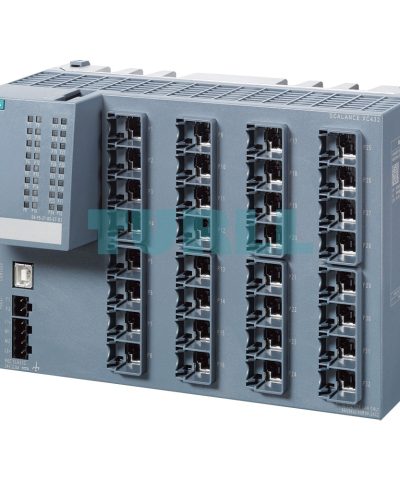

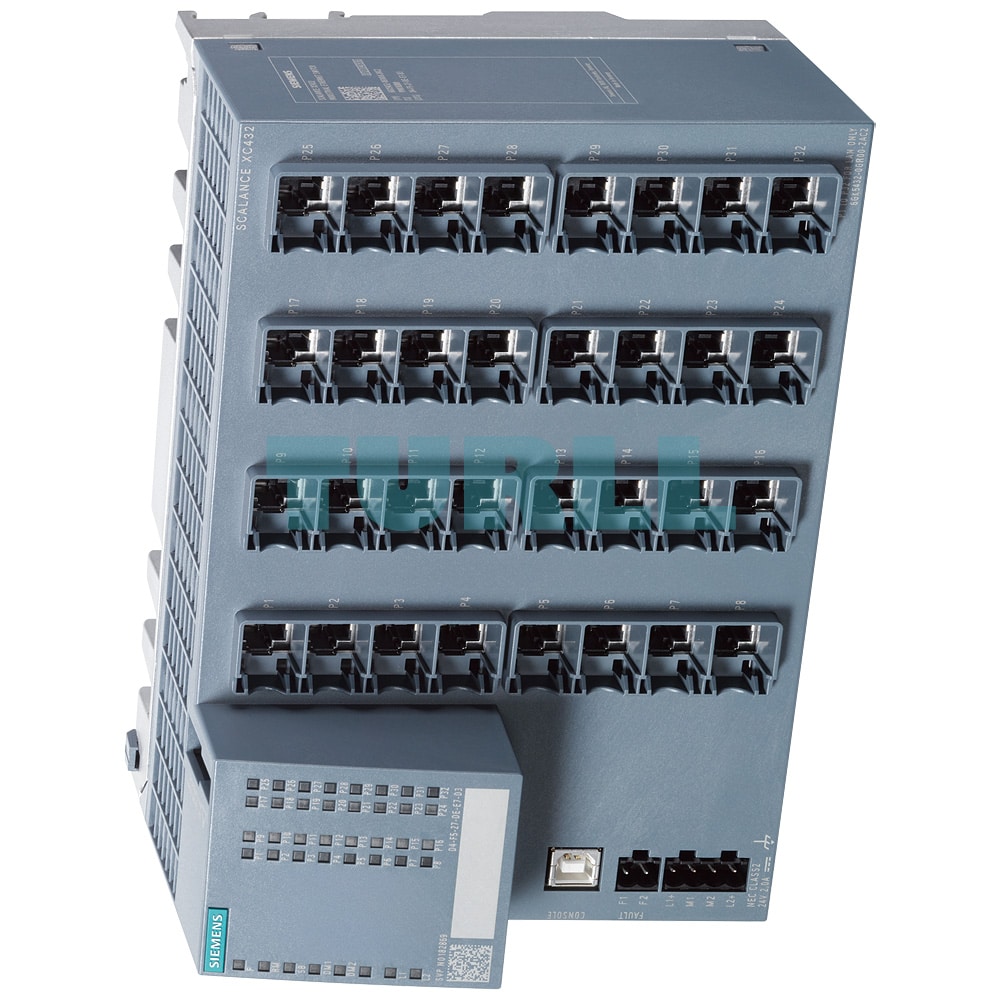

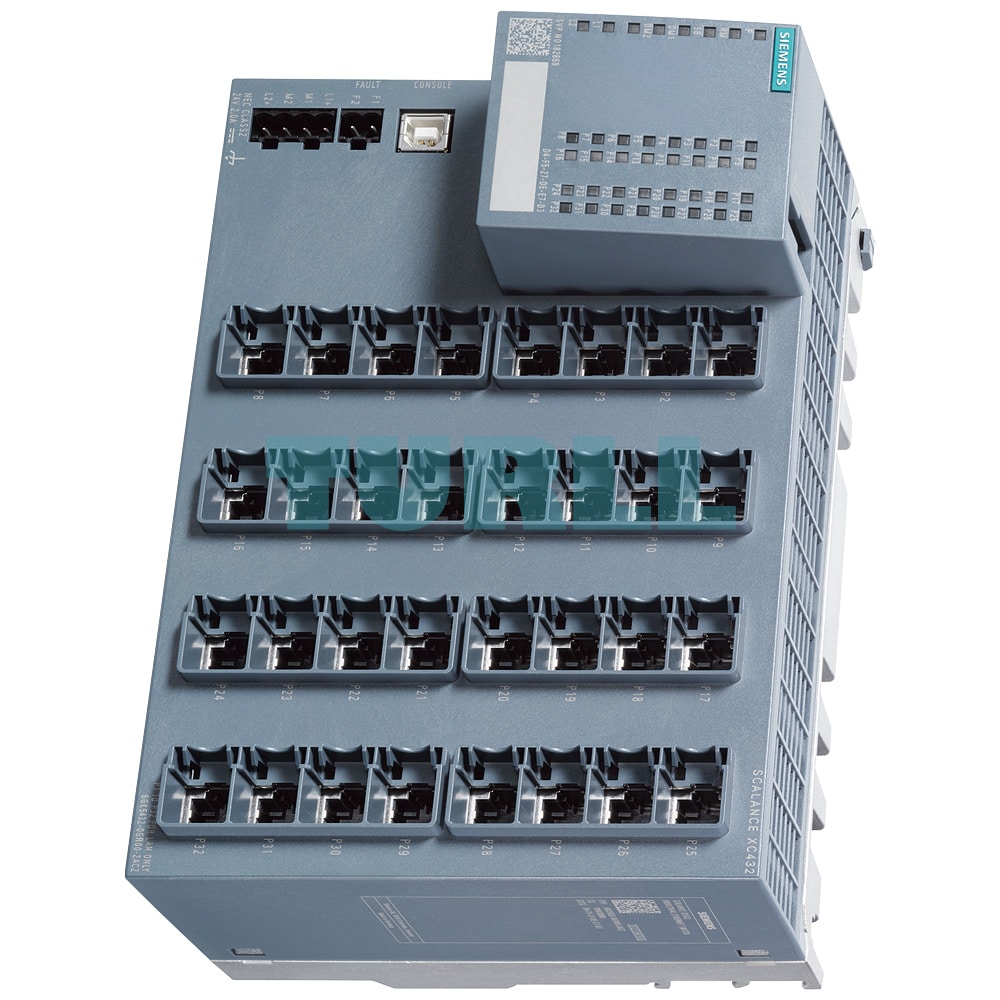

The Siemens SCALANCE XC432 (6GK5432-0GR00-2AC2) is an exclusive Layer 3 managed Industrial Ethernet switch from the XC-400 series, designed for high-performance plant-level networks. It features 32 RJ45 ports for Gigabit Ethernet connectivity, making it ideal for control-level applications requiring robust and scalable infrastructure.

This switch supports PROFINET IO diagnostics, advanced redundancy protocols, and office-grade features such as VLAN segmentation and IGMP snooping. With integrated Layer 3 routing (IPv4), it enables static and dynamic routing (OSPF, RIPv2) and redundant routing via VRRP. Its rugged IP20 housing, fanless design, and DIN/S7 rail mounting make it suitable for demanding industrial environments. The included CLP memory module ensures fast device replacement and configuration backup.

Key Features

• 32 x 10/100/1000 Mbps RJ45 ports with securing collar
• Layer 3 routing: static, dynamic (OSPF, RIPv2), VRRP
• PROFINET IO diagnostics; conformity class B
• Redundancy protocols: MRP, HRP, HSR, PRP, RSTP, MSTP
• VLAN, IGMP snooping, ACL, SNMP, IEEE 802.1X
• LED diagnostics and select/set pushbutton
• USB console port; signaling contact
• DIN rail and S7 mounting compatible
• IP20 protection; fanless operation
• Operating temperature: –40 °C to +70 °C
• Power supply: 2 x 24 V DC terminal blocks
• Dimensions: 205 x 205 x 245 mm
• Net weight: approx. 0.8 kg
• CLP memory module included
