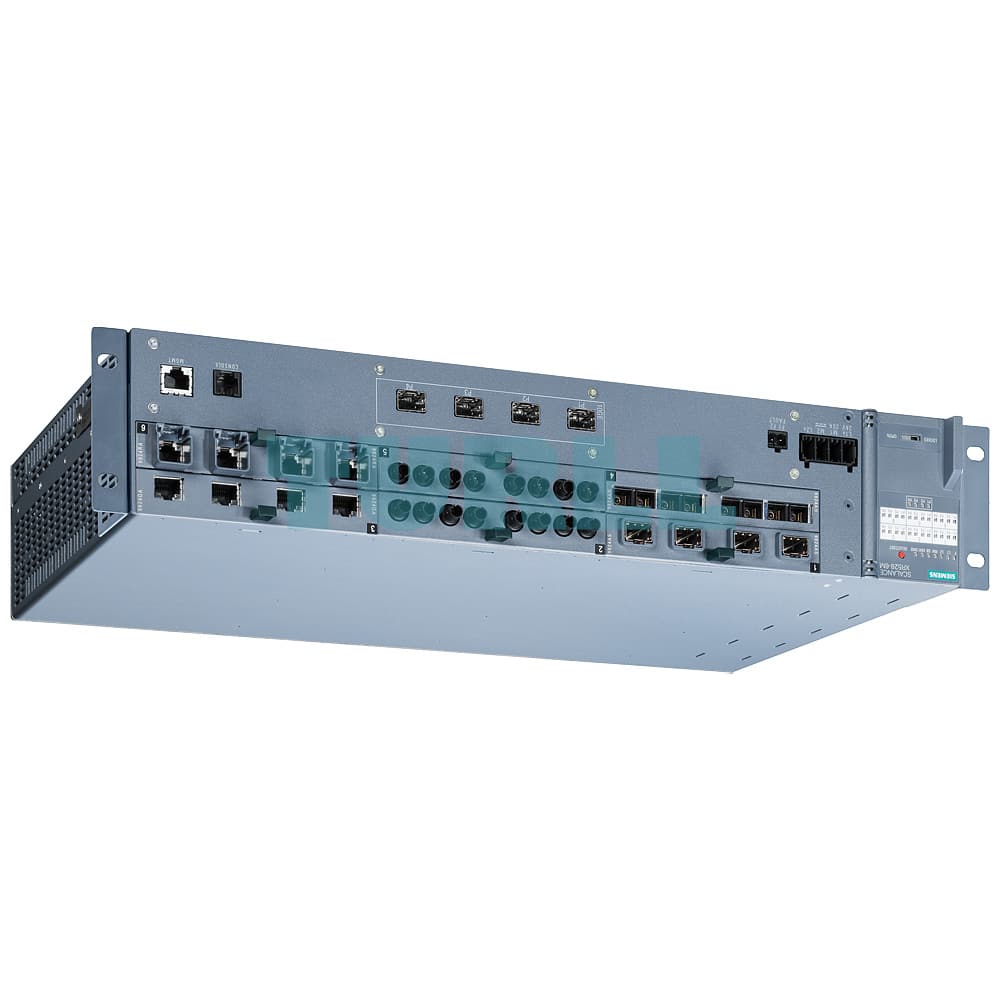

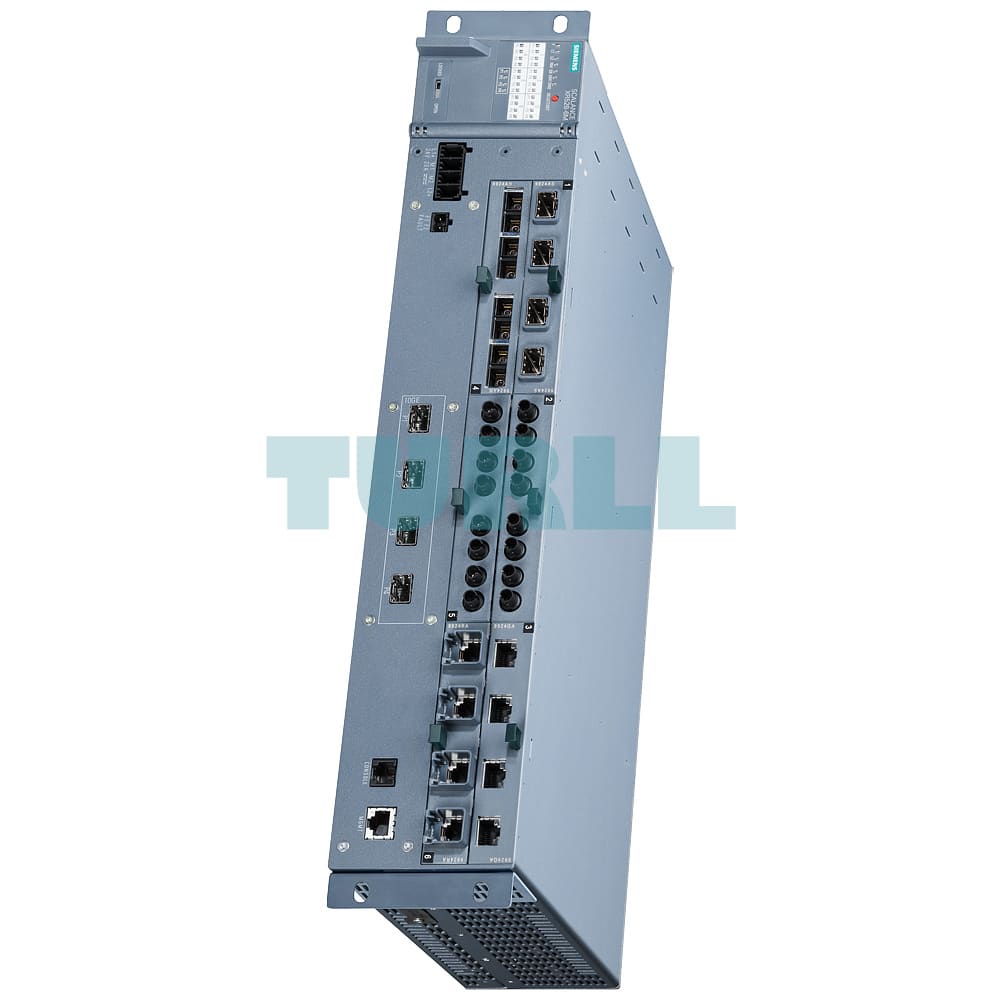

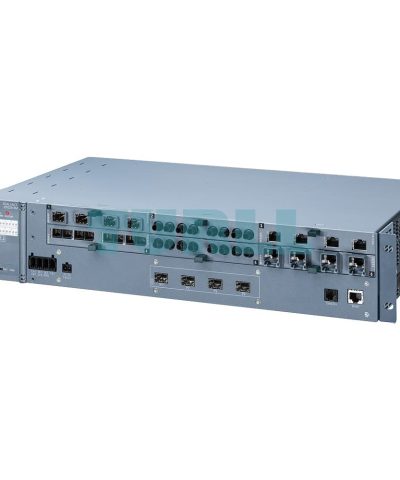

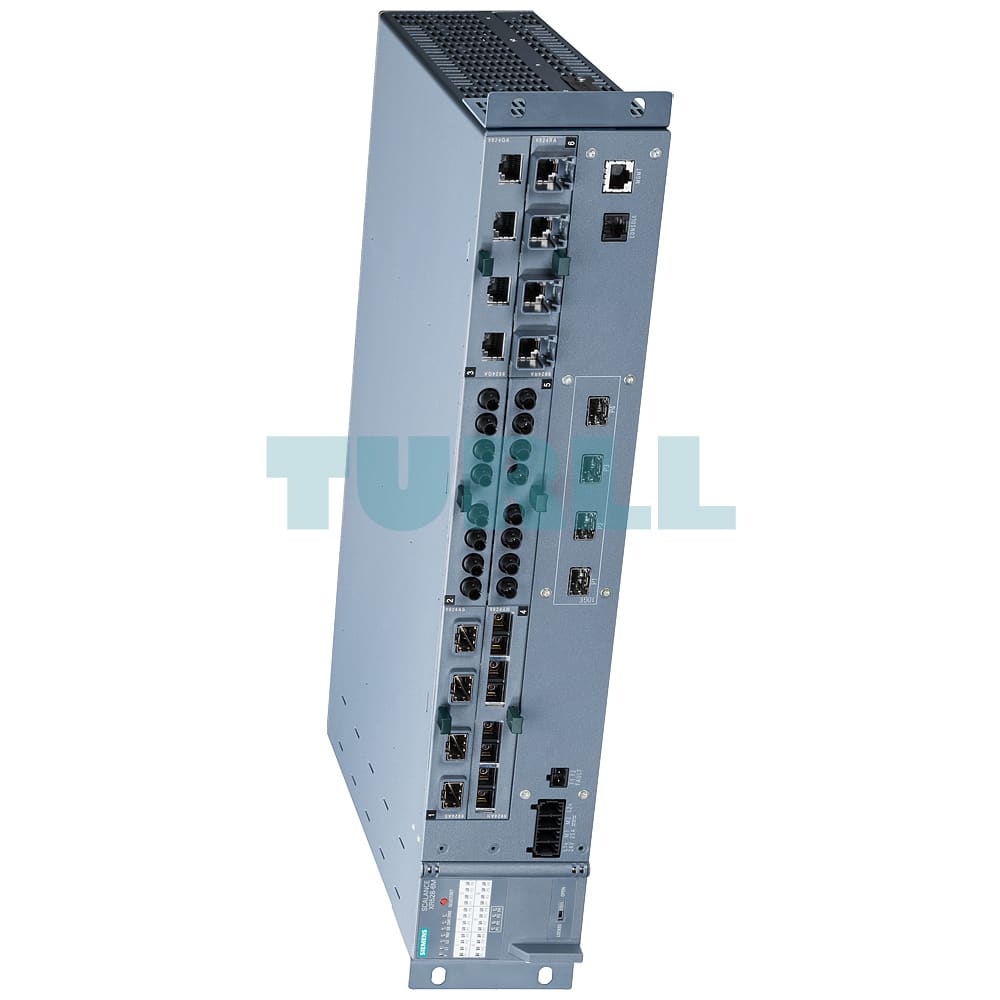

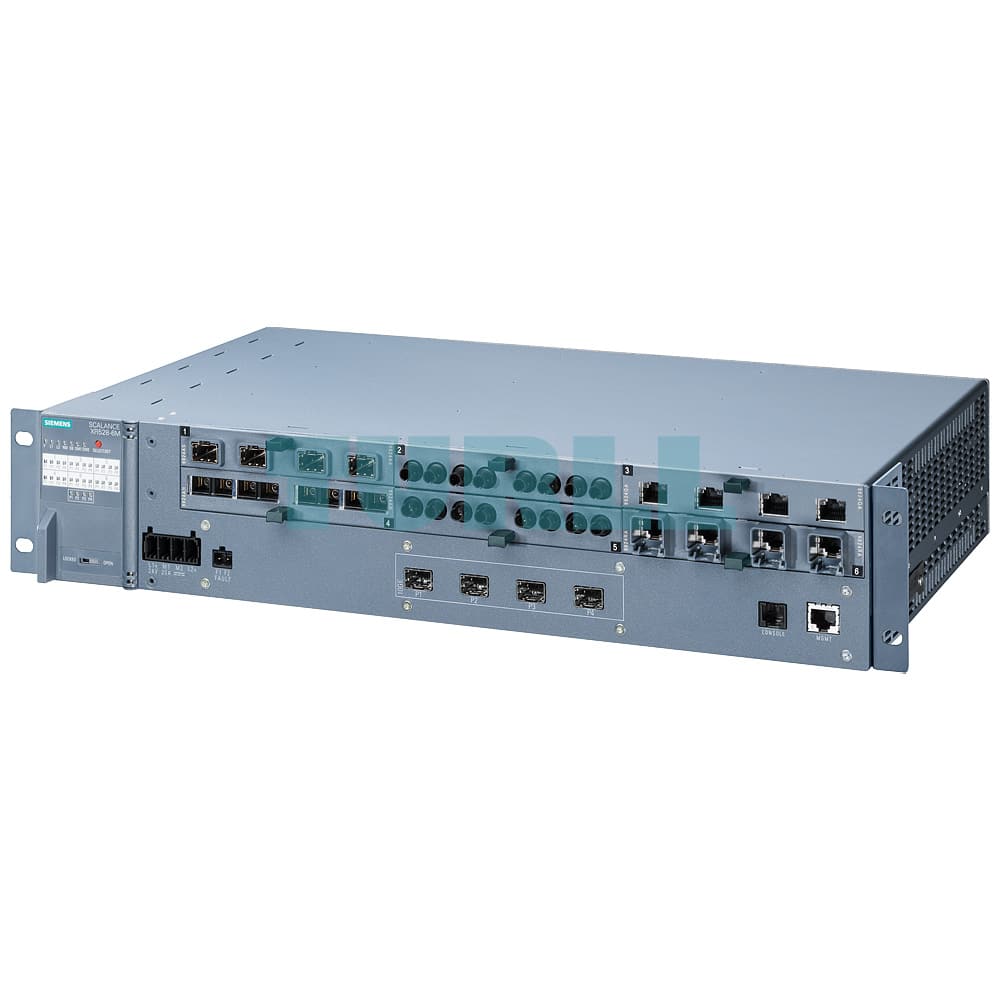

6GK5528-0AR00-2AR2 SIEMENS Exclusive SCALANCE XR528-6M Managed Switch Original Brand New

6GK5528-0AR00-2AR2 SIEMENS Exclusive SCALANCE XR528-6M Managed Switch Original Brand New

SCALANCE XR528-6M; managed IE switch; 19" rack; 4x 1000/10000 Mbit/s SFP+; 6x 100/1000 Mbit/s 4-port media modules, electrical, electrical PoE or optical; LED diagnostics; error signaling contact; Select/set pushbutton, PROFINET IO device, network management, integrated redundancy manager; office features (RSTP, VLAN, IGMP, ...); C-plug in scope of delivery; Layer 3 integrated; ports in the front.

Overview

The Layer 3-enabled SCALANCE XR-500 Industrial Ethernet switches are modular, high-performance, industry-standard switches for the construction of electrical and optical line, ring, and star topologies with data transfer rates of up to 10 Gbps, designed for installation in 19" control cabinets.

• Up to 10 electrical and/or optical interfaces with 10 Gbps and up to 48 interfaces with 10/100/1000 Mbps
• Fast media redundancy via integrated redundancy manager
• Redundant ring connection via high-speed media redundancy
• Support for VLANs, IGMP Snooping/Query, STP/RSTP/MSTP, Link Aggregation, QoS, IEEE 802.1X, static routing, RIP, OSPF, VRRP
• Diagnostics via PROFINET, web browser, CLI, SINEMA Server, SINEC NMS, and SNMP
• KEY-PLUG enables Layer 3 routing and fast device replacement

Design

With rugged IP20 metal housing, SCALANCE XR-500 switches are ideal for 19" cabinet installation. Power supply (85–264 V AC) can be mounted at the rear or via rack cables. LEDs provide full status visibility, and C-PLUG or KEY-PLUG slots allow for advanced configuration and quick recovery.

• 4x SFP+ slots (10 Gbps)
• 6x 4-port media module slots (electrical, PoE, or optical)
• RJ45 sockets with industrial-grade securing collars
• All Ethernet ports support 10/100/1000 Mbps or higher

Product Code: 6GK5528-0AR00-2AR2
