6GK5532-2SR00-2AR3 SIEMENS Exclusive SCALANCE XR524-8WG Managed Switch Original Brand New
$12,183.98
6GK5532-2SR00-2AR3 Siemens SCALANCE XR524-8WG Layer 3 managed switch with 24x RJ45 and 8x SFP+ ports, 24 V DC, front access.
6GK5532-2SR00-2AR3 SIEMENS Exclusive SCALANCE XR524-8WG Managed Switch Original Brand New

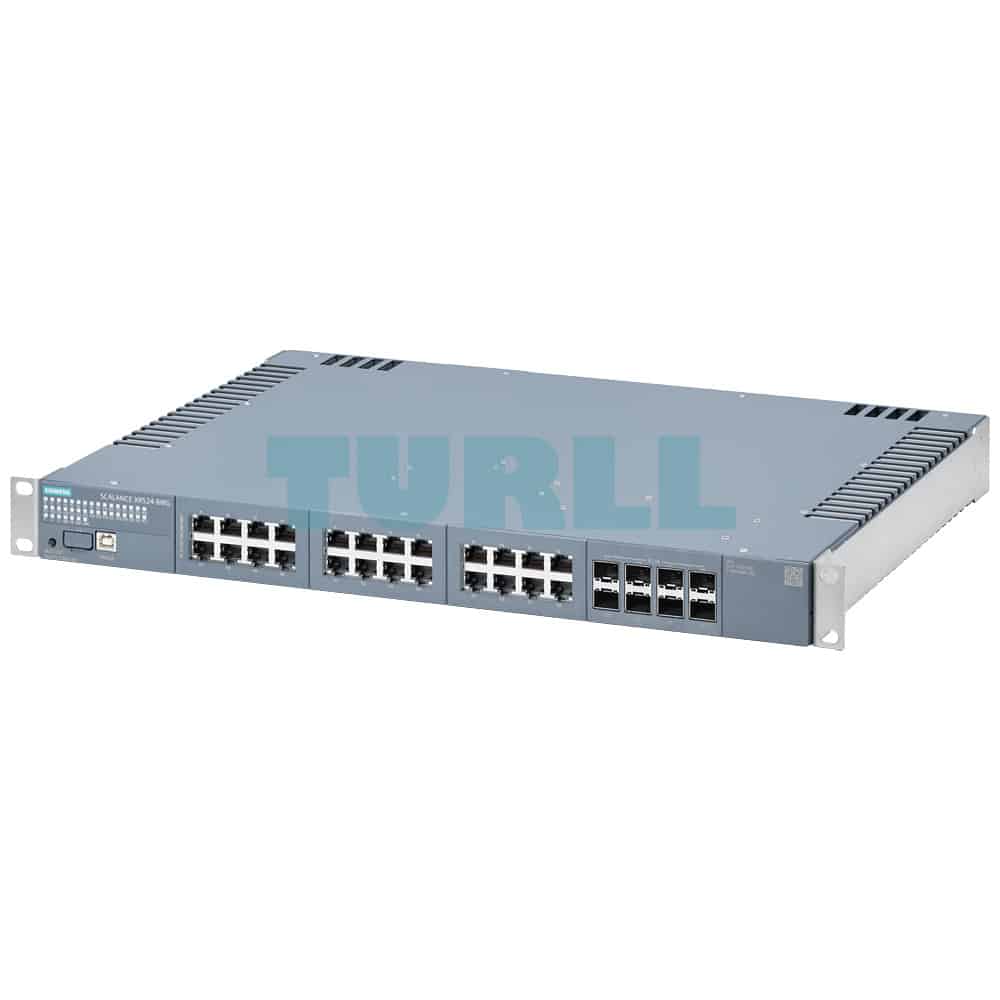

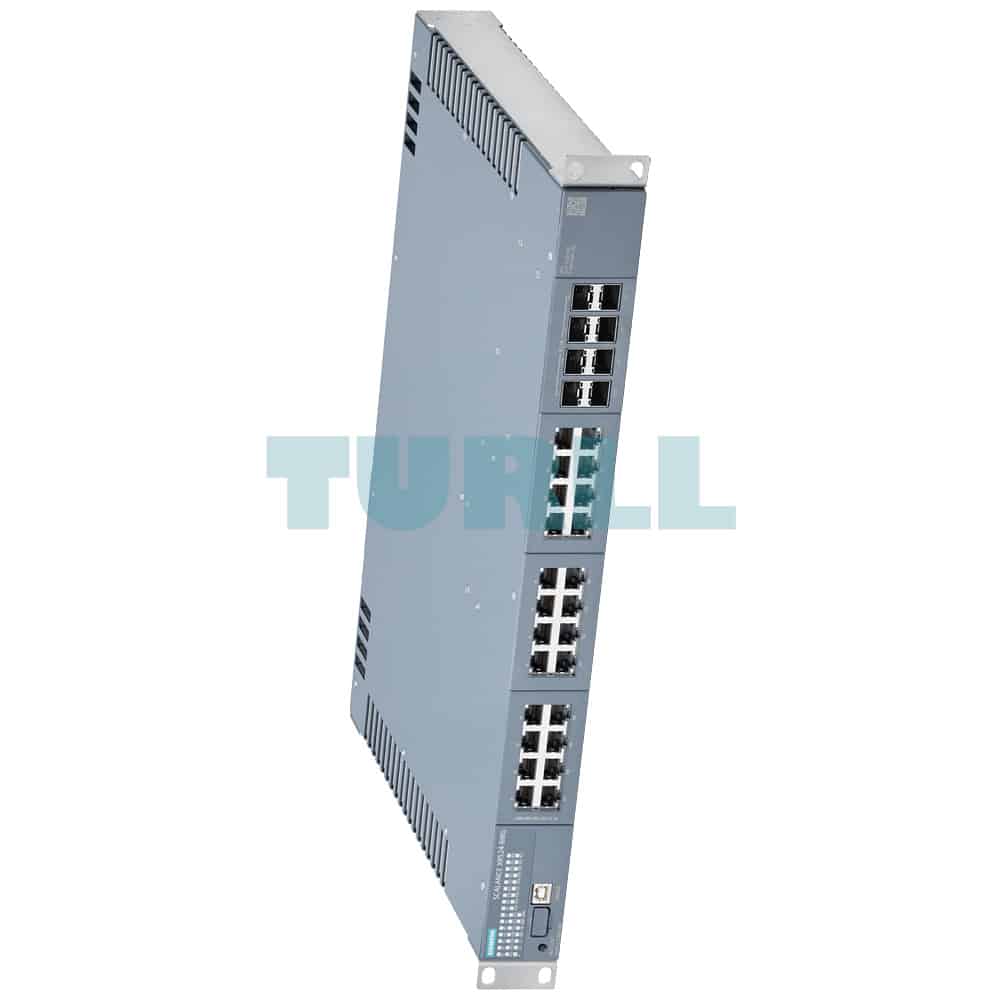

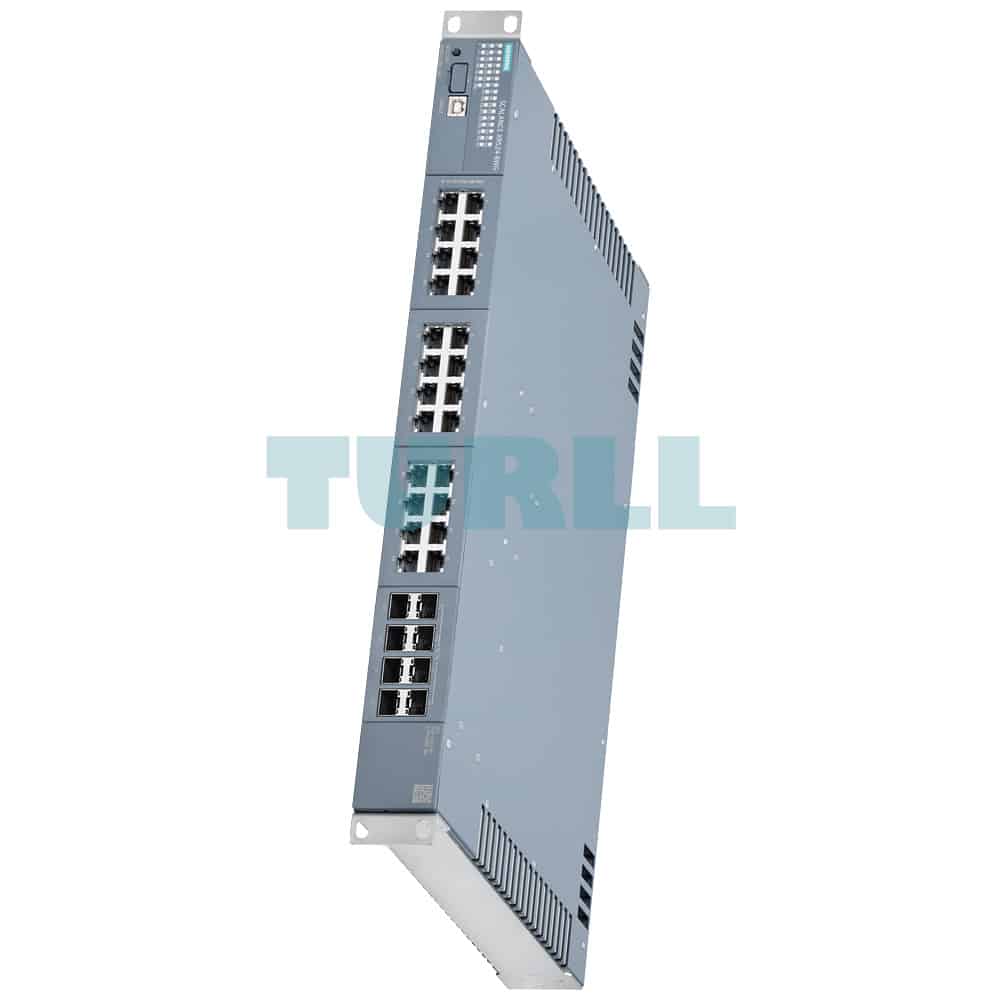

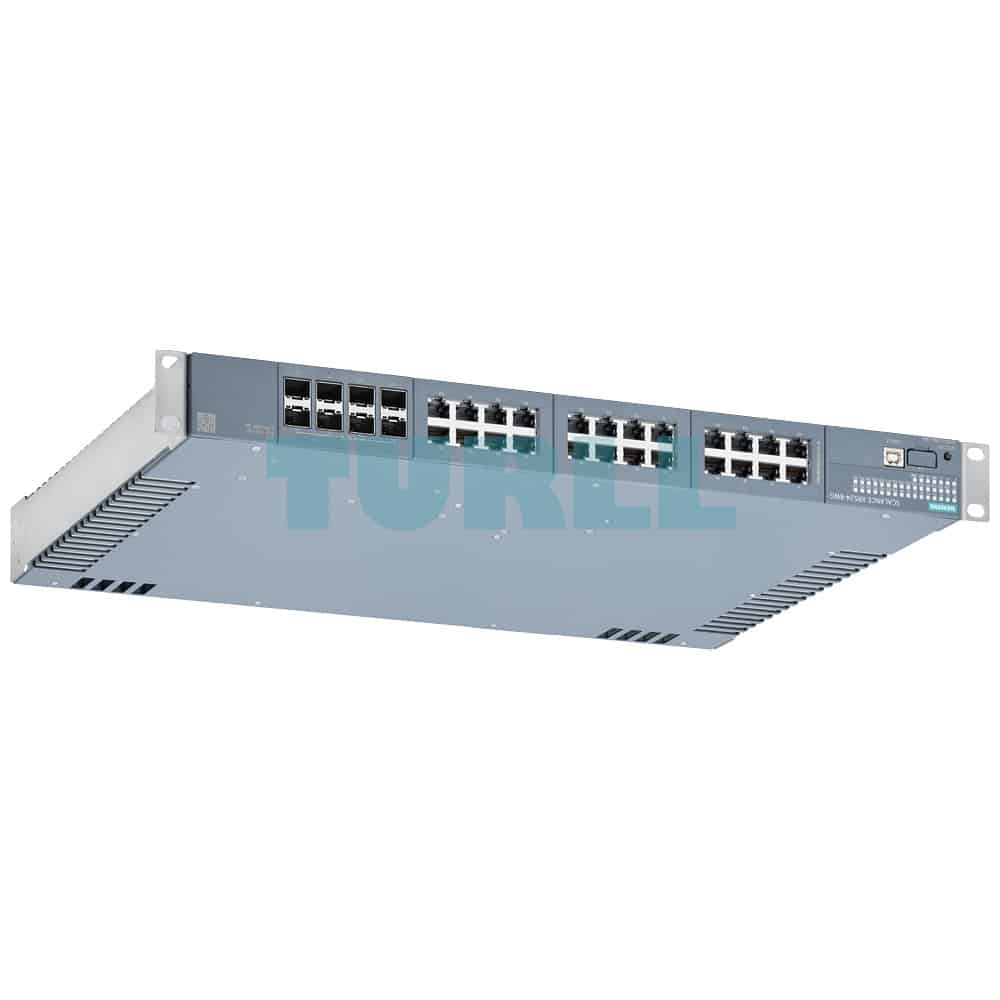

SCALANCE XR524-8WG; managed IE switch, 19″ rack; 24x 10/100/1000 Mbps RJ45 port; 8x 1G/10G SFP+ port; LED diagnostics; select/set button; PROFINET IO device, network management, integrated redundancy manager, office features (RSTP, VLAN, IGMP,…); CPL not included in scope of delivery; power supply 24 V DC; layer 3 integrated.
Overview
The SCALANCE XR-500WG product line (work group switches) are Layer 3 Industrial Ethernet switches for industry-related applications such as control rooms and industry-adjacent environments. They support electrical and optical star, line, and ring topologies with transfer rates of 10/100/1000 Mbps and up to 8x 10 Gbps. Designed for 19″ cabinet installation, these switches ensure high-speed, secure, and redundant network performance.
- 24x RJ45 electrical interfaces (10/100/1000 Mbps)
- 8x SFP+ optical slots (1000/10000 Mbps)
- Redundancy manager supporting Fast/Gigabit Ethernet (MRP, RSTP, MSTP)
- Advanced IT features: VLAN, IGMP Snooping/Querier, QoS, STP variants
- Diagnostics via PROFINET, SNMP, SINEC NMS, CLI, web browser
Design
- Robust metal housing (IP20), optimized for 19″ rack
- 24 V DC redundant power infeed via 2× 2-pin terminal block
- Console port, RESET button, and LED status indicators
- Slot for removable CLP data storage (not included)
- Front-facing LEDs and ports for easy access
Product Code: 6GK5532-2SR00-2AR3
| Weight | 8 kg |
|---|---|
| Dimensions | 710 × 510 × 100 mm |
