6GK7443-5DX05-0XE1 SIEMENS Exclusive CP 443-5 Extended PROFIBUS DP Processor Coated Original Brand New
$2,477.29
CP 443-5 Extended PROFIBUS DP processor with conformal coating for S7-400, supporting S7 and open communication.
6GK7443-5DX05-0XE1 SIEMENS Exclusive CP 443-5 Extended PROFIBUS DP Processor Coated Original Brand New

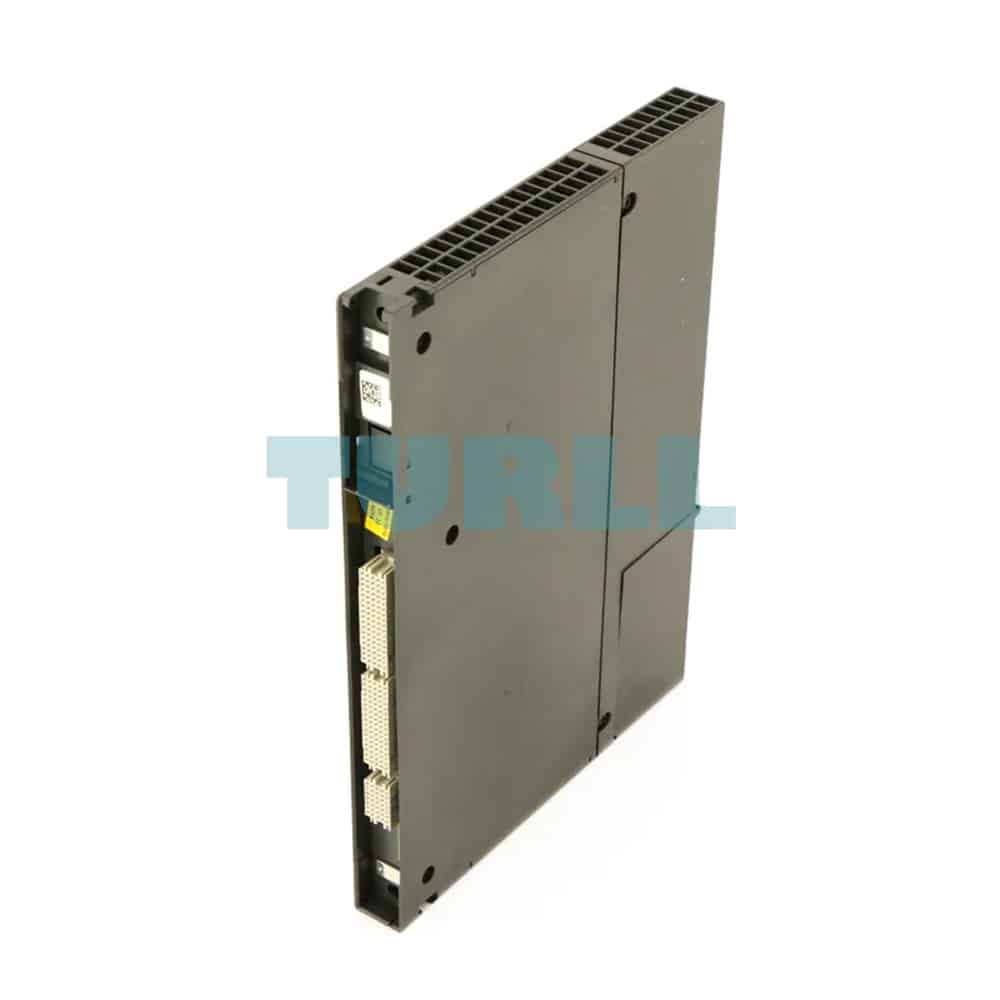

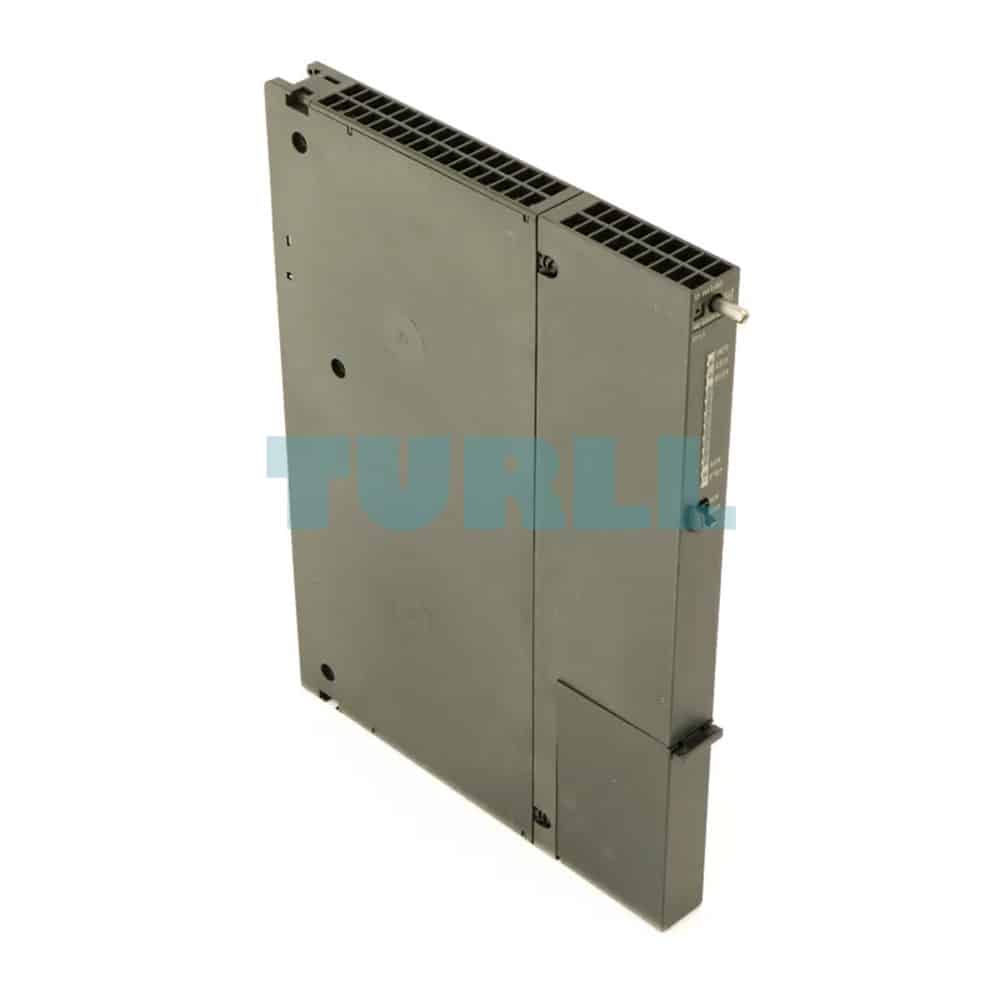

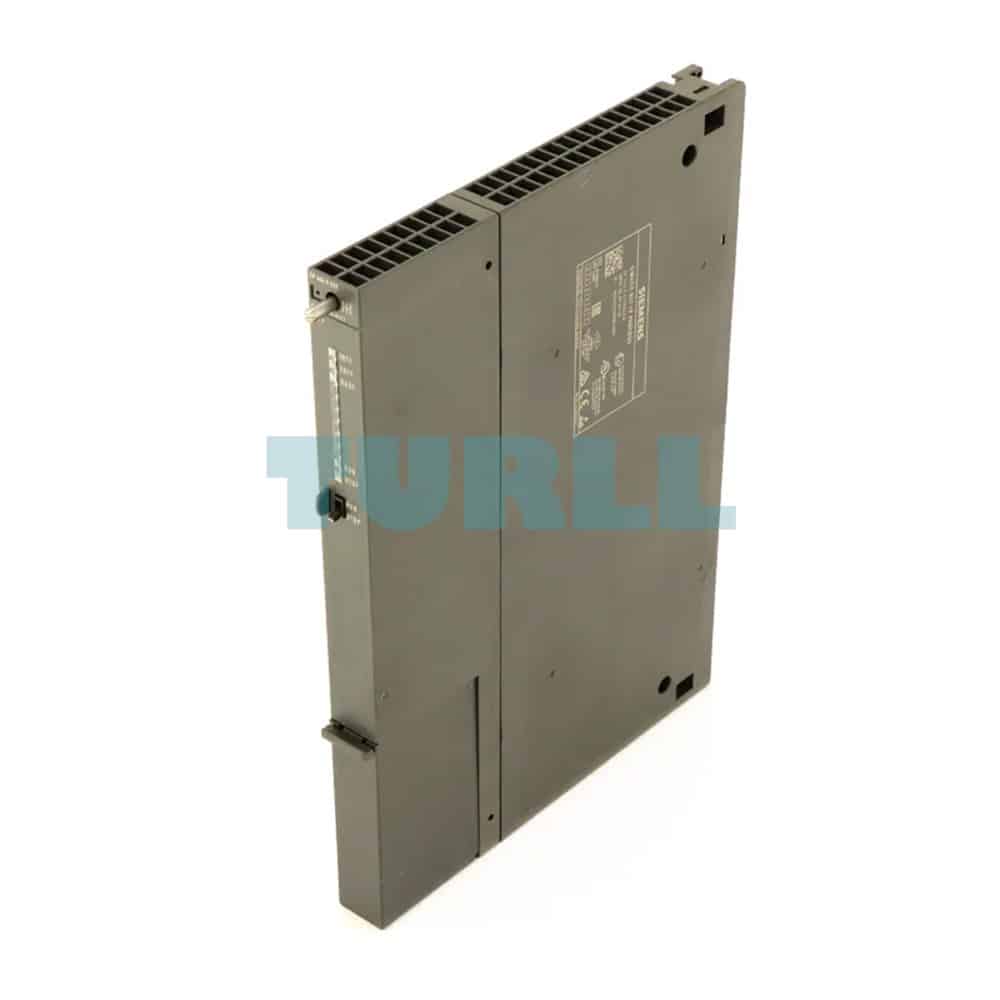

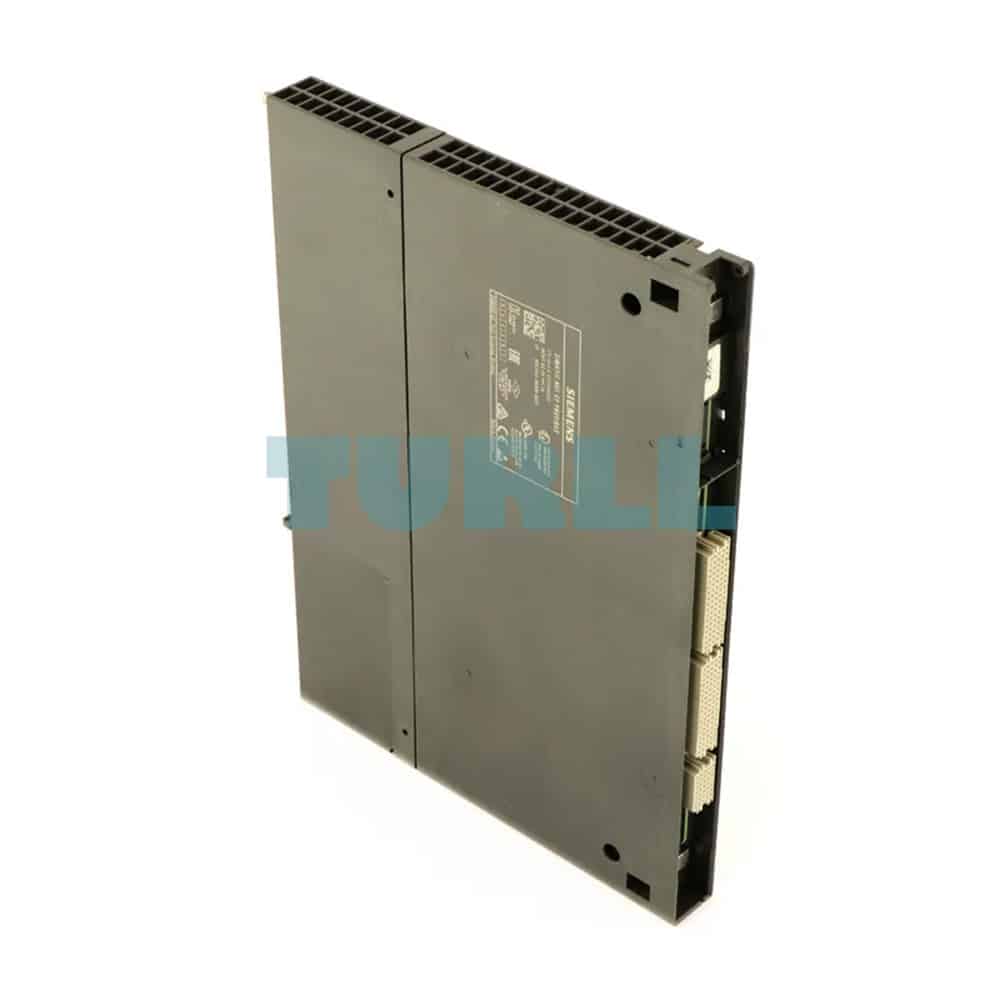

The SIEMENS 6GK7443-5DX05-0XE1 is a communications processor CP 443-5 Extended designed for reliable integration of SIMATIC S7-400 systems into PROFIBUS DP networks. This variant features conformal coating, providing enhanced protection for use in harsher industrial environments. As a PROFIBUS DP master module, it is S5-compatible and supports critical industrial protocols including PG/OP communication, S7 communication, and open SEND/RECEIVE services.
Overview
This CP enables the setup of additional PROFIBUS DP lines with data rates up to 12 Mbps, including legacy baud rates such as 45.45 Kbps. Designed for robust and scalable communication, it is ideal for expanding PROFIBUS networks in industrial automation. Features like cross-network programming communication through S7 routing, data record routing, and the ability to modify distributed I/O during operation ensure system flexibility and uptime. The conformal coating enhances reliability in applications exposed to dust, humidity, or corrosive environments.
- Supports PROFIBUS DP up to 12 Mbps
- PG/OP, S7, and open communication
- S5-compatible interface
- Conformal coating for harsh environments
- Time synchronization and routing features
Design
- Compact single-width module for S7-400 systems
- 9-pin Sub-D socket for PROFIBUS DP connection
- Fanless design, easy mounting on rack
- Up to 14 communication processors per system
- No backup battery or memory module required
Product Link: 6GK7443-5DX05-0XE1
| Weight | 0.858 kg |
|---|---|
| Dimensions | 1 × 1 × 1 mm |
