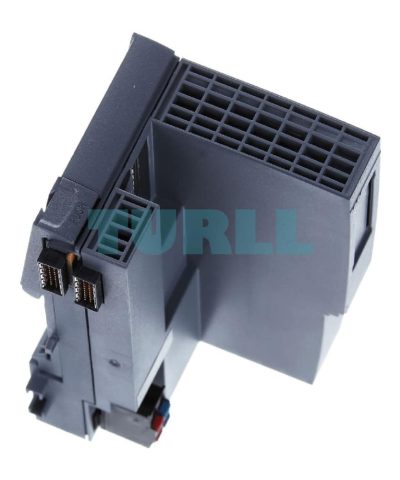

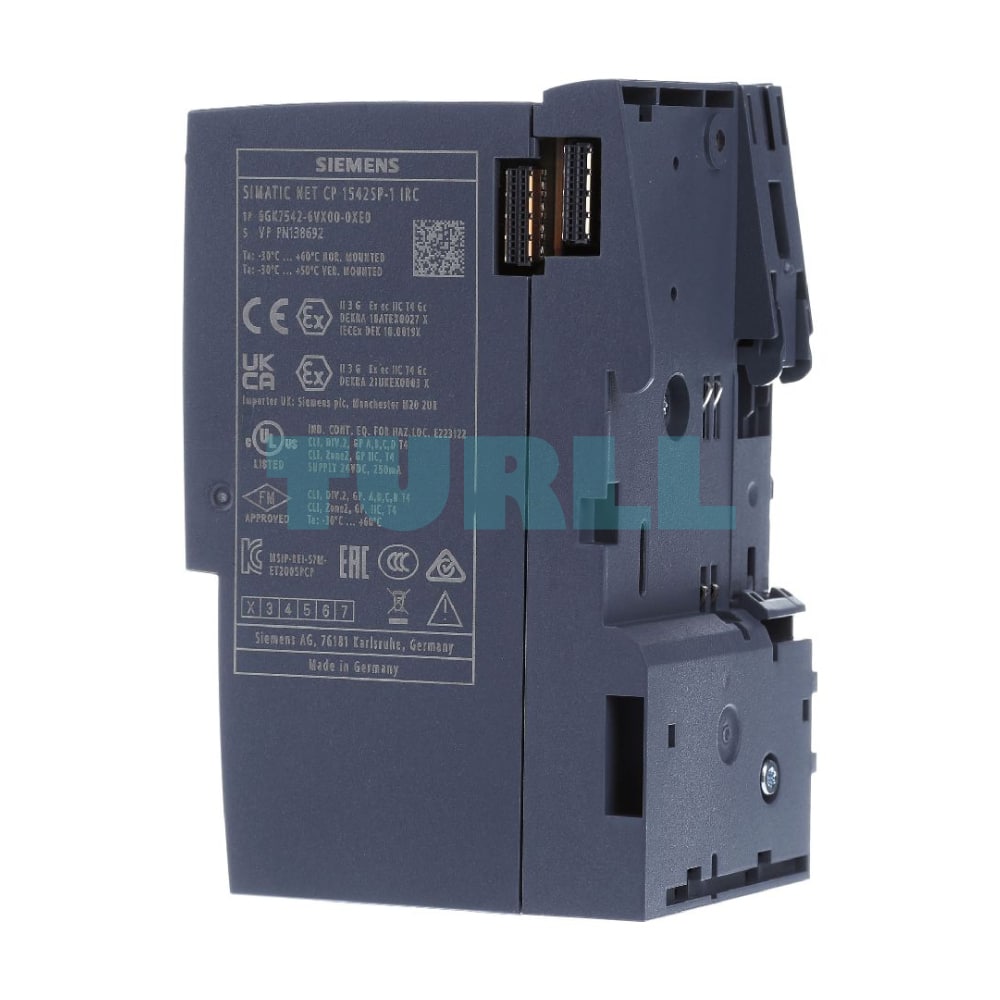

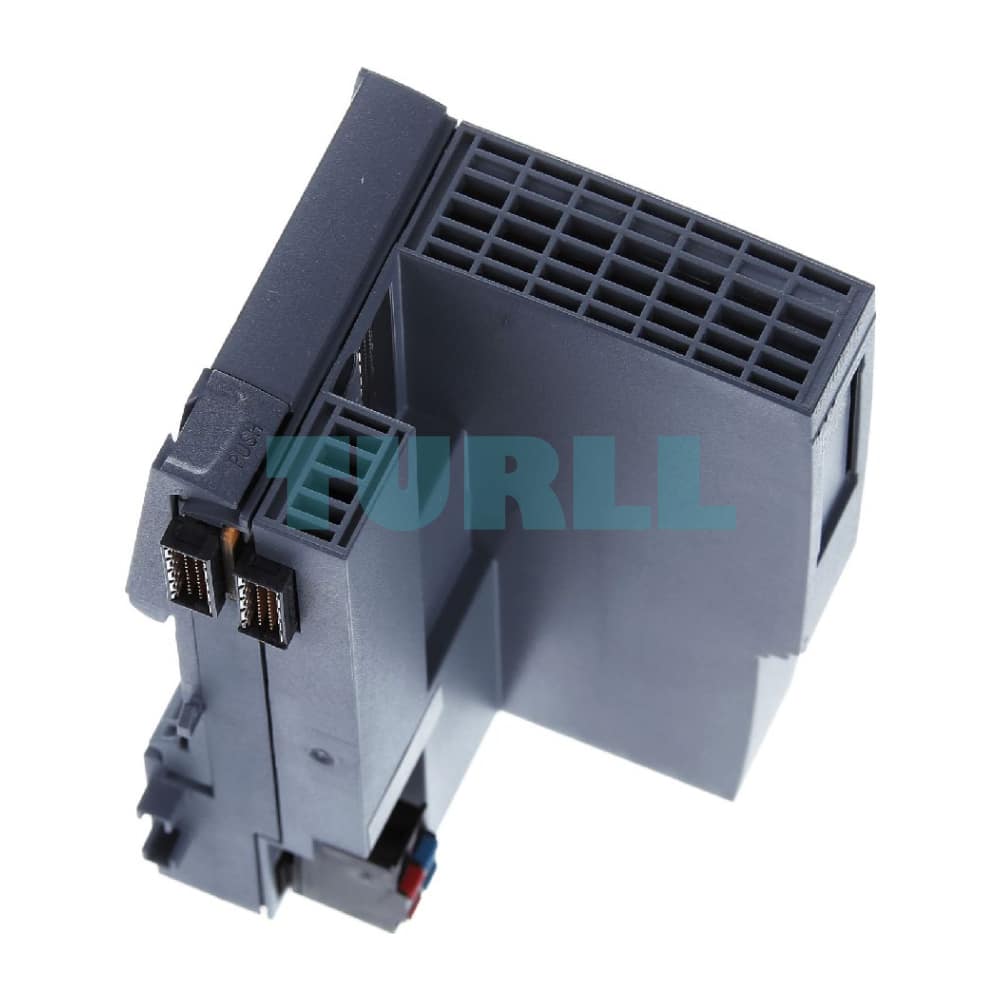

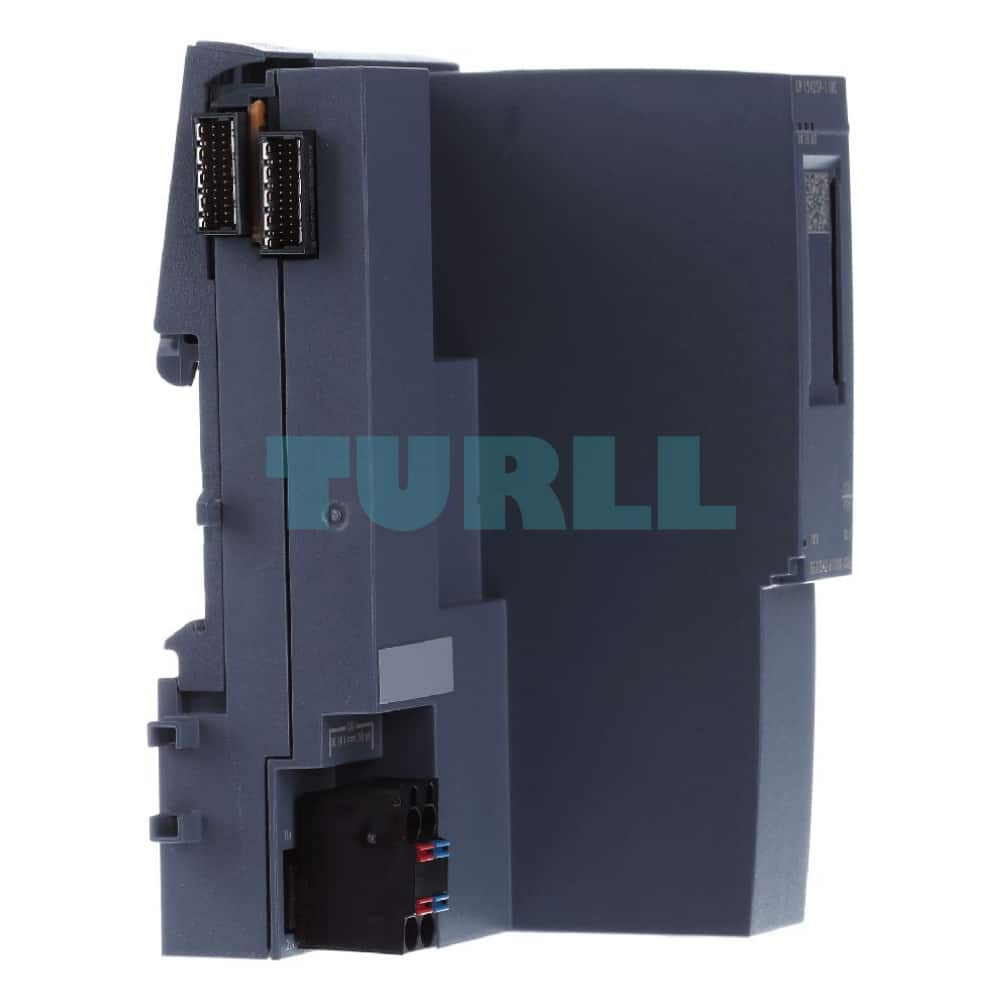

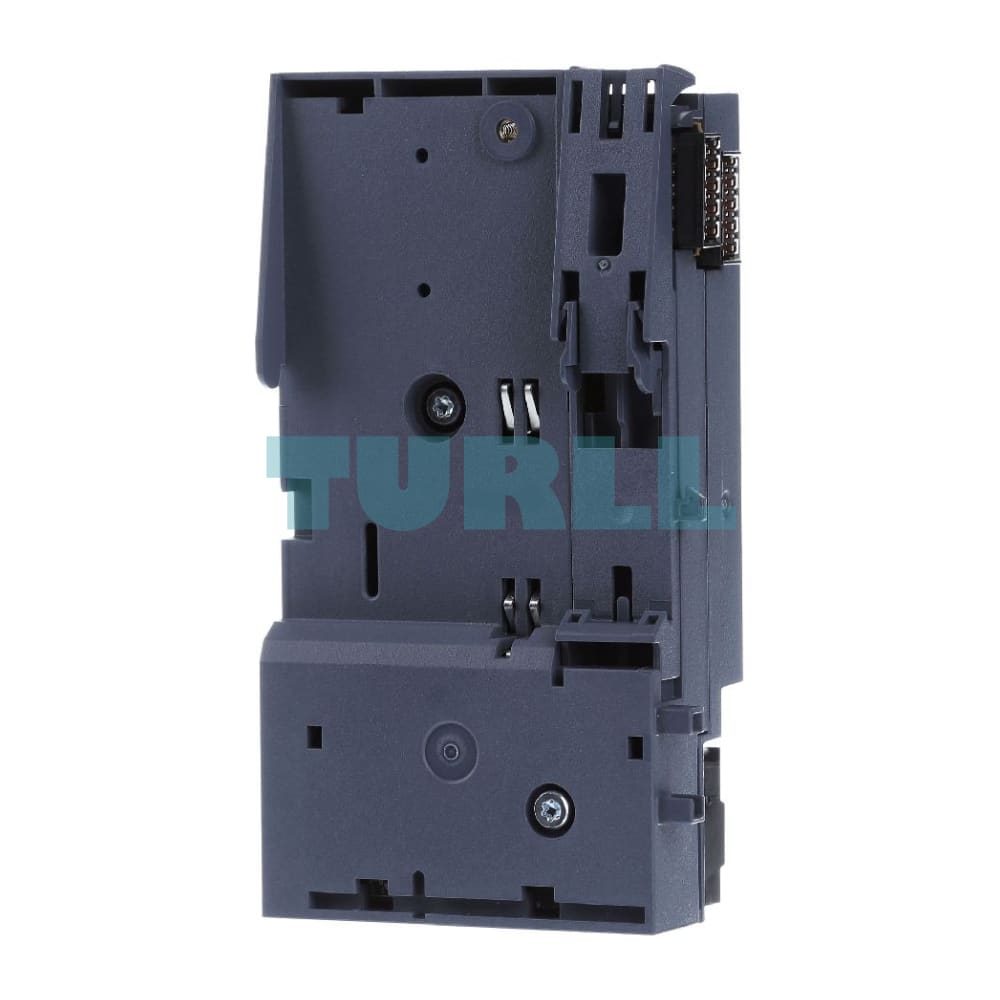

6GK7542-6VX00-0XE0 Siemens Communications Processor CP 1542SP-1 IRC Original Brand New
$1,053.25
6GK7542-6VX00-0XE0 SiemensĀ
Communications Processor CP 1542SP-1 IRC for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet, SINAUT ST7, TeleControl Server Basic, IEC 60870-5-104 or DNP3 protocol to a control center; Open IE communication (TCP/IP, ISO-on-TCP, UDP), IP broadcast/multicast, SNMPV1, DHCP, secure email, IPv4/IPv6, support of SINEMA Remote Connect with autoconfiguration; time-of-day synchronization via NTP, access to web server of CPU, BusAdapter required.
Overview
The CP 1542SP-1 IRC communications processor connects the ETĀ 200SPĀ Distributed Controller with Industrial Ethernet networks. In addition, control centers can be connected using various telecontrol protocols.
The CP is characterized by the following:
- Ethernet-based connection to TeleControl Server Basic, e.g. via internet
- Ethernet-based connection to the control center via SINAUTĀ ST7, IECĀ 60870-5-104 or DNP3 protocol
- Data transfer of measured values, control variables or alarms optimized for telecontrol systems
- Automatic sending of alert emails
- Data buffering of up to 100,000 values ensures a secure database, even with temporary connection failures
- Clearly laid out LED signaling for fast and easy diagnostics
- Fast commissioning thanks to easy configuration using STEP 7
The module can also be used for integrating the ET 200SP Distributed Controller into an IPv6-based network. All functions are configured using STEP 7 Professional V14 (TIA Portal) or higher.
The CP 1542SP-1 IRC supports the following communications services:
- Support of multiple telecontrol protocols such as SINAUT ST7, DNP3, IEC 60870-5-104 and TeleControl Basic
- PG/OP communication
- S7 communication
- Open communication (Open User Communication)
- IT communication
- Sending emails via SMTP or SMTPS with “SMTP-Auth” for authentication on an email server (also with IPv6)
- Email transfer with addressing by program block
- Email transfer via “Notifications” (alerts)
- Support of SINEMA Remote Connect with autoconfiguration
Benefits
- Fail-safety
The CPĀ 1542SP-1 IRC has a large buffer memory for several thousand data values. It is thus possible to ride through downtimes of the transmission link. - Fully automatic time stamp
For correct archiving of process data in the control system, all data frames are provided with a time stamp at their place of origin. - Fast and flexible data communication
Operators are quickly provided with alarms, statuses and values from the process, and they can intervene in the process control at any time by entering commands or setpoints. - Simple, low-cost engineering
The cyclic or event-driven transfer of measurements, setpoints or alarms can be implemented in just a few steps and without programming effort. - Remote diagnostics
Saves traveling and maintenance costs due to cost-effective remote programming, diagnostics, control and monitoring via the internet - Connection to SINEMA RC
With the optional SINEMA Remote Connect, you can benefit from the user-friendly, secure SINEMA Remote Connect management platform for remote maintenance as well as telecontrol applications. - Network separationĀ for setting up identical machines with the same IP addresses
- Optimum maintenance support:
- Simple diagnostics via the central web server
- Monitoring with IT network management tools (SNMPv1)
- Module replacement without a PG
- Simple alerting by email
- Investment protectionĀ thanks to simple integration of the ET 200SP Distributed Controller in existing networks with SIMATIC S7-300 / S7-400 via Industrial Ethernet using the CPĀ 1542SP-1Ā IRC
- Accessibility of the ET 200SP Distributed Controller from anĀ IPv6-based infrastructure
- Prevention of data loss, production disruptions or machine damage by protecting against unauthorized access to the SIMATIC ET 200SP Distributed Controller and lower-level networks.
- Securing the system against unauthorized access with
- Central access protection for any S7 station
- Secure access to the central web server
Application
With the CP 1542SP-1 IRC, the ET 200SP Distributed Controller can be used as a Remote Terminal Unit (substation) in telecontrol applications. Typical uses include the collection of measured values in widely distributed outdoor areas (level measurement for water tanks) or centralized opening and closing of valves (oil/gas transport in pipelines).
- Plants in water, wastewater or environmental sectors:
- Irrigation systems
- Drinking water supply
- Monitoring of power networks for consumption metering and cost control
- District heating networks
- Wind farms
- Plants in the oil and gas sector
- Oilfield water injection
- Pipelines
- Transportation systems
- Ventilation control in tunnel systems
- Traffic control
Design
The CP 1542SP-1 IRC has all the advantages of the ET 200SP design:
- Compact, space-saving design:
- Module powered via separate power supply
- Three LEDs for displaying the operating state and communication state of the module as well as LEDs on the bus adapter.
- Can be operated simultaneously with BAĀ SendĀ module and CMĀ DPĀ module.
- Simple installation:
The CP 1542SP-1 IRC is mounted on the ET 200SP DIN rail and is connected to the adjacent modules via the backplane bus. - The BusAdapter (not included in scope of delivery) makes various connection methods possible;
- For standard environmental conditions, BA 2xRJ45 for connection via RJ45 connector
- For mechanical loading during operation and/or increased EMC requirements
BA 2xFC, BA 2xSCRJ, BA SCRJ/RJ45, BA SCRJ/FC
- The CPĀ 1542SP-1 IRC can be operated without a fan; no backup battery is required.
- The module can be replaced without the need for a programming device
- The CP can be equipped with an equipment labeling plate.
- Optional labeling using light gray or yellow labeling strips. There is a choice of 2 materials:
- Film and roll with 500 strips, for thermal transfer roll printer
- Paper (280 g/m2), DIN A4 sheets with 100 strips each, for laser printer
Scope of delivery:
CP 1542SP-1 IRC, 24 V DC connector (BusAdapter must be ordered separately)
Function
- 2-port interface via bus adapter with an RJ45 connection with 10/100 Mbps full/half duplex with autosensing functionality
- Communication services:
- Support of SINAUT ST7, DNP3, IEC 60870-5-104 and TeleControl Basic telecontrol protocols
- Open communication (TCP/IP, UDP, ISO-on-TCP):
Multicast with UDP - PG/OP communication: Inter-network with S7 routing
- S7 communication (client, server)
- S7 routing
- IT communication:
HTTP communication allows access to the web server of the CPU - The e-mail client function enables sending of e-mails directly from the user program
IP address assignment via DHCP for IPv4 or via direct entry in the engineering software and via the T_CONFIG function block
STEP 7 Professional V14 (TIA Portal) or higher
- Support of SINEMA Remote Connect with autoconfiguration
- Diagnostics and network management:
- Extensive diagnostic functions of all modules in the ET 200SP system
- Integration in network management systems through the support of SNMP V1
- Transfer of time of day from the control center or via NTP
- Configuration of all functions with STEP 7 Professional V14 (TIA Portal) or higher
- Module replacement without programming device: All information can be stored on the memory card of the CPU.
Completely configurable application through “data point configuration”
The introduction of “data point configuration” in STEP 7 eliminates all programming effort for transferring data to the control center.
The data of the CPU relevant to the control center is selected via user-friendly “item browsing” in STEP 7. In a clearly-arranged menu, the data transfer parameters are then assigned to the data points selected in this way. The cyclic or event-driven transfer of measurements, setpoints or alarms can be implemented in just a few steps and without programming effort.
Data buffering
Data losses are prevented by the data buffering mechanisms integrated in the product.
In the event of a connection failure, up to 100,000 time-stamped values are buffered. When the connection is restored, the buffered values are automatically transferred to the control center in the correct chronological order.
E-mail alerting
E-mail alerts can be configured for prompt notification of service and maintenance personnel about station conditions. When previously defined events (such as threshold violation) occur, application-specific information is sent automatically by e-mail.
Diagnostics
The CP 1542SP-1 IRC offers comprehensive diagnostic options for a quick and informative analysis of the station status. Elementary diagnostic information about the connection to the control center is signaled directly on the CP via LEDs.
Extensive information such as connection history, buffer status and transferred measured values can be called up via STEP 7.
Remote maintenance
For remote access from the control center to the substation, the CP provides a remote maintenance port in parallel with process operation. This ensures access for monitoring and program changes.
Interfaces
The CP 1542SP-1 IRC has 2 Ethernet interfaces for connection to the control center. The ET 200SP Distributed Controller can be connected via an existing network or via other media by using additional routers (e.g. SCALANCE M for connection to the Internet via DSL).
6GK7542-6VX00-0XE0 SiemensĀ
Communications Processor CP 1542SP-1 IRC for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet, SINAUT ST7, TeleControl Server Basic, IEC 60870-5-104 or DNP3 protocol to a control center; Open IE communication (TCP/IP, ISO-on-TCP, UDP), IP broadcast/multicast, SNMPV1, DHCP, secure email, IPv4/IPv6, support of SINEMA Remote Connect with autoconfiguration; time-of-day synchronization via NTP, access to web server of CPU, BusAdapter required.
| Weight | 0.201 kg |
|---|---|
| Dimensions | 57 × 121 × 5 mm |
