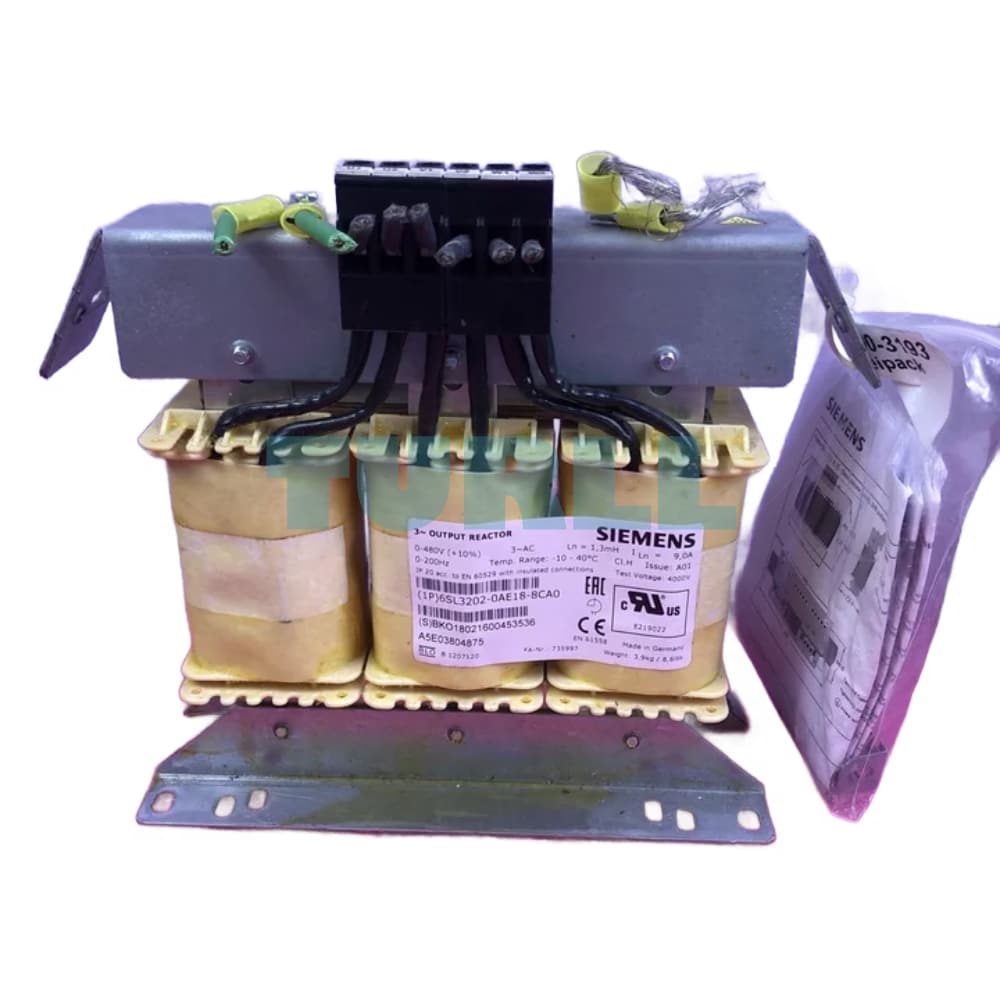

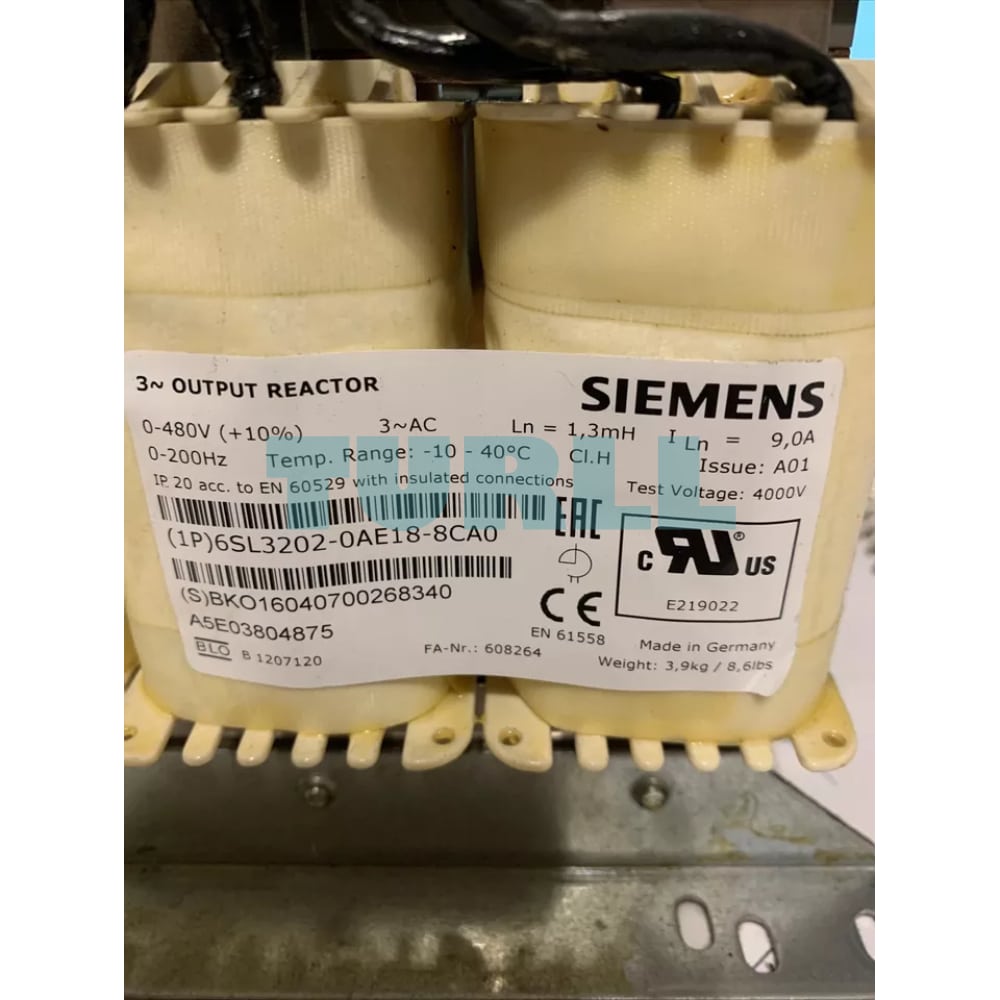

6SL3202-0AE18-8CA0 SIEMENS Exclusive Output Reactor Original Brand New

6SL3202-0AE18-8CA0 SIEMENS Exclusive Output Reactor Original Brand New

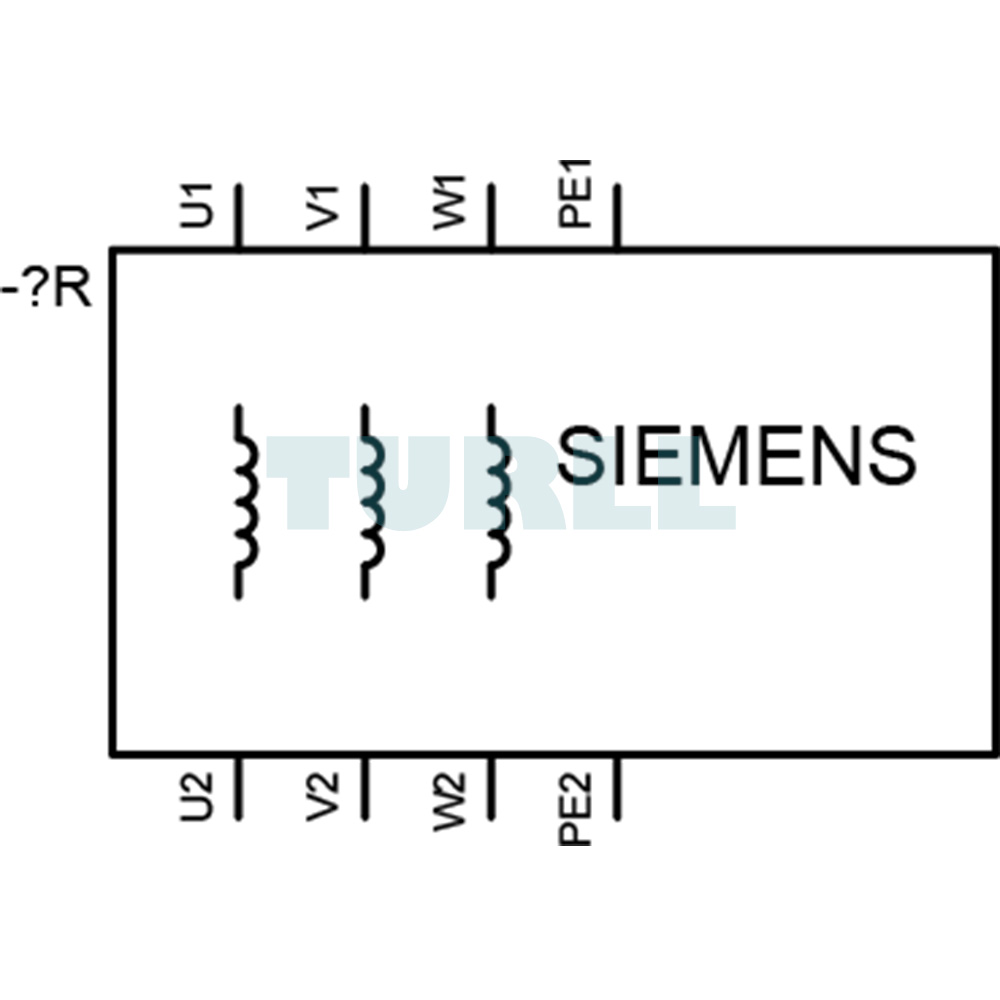

The 6SL3202-0AE18-8CA0 SIEMENS output reactor is engineered to enhance the performance and longevity of SINAMICS PM240-2 Power Modules, offering stable and efficient output conditions under demanding operating environments. Designed for frame size FSG and suitable for 3AC 380 V to 480 V systems at 9.0 A, this output reactor minimizes electrical stress on both the motor and the drive system. Its construction supports improved operational reliability, especially where long motor cables and fast-switching inverter technologies are involved.

Modern drive systems rely on high-frequency switching elements that can generate steep voltage rise times. These fast transitions cause the capacitance of extended motor cable runs to reverse polarity rapidly. With each inverter switching event, additional current peaks occur, potentially resulting in increased loading and thermal stress on the connected equipment. The 6SL3202-0AE18-8CA0 mitigates these effects by slowing the rate of voltage change and buffering the current peaks. This ensures smoother output behavior, reduced electrical noise, and improved system protection.

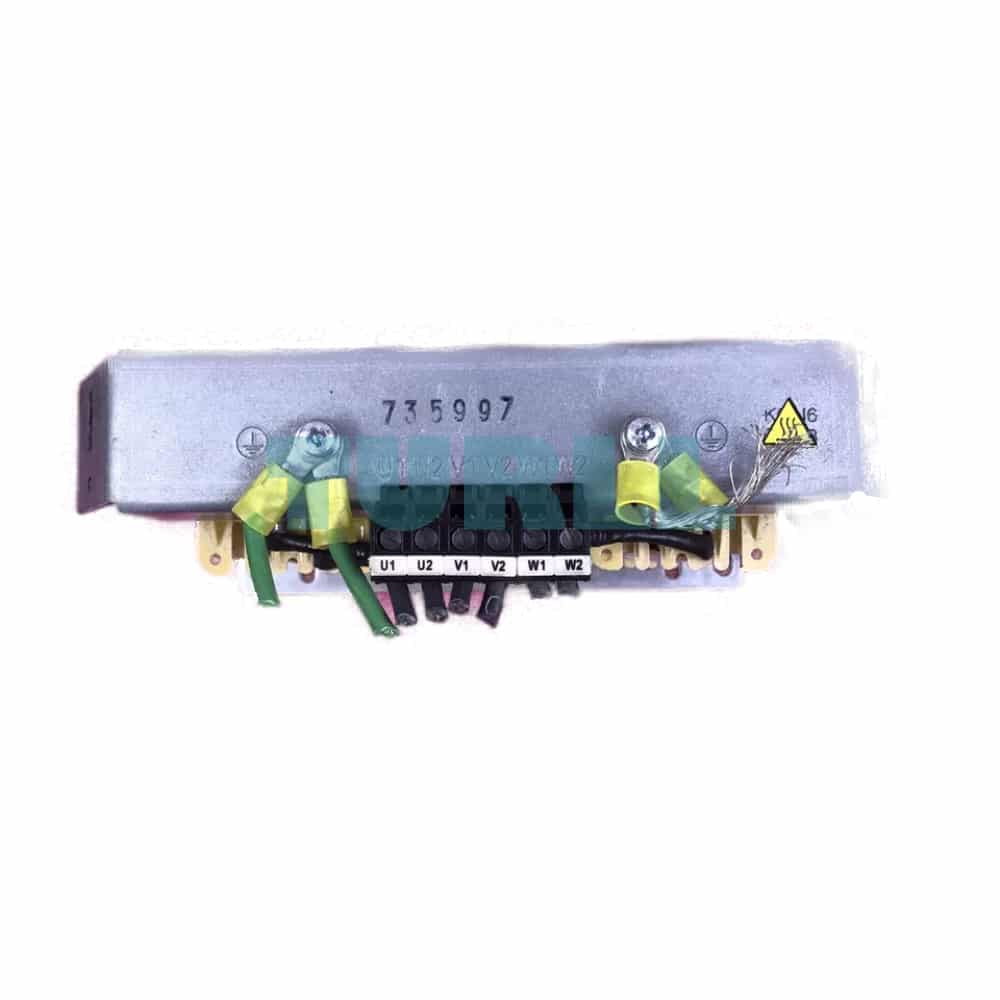

By incorporating the correct output reactor, users can achieve a more controlled energy transfer, enabling the use of longer motor cables without compromising performance. The inductive characteristics of this reactor help maintain consistent current flow while enhancing the overall endurance of the drive components. Installation is straightforward, although it is important that the reactor be mounted as close as possible to the corresponding Power Module to maintain its intended electrical benefits.

Overview

The output reactor for PM240-2 Power Modules is essential for reducing voltage stress and controlling current peaks. This makes it particularly beneficial in installations where cable length is significant or where precise motor operation is critical. With a permissible output frequency of up to 150 Hz and a pulse frequency limit of 4 kHz, this accessory is well suited for a wide range of industrial systems that demand reliable performance and stable electrical behavior.

Key Features

• Designed for SINAMICS PM240-2 Power Modules, frame size FSG
• Reduces voltage rise (dv/dt) and minimizes current peak amplitudes
• Supports longer motor cable applications
• Improves system protection and component durability
• Max output frequency: 150 Hz
• Max pulse frequency: 4 kHz
• Must be installed close to the Power Module for optimal results

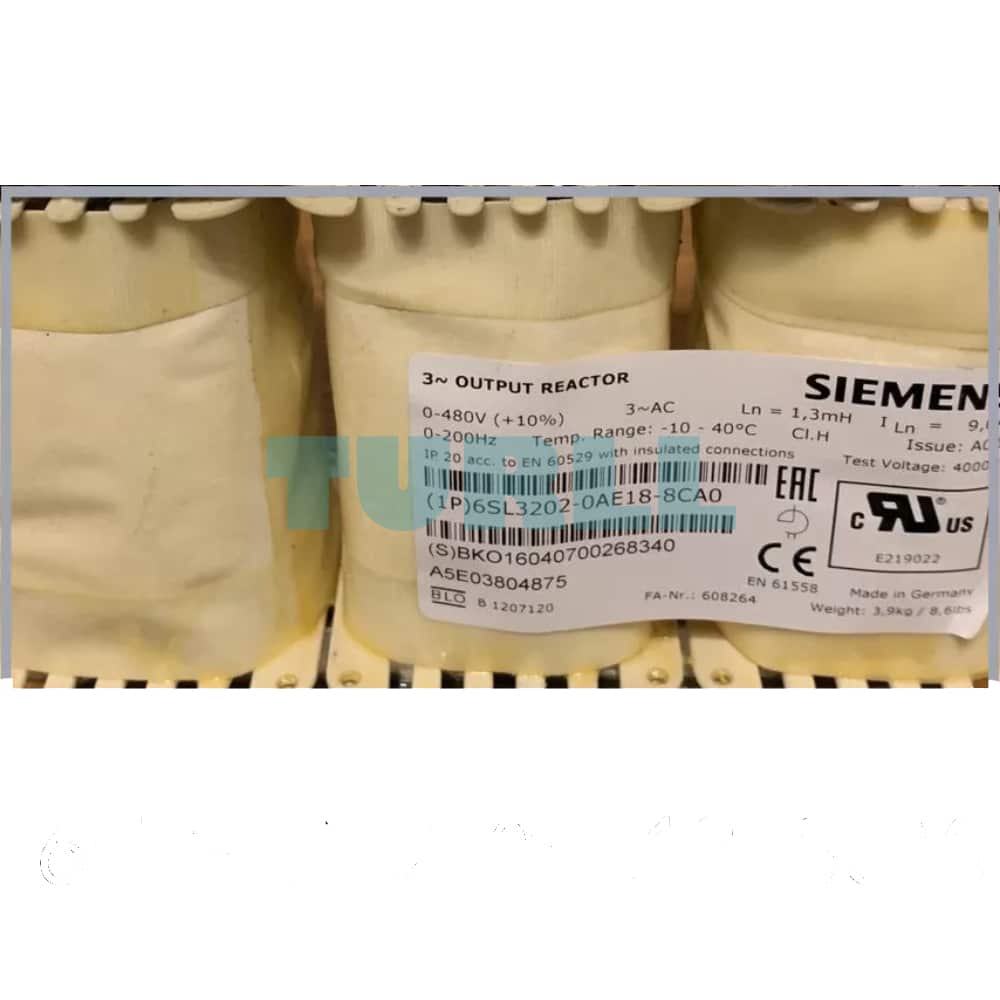

Product Code: 6SL3202-0AE18-8CA0
