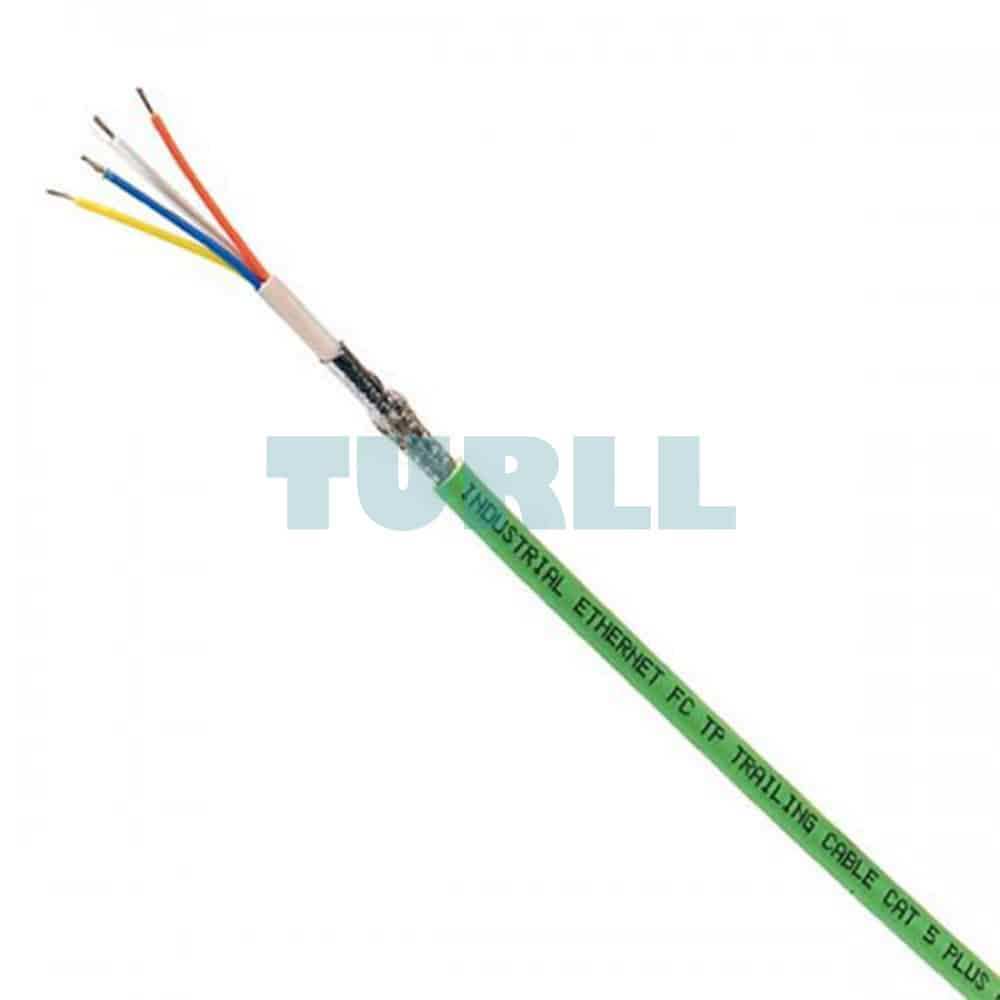

6XV1840-3AH10 SIEMENS Industrial Ethernet FC TP Trailing Cable PROFINET type C sold by the meter Original Brand New

Overview

• 4-wire FastConnect installation cables for structured Fast Ethernet cabling with special design for fast installation
• Easy stripping with the FastConnect stripping tool; the protective jacket and the braided shield are stripped accurately in one step
• Connection to FastConnect products using insulation displacement
• Exceeds Category 5 (Cat5e) of the international cabling standards ISO/IEC 11801 and EN 50173
• PROFINET-compatible
• UL approval
• Different variants for different application areas
  (e.g. trailing, food, marine, railways, robots)
• High interference immunity thanks to double shielding
• Easy length measurement thanks to printed meter markings

Design

The FastConnect (FC) Industrial Ethernet cables IE FC cable 2 x 2 are designed with radial symmetry and therefore allow the use of the IE FC stripping tool. The IE FC RJ45 outlet and the IE FC plugs can therefore be attached quickly and easily.

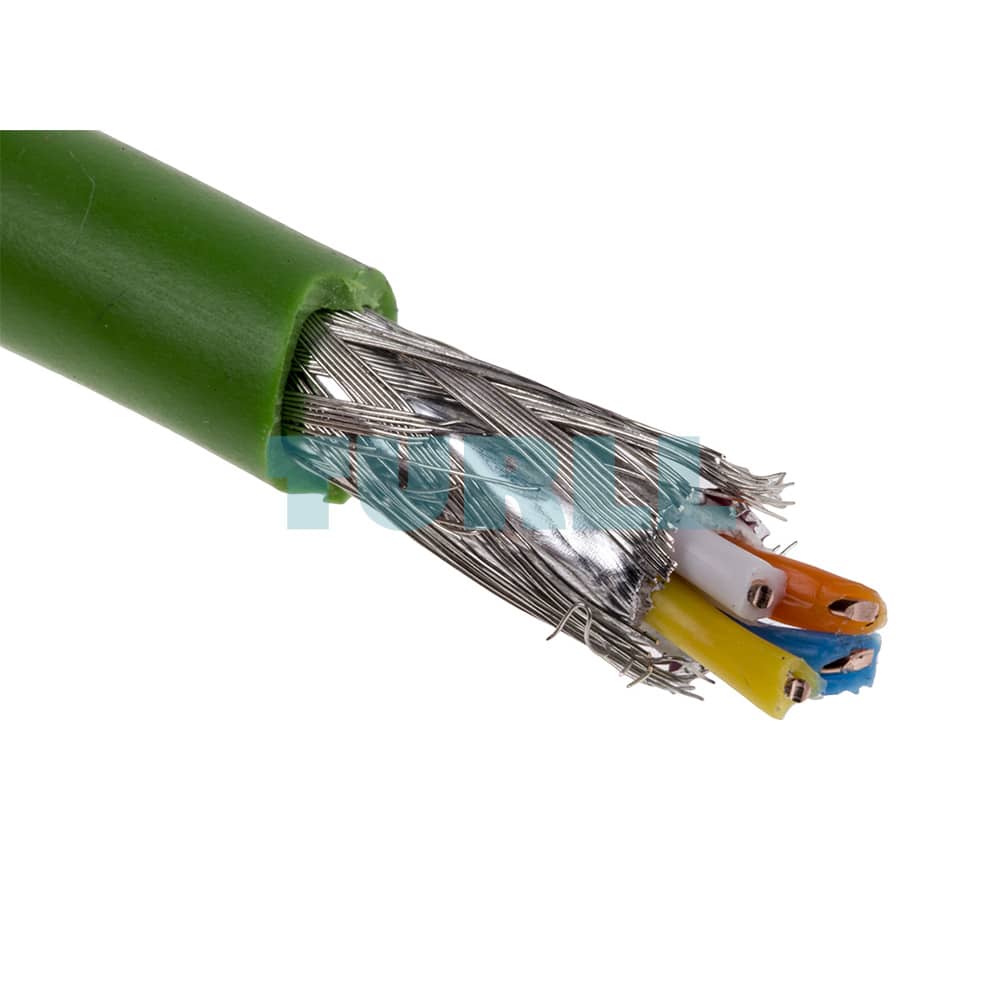

• The double shield makes it especially suitable for routing through industrial areas with strong electromagnetic fields
• Easy connection to the insulation displacement contacts of the IE FC plugs without the need for special tools
• System-wide grounding concept can be implemented through the outer shield of the bus cable as well as through the grounding concept of the IE FC RJ45 outlet and the IE FC plugs
• Printed meter marks
