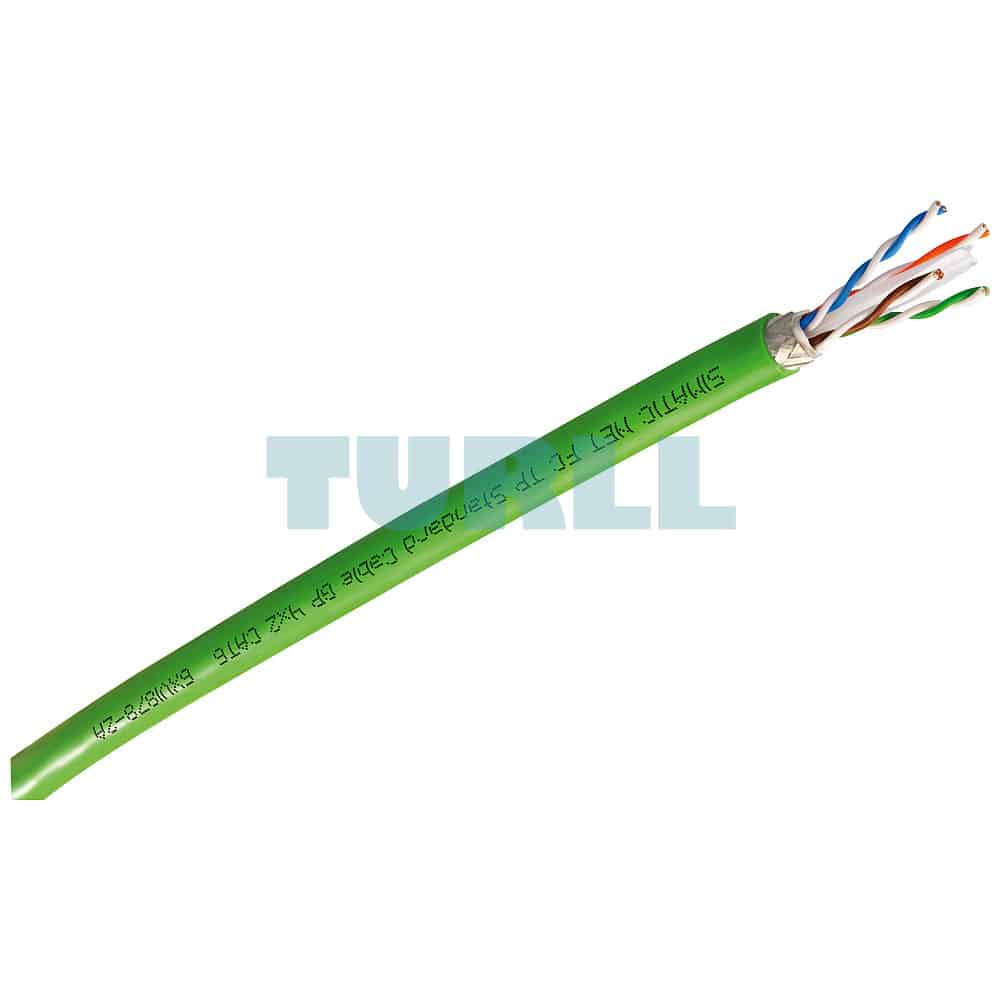

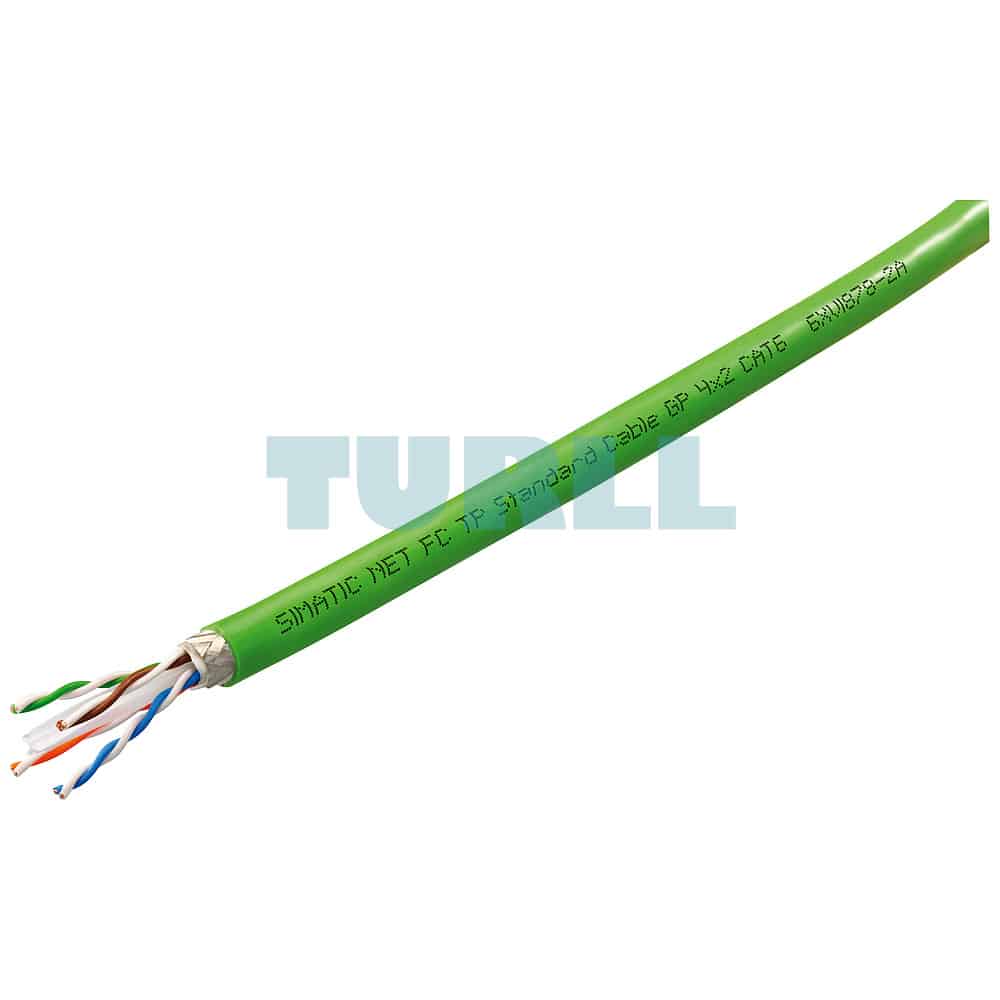

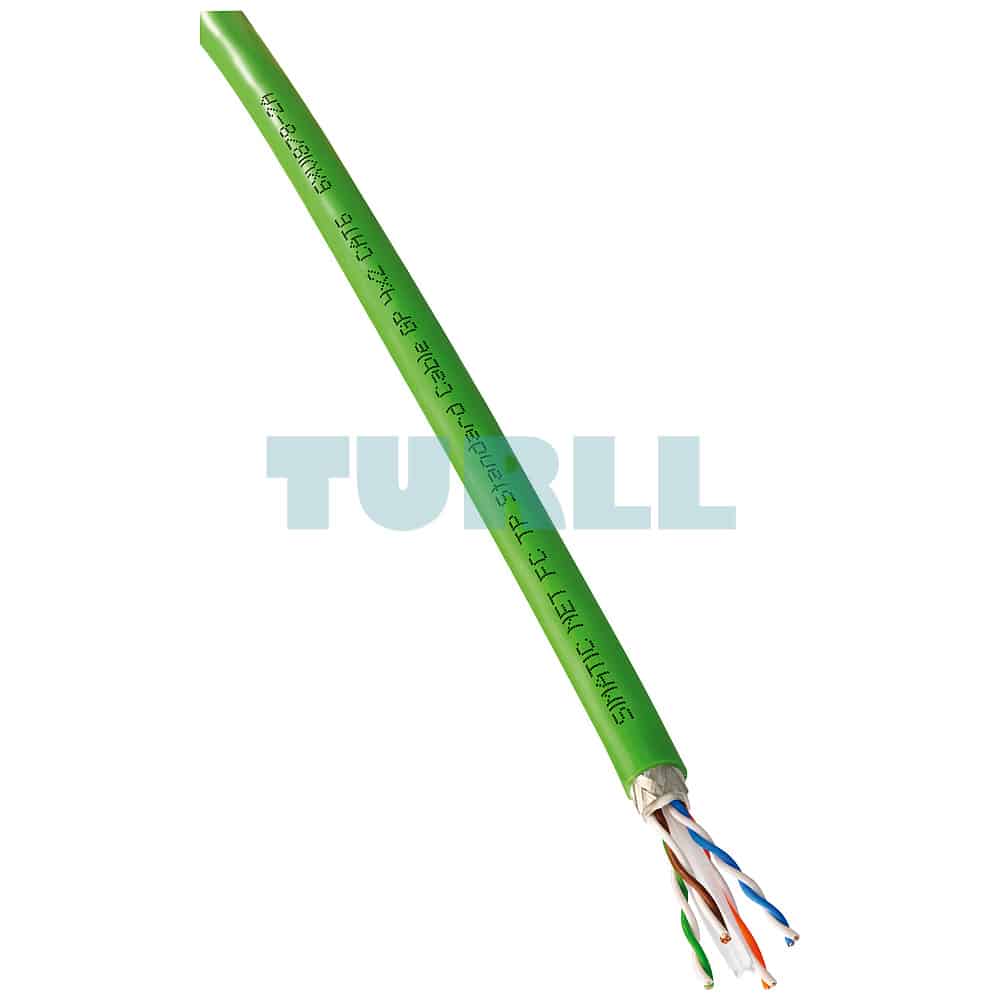

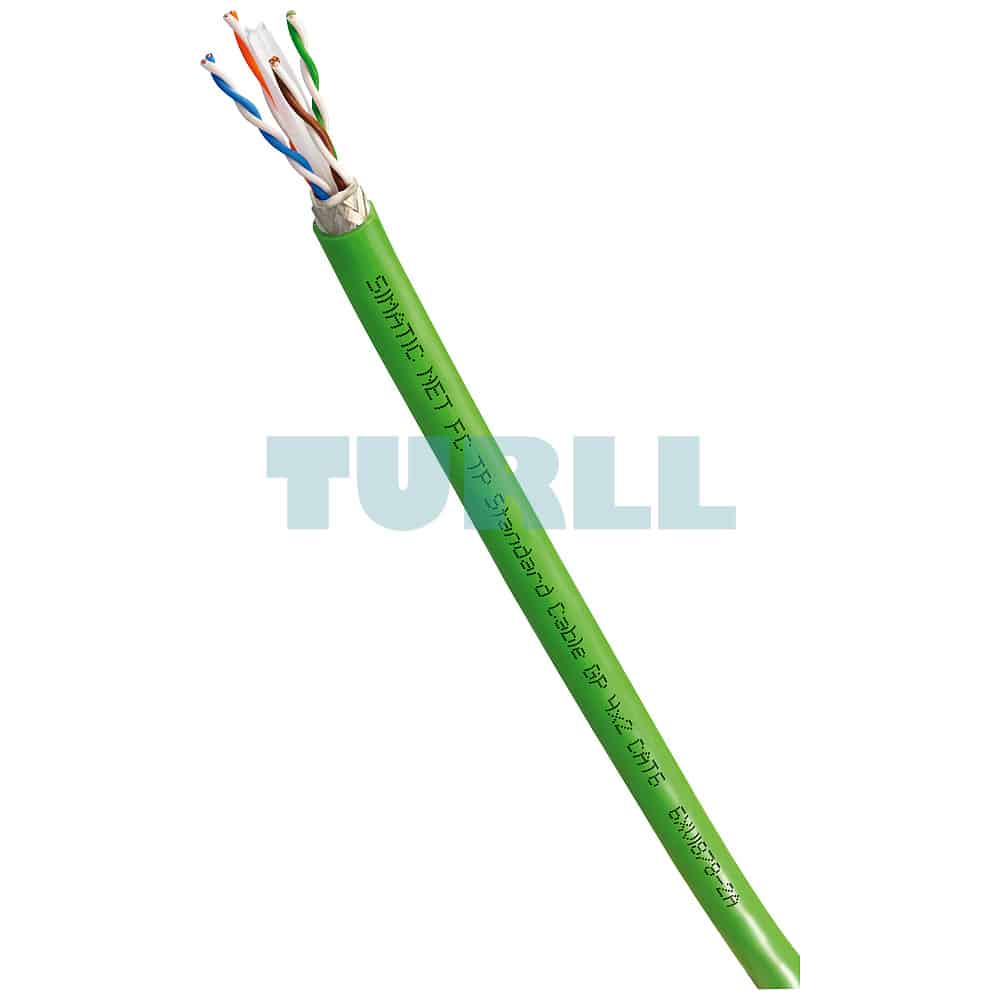

6XV1870-2E SIEMENS Industrial Ethernet FC TP standard cable 4×2 CAT6A sold by the meter Original Brand New

Overview

• 8-core FastConnect installation cables for cabling system with Gigabit capability (AWG22, AWG24 and AWG26 variants)
• Easy stripping with the FastConnect stripping tool; the protective jacket and the braided shield are stripped accurately in one step
• Connection to IE FC RJ45 modular outlet (AWG22), IE FC RJ45 plug 4 x 2 (AWG24/AWG26) or IE FC M12 plug PRO 4x2 (X-coded, AWG24/AWG26) using insulation displacement method
• Satisfies Category 6 (Cat6_A) and Category 7 (Cat7) of the international cabling standards ISO/IEC 11801 and EN 50173
• UL approval
• Easy length measurement thanks to printed meter markings

Design

The FastConnect (FC) Industrial Ethernet cables IE FC cable 4 x 2 (AWG22, AWG24 and AWG26) are designed with radial symmetry and therefore allow the use of the IE FC stripping tool. The IE FC RJ45 modular outlet and the IE FC RJ45 plug 4 x 2/IE FC M12 plug PRO 4 x 2/IE FC keystone RJ45 can then be connected quickly and easily by means of insulation displacement contacts without the need for special tools.
