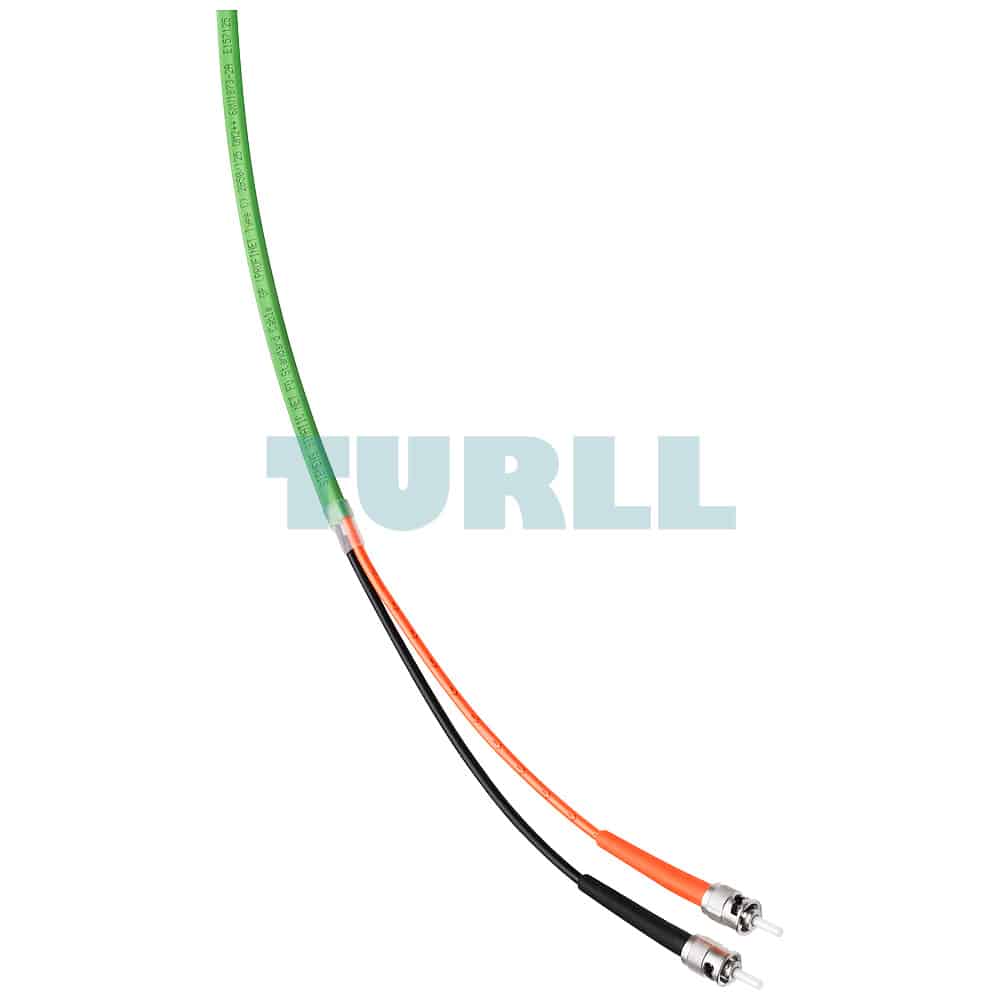

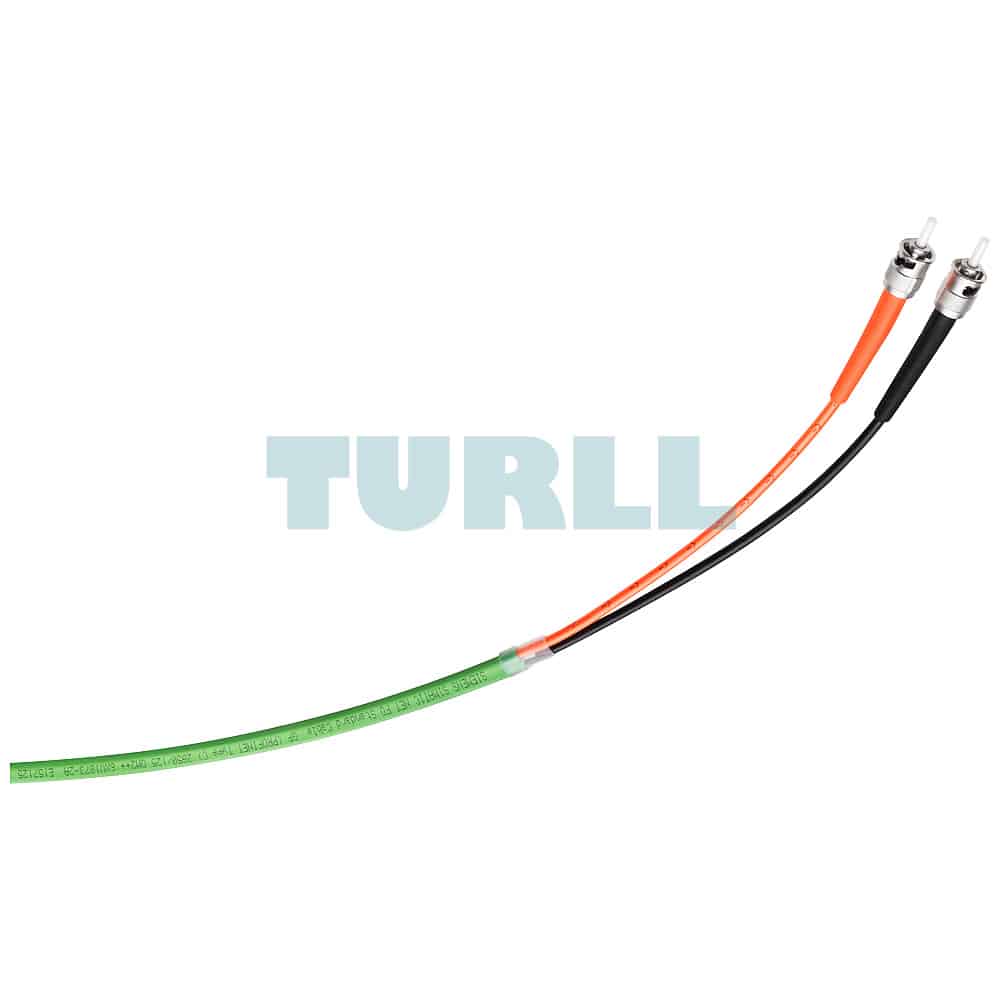

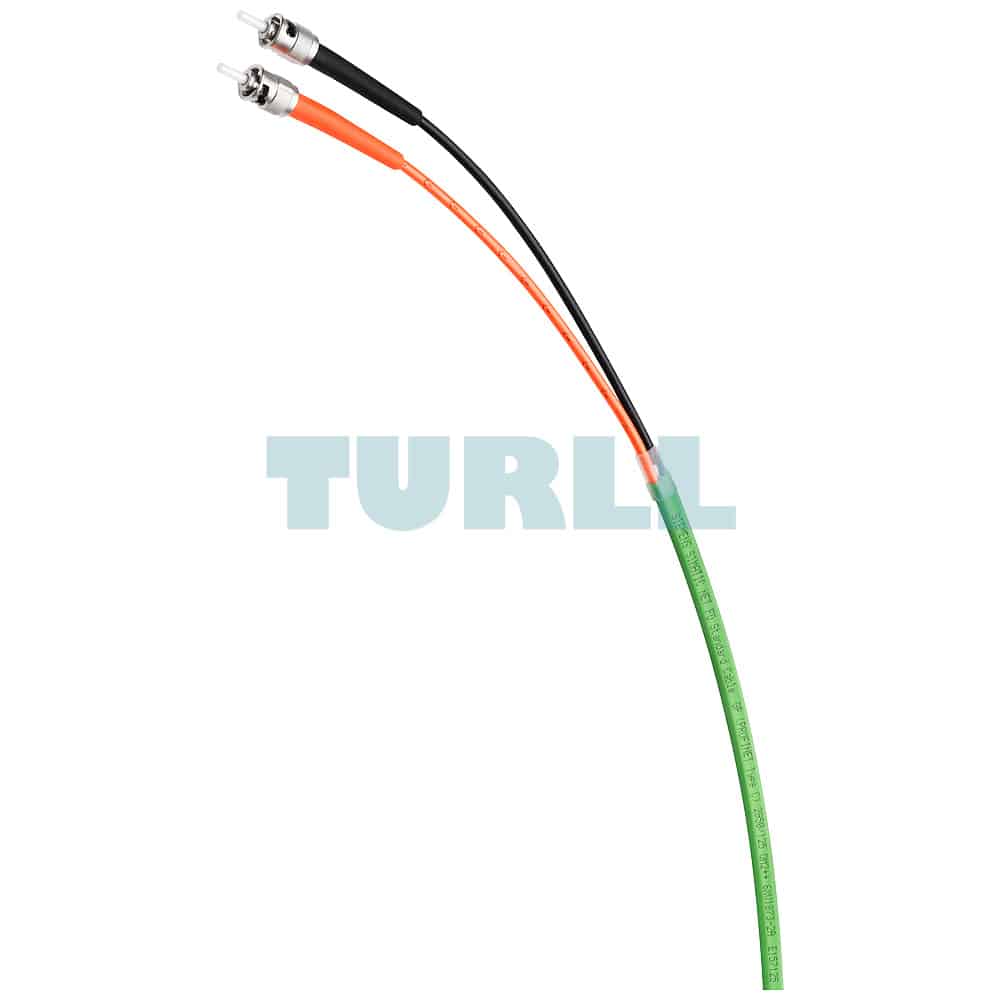

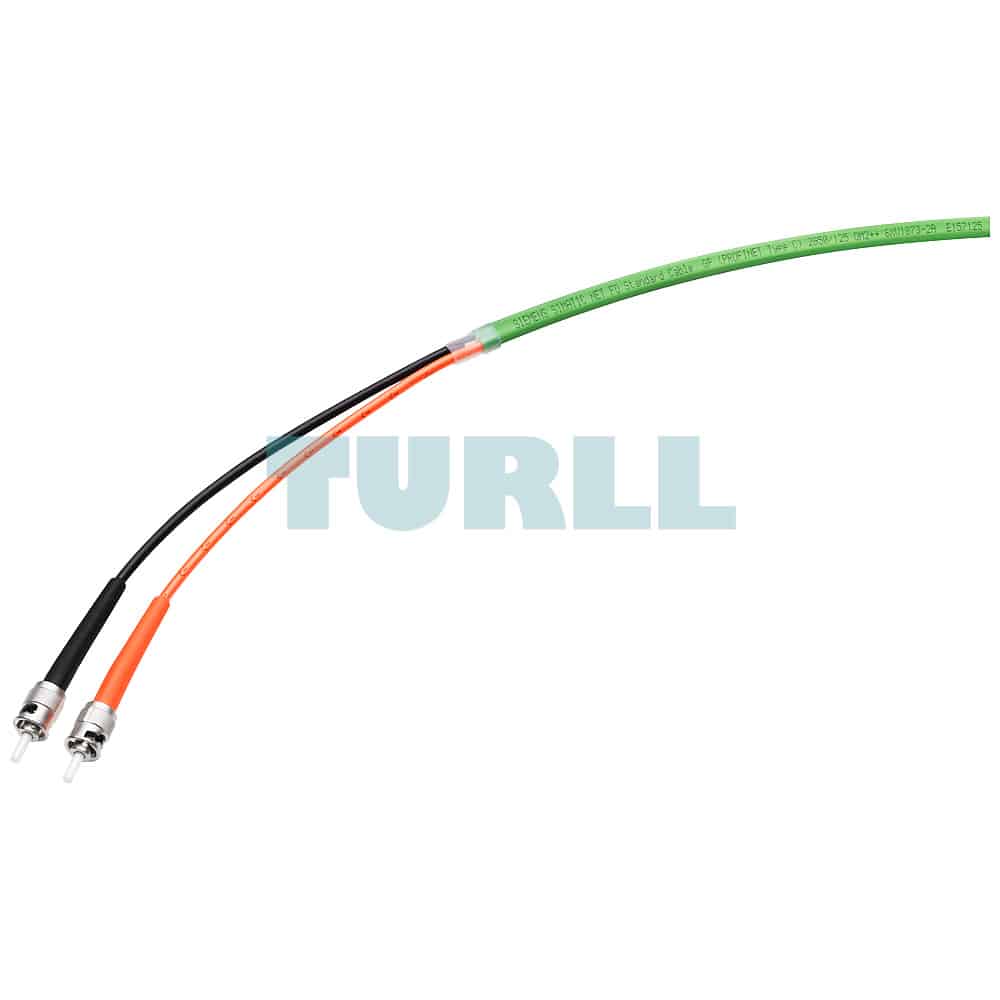

6XV1873-3CH30

Overview

• Used for optical Industrial Ethernet, PROFINET and PROFIBUS networks
• Rugged design for industrial applications both indoors and outdoors
• Halogen-free design for use in buildings
• Trailing cable for special applications with forced motion control
• High interference immunity as not sensitive to electromagnetic interference
• Available pre-assembled
• Extensive range of UL approvals

Design

The following types of cable are available:

The distances that can be spanned by cables depend on the device-specific wavelength.

In the respective applications, the maximum cable lengths must be taken into account. Passive connection of different fiber types is not permissible. The use of 50 µm fiber is recommended for future installations due to the greater range of gigabit Ethernet. Use of the 62.5 µm fiber is only recommended for existing network installations. In order to span very long distances, the use of single-mode cables with a 9 µm fiber is recommended.
