7ME3570-1JB40-0FQ1-ZS30 SIEMENS Exclusive SITRANS FS220 Clamp-On Ultrasonic Flow Meter Original Brand New

7ME3570-1JB40-0FQ1-ZS30 SIEMENS Exclusive SITRANS FS220 Clamp-On Ultrasonic Flow Meter Original Brand New

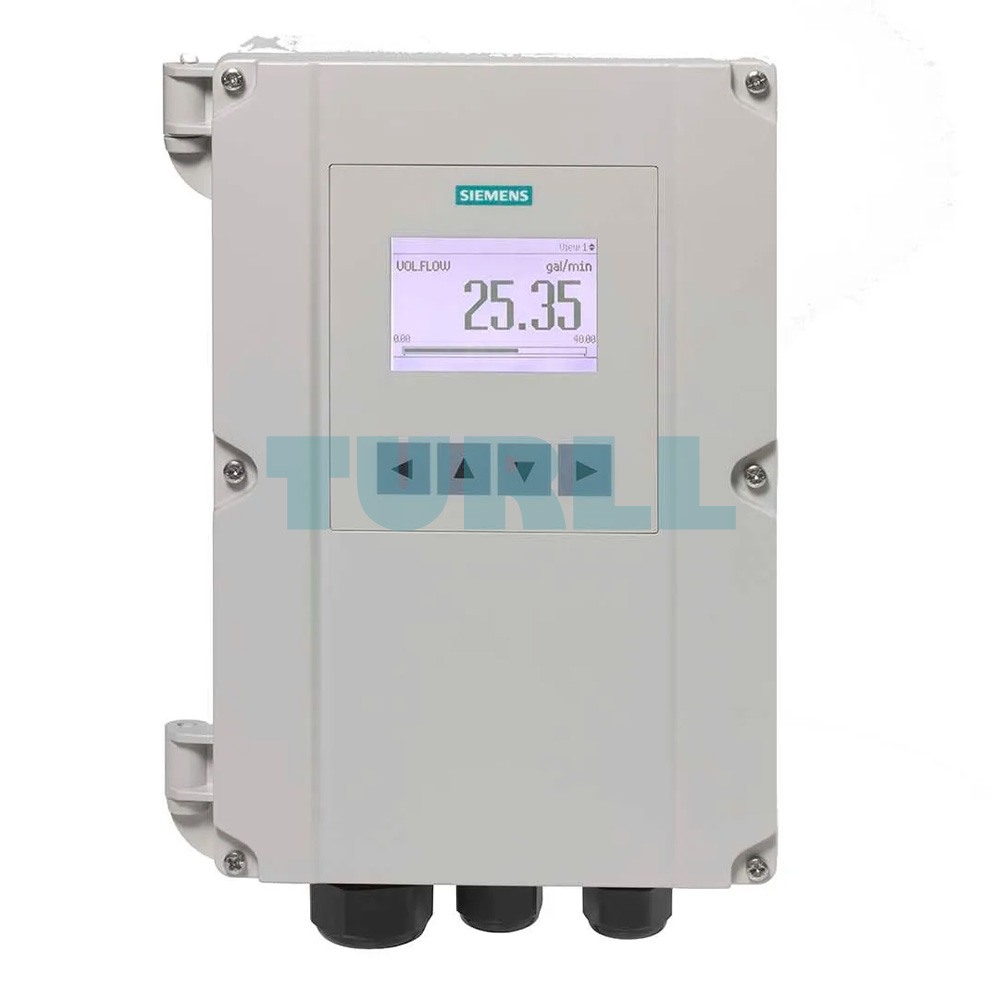

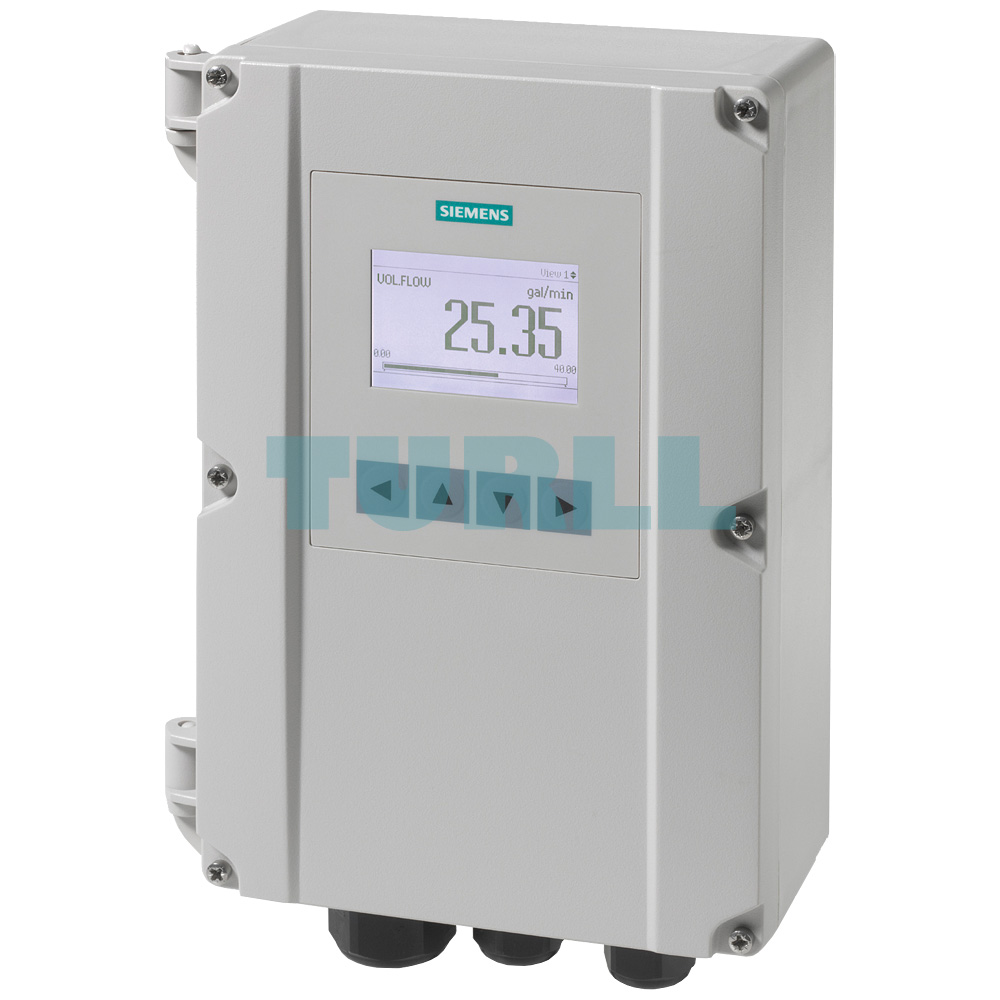

The SIEMENS SITRANS FS220 is a high-quality clamp-on ultrasonic flow meter engineered for precise volume measurement of liquids in diverse industrial and utility applications. This model offers a practical, non-intrusive measurement solution ideal for water distribution, wastewater systems, and HVAC environments. Designed with ease of installation in mind, it is particularly suited for retrofit projects in water supply networks, including leakage monitoring without the need for process interruption.

Equipped with the advanced FST020 transmitter, the device features a graphical display with push-button control, Modbus (RTU) communication, and multiple output options including current, relay, and pulse. The included universal FSS200 sensor pair accommodates various pipe materials and outer diameters ranging from 254 mm to 6096 mm (10" to 240"). The system operates reliably across a broad temperature range, supported by a robust mounting frame kit for pipes up to 1200 mm (48"). Additional accessories, such as a spacer bar extension, can be ordered for larger diameters.

Overview

The FST020 is recognized for its simplicity and cost-effectiveness, making it an excellent choice for single-path liquid flow monitoring where extreme accuracy or viscosity measurement is unnecessary. Derived from the proven analog FUS1010 series, the updated digital platform incorporates advanced Digital Signal Processing (DSP) technology for enhanced measuring performance, rapid response to changes in flow, high resistance to process noise, and straightforward commissioning and maintenance.

Design

The wall-mounted, IP65-rated housing is constructed from durable polycarbonate, ensuring reliable operation in demanding conditions. This unit supports both AC and DC power options and is configured for single-pipe, single-path measurement. Its design emphasizes minimal maintenance, simple configuration, and dependable long-term performance in industrial and utility networks.

Product Code: 7ME3570-1JB40-0FQ1-ZS30
