7ME3570-1JB40-0MQ1-ZS30 SIEMENS Exclusive SITRANS FS220 Clamp-On Ultrasonic Flow Meter Original Brand New

7ME3570-1JB40-0MQ1-ZS30 SIEMENS Exclusive SITRANS FS220 Clamp-On Ultrasonic Flow Meter Original Brand New

The SIEMENS 7ME3570-1JB40-0MQ1-ZS30 SITRANS FS220 is a versatile and reliable clamp-on ultrasonic flow meter designed for accurate volume measurement of liquids in a wide range of industrial and commercial applications. This model is engineered for simple operation and straightforward installation, making it an ideal solution for water and wastewater management, as well as heating, ventilation, and air conditioning (HVAC) systems. Its non-intrusive design allows for retrofitting on existing water supply networks, supporting efficient leakage monitoring without process interruption.

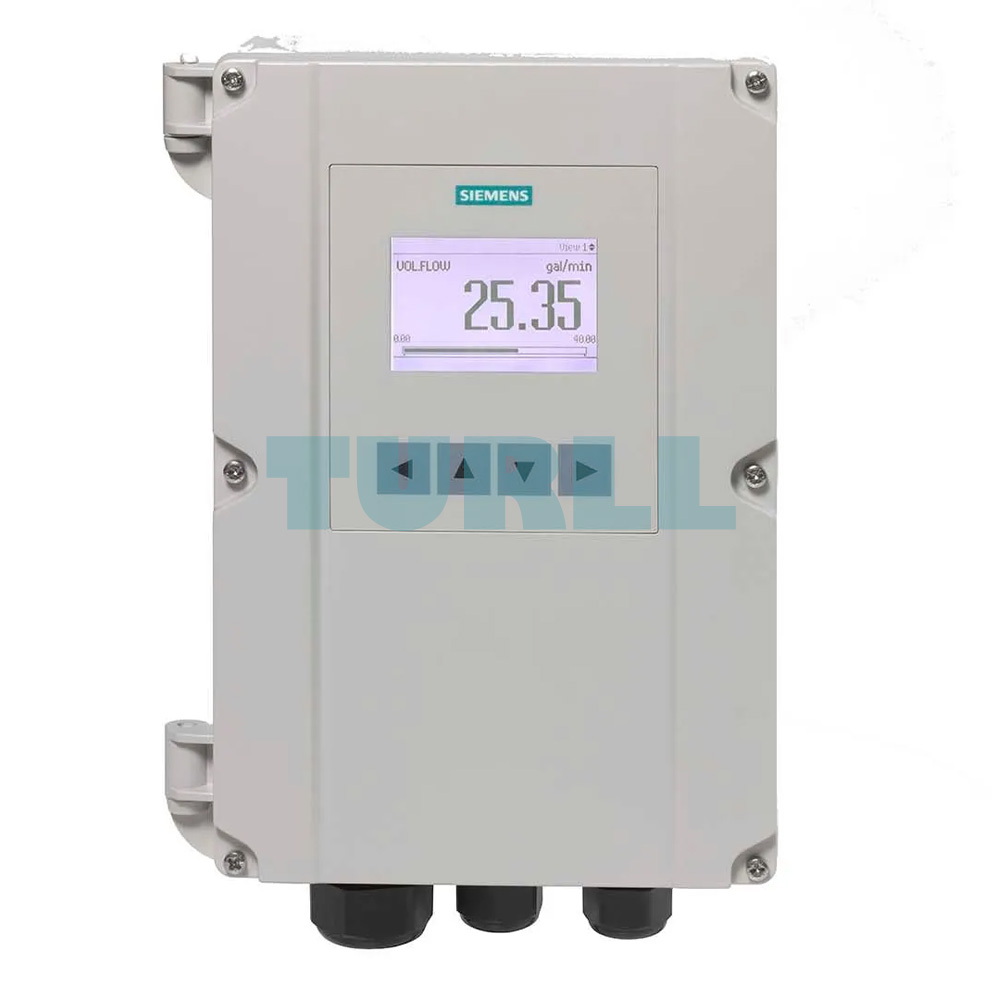

The transmitter unit (FST020) features a clear graphical display with push-button navigation, Modbus (RTU) communication, and multiple output options, including current, relay, and pulse outputs. It operates with a power supply range of 11.5 – 28.5 V DC, ensuring compatibility with various installations. The included FSS200 sensor pair offers high precision for steel pipes with wall thickness between 4.1 mm and 5.8 mm, and is suitable for temperatures ranging from -40°C to 121°C. The sensors come with a robust mounting frame kit for pipes up to 610 mm in diameter, along with 10-meter submersible coax PVC cables for flexible positioning.

Overview

The SITRANS FST020 transmitter is the core of the FS220 system, developed for cost-effective single-path flow measurement where extreme accuracy, temperature compensation, or viscosity consideration is not required. It leverages advanced Digital Signal Processing (DSP) technology for improved measurement stability, quick response to flow changes, and strong immunity to process noise. The system delivers key process parameters such as volume flow, flow velocity, and sound velocity, with an integrated totalizer function for precise monitoring.

Design

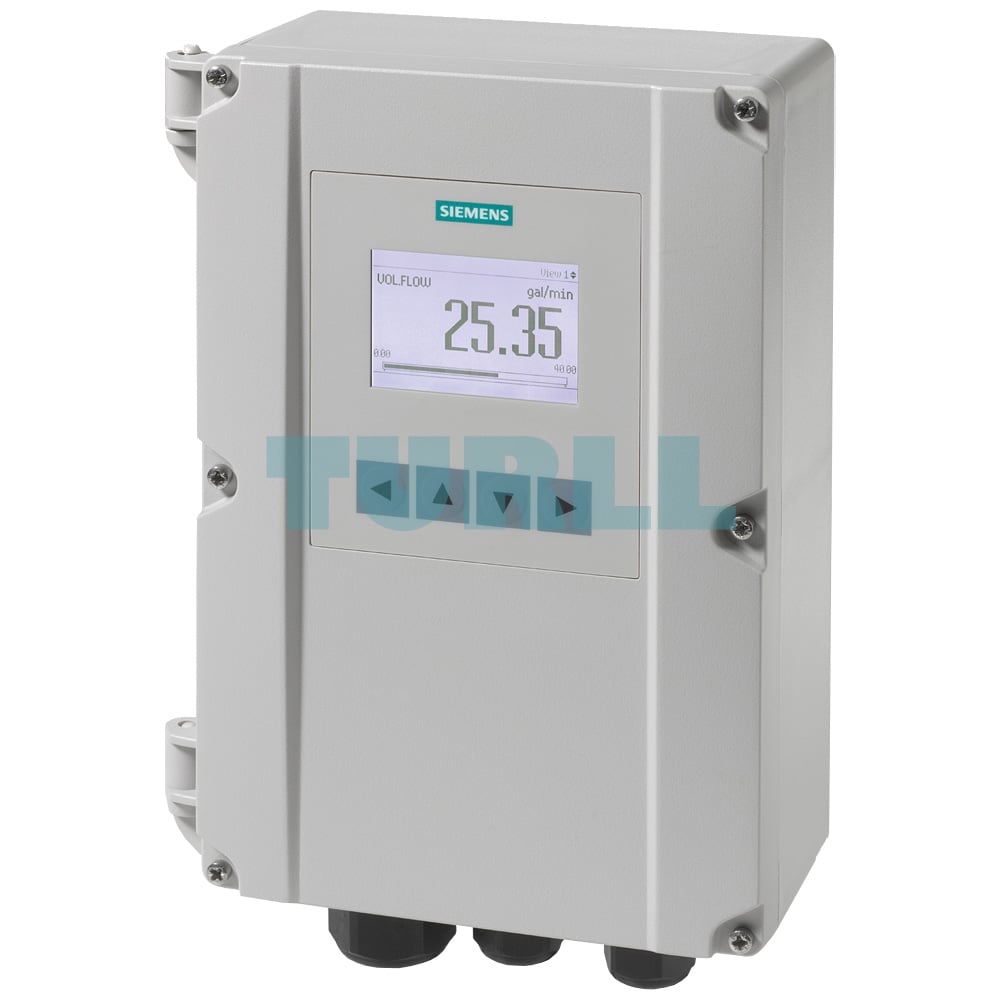

Featuring a rugged IP65 (NEMA 4X) wall-mounted polycarbonate housing, the SITRANS FS220 ensures durability in demanding environments. The non-intrusive clamp-on design supports installation without cutting pipes or halting operations. Its field-proven components make it suitable for both indoor and outdoor applications, with available AC or DC power supply options for maximum installation flexibility.

Product Code: 7ME3570-1JB40-0MQ1-ZS30
