7ME3570-1JB40-0PQ1-ZS30 SIEMENS Exclusive SITRANS FS220 Ultrasonic Flow Meter Original Brand New

7ME3570-1JB40-0PQ1-ZS30 SIEMENS Exclusive SITRANS FS220 Ultrasonic Flow Meter Original Brand New

The SIEMENS SITRANS FS220, model 7ME3570-1JB40-0PQ1-ZS30, is a highly reliable clamp-on ultrasonic flow meter designed for accurate volume measurement of liquids in a variety of industrial and commercial applications. Engineered with user-friendly features, this device is particularly suited for water and sewage systems, HVAC technology, and leakage monitoring in water supply networks. Its non-intrusive clamp-on design eliminates the need for process interruptions, making it ideal for both new installations and retrofitting existing systems.

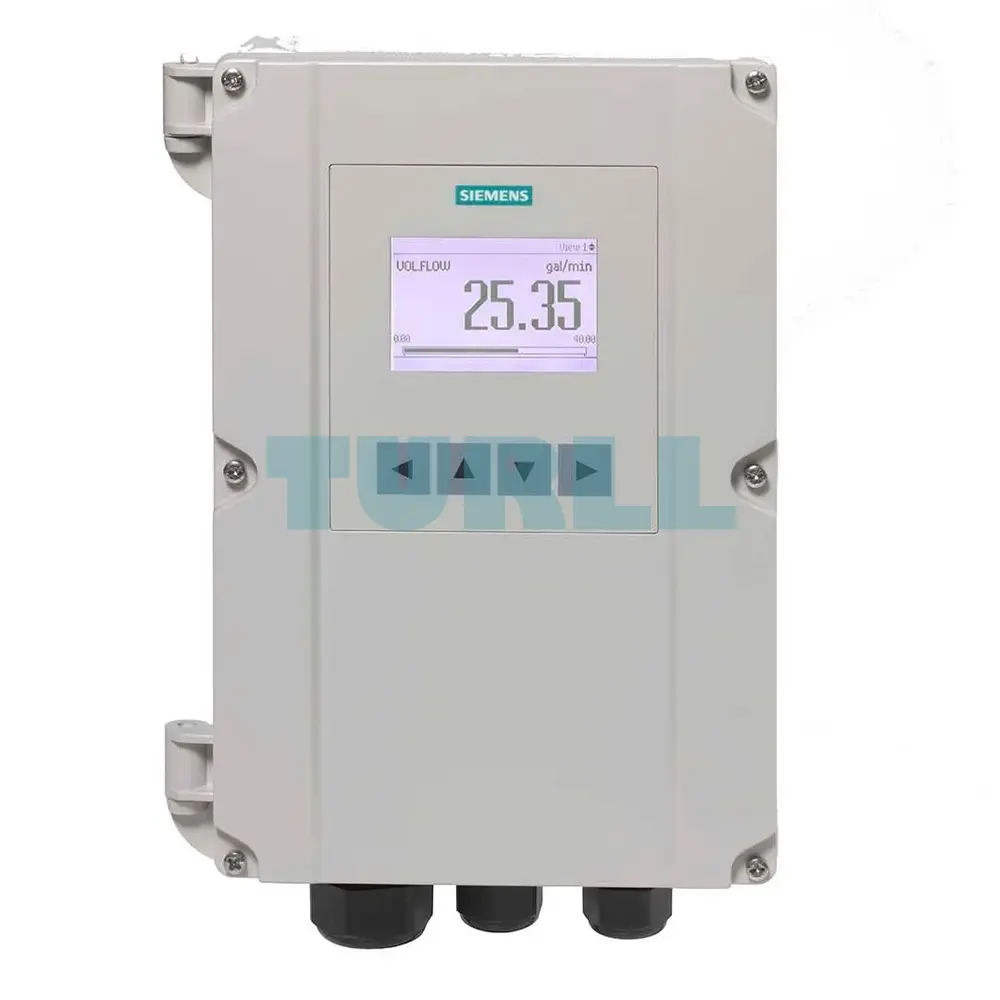

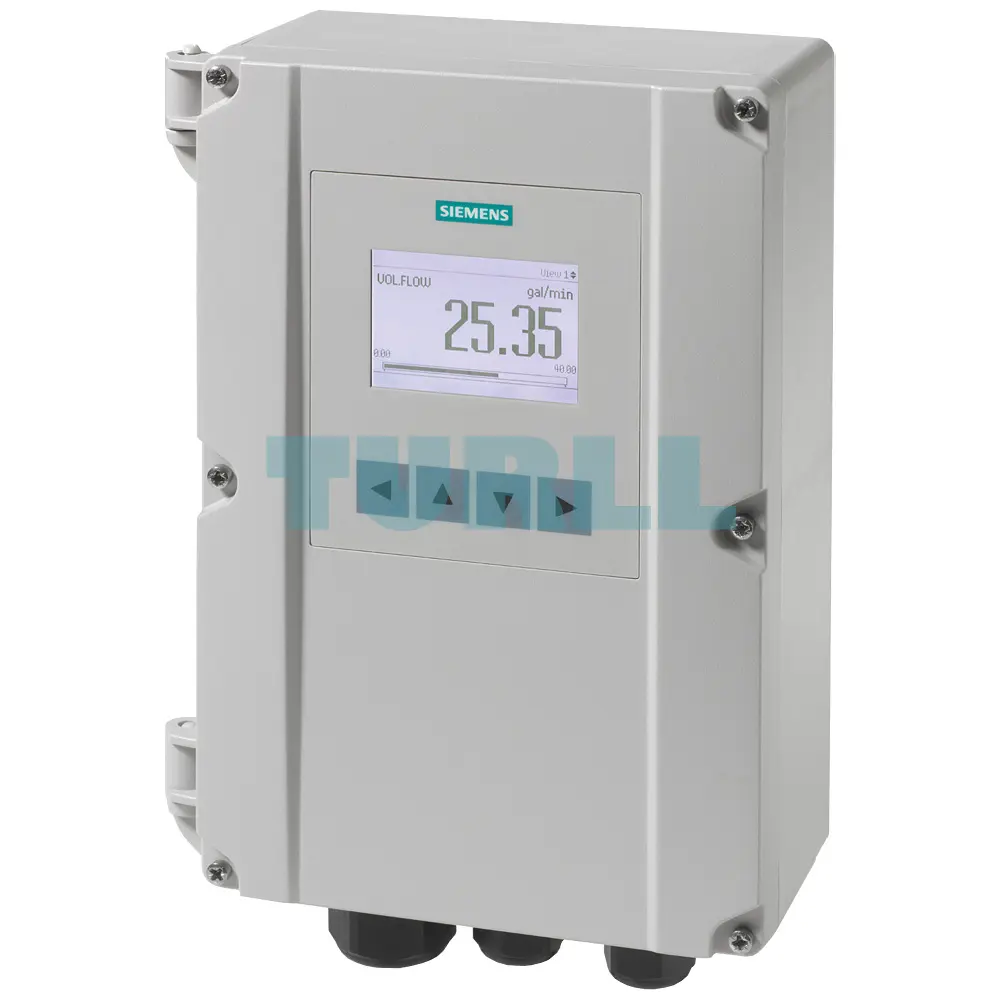

This configuration includes the FST020 transmitter with a graphical display and intuitive push-button interface. The unit supports Modbus (RTU) communication and offers passive outputs such as current, relay, and pulse. It operates on a power supply range of 11.5 – 28.5 V DC, ensuring compatibility with diverse system requirements. Paired with the FSS200 high-precision sensor size D1H, it accommodates steel pipes with wall thickness from 8.1 to 11.2 mm and diameters up to 1200 mm. Additional accessories, such as spacer bar extensions, are available for larger pipes.

Overview

The FST020 is the entry-level model for cost-effective clamp-on applications. It is well-suited for liquids that do not require extensive compensation for temperature or viscosity, offering dependable performance where ultra-high precision is not critical. Originating from the proven analog FUS1010 transmitters, the 2017 digital upgrade incorporates advanced Digital Signal Processing (DSP) technology for faster response times, high immunity to process noise, and straightforward installation, commissioning, and maintenance.

Standard process values include volume flow, flow velocity, sound velocity, and totalizer readings. The transmitter delivers these parameters via analog outputs and Modbus connectivity, enhancing integration into various monitoring and control systems.

Design

• Field clamp-on, non-intrusive installation
• Single-path measurement with one sensor pair per pipe
• IP65 (NEMA 4X) wall-mount polycarbonate housing
• Power supply options: 100–240 V AC or 11.5–28.5 V DC

Product Code: 7ME3570-1JB40-0PQ1-ZS30
