7MF0300-1TE01-5AF2-ZA00E00H01Y01 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New

7MF0300-1TE01-5AF2-ZA00E00H01Y01 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New

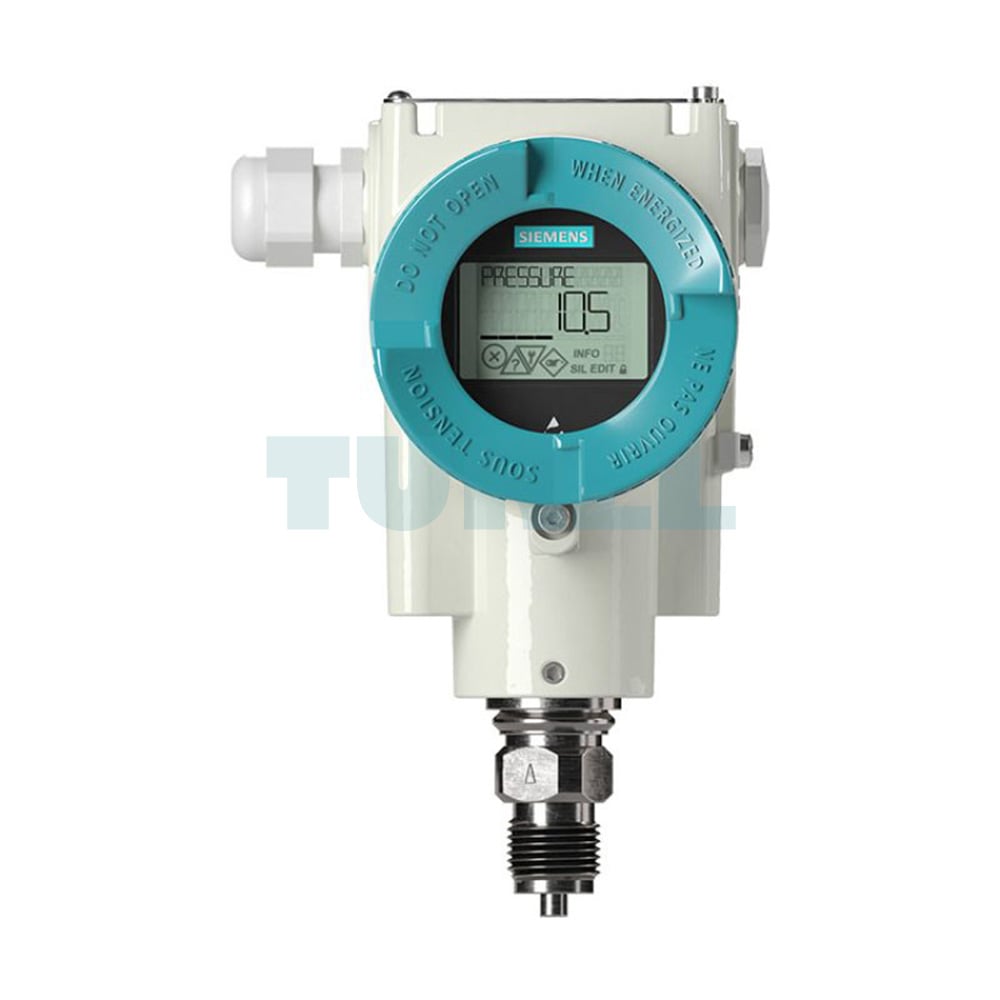

The SIEMENS SITRANS P320 pressure transmitter, model 7MF0300-1TE01-5AF2-ZA00E00H01Y01, is a highly reliable gauge pressure solution designed to deliver precise and stable measurements in industrial environments. This transmitter supports HART communication and operates on a 4…20 mA signal, ensuring compatibility with a wide range of process control systems. With a robust measuring span of up to 63 bar (914 psi), the instrument provides outstanding accuracy and long-term stability across demanding applications.

The device is engineered with a stainless steel 316L/1.4404 process connection and seal diaphragms, ensuring durability, resistance to corrosion, and suitability for use in challenging operating conditions. The measuring cell is filled with high-quality silicone oil, enhancing measurement sensitivity and stability over time. The transmitter housing is constructed from die-cast aluminum with a dual-chamber design, offering additional safety, protection, and ease of installation in industrial setups.

Overview

The SITRANS P320 is equipped with a clear display, featuring a protective lid with a glass window for visibility even in harsh environments. It comes with a cable gland and sealing plug for secure wiring. The product also carries worldwide approvals such as CE, UKCA, and RCM, excluding CSA, EAC, FM, and KC certifications. This makes it a versatile instrument suitable for various regions and industries.

Design

The mounting bracket made from electro-galvanized steel ensures stable and reliable installation. The transmitter allows for flexible measuring range settings, including lower and upper range values with selectable units such as mbar, bar, kPa, MPa, or psi. For example, users can configure it to measure ranges like -0.5 … 10.5 psi, offering adaptability for diverse process requirements. With its advanced functionality, robust design, and long-term reliability, the SITRANS P320 represents a dependable solution for industrial pressure monitoring and control.

Product Code: 7MF0300-1TE01-5AF2-ZA00E00H01Y01
