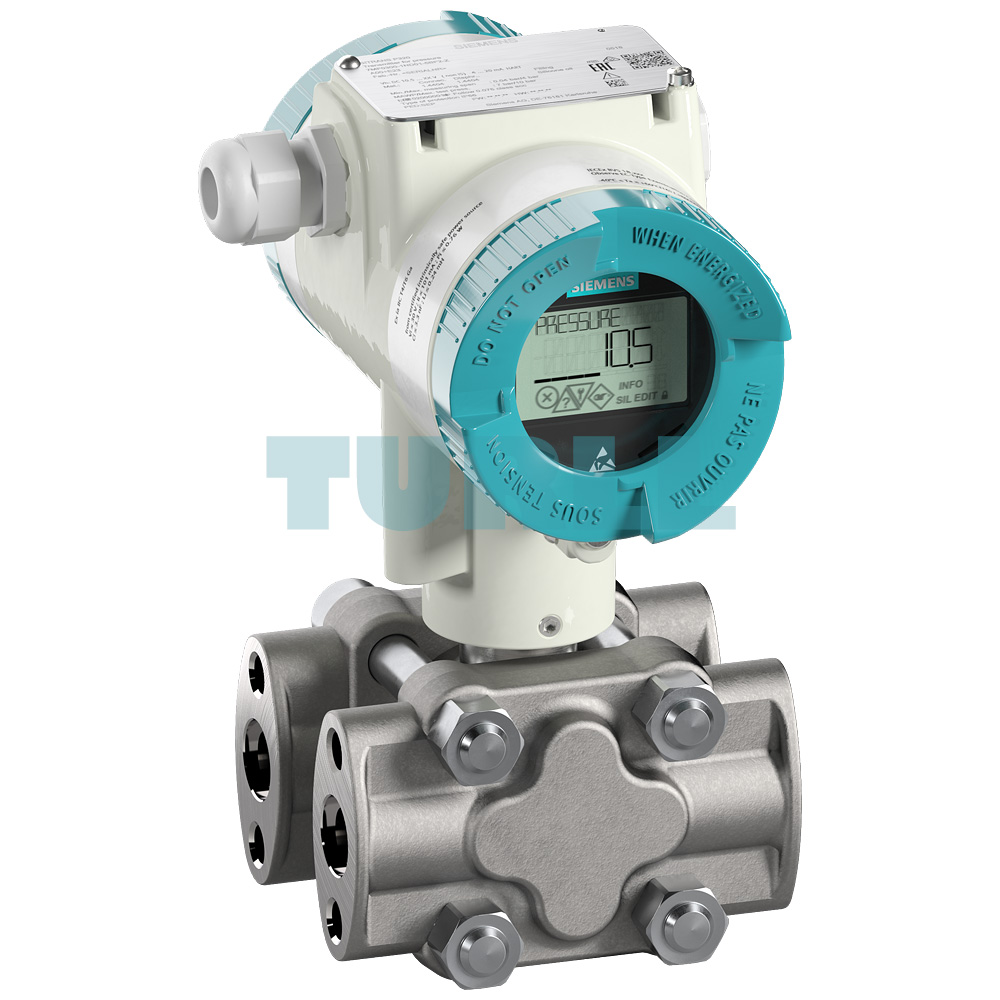

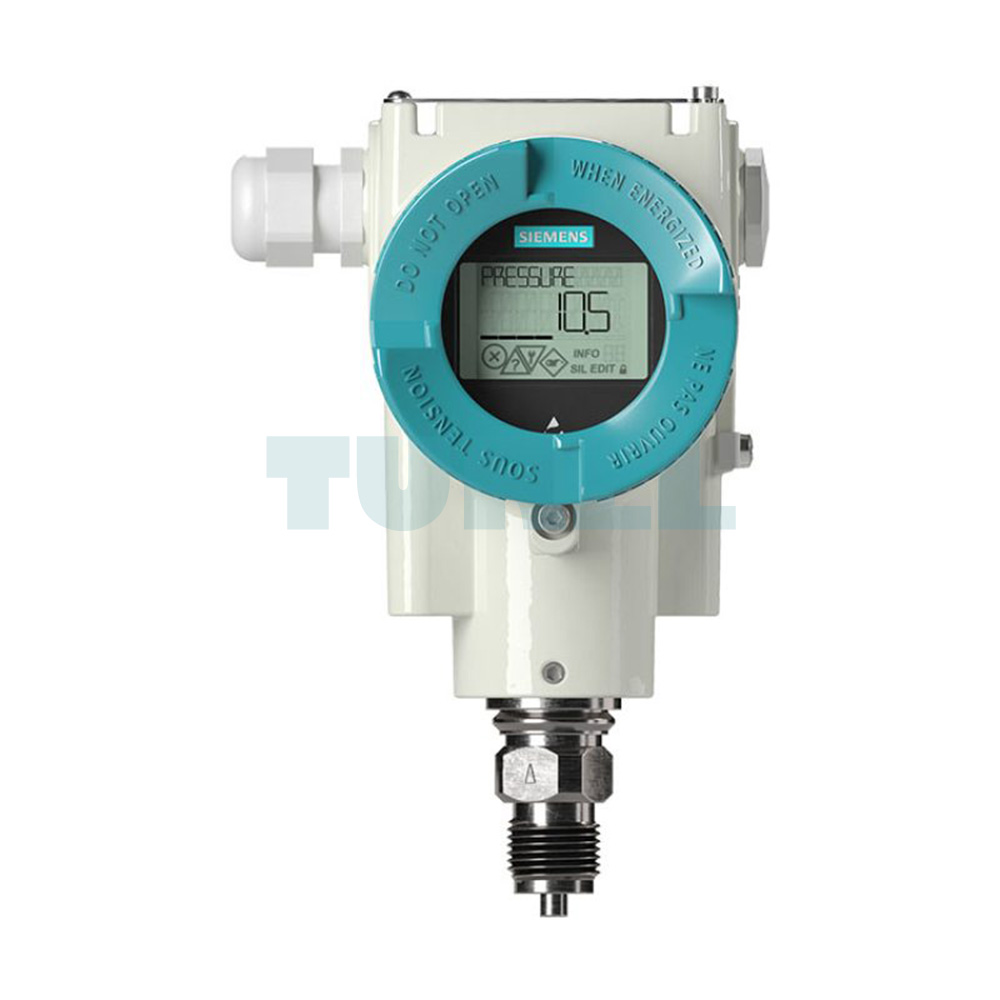

SIEMENS SITRANS P320 pressure transmitter with HART communication, 63 bar span, stainless steel 316L, dual-chamber explosion-proof housing, and integrated display.
The SIEMENS SITRANS P320 with product code 7MF0300-1TE01-5CF2-ZA01B35D42E27H01Y01 is a high-quality gauge pressure transmitter engineered to deliver precise measurement performance in industrial environments. This advanced device is designed to meet the strict requirements of process industries, ensuring reliable and long-term operation even under demanding conditions. With its HART (4...20 mA) communication capability, the SITRANS P320 provides seamless integration into modern control systems, offering operators flexible configuration and easy access to diagnostic data.
The transmitter is equipped with a measuring cell filled with silicone oil and supports a maximum measuring span of 63 bar (914 psi). It features a robust stainless steel 316L/1.4404 process connection and seal diaphragms, providing excellent resistance against corrosion and aggressive media. The housing is made of die-cast aluminum with a dual-chamber design, ensuring both safety and durability in hazardous or explosive environments. A built-in display with a glass window cover allows for convenient local monitoring, while the explosion-proof design with two M20 x 1.5 cable entries enhances installation flexibility.
The SITRANS P320 is delivered with cable gland, sealing plug, stainless steel nameplate, and mounting bracket for straightforward installation. It is compliant with NEPSI certification for the Chinese market, demonstrating global acceptance and quality assurance. Thanks to its user-friendly measuring range adjustment, operators can set lower and upper range values in psi, bar, kPa, MPa, or mbar according to application needs. This adaptability makes the transmitter ideal for a wide variety of industrial sectors, from oil and gas to chemical processing and power generation.
Product Code: 7MF0300-1TE01-5CF2-ZA01B35D42E27H01Y01
More Siemens products at Turll.com
| SKU / Model | 7MF0300-1TE01-5CF2-ZA01B35D42E27H01Y01 |
|---|---|
| Weight | 2.275 kg |
Request a quote for project quantities, discontinued or obsolete models, and pro-forma invoice / bank transfer orders. Our sourcing team responds fast.
