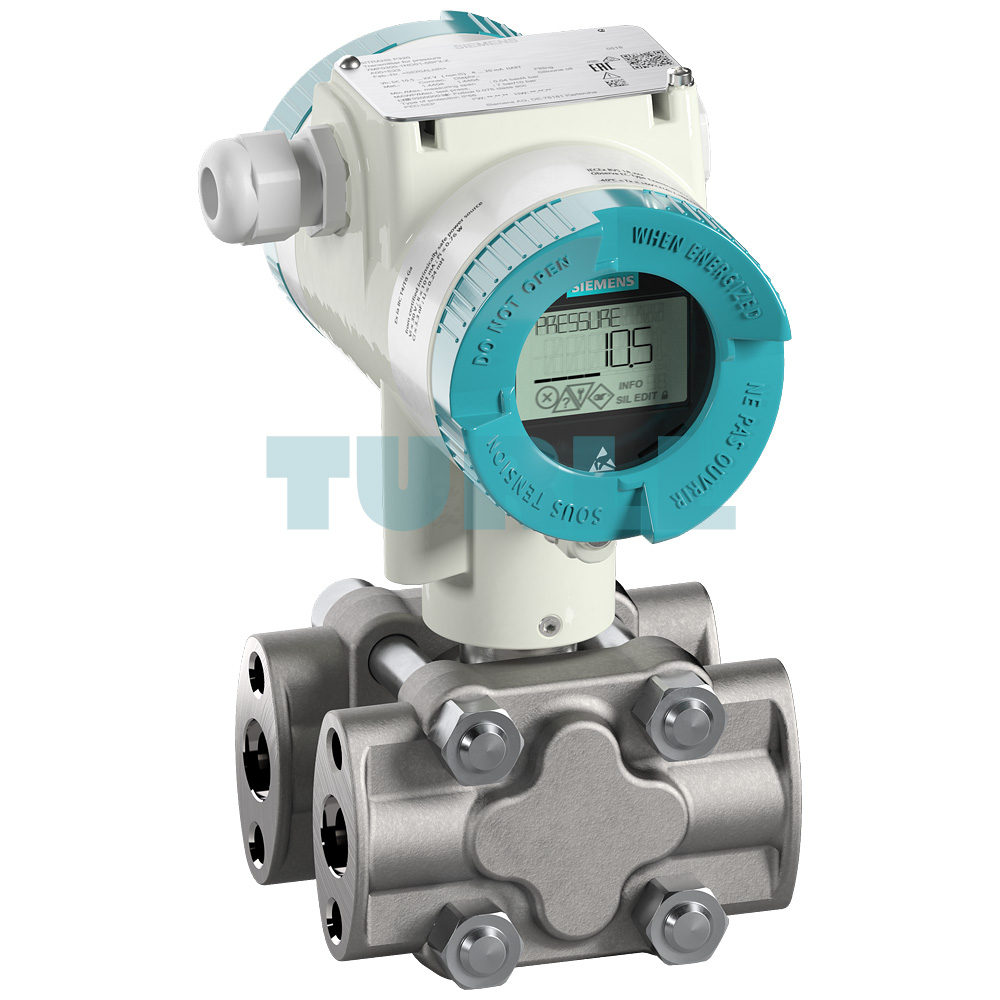

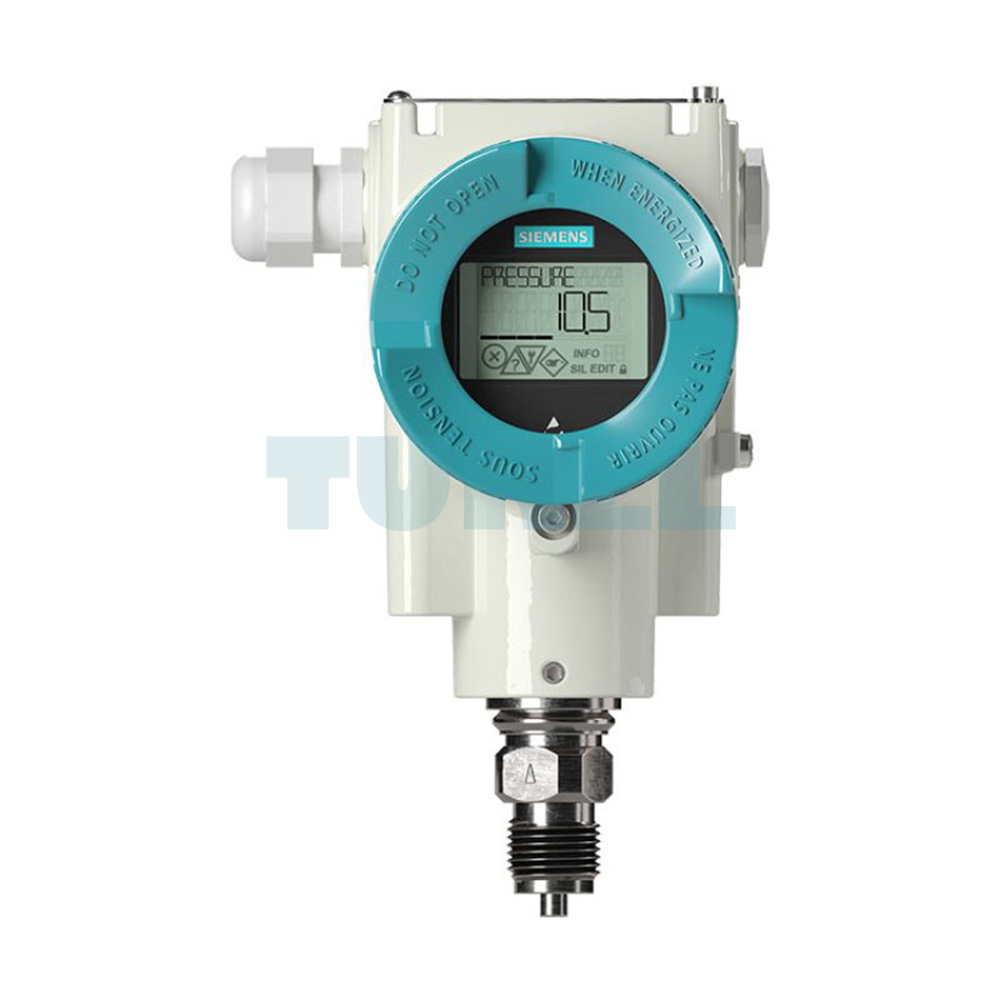

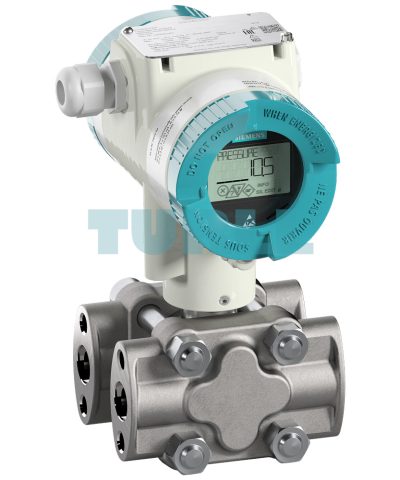

SIEMENS SITRANS P320 pressure transmitter with HART protocol, stainless steel housing, 160 bar span, integrated display, and global approvals.
The SIEMENS SITRANS P320 with product code 7MF0300-1VE01-5AF2-ZA00E00H01Y01 is an advanced pressure transmitter designed to deliver highly accurate measurement and exceptional long-term stability. It belongs to the renowned SITRANS family, well known for robust construction, versatile configurations, and reliable performance across multiple industries. With HART communication protocol and a 4…20 mA output signal, this instrument ensures easy integration into existing automation systems while providing precise gauge pressure monitoring.
Engineered for durability, the device features a stainless steel 316L/1.4404 process connection and seal diaphragms, ensuring resistance against corrosion and harsh operating environments. Its measuring span of up to 160 bar (2321 psi) makes it suitable for a wide range of demanding applications. The pressure sensor is equipped with a female 1/2-14 NPT connection and comes filled with silicone oil for enhanced sensitivity and stability. Housed in a rugged die-cast aluminum enclosure, the unit also incorporates a dual-chamber design with a protective glass window for the integrated display, allowing operators to monitor values easily on-site.
The SITRANS P320 not only stands out for its measurement accuracy but also for its ease of installation and maintenance. Supplied with a mounting bracket made of electrogalvanized steel, cable glands, and sealing plugs, the transmitter arrives ready for seamless setup. It has worldwide general approvals (CE, UKCA, RCM) that ensure compliance in most regions. In addition, its intuitive configuration options allow users to set both lower and upper range values with selectable units such as mbar, bar, kPa, MPa, or psi, enhancing flexibility for a variety of use cases.
As a trusted solution from SIEMENS, the SITRANS P320 is ideal for applications in chemical plants, oil and gas operations, water treatment facilities, and general industrial environments where dependable pressure monitoring is critical.
Product Code: 7MF0300-1VE01-5AF2-ZA00E00H01Y01
More Siemens products at Turll.com
| SKU / Model | 7MF0300-1VE01-5AF2-ZA00E00H01Y01 |
|---|---|
| Weight | 2.275 kg |
