7MF0340-1GM01-5AF2-ZA00E00H01Y01 SIEMENS Exclusive SITRANS P320 Differential Pressure Transmitter Original Brand New

7MF0340-1GM01-5AF2-ZA00E00H01Y01 SIEMENS Exclusive SITRANS P320 Differential Pressure Transmitter Original Brand New

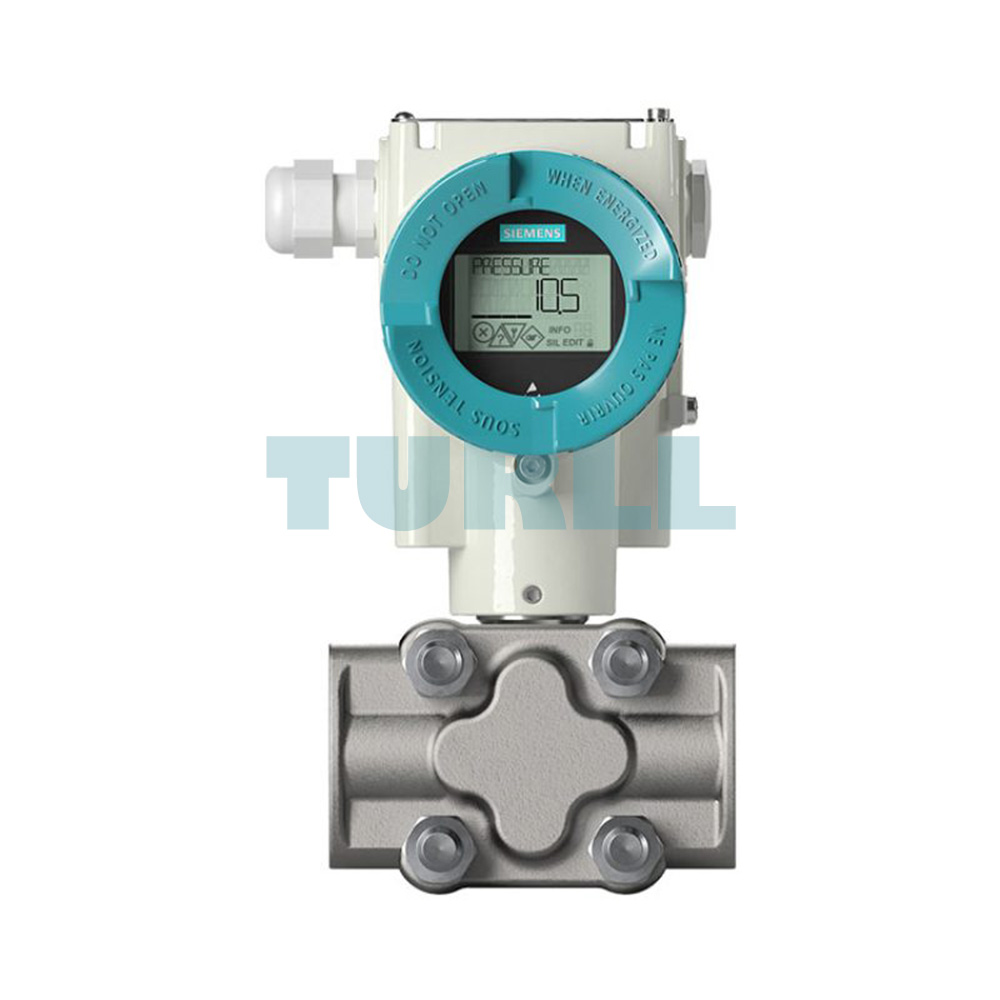

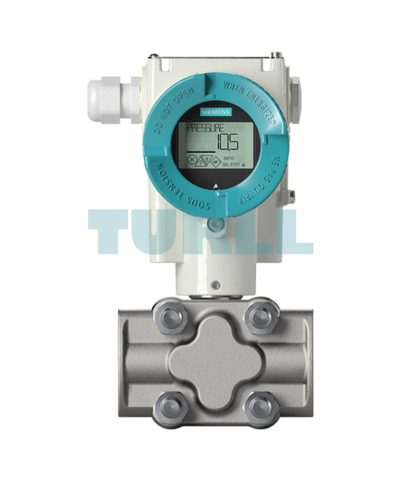

The SIEMENS SITRANS P320 with product code 7MF0340-1GM01-5AF2-ZA00E00H01Y01 is a highly reliable differential pressure and flow transmitter designed for demanding industrial applications. This precision instrument provides accurate measurement with a maximum measuring span of 250 mbar (100.5 inH²O), ensuring dependable performance in monitoring critical processes. Featuring HART communication (4...20 mA), the SITRANS P320 offers seamless integration into modern automation systems.

The device is built with a robust die-cast aluminum dual-chamber housing and stainless steel 316L/1.4404 process connections, delivering durability and corrosion resistance. The measuring cell is filled with silicone oil to ensure long-term stability and precise differential pressure readings. With its glass window display and user-friendly interface, operators can easily monitor readings and configure the unit on-site. The transmitter is delivered with an electrogalvanised steel mounting bracket, cable gland, and sealing plug, making installation straightforward and secure.

Overview

The SITRANS P320 is designed to handle challenging conditions with approvals for worldwide use (CE, UKCA, RCM) and general compliance in multiple regions. It does not include Ex approval, making it suited for non-hazardous environments where high accuracy and consistency are essential. The device supports flexible measuring range settings with configurable lower and upper range values, accommodating various units such as mbar, bar, kPa, MPa, or psi.

Design

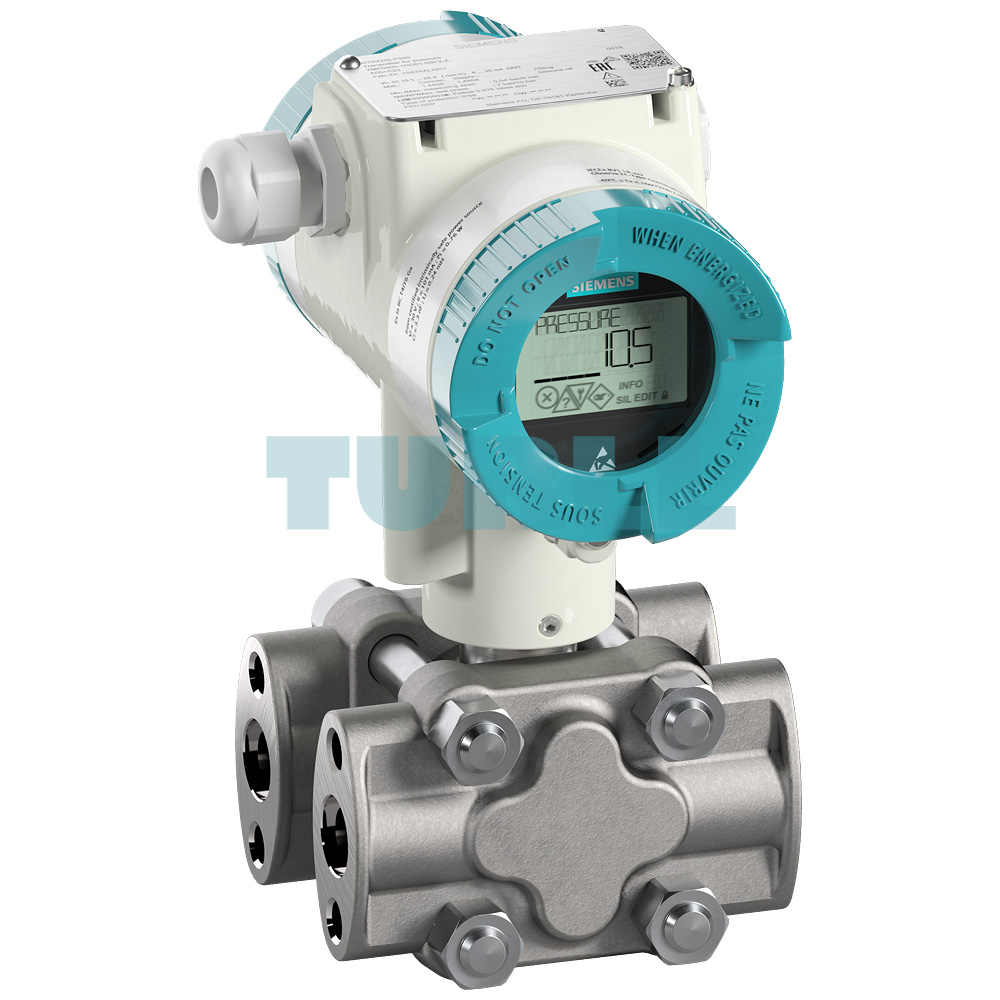

Engineered for industrial reliability, the transmitter features oval flanges with M10 and M12 fastening threads, stainless steel 316L diaphragms, and a differential pressure sensor mounted on a rugged process flange. The design prioritizes both mechanical strength and operational ease, allowing for long service life under high-pressure applications. Status information is easily accessible via the integrated display, and the dual-chamber design ensures additional protection and separation of components for enhanced safety.

Product Code: 7MF0340-1GM01-5AF2-ZA00E00H01Y01
