7MF0340-1HM01-5CF2-ZA01B35D42E27H01Y01 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New

7MF0340-1HM01-5CF2-ZA01B35D42E27H01Y01 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New

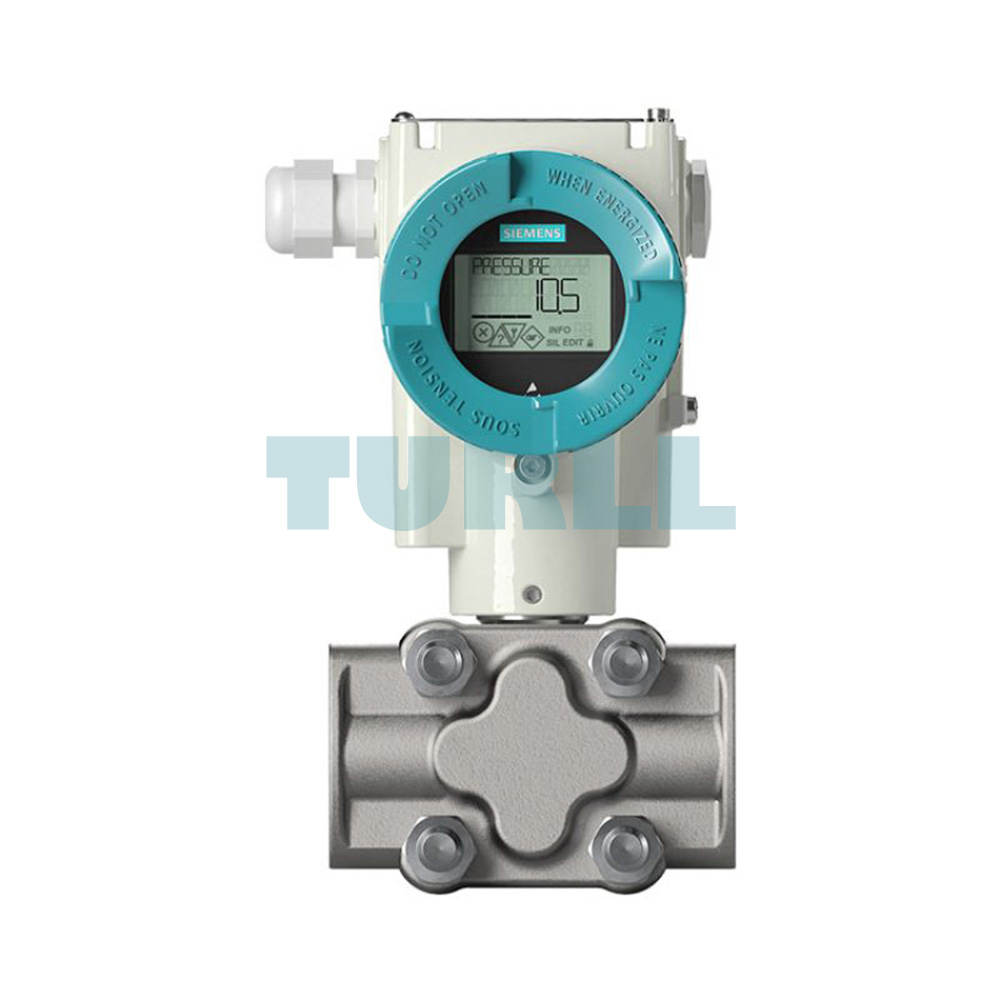

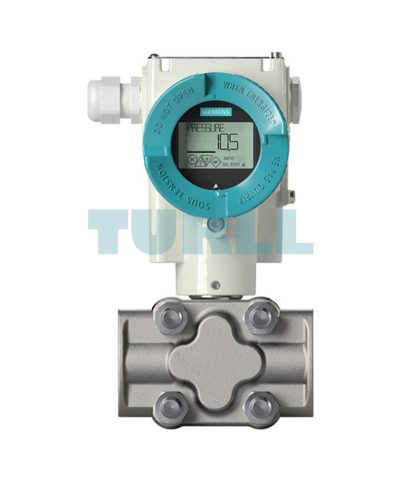

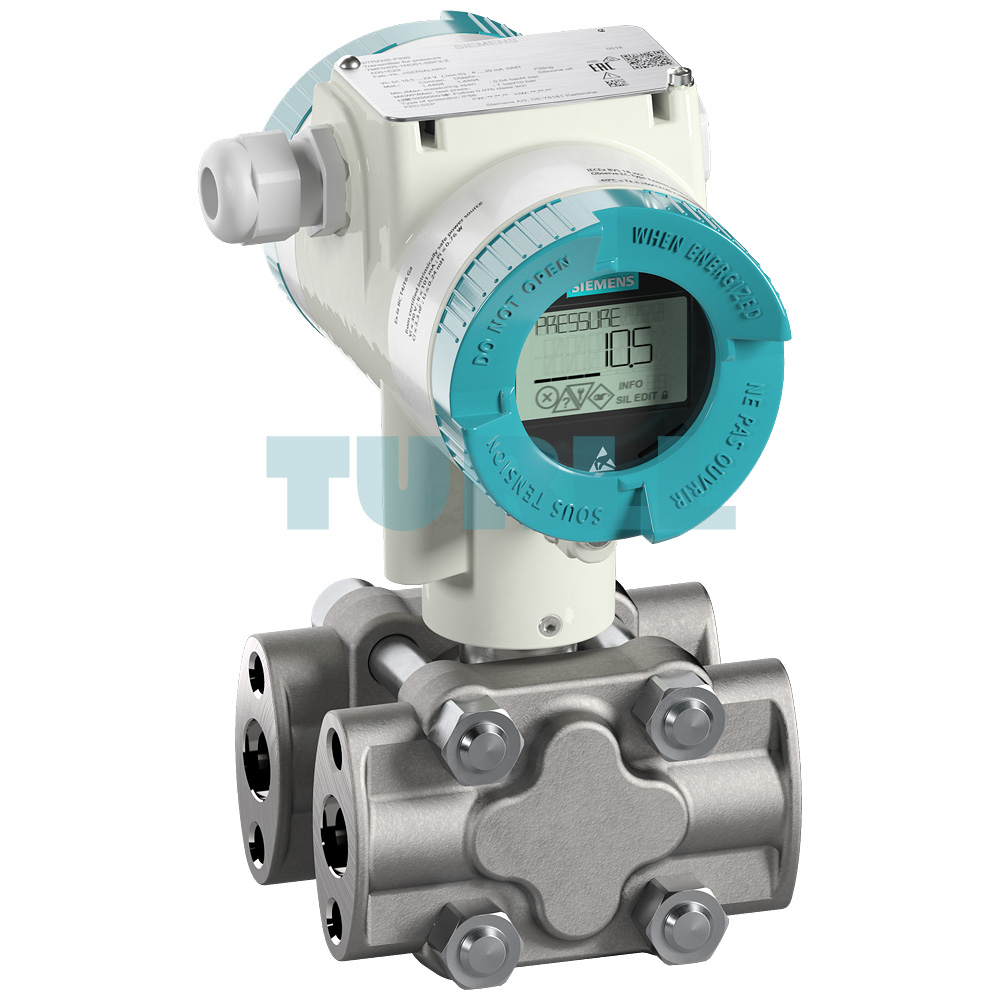

The SIEMENS 7MF0340-1HM01-5CF2-ZA01B35D42E27H01Y01 SITRANS P320 is a premium differential pressure and flow transmitter, designed for highly accurate process measurement applications. This device supports PN160 rating and utilizes HART communication protocol with a 4...20 mA output signal, making it ideal for industrial automation systems where precision and reliability are essential. The transmitter is engineered with a dual-chamber die-cast aluminum housing and stainless steel process connections for long-term durability.

Equipped with a silicone oil-filled measuring cell, the SITRANS P320 delivers consistent performance even under demanding conditions. The maximum measuring span reaches up to 600 mbar (241.1 inH²O), ensuring versatile use across a wide range of process environments. Oval flange mounting with M10 threads for PN160 or M12 threads for PN420 provides secure installation, while the stainless steel 316L/1.4404 seal diaphragms guarantee process integrity and resistance to corrosion.

Overview

This pressure transmitter is explosion-proof, featuring 2 x M20 x 1.5 entries, and includes a display lid with glass window for easy monitoring. It comes with a cable gland and sealing plug attached, as well as a metal labeling plate and NEPSI-approved stainless steel Ex plate for compliance in hazardous areas. The transmitter allows configurable measuring range settings, including lower and upper range values and selectable units such as mbar, bar, kPa, MPa, and psi. Example ranges include -0.5 ... 10.5 psi, ensuring adaptability to diverse applications.

Design

The SITRANS P320 features a robust die-cast aluminum housing with dual chambers, optimized for industrial installation. A mounting bracket made from electro-galvanized steel ensures secure positioning. The combination of stainless steel process connections, high-quality seal diaphragms, and precision measuring cell provides exceptional durability and reliability. The transmitter’s design accommodates long-term usage while maintaining high accuracy in challenging environments.

Product Code: 7MF0340-1HM01-5CF2-ZA01B35D42E27H01Y01
