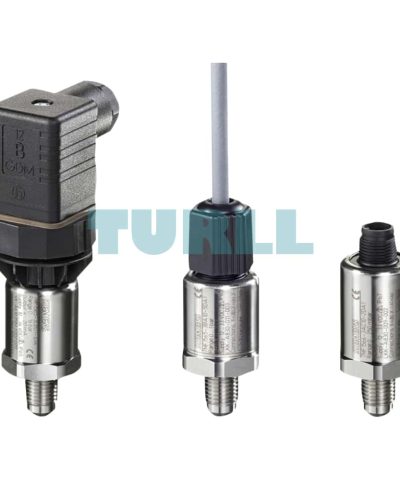

7MF1565-5BA00-1AA1 Siemens SITRANS P200 Transmitters Original Brand New
$116.22
7MF1565-5BA00-1AA1 SiemensĀ
SITRANS P200 Transmitters for pressure and absolute pressure for general applications Non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for absolute: 0 to 1 bar abs., Overload- pressure 2,5 bar abs. Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: G1/2″ male to EN 837-1 (1/2″ BSP male) (standard for metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (FPM, Standard) Standard version
Overview
The SITRANSĀ P200 pressure transmitter measures the gauge and absolute pressure of liquids, gases and vapors.
- With ceramic measuring cell
- Gauge and absolute measuring ranges 1 to 60Ā bar (15 to 1000Ā psi)
- For general applications
Benefits
- High measurement accuracy
- Rugged stainless steel enclosure
- High overload withstand capability
- For corrosive and non-corrosive media
- For measuring the pressure of liquids, gases and vapors
- Compact design
Application
The SITRANSĀ P200 pressure transmitter for gauge and absolute pressure is used in the following industrial areas:
- Mechanical engineering
- Shipbuilding
- Power engineering
- Chemical industry
- Water supply
Design
Device structure without explosion protection

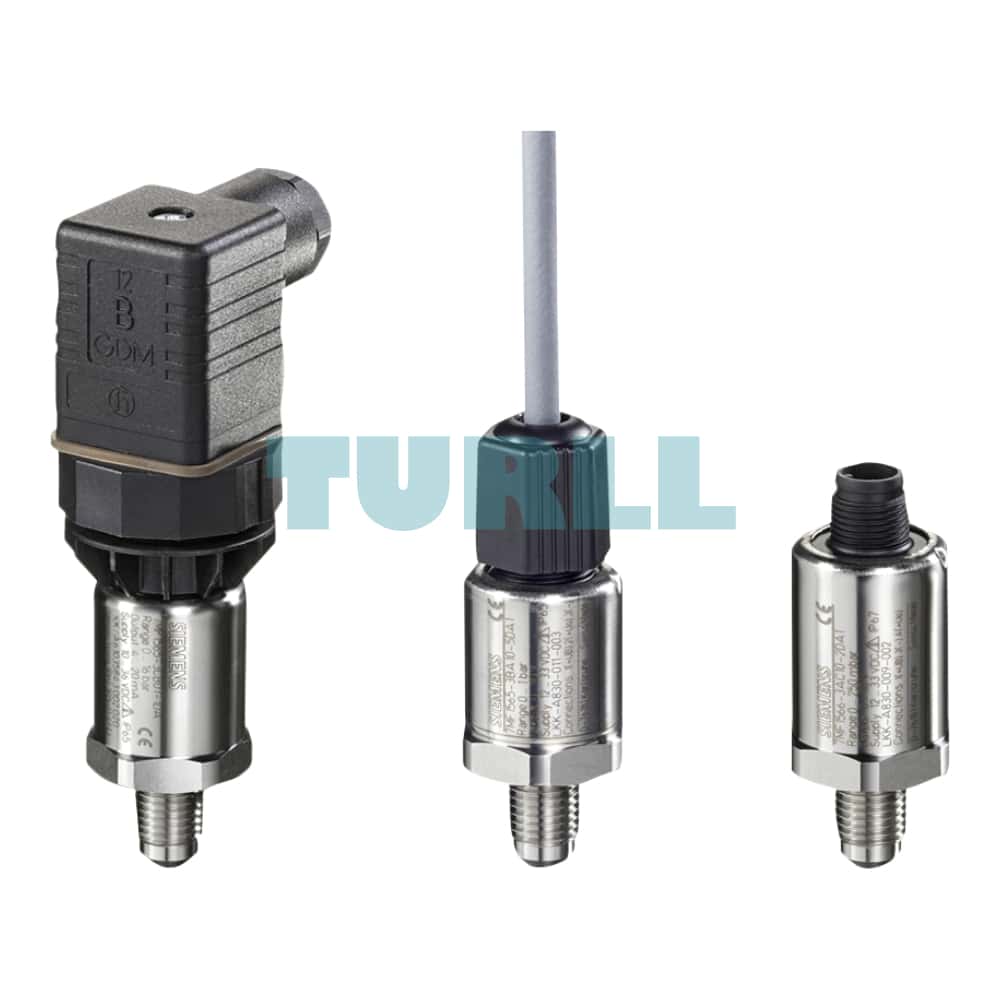

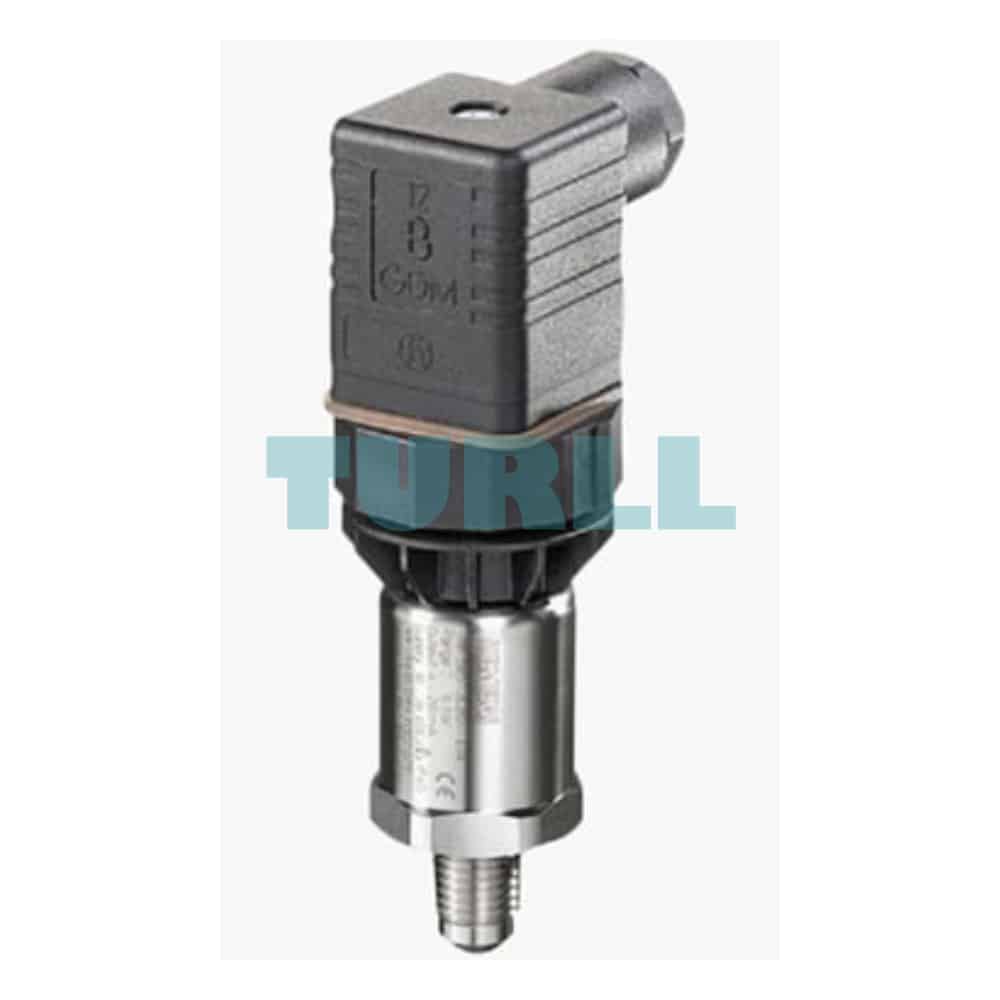

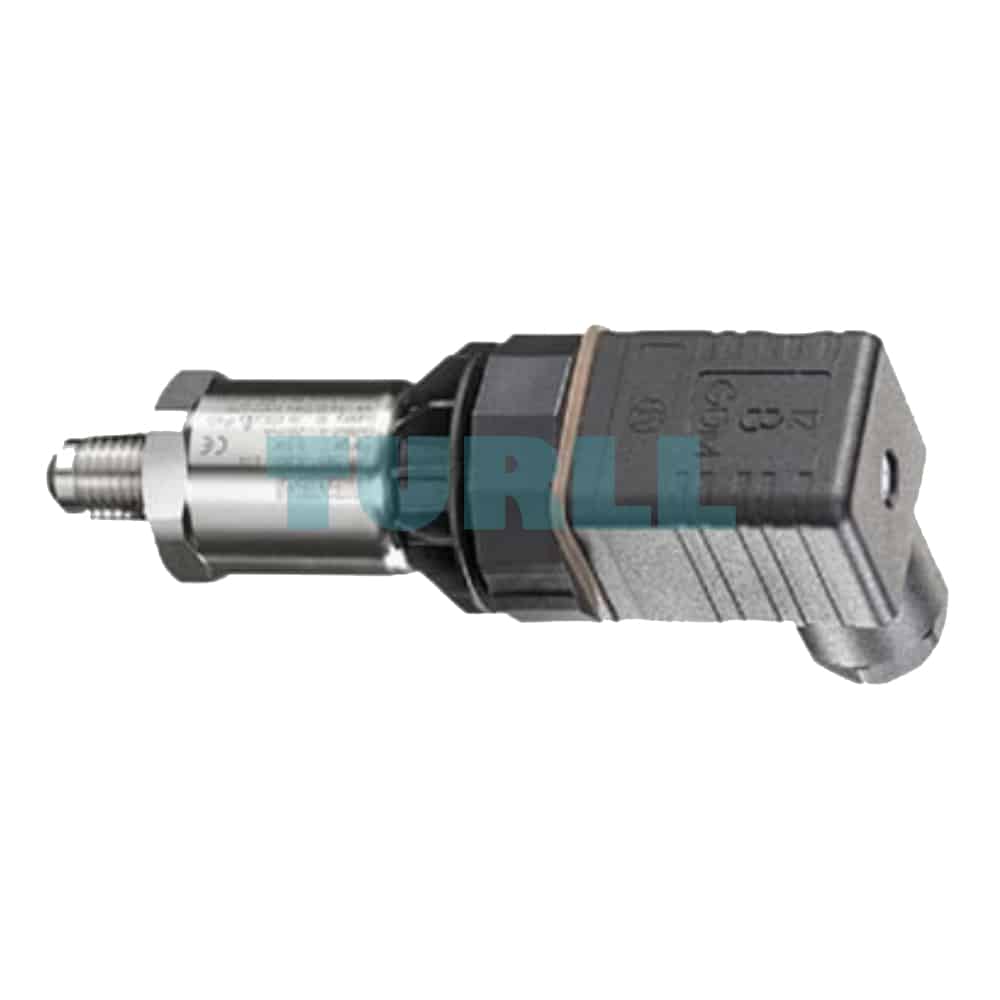

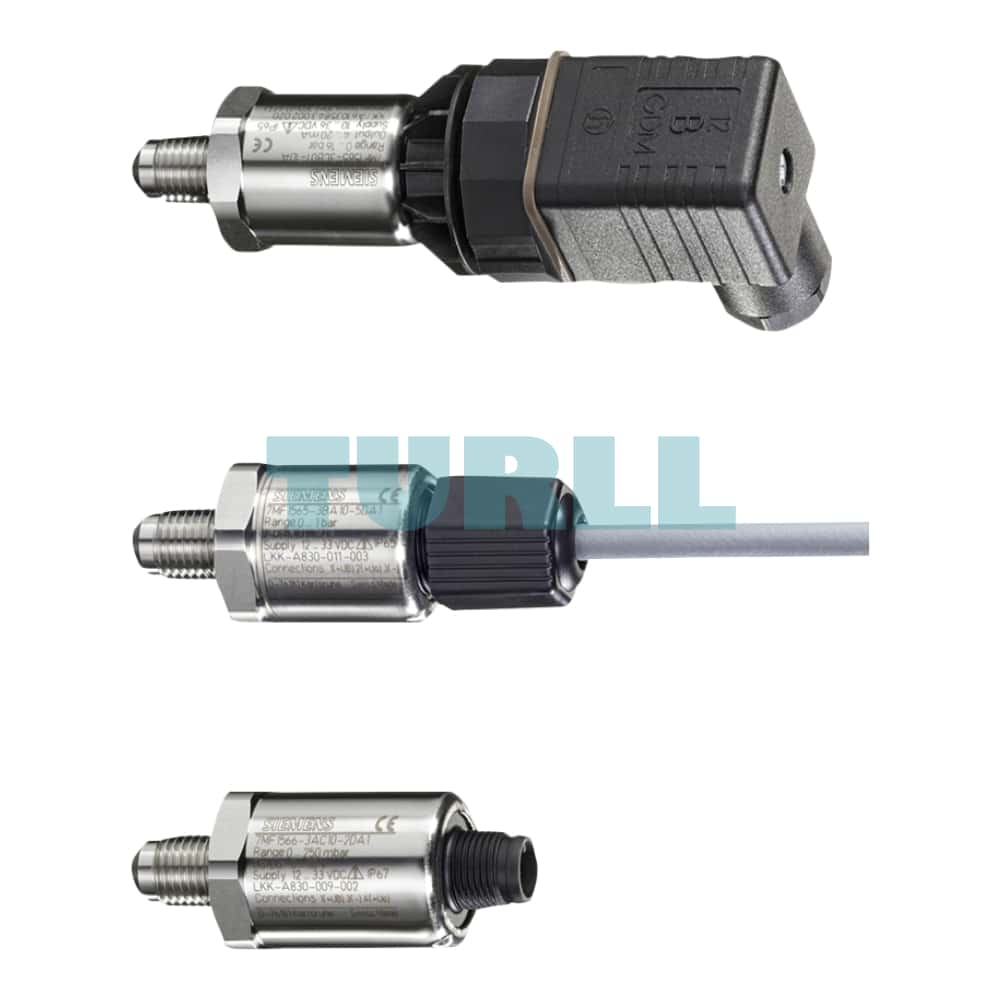

The pressure transmitter consists of a piezoresistive measuring cell with a diaphragm, installed in a stainless steel enclosure. It can be connected electrically with a device plug to EN 175301-803-A (IP65), an M12Ā device plug (IP67), a cable (IP67) or a Quickon cable quick screw connection (IP67). The output signal is between 4 and 20Ā mA or 0 and 10Ā V
Device structure with explosion protection
The pressure transmitter consists of a piezoresistive measuring cell with a diaphragm, installed in a stainless steel enclosure. It can be connected electrically with a device plug fulfilling EN 175301-803-A (IP65) or an M12Ā device plug (IP67). The output signal is between 4 and 20Ā mA.
Function
The pressure transmitter measures the gauge and absolute pressure of liquids, gases and vapors.
The ceramic measuring cell has a thick-film resistance bridge, to which the operating pressure p is transmitted through a ceramic diaphragm.
The voltage output from the measuring cell is converted by an amplifier into an output current of 4Ā toĀ 20Ā mA or an output voltage of 0Ā toĀ 10Ā V DC.
The output current and voltage are linearly proportional to the input pressure.
7MF1565-5BA00-1AA1 SiemensĀ
SITRANS P200 Transmitters for pressure and absolute pressure for general applications Non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for absolute: 0 to 1 bar abs., Overload- pressure 2,5 bar abs. Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: G1/2″ male to EN 837-1 (1/2″ BSP male) (standard for metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (FPM, Standard) Standard version
| Weight | 0.2 kg |
|---|---|
| Dimensions | 90 × 150 × 42 mm |
