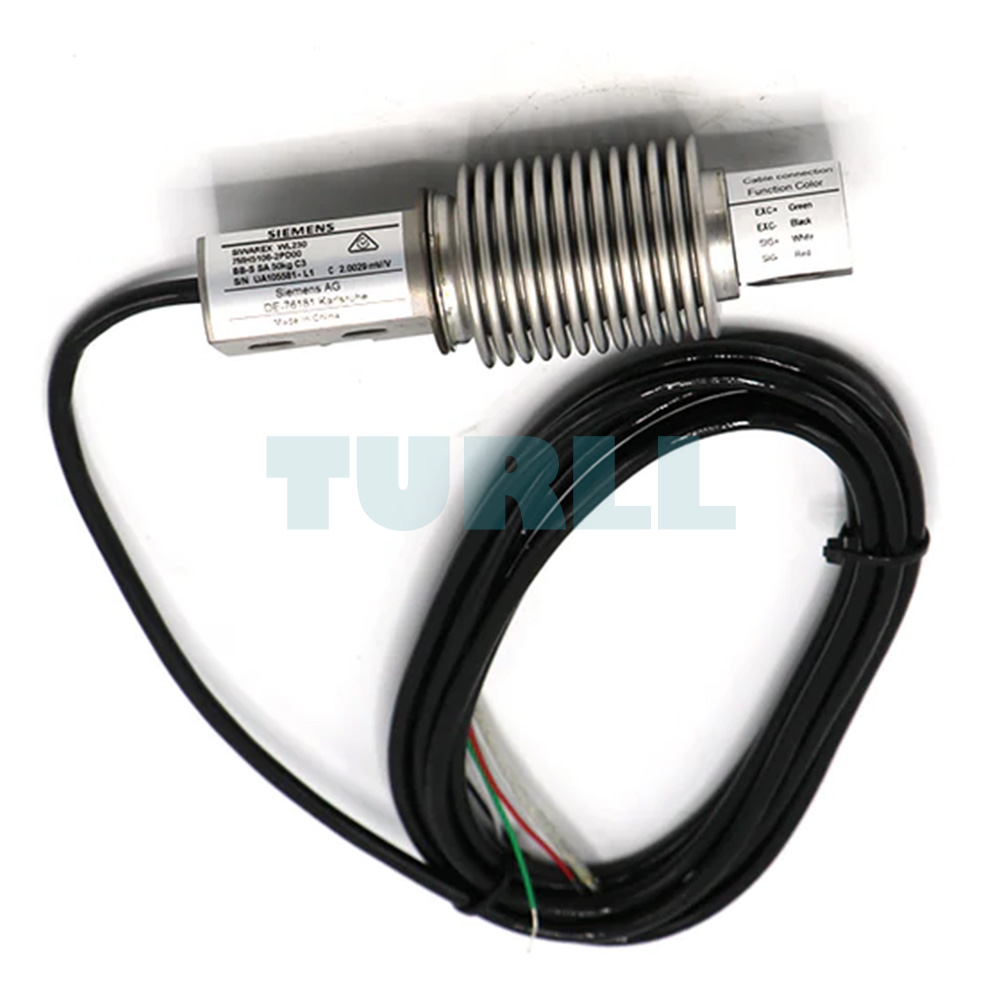

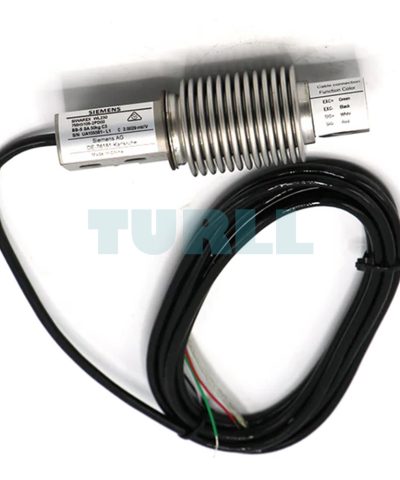

7MH5106-2PD00 SIEMENS Exclusive SIWAREX WL230 BB-S SA 50kg Load Cell Original Brand New

7MH5106-2PD00 SIEMENS Exclusive SIWAREX WL230 BB-S SA 50kg Load Cell Original Brand New

The SIEMENS 7MH5106-2PD00 is a high-precision load cell from the SIWAREX WL230 BB-S SA series, engineered for demanding industrial weighing applications. With a rated load capacity of 50kg and accuracy class C3, this load cell delivers reliable and consistent measurements for small platform scales, hopper scales, and other multi-point installations requiring exceptional repeatability and performance.

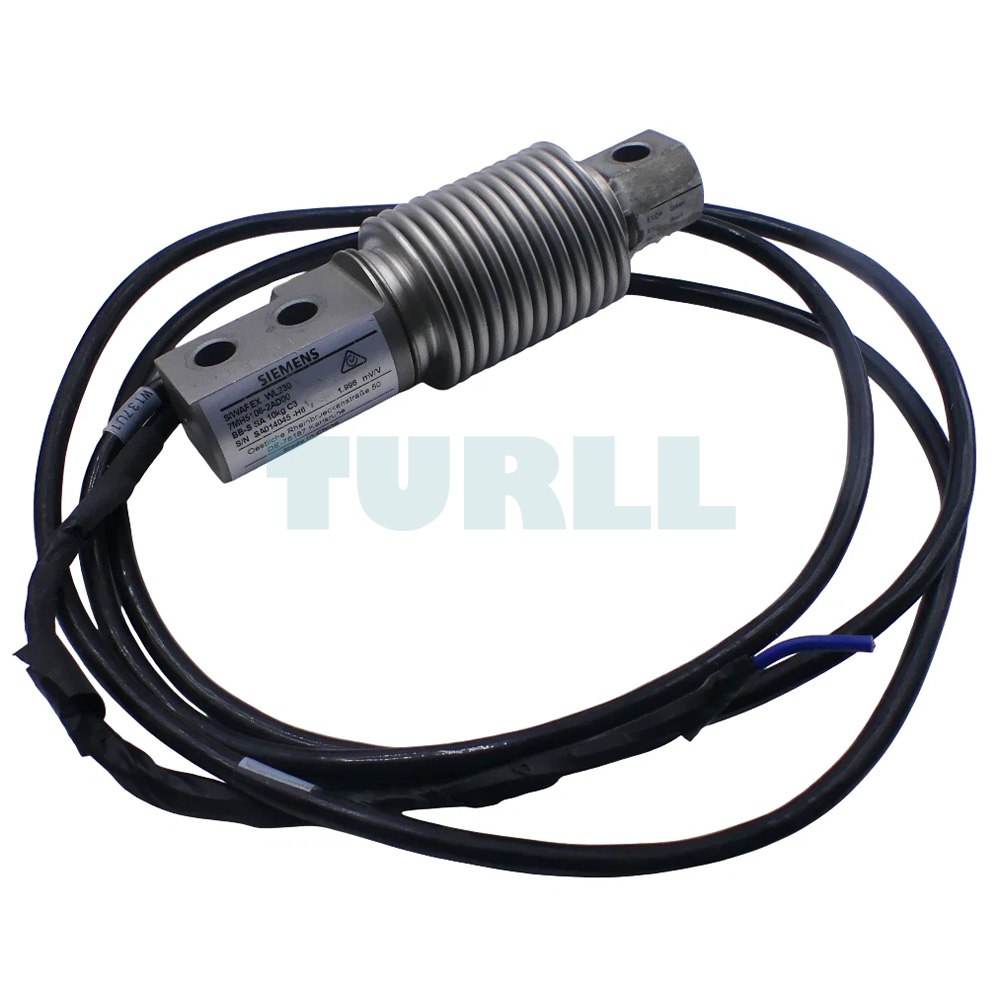

Constructed from corrosion-resistant stainless steel (EN 1.4542) and equipped with IP68 protection, this sensor offers long-term durability even in harsh operating environments. It features a strain gauge-based measuring element designed as a double bending beam, ensuring minimal deflection and maximum sensitivity. The 3-meter cable with 4-wire connection simplifies integration into various systems and ensures stable signal transmission without degradation over time.

Overview

The bending beam load cell design makes it particularly suitable for use in compact weighing solutions such as platform and hopper scales. Its structure and material selection contribute to accurate performance across a wide range of load conditions. Whether used in production, packaging, or material handling, this load cell maintains high precision under real-world conditions.

Design

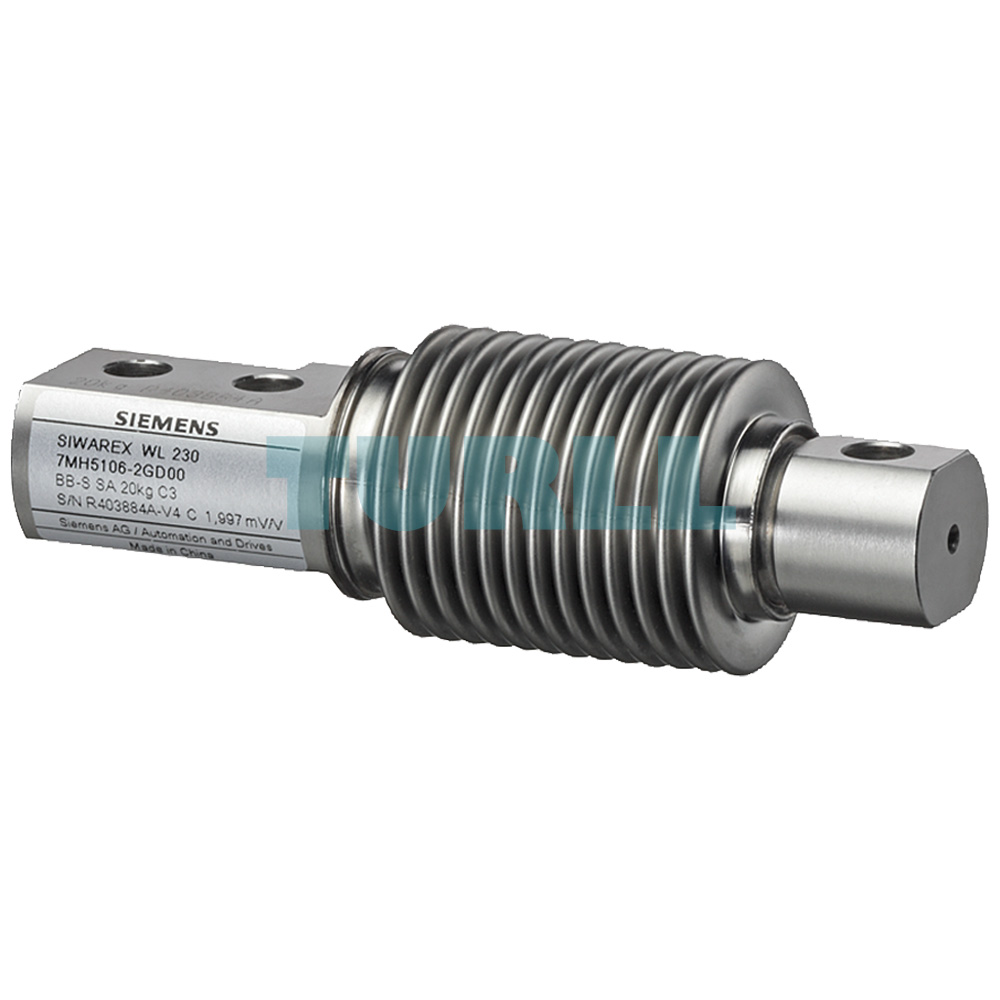

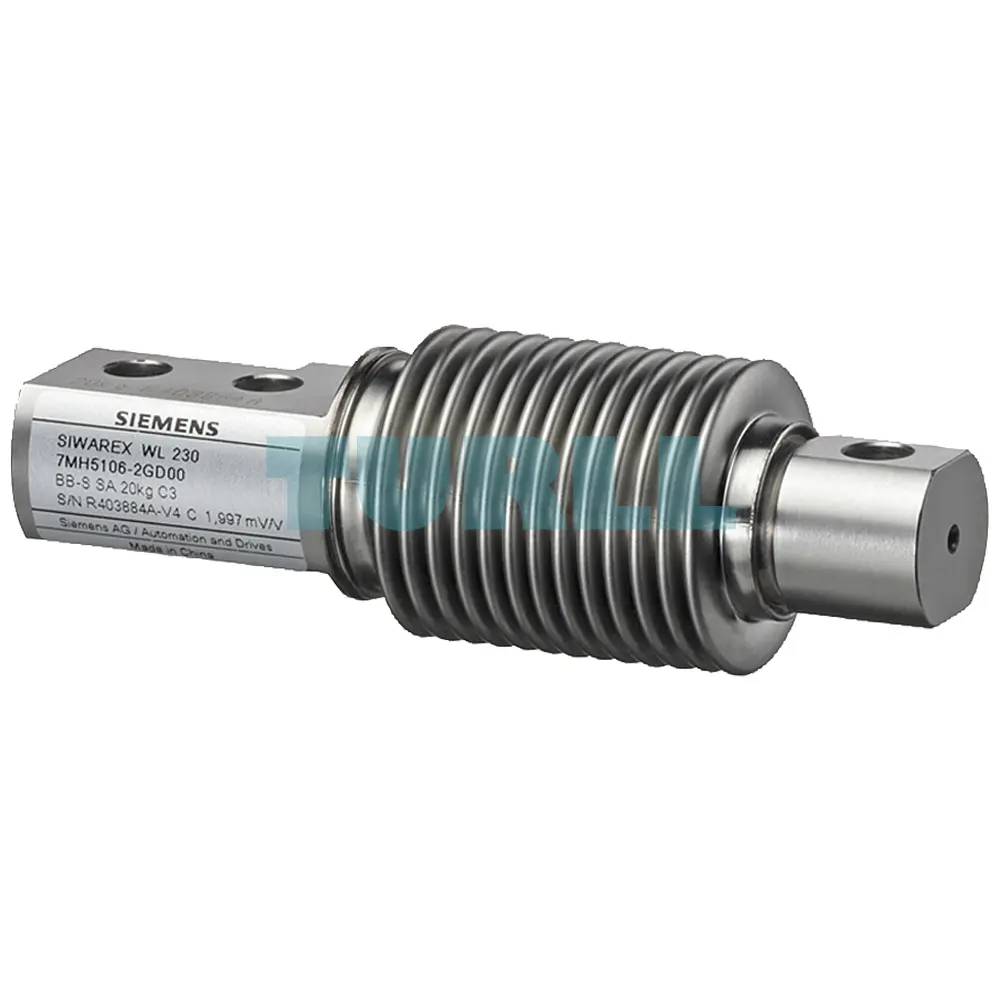

At the core of the design is a double bending beam made of stainless steel. The beam features four precisely positioned strain gauges—two under tension and two under compression. When a load is applied in the measuring direction, the elastic deformation of the beam alters the resistance of the gauges, generating a voltage signal proportional to the applied force. This mechanical-electrical conversion method ensures robust and repeatable measurements.

Product Code: 7MH5106-2PD00
