7MH5108-5GD00 SIEMENS Exclusive SIWAREX WL270 CP-S SA Load Cell 20t C3 Original Brand New
$936.33
SIEMENS 7MH5108-5GD00 compression load cell, 20t capacity, C3 accuracy, stainless steel IP68 body, designed for hopper, bin, and vehicle weighing applications.
7MH5108-5GD00 SIEMENS Exclusive SIWAREX WL270 CP-S SA Load Cell 20t C3 Original Brand New

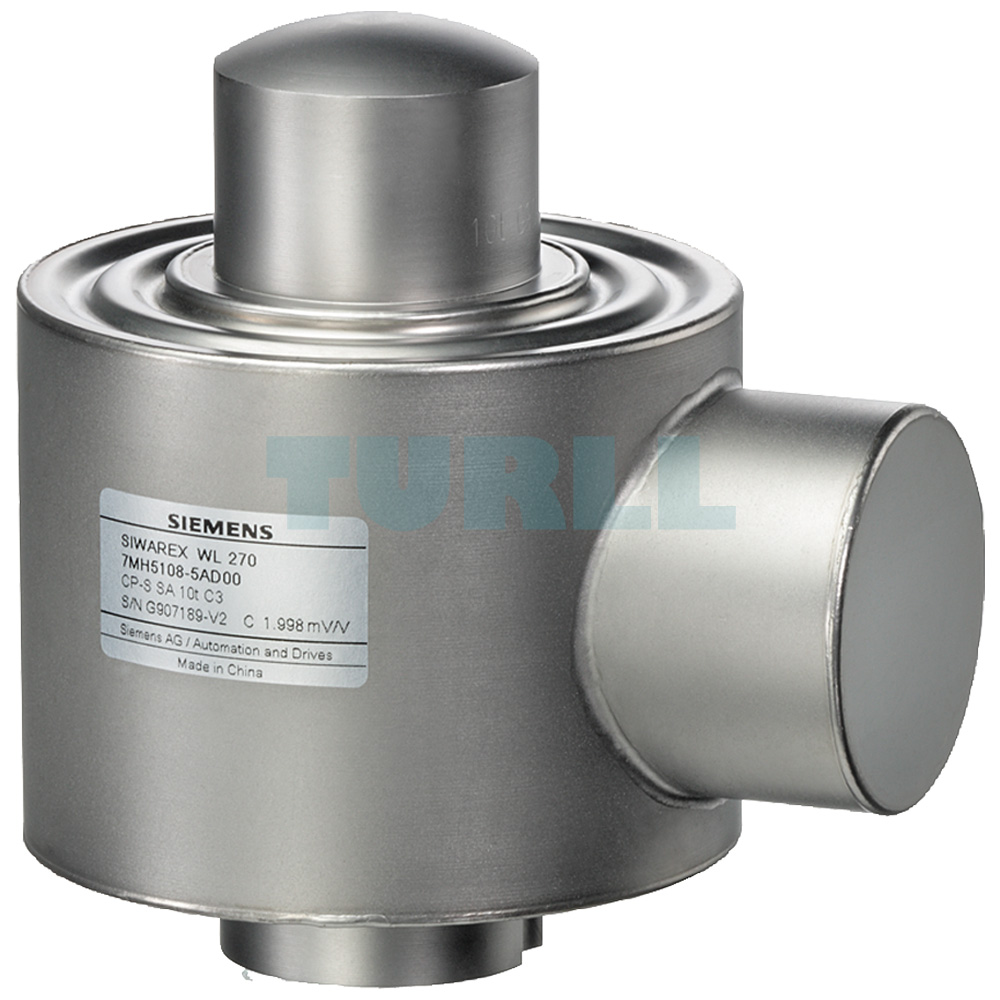

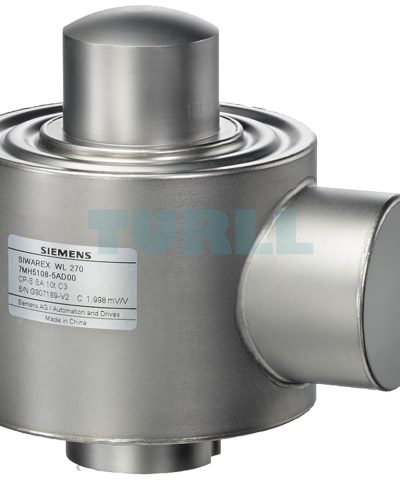

The 7MH5108-5GD00 SIEMENS SIWAREX WL270 CP-S SA is a precision-engineered compression load cell designed to deliver accurate and consistent weight measurements for heavy industrial applications. Built for long-term durability and performance, this load cell is ideal for use in hopper scales, bin weighing equipment, and vehicle scales where stability and repeatable accuracy are critical.
With a rated load of 20 tons and accuracy class C3, this load cell ensures reliable performance even under dynamic and demanding load conditions. Its compact and solid stainless steel EN 1.4542 body offers outstanding protection and resistance to harsh environments. The IP68 rating guarantees optimal functionality in dusty or wet industrial zones, making it suitable for both indoor and outdoor usage.
This model is equipped with a 15-meter, 4-wire cable connection, enabling secure signal transmission over longer distances. Its robust construction incorporates strain gauges bonded onto the stainless steel core, forming a spring body that responds linearly to the applied load. The deformation of the spring body translates into a precise signal voltage, which is directly proportional to the measured force, ensuring accurate weight output every time.
Overview
The SIWAREX WL270 CP-S SA compression load cell is particularly suitable for weighing systems in industrial and transportation sectors. It is commonly integrated into hopper and bin scales, as well as vehicle scale systems where heavy loads must be monitored continuously and precisely.
Design
The core of this load cell is a solid cylindrical stainless steel body featuring four strain gauges. These sensors are strategically placed to detect compressive forces and deliver exact measurement data. When a force is applied centrally, the internal spring body deforms slightly, which proportionally affects the strain gauges and generates a signal voltage. This precise engineering ensures high signal accuracy and consistency over time.
Product Code: 7MH5108-5GD00
More Siemens products at Turll.com
| Weight | 5.5 kg |
|---|---|

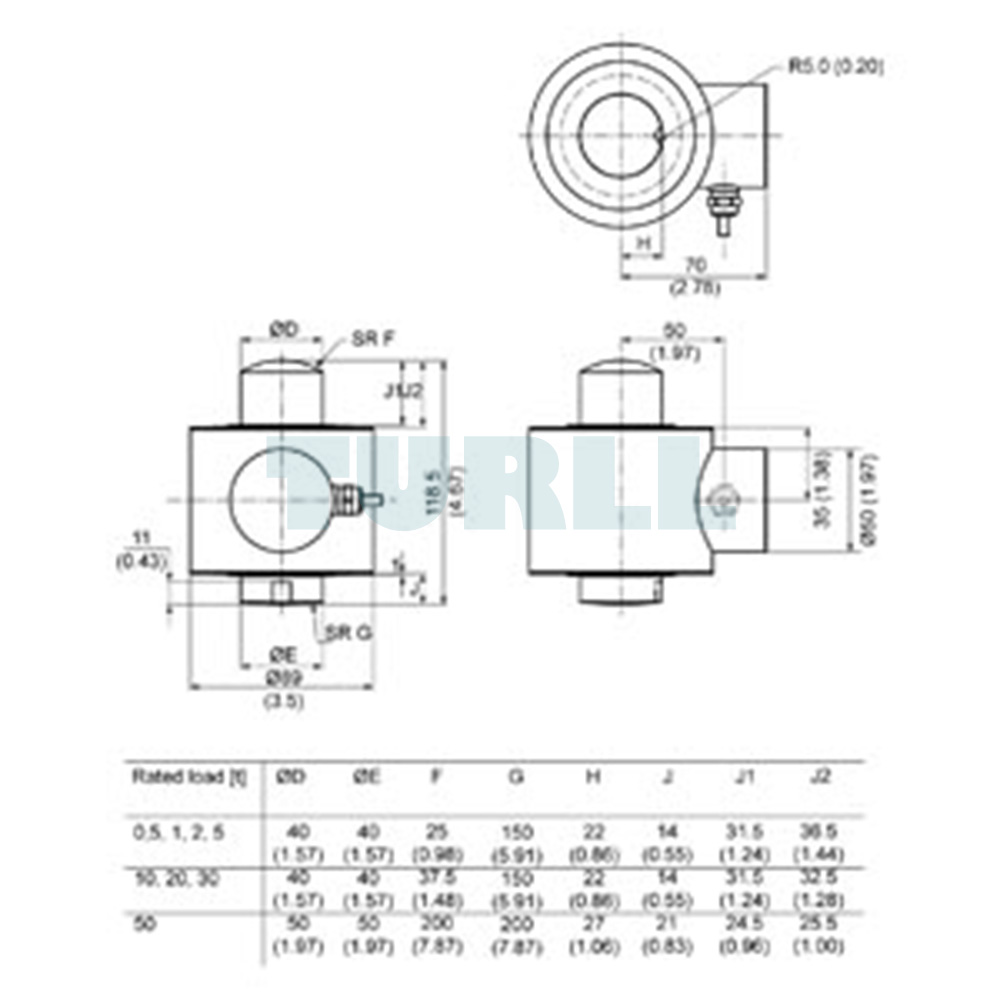

| Dimensions | 215 × 150 × 215 mm |
