Shaft-mounted speed sensor with 256 PPR and wide rpm range. Lightweight, durable, and ideal for real-time conveyor speed monitoring using Siemens integrators.
Backorder available · Factory lead time 2–3 weeks.

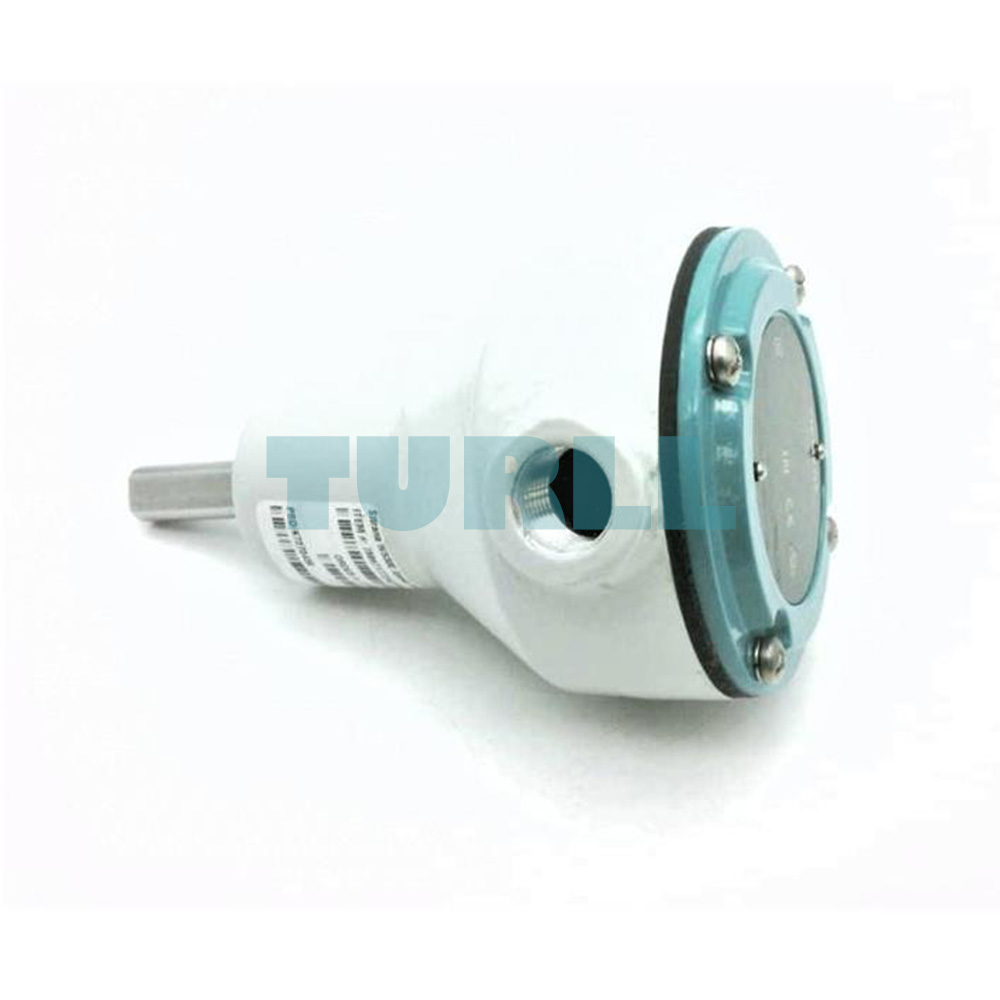

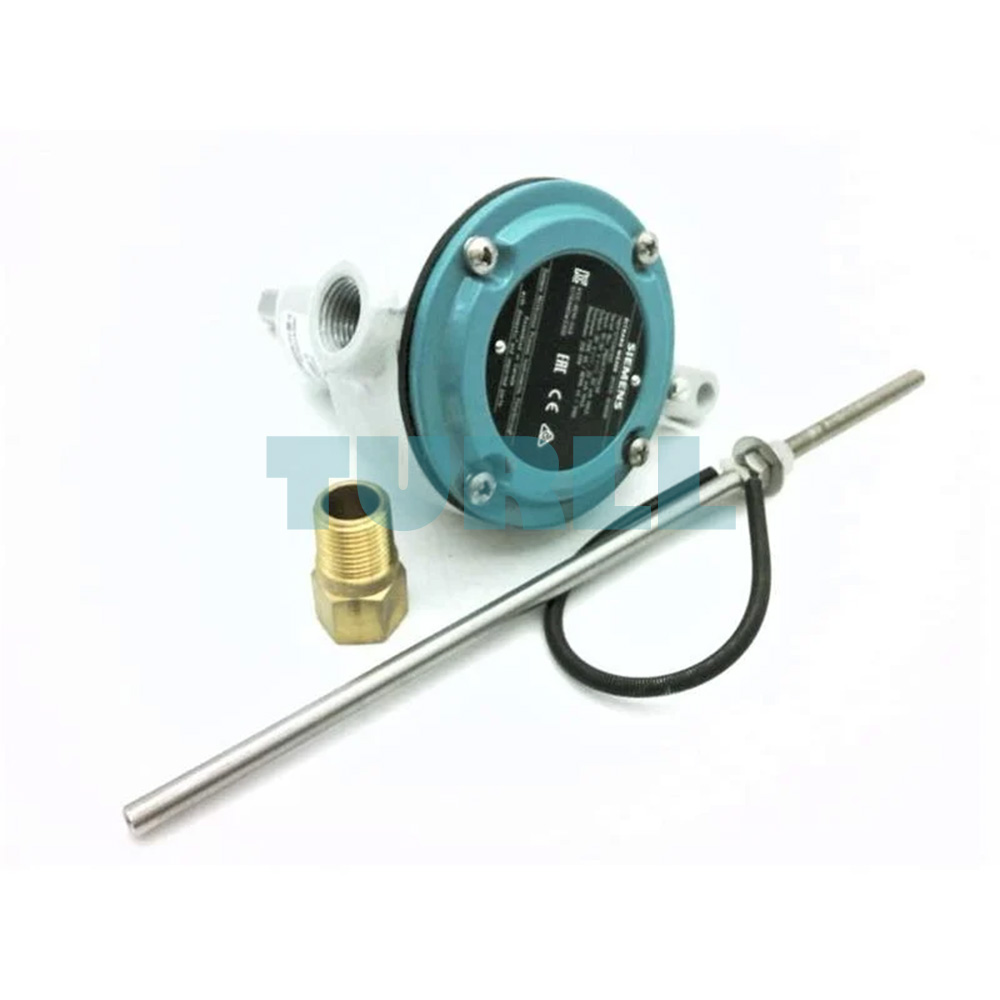

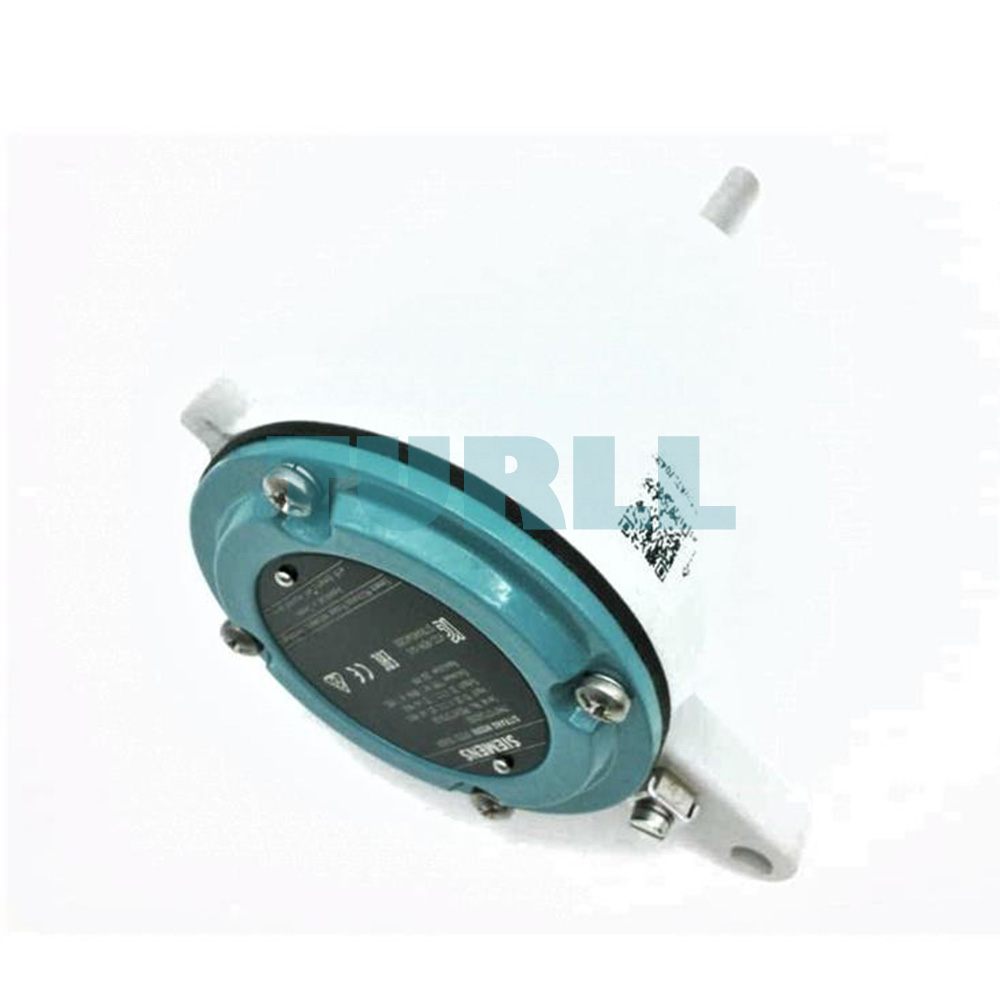

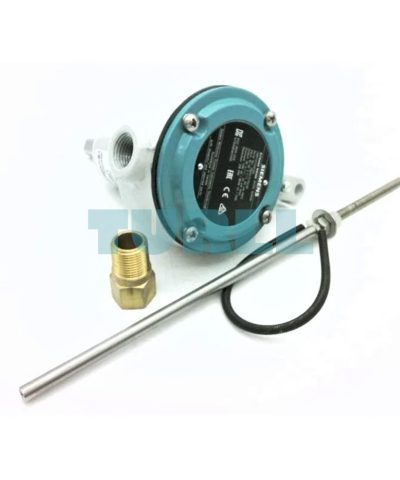

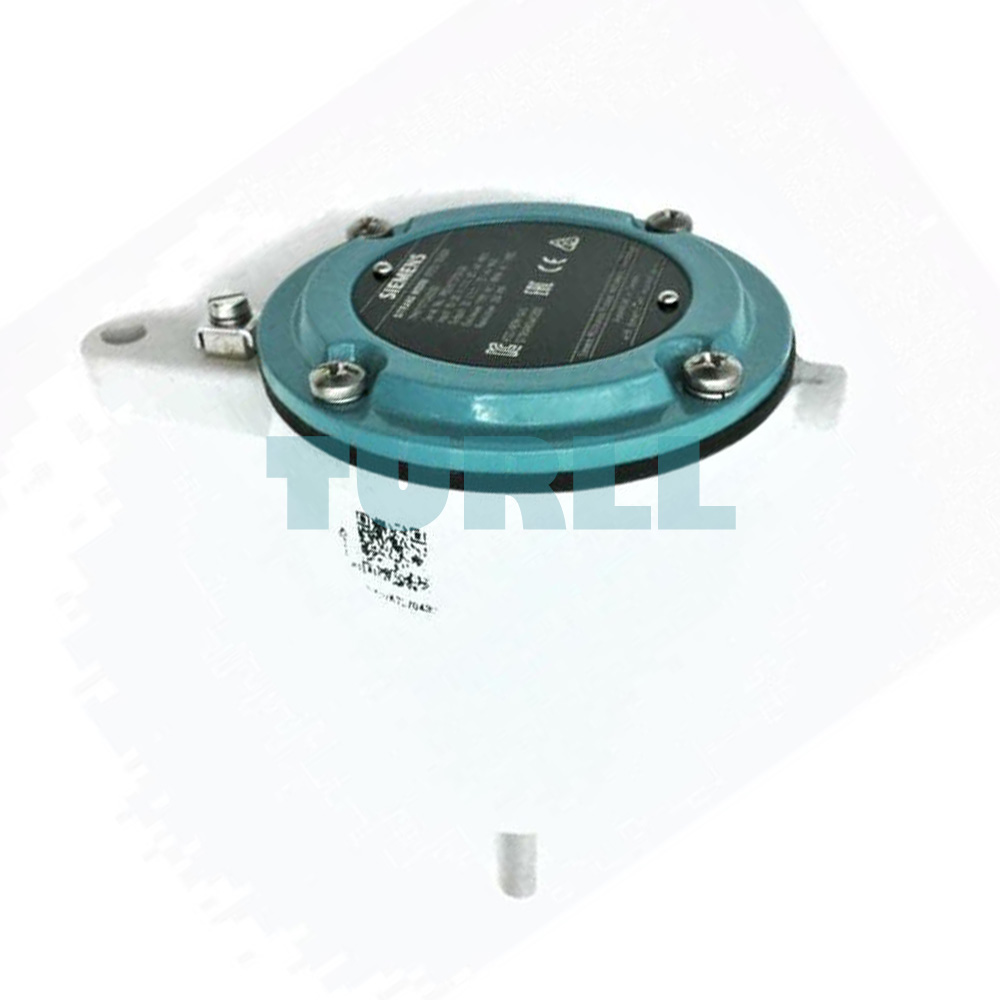

The 7MH7177-2AD10-0 SIEMENS SITRANS WS300 speed sensor is an advanced shaft-mounted solution engineered for highly accurate speed monitoring in industrial conveyor systems. With a wide operating range of 0.3 to 2,000 rpm and up to 2,000 pulses per revolution, it provides precise feedback for material flow measurement when used with Siemens integrators. Its high-resolution rotary optical encoder delivers 256 PPR, translating shaft movement into a reliable frequency signal.
The enclosure is constructed from polyester-painted aluminum and rated NEMA 4X, ensuring protection in harsh environments. With approvals including CE, UKCA, RCM, EAC, and KC, this sensor is certified for global applications. Weighing only 1.22 kg (2.68 lb), it’s among the lightest in its class, reducing mechanical strain and contributing to extended equipment longevity.
The WS300 functions seamlessly with Siemens conveyor belt scales to calculate belt speed, flow rate, and total weight. It mounts directly onto the shaft of a rotating pulley, eliminating inaccuracies from belt slippage or material build-up. The pulse signal is transmitted digitally to the integrator, ensuring consistent, real-time speed data.
The quadrature encoder design prevents interference from vibration or shaft oscillation, while the sensor supports bi-directional installation for both clockwise and counter-clockwise belt travel. It offers a highly responsive and versatile solution for a wide range of speed monitoring tasks across industries.
Product Code: 7MH7177-2AD10-0
More Siemens products at Turll.com
| SKU / Model | 7MH7177-2AD10-0 |
|---|---|
| Weight | 2.36 kg |
