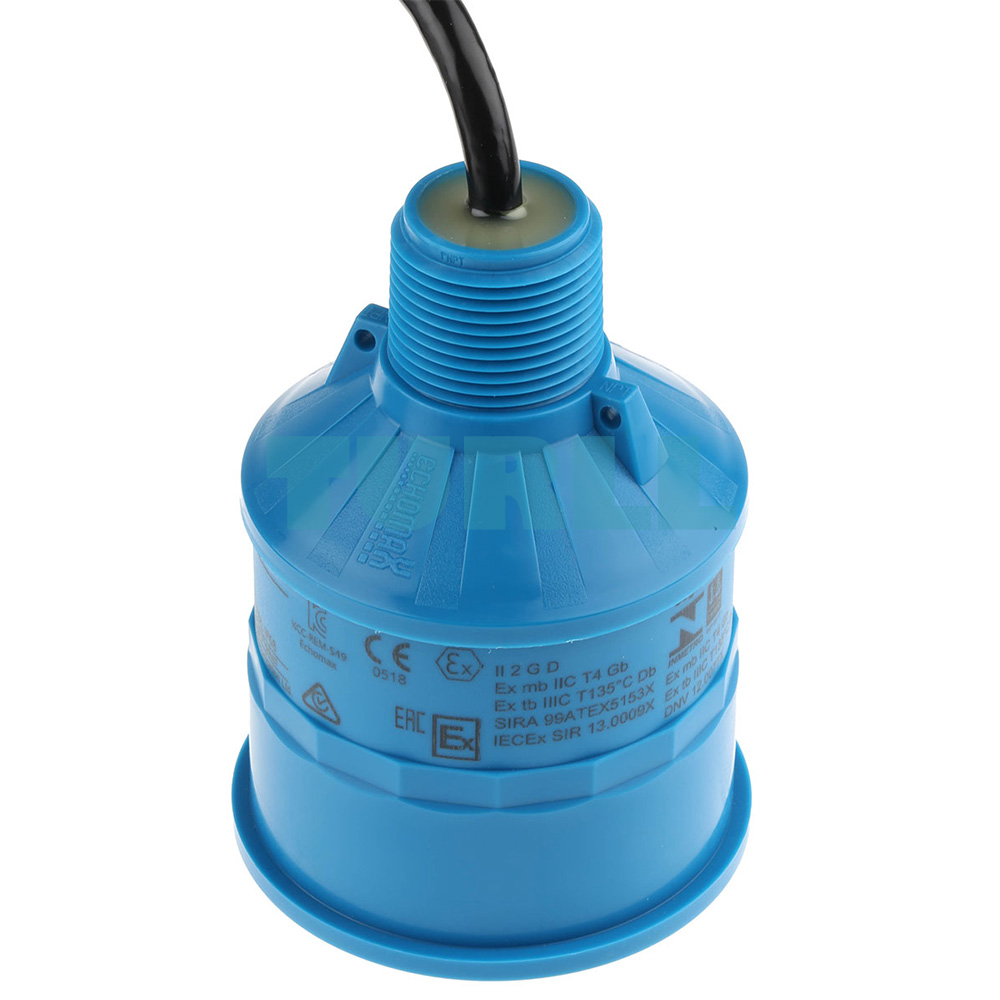

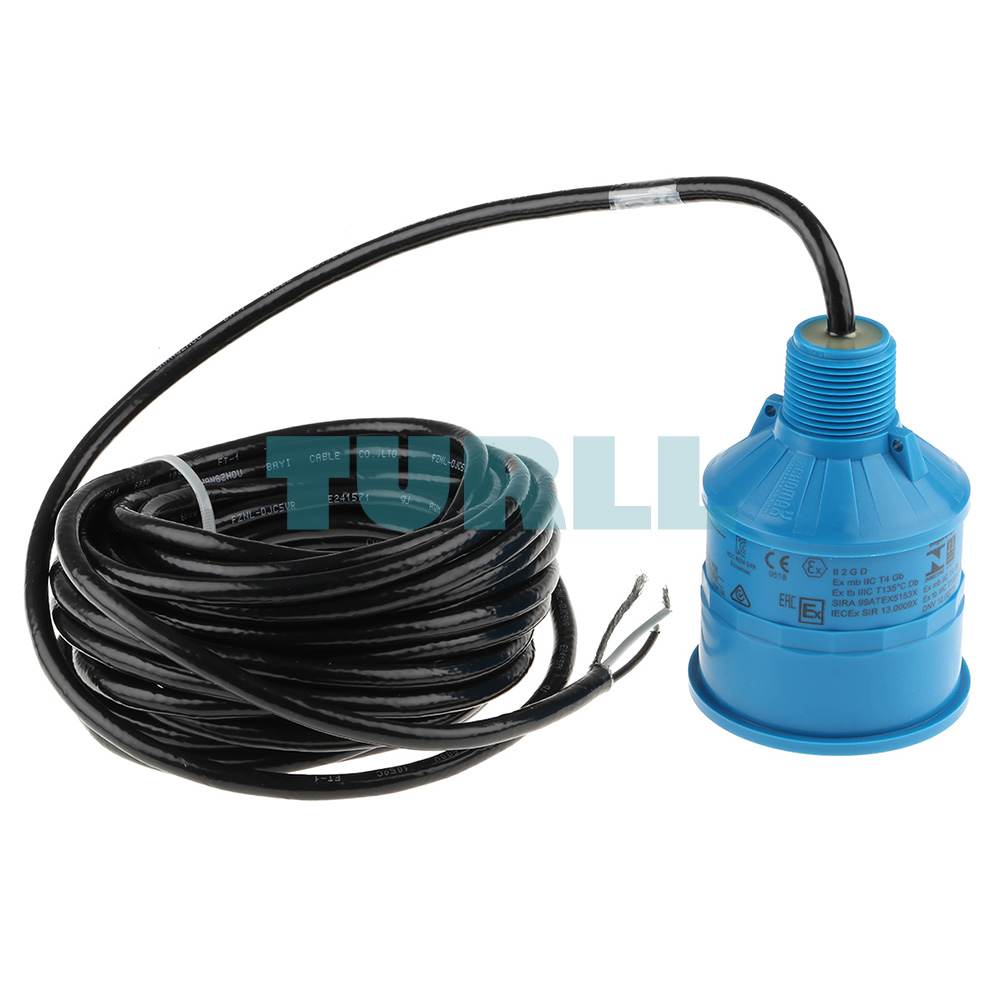

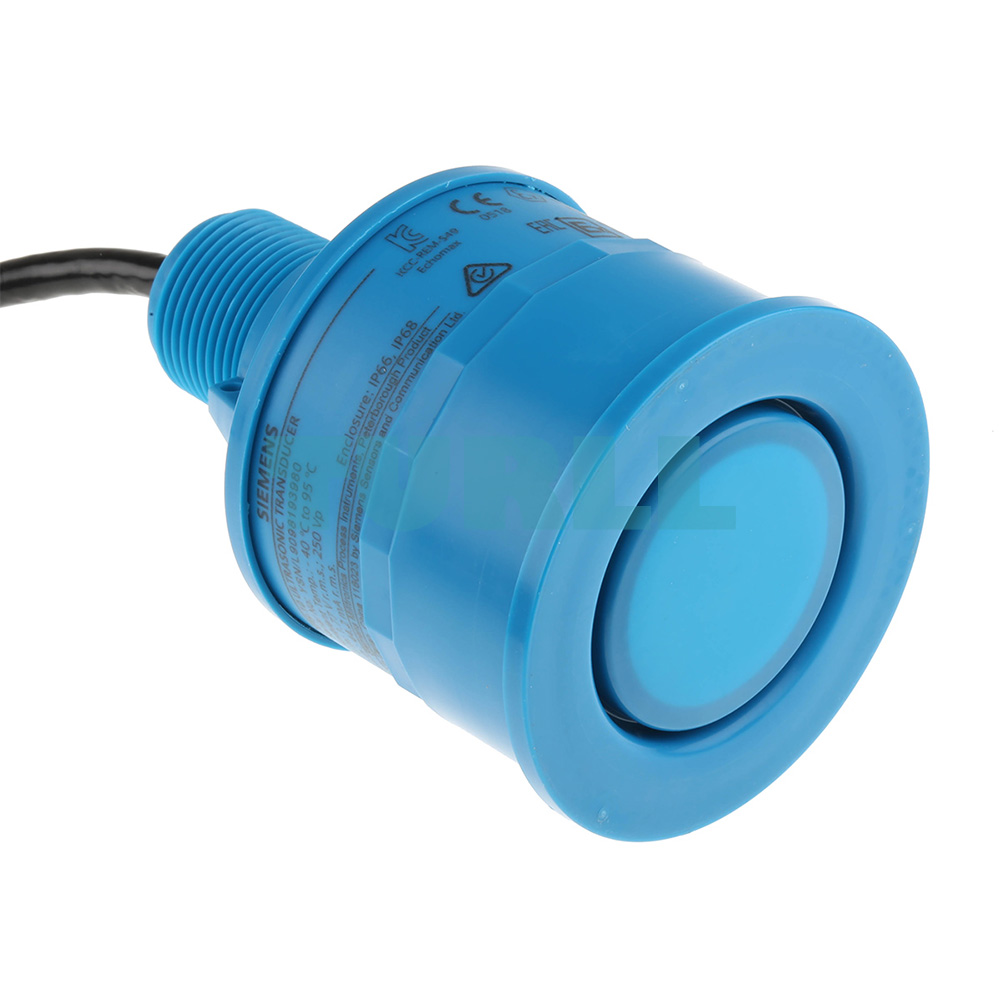

7ML1115-0BA30 SIEMENS Exclusive EchoMax XPS-10 Ultrasonic Level Transducer Original Brand New

7ML1115-0BA30 SIEMENS Exclusive EchoMax XPS-10 Ultrasonic Level Transducer Original Brand New

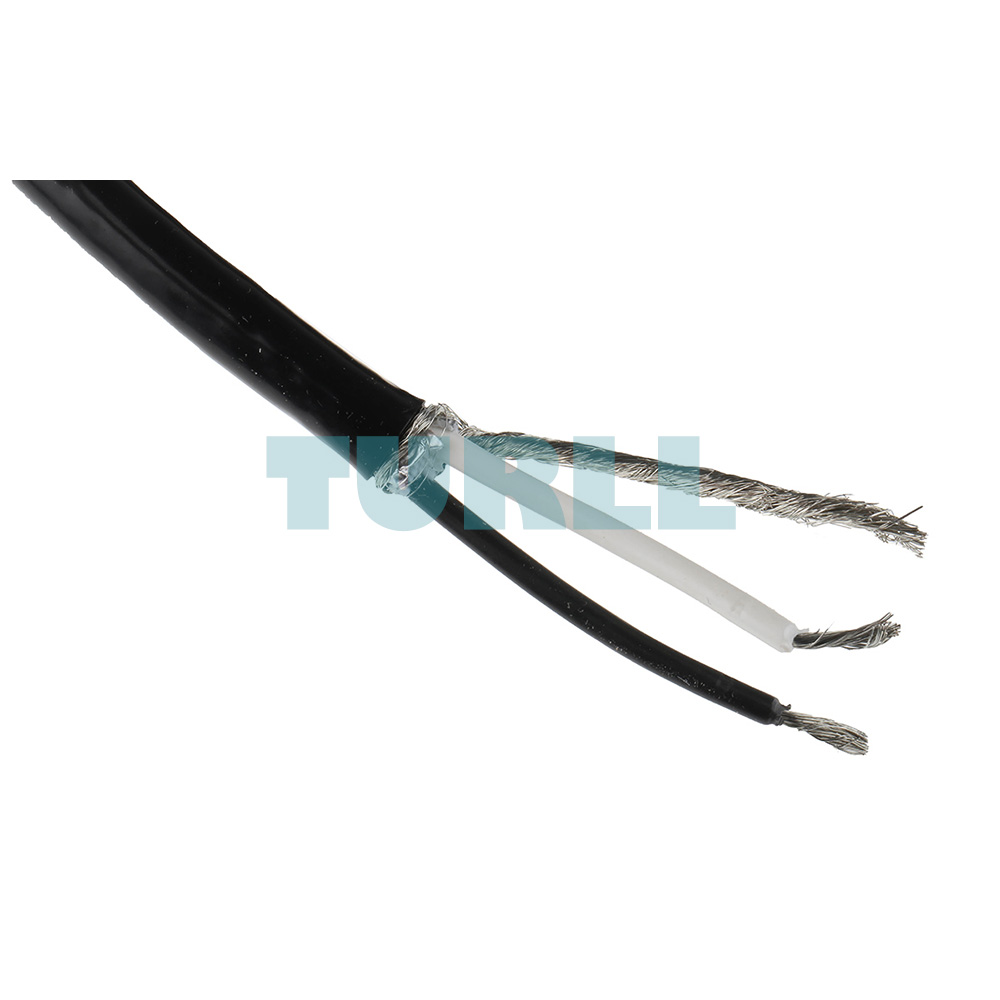

The SIEMENS EchoMax XPS-10, model 7ML1115-0BA30, is a premium ultrasonic level transducer designed for continuous, non-contact measurement of liquids and solids. With a measuring range of up to 10 meters (32.80 feet), it provides highly accurate readings in a wide range of industrial applications. Its 1" NPT mounting thread (ANSI/ASME B1.20.1) and durable 5-meter (16.40 feet) cable offer flexible installation options, while the rugged construction ensures long-term performance even in harsh operating environments. This model comes without a mounting flange and is engineered for operational safety with multiple global approvals including ATEX, UKEX, IECEx, and FM standards for hazardous areas.

The EchoMax XPS-10 features advanced ultrasonic technology that delivers reliable level measurement without direct contact with the measured material. Integral temperature compensation maintains accuracy despite fluctuations in process or ambient conditions. A low ringing effect reduces the blanking distance, enabling precise readings even at short ranges. Additionally, the unit is self-cleaning, chemically resistant, and hermetically sealed, ensuring minimal maintenance and long service life. For dusty applications, optional foam facing is available to maintain consistent performance.

Overview

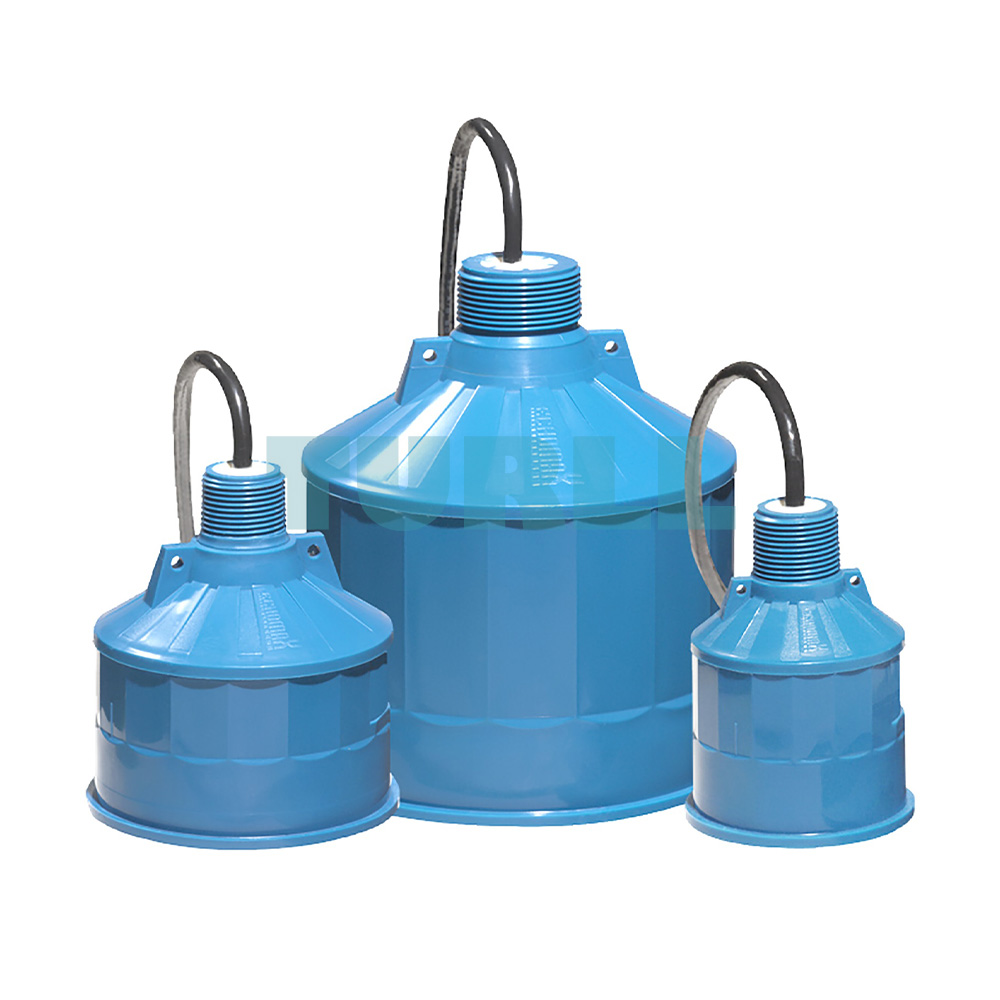

Designed for versatility, the EchoMax XPS series operates effectively with both liquids and bulk solids. The transducer can be fully immersed, withstand exposure to steam, and resist corrosive chemicals, making it suitable for challenging environments. It can be installed without flanges, further simplifying setup and reducing installation time.

Benefits

• Integral temperature compensation for consistent accuracy
• Low ringing effect minimizes blanking distance
• Optional foam facing for dusty conditions
• Self-cleaning, low-maintenance design
• Chemical resistance for long-term durability
• Hermetically sealed for environmental protection

Application

During operation, the transducer emits narrow-beam acoustic pulses. The level monitoring system calculates distance by measuring the time between pulse emission and echo return. The XPS series offers versions for measuring ranges up to 30 meters (100 feet) and for process temperatures up to 95°C (203°F), ensuring adaptability to various industry needs.

Product Code: 7ML1115-0BA30
