7ML1118-0EA30 SIEMENS Exclusive EchoMax XPS-15 Ultrasonic Level Transducer Original Brand New

7ML1118-0EA30 SIEMENS Exclusive EchoMax XPS-15 Ultrasonic Level Transducer Original Brand New

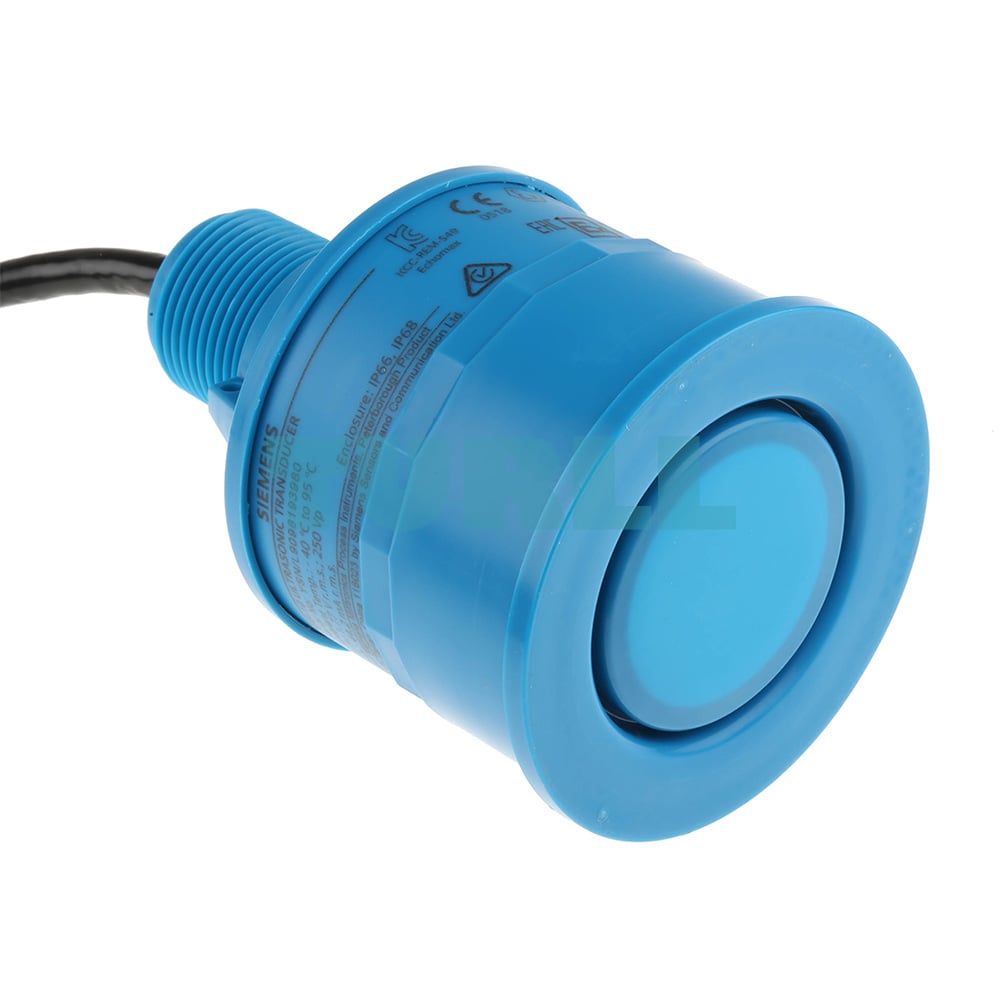

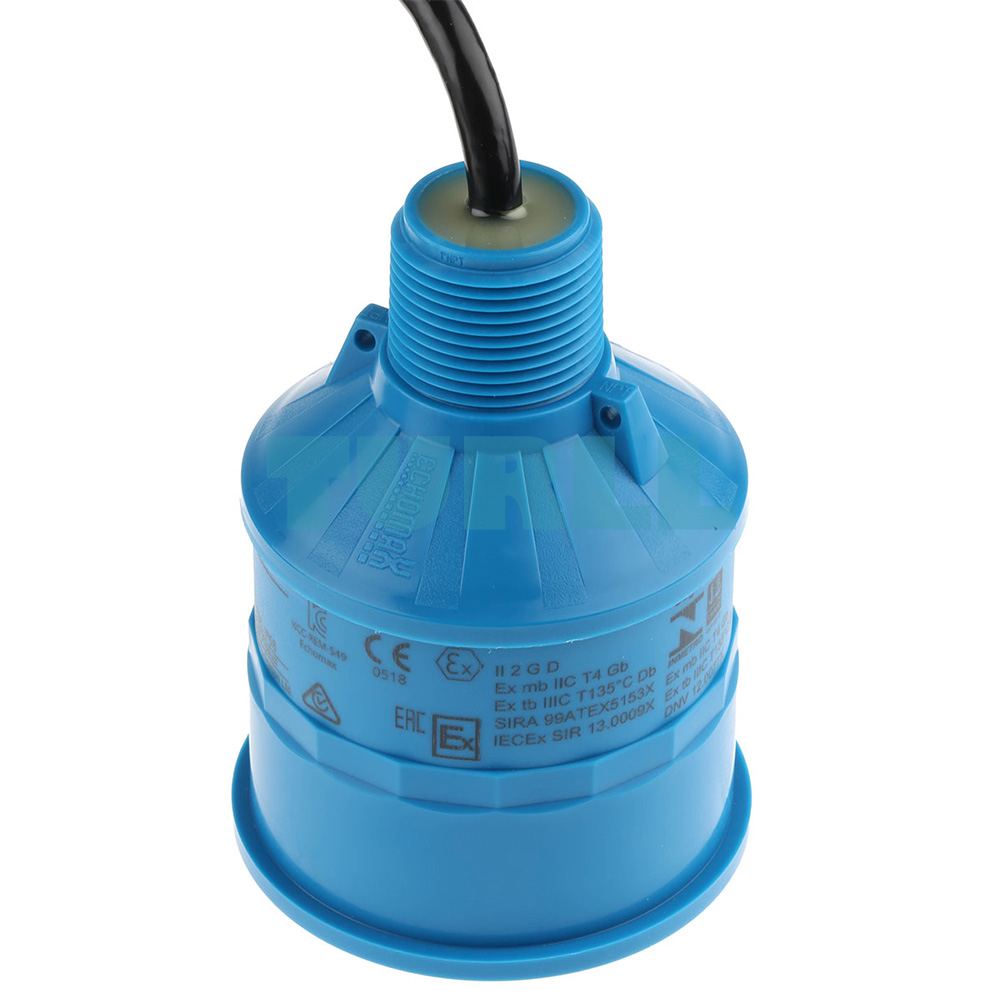

The SIEMENS EchoMax XPS-15, model 7ML1118-0EA30, is an advanced ultrasonic level transducer engineered for accurate and continuous non-contact measurement of both liquids and solids. Designed to operate effectively over distances of up to 15 meters (49.21 ft), it ensures precision in demanding industrial environments. With its rugged design, it is suitable for applications that require high reliability, durability, and minimal maintenance.

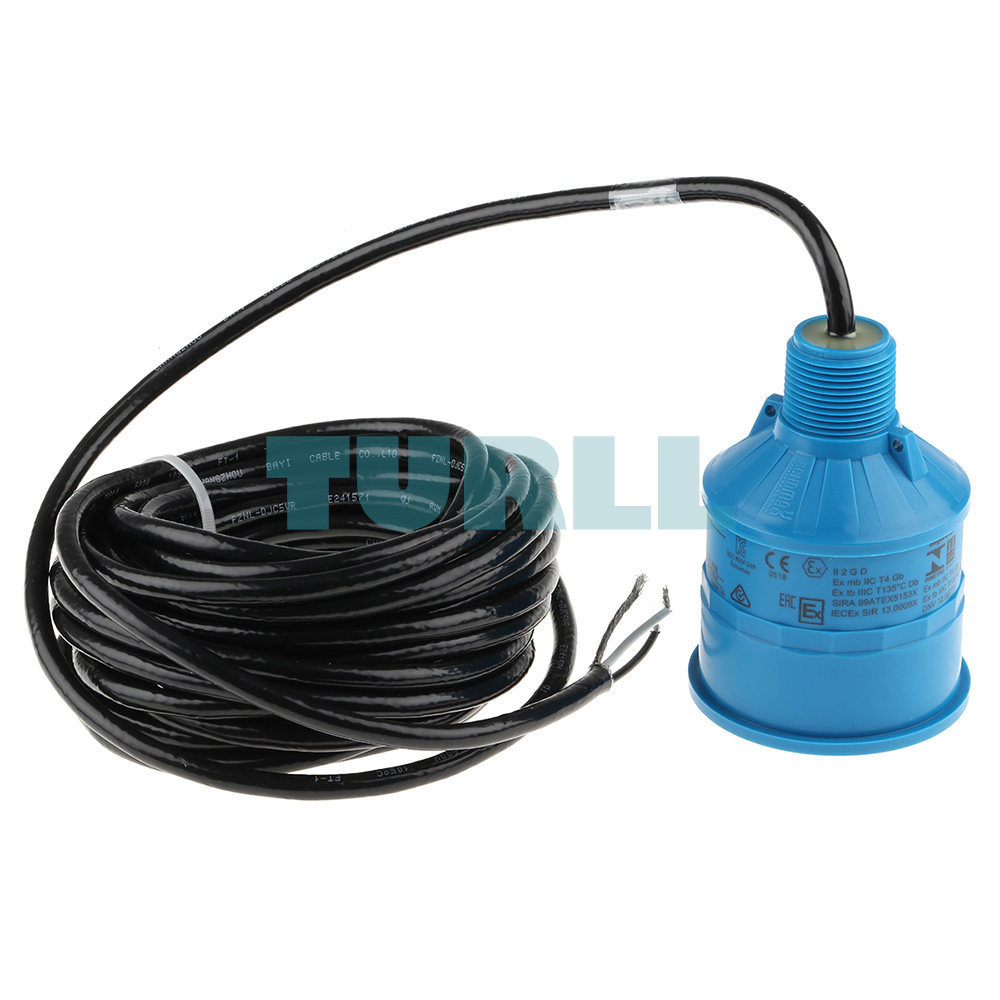

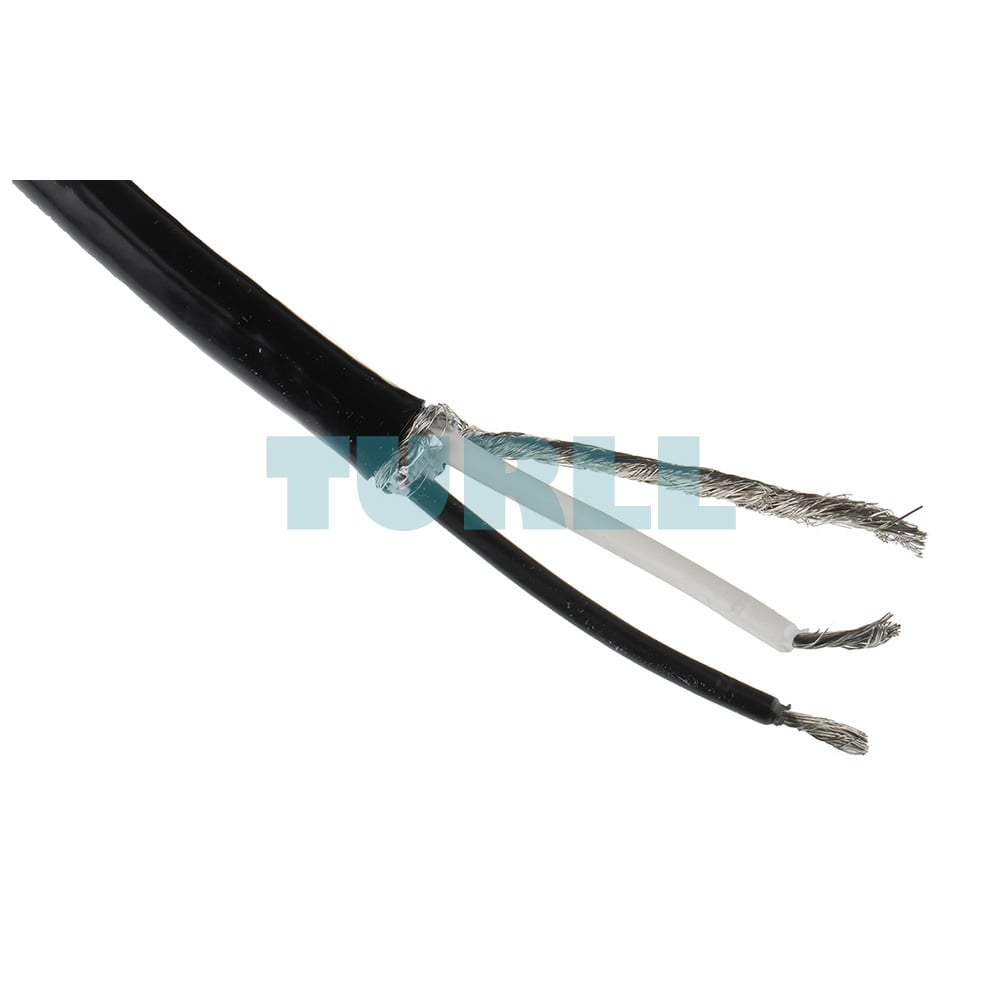

Featuring a 1" NPT (ANSI/ASME B1.20.1) mounting thread, a 30-meter (98.43 ft) cable length, and no mounting flange, this device is built for flexible installation. It is certified with multiple international approvals, including ATEX, UKEX, IECEx, and FM standards, allowing it to be deployed safely in hazardous zones. Its operational temperature range of -40°C to +95°C makes it ideal for challenging process conditions.

Overview

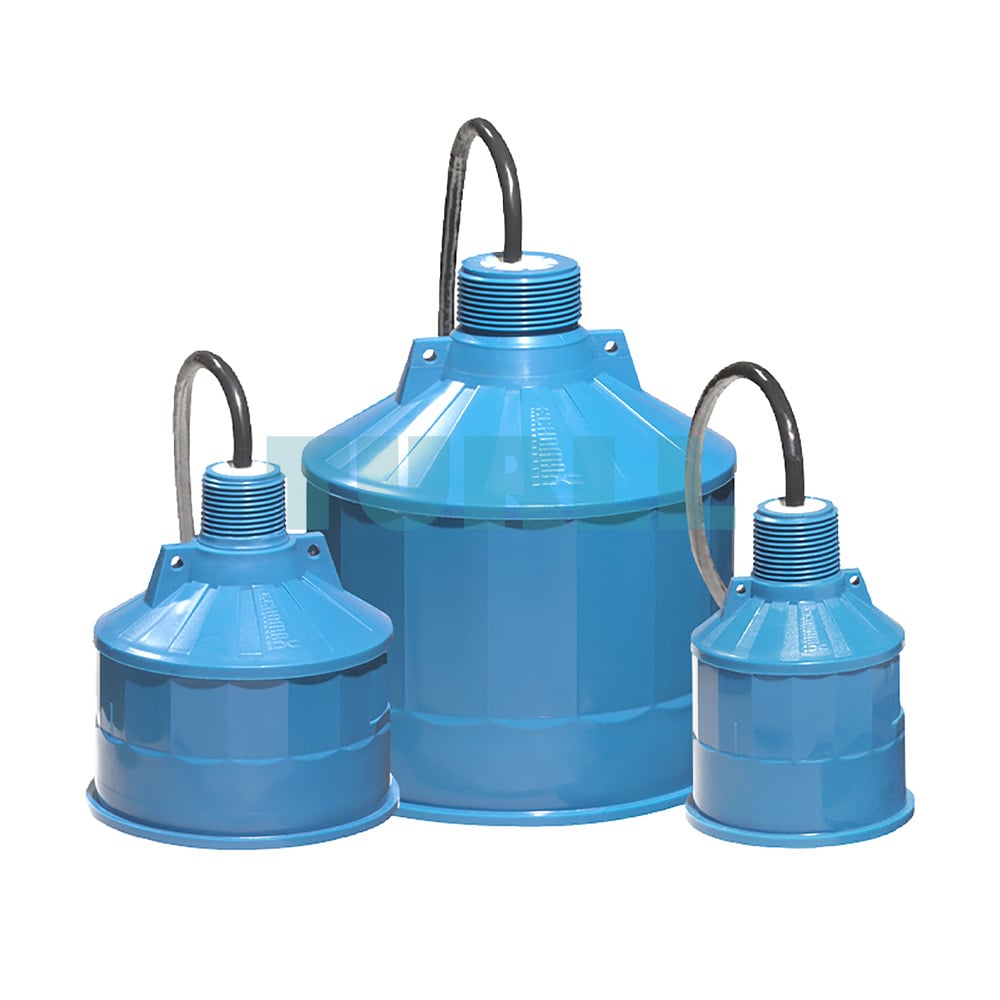

EchoMax XPS series transducers utilize ultrasonic technology to measure levels without direct contact, making them resistant to wear and contamination. They can operate in harsh process environments and withstand continuous immersion, exposure to steam, and corrosive chemicals. The design minimizes maintenance needs and enhances long-term performance.

Benefits

• Integral temperature compensation for consistent accuracy
• Low ringing effect for reduced blanking distance
• Optional foam facing for dusty conditions
• Self-cleaning surface for minimal upkeep
• Chemical resistance for extended lifespan
• Hermetically sealed construction for durability

Application

The XPS-15 is ideal for tanks, silos, and open-channel flow measurement. It emits precise acoustic pulses in a narrow beam, with the system calculating the distance based on the time between pulse emission and echo return. Versions in the XPS range support measurement distances up to 30 meters, withstanding high temperatures up to 95°C (203°F).

Product Code: 7ML1118-0EA30
