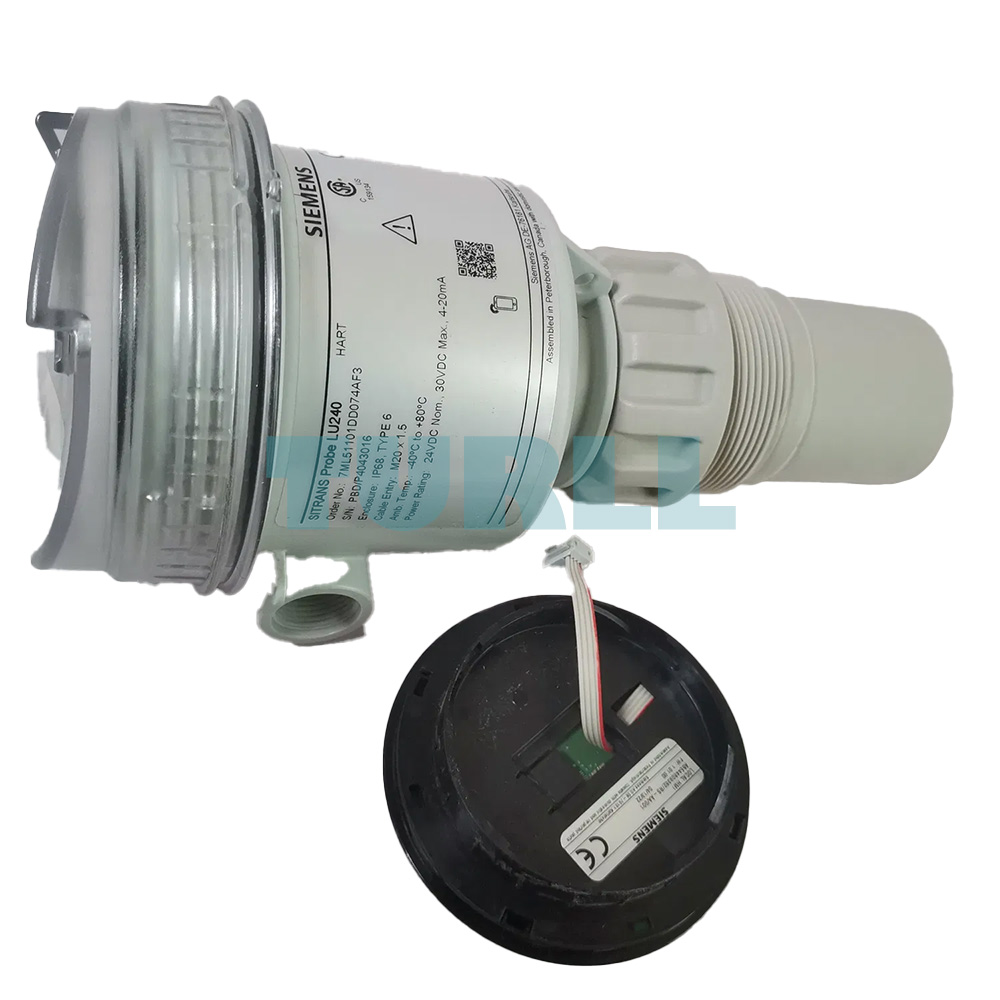

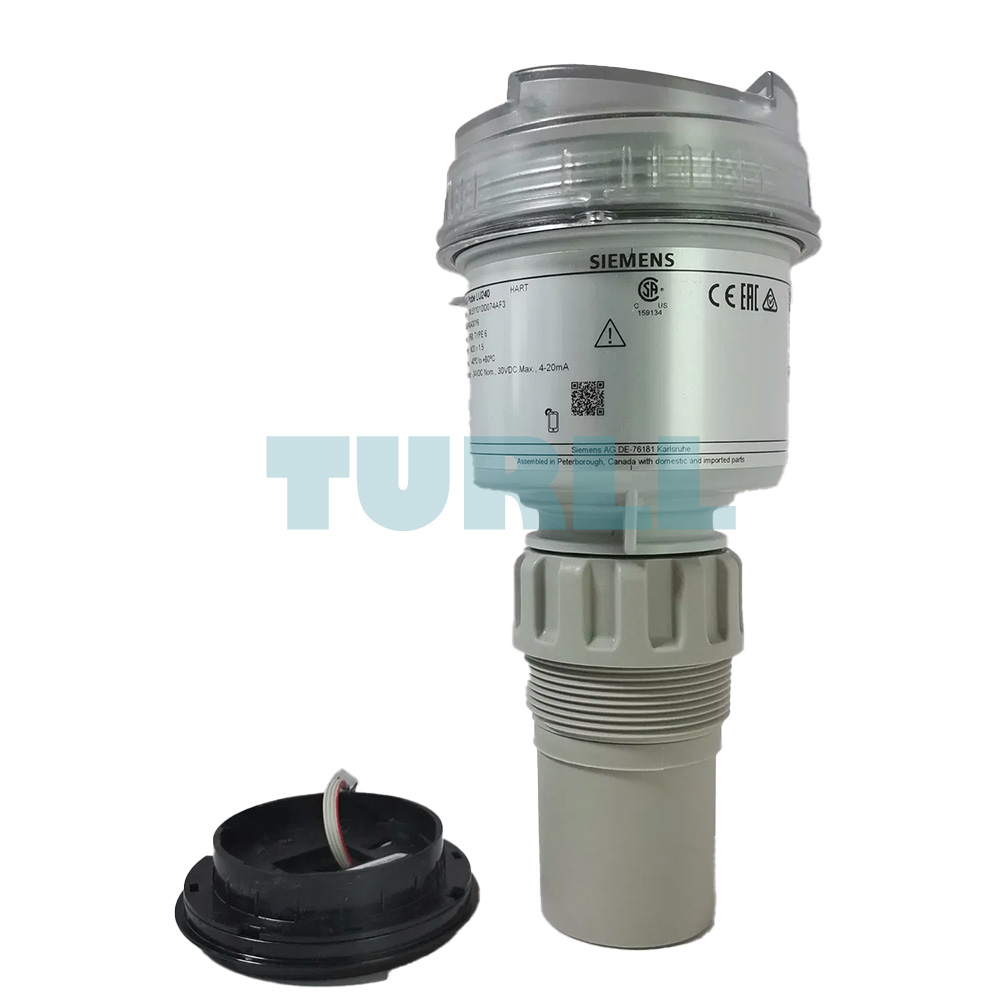

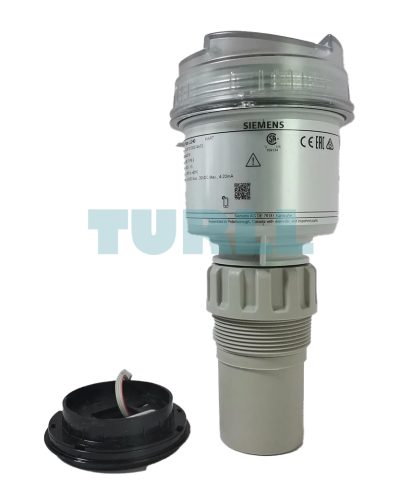

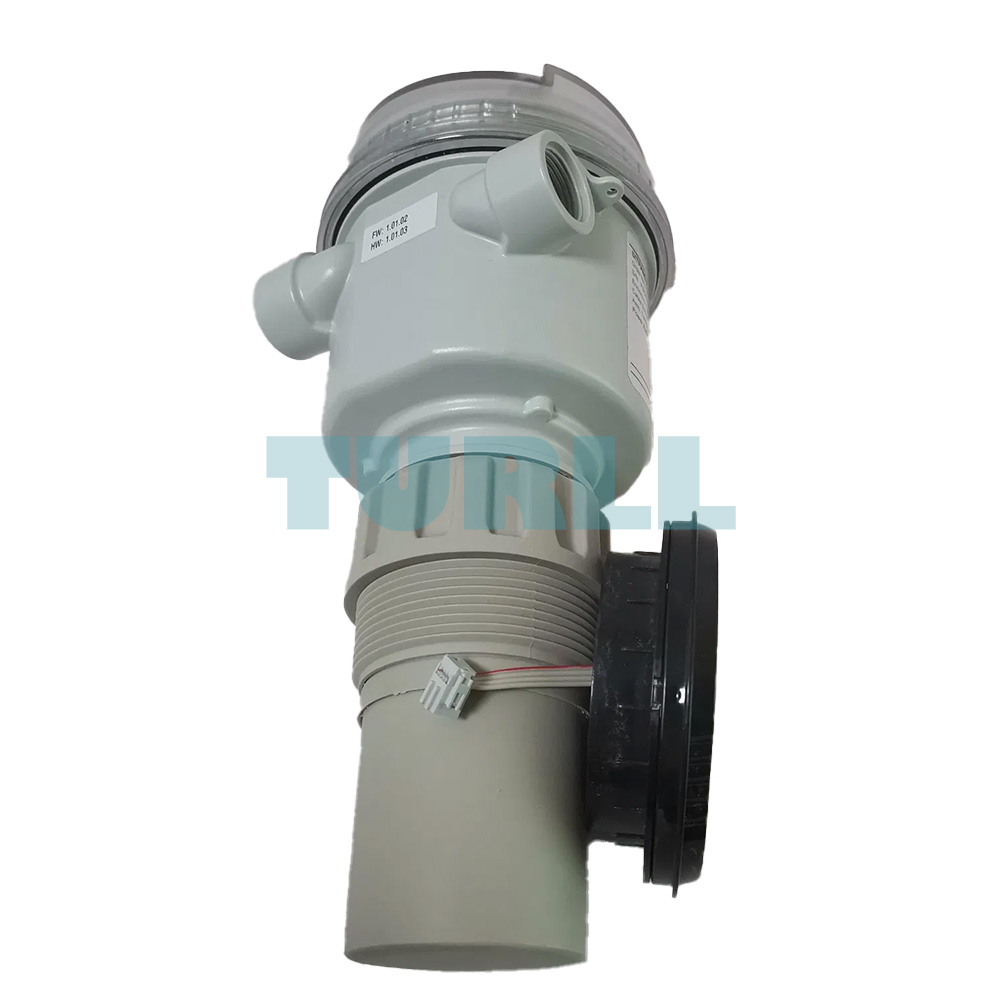

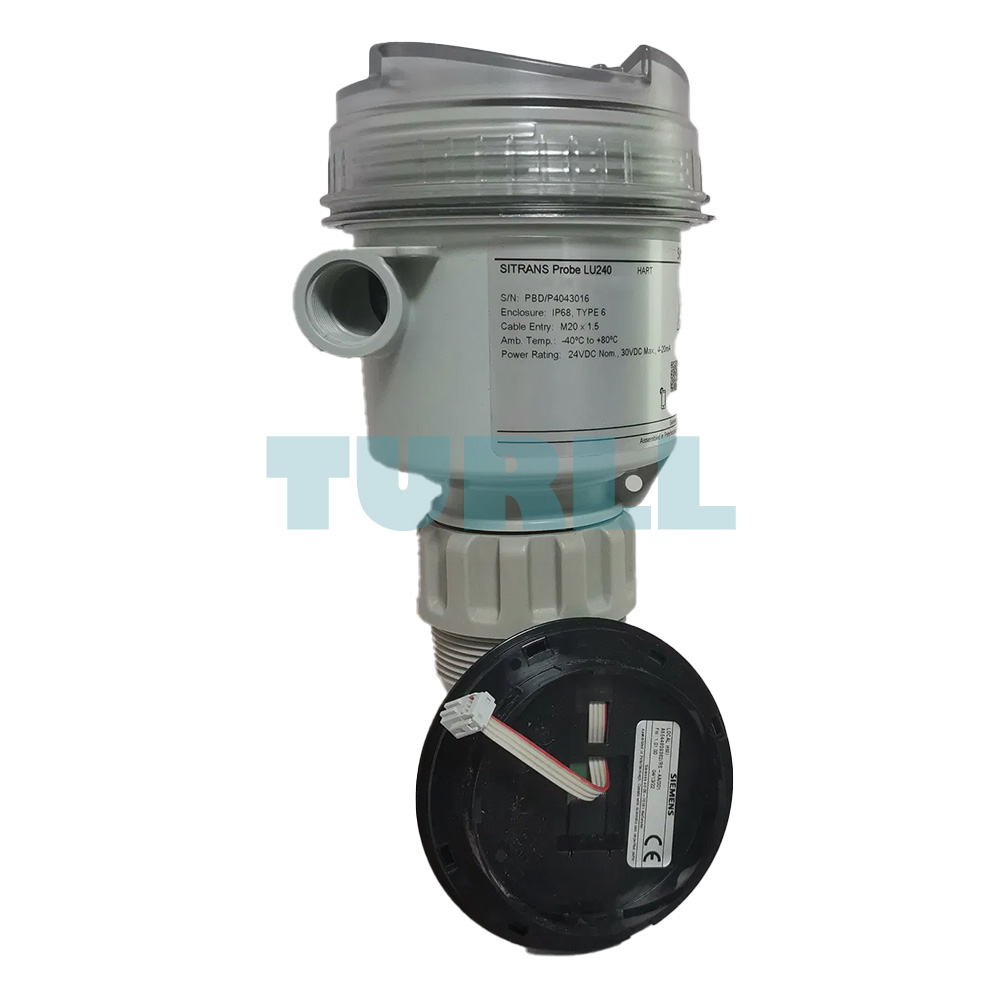

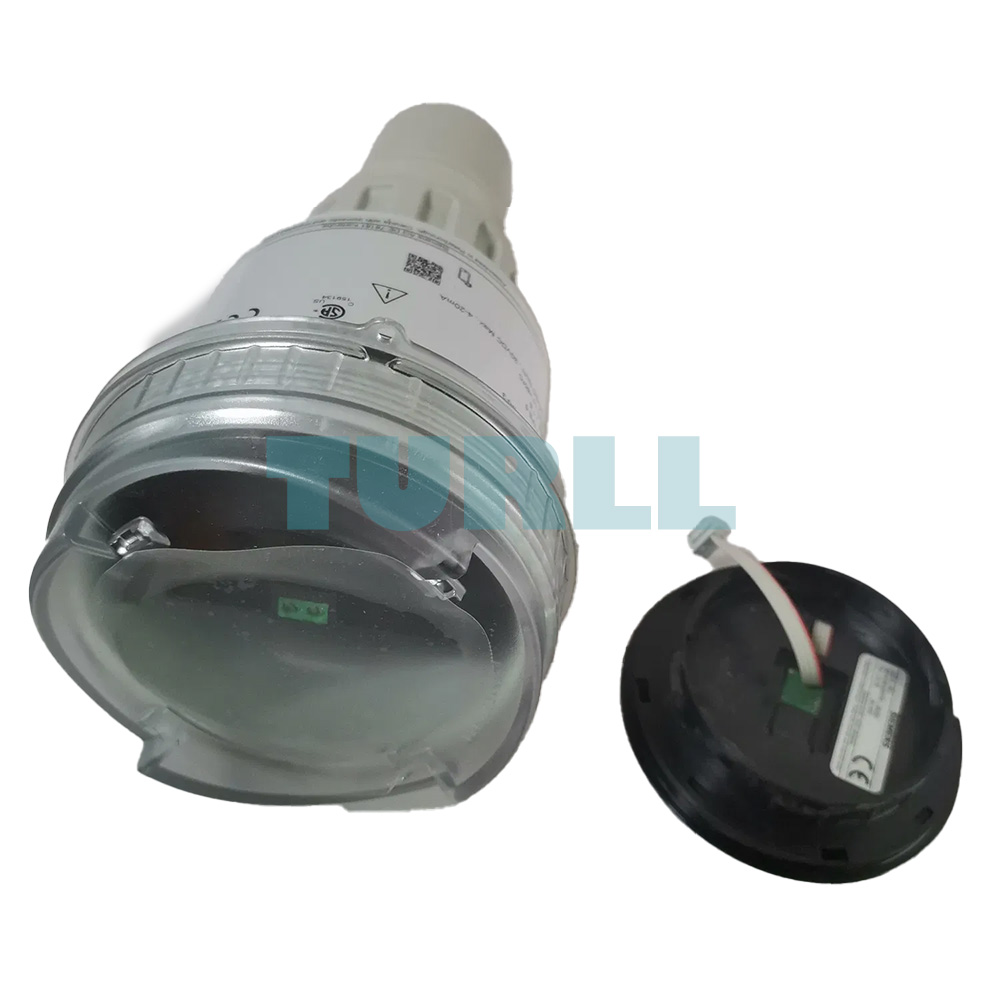

7ML5110-1DF07-4AF3 SIEMENS Exclusive SITRANS Probe LU240 Ultrasonic Level Transmitter Original Brand New
$2,702.31
Advanced SIEMENS SITRANS Probe LU240 ultrasonic level transmitter for precise liquid, slurry, and bulk material measurement with robust industrial design.
7ML5110-1DF07-4AF3 SIEMENS Exclusive SITRANS Probe LU240 Ultrasonic Level Transmitter Original Brand New
The SIEMENS 7ML5110-1DF07-4AF3 SITRANS Probe LU240 is an advanced ultrasonic level transmitter engineered for precision measurement in a wide range of industrial applications. Designed to handle liquids, slurries, and bulk materials with a measurement range of up to 12 meters (40 feet), it offers a robust, reliable, and maintenance-friendly solution for modern process monitoring. Built with HART communication capability and a dependable 4–20 mA output, this transmitter ensures seamless integration with existing control systems, enabling real-time level, volume, and volume flow measurement with exceptional accuracy.
Featuring ingress protection ratings of IP66, IP68, TYPE 4X, and 6, the device is built to withstand harsh environments. The wetted parts are made from PVDF copolymer, providing excellent resistance to chemicals, while the non-wetted parts are composed of durable PBT/PC plastic materials. The unit includes a clear-lid PC display for local monitoring and comes equipped with 2 x M20 x 1.5 connections, including one polyamide cable gland and one blocking plug for added installation flexibility.
Overview
The SITRANS Probe LU240 is optimized for industries such as water and wastewater treatment, chemical storage, and bulk material handling. It utilizes Siemens’ Process Intelligence technology and Auto False Echo Suppression, which eliminates fixed obstruction interference, ensuring highly reliable readings even in complex environments. With accuracy up to 0.15% of range or 6 mm (on 6 m and 12 m models), it is ideal for demanding monitoring tasks.
Application
This transmitter is suited for chemical tanks, filter beds, storage silos, and small hoppers. Available in ETFE or PVDF transducer options, it accommodates varying process temperatures via its built-in temperature sensor. The device can also be configured through the SITRANS mobile IQ app, available for Android, Apple, and Windows devices, allowing remote setup, configuration, and monitoring.
Product Code: 7ML5110-1DF07-4AF3
More Siemens products at Turll.com
| Weight | 1.25 kg |
|---|
