7ML5320-0CA06-0AH0 SIEMENS Exclusive SITRANS LR120 Radar Level Transmitter Original Brand New

7ML5320-0CA06-0AH0 SIEMENS Exclusive SITRANS LR120 Radar Level Transmitter Original Brand New

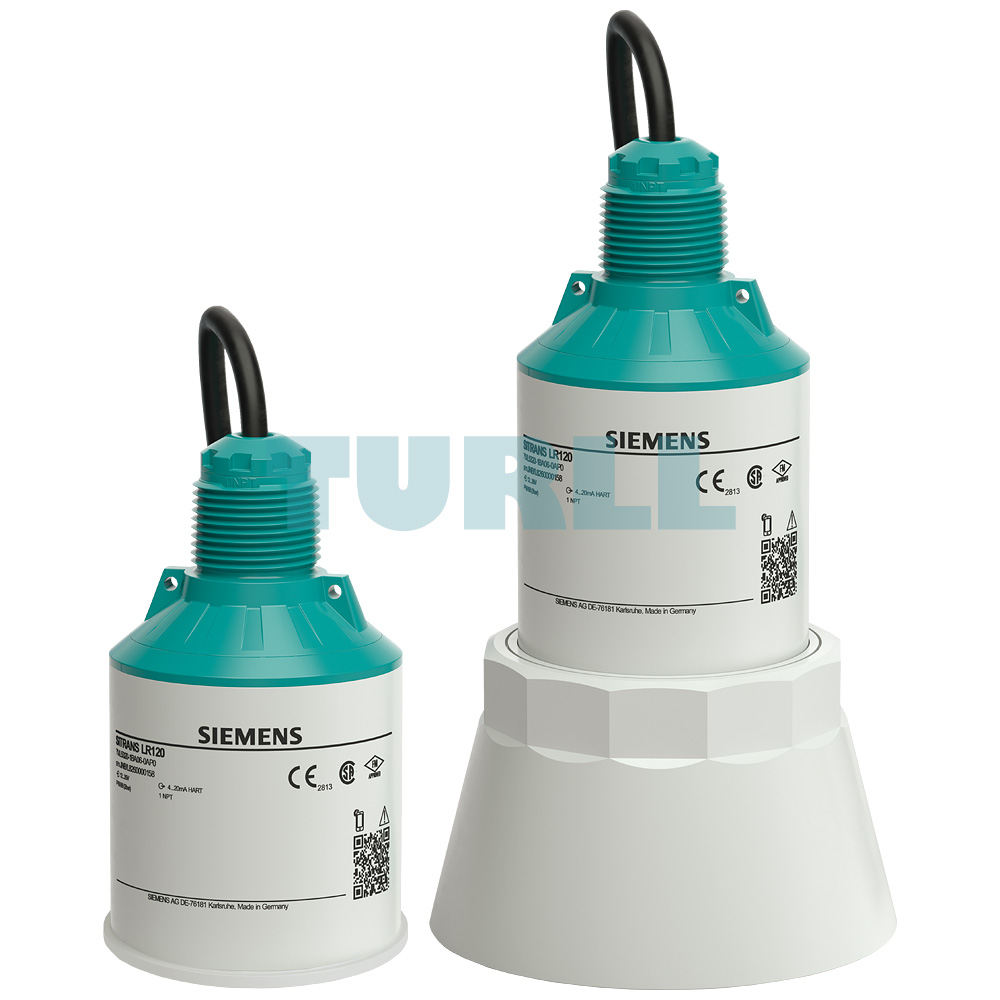

The SIEMENS 7ML5320-0CA06-0AH0 SITRANS LR120 is a high-precision radar level transmitter designed for continuous, non-contact measurement in demanding industrial environments. Offering a measuring range of up to 30 meters (98.4 feet), this advanced device is suitable for monitoring liquids, slurries, and solids, ensuring accurate and reliable performance even under challenging process conditions. Its integrated cable connection provides a robust and sealed interface, making it a dependable choice for long-term operation.

With HART 7.0 communication as standard, the transmitter integrates seamlessly into control systems, while the optional Modbus RTU variant allows versatile connectivity. The W band FMCW radar technology delivers a narrow beam profile, enabling precise readings in tanks or open-air applications, even where obstructions are present. The chemically resistant PVDF housing ensures excellent durability against aggressive media, and the unit is certified for use in ordinary locations with multiple compliance approvals, including cFMus, cCSAus, CE, and RCM.

Overview

The SITRANS LR120 is engineered for accuracy, featuring 2 mm measurement precision and zero near-range distance, making it ideal for inventory management in storage silos, tanks, and wet wells. The Bluetooth functionality allows convenient configuration and monitoring via the SITRANS mobile IQ app, eliminating the need for direct wiring during setup. The submergence shield accessory helps maintain sensor performance by preventing buildup during flooding conditions, while hazardous area models provide safe operation in potentially explosive environments.

Applications & Benefits

• Continuous, non-contact measurement for liquids, slurries, and solids.
• Compact PVDF enclosure for long-lasting durability.
• Advanced radar technology for reliable readings in difficult installations.
• Easy setup via Bluetooth connection to smart devices.
• Supports both HART and Modbus RTU for flexible integration.

Product Code: 7ML5320-0CA06-0AH0
