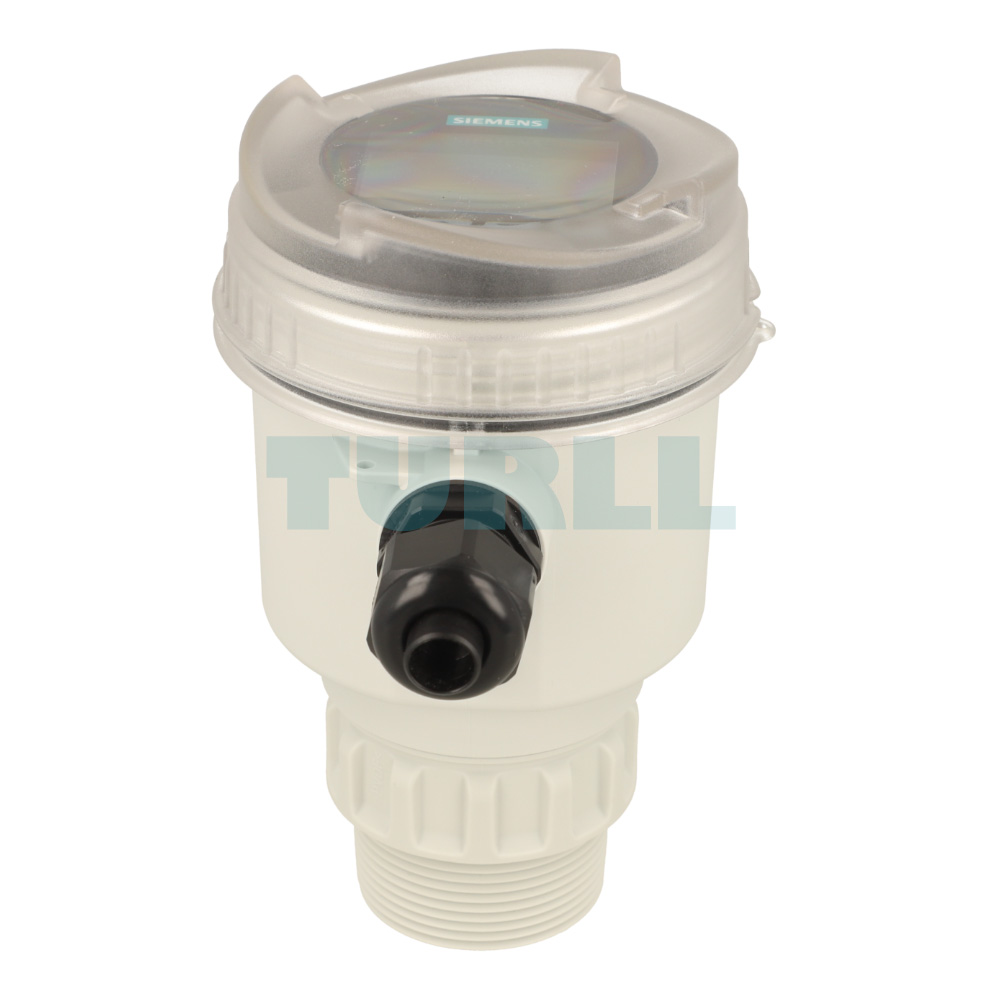

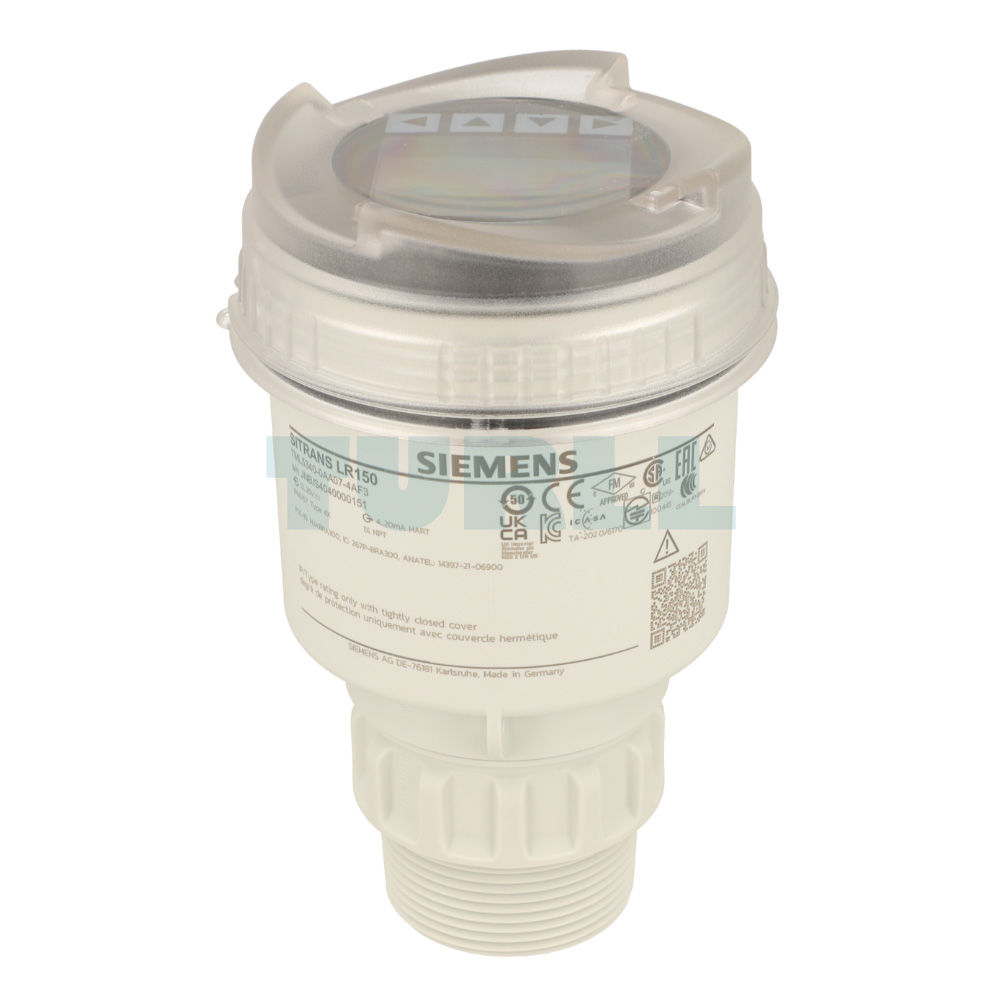

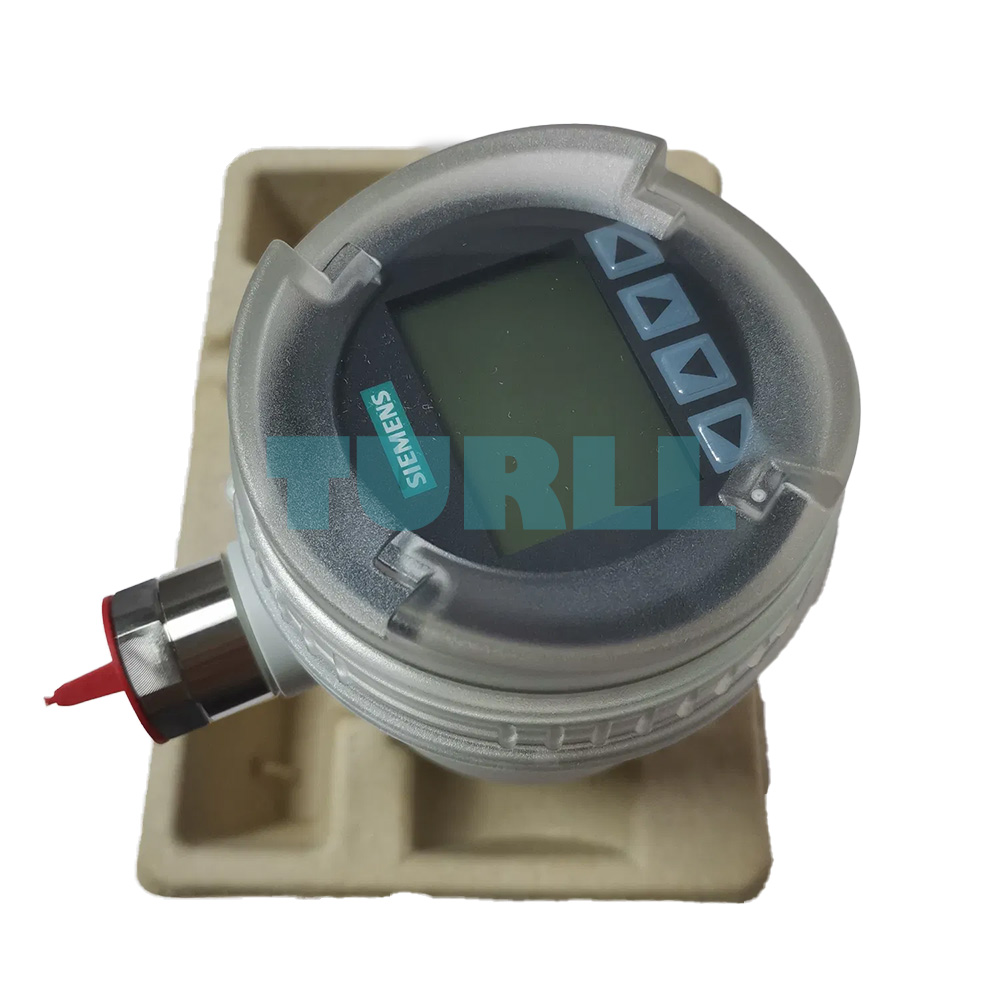

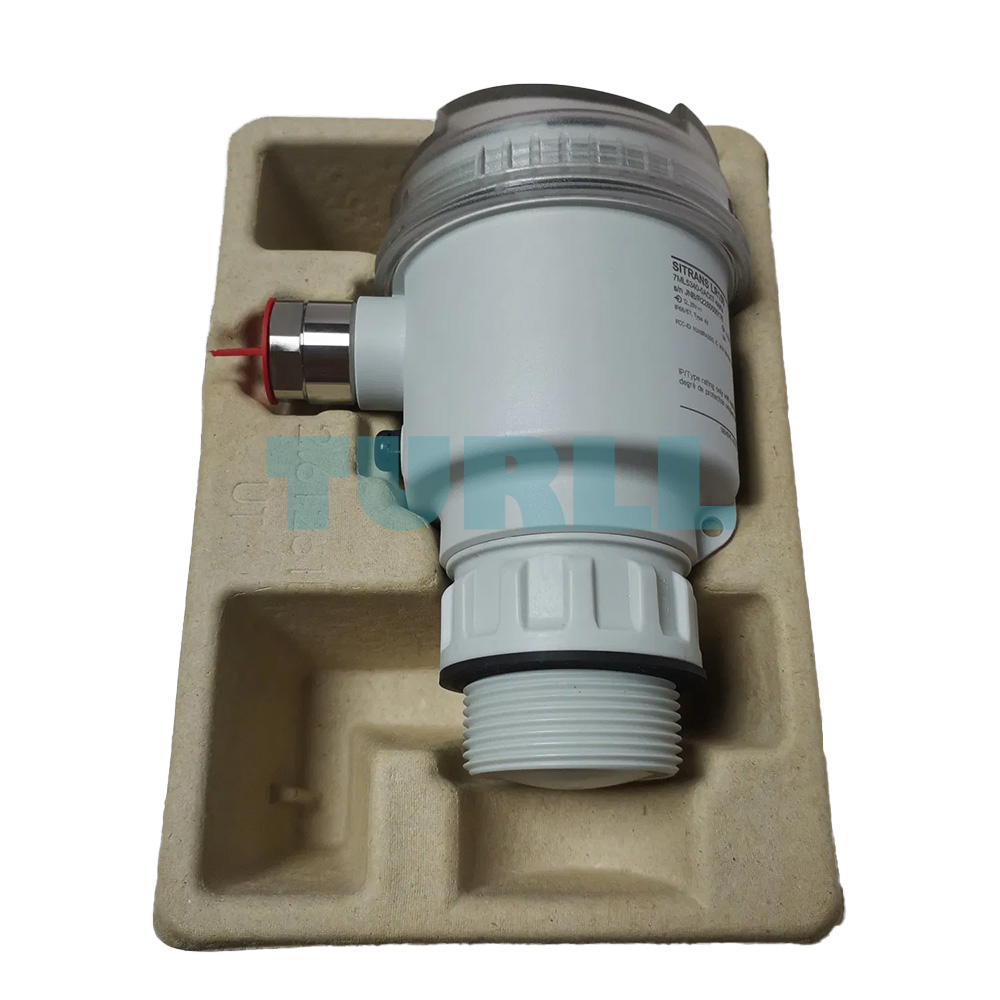

7ML5340-0AA07-4AK3 SIEMENS Exclusive SITRANS LR150 Radar Level Transmitter Original Brand New

7ML5340-0AA07-4AK3 SIEMENS Exclusive SITRANS LR150 Radar Level Transmitter Original Brand New

The SIEMENS 7ML5340-0AA07-4AK3 SITRANS LR150 is an advanced radar level transmitter designed for reliable, non-contact measurement of liquids, slurries, and solids in a wide range of industrial applications. With a measuring range of up to 15 meters (49.2 feet), this device combines accuracy, durability, and ease of use in a compact, space-saving design. The transmitter offers a chemically resistant PVDF sensor, making it suitable for challenging environments where aggressive substances are present.

This model is engineered for everyday industrial use, providing accurate level measurement with a narrow radar beam and small antenna design for superior short-range performance. It is built to deliver consistent results in tanks, silos, or open-air installations, with a measurement accuracy of ±2 mm. With its robust design and high-quality materials, the SITRANS LR150 ensures long-term performance and reduced maintenance requirements, even in demanding operating conditions.

Overview

The SITRANS LR150 features non-contact radar technology that simplifies installation and operation. It integrates seamlessly with control systems through HART 7.0 communication, ensuring precise data transmission for inventory management and process control. The transmitter also supports programming via Bluetooth connectivity using the SITRANS mobile IQ app, or locally through an optional HMI with clear display. This flexibility allows users to configure and monitor their device easily, whether on-site or remotely.

Benefits

• Bluetooth connectivity for convenient setup and diagnostics.
• Optional HMI for local configuration and status monitoring.
• Rugged PVDF sensor ensures long service life in harsh conditions.
• High-accuracy radar technology with zero dead zone.
• Compact design suitable for installations with limited space.
• Open-air measurement capability outside of tanks.
• Compatible with hazardous area requirements (pending versions).

Application

The transmitter is ideal for industries requiring accurate level measurement in storage and process vessels. It supports loop-powered 4 to 20 mA output with HART communication, enabling integration into intelligent plant networks. Its non-intrusive measurement capability makes it well-suited for use through plastic vessel tops, reducing installation effort. With its wide range of approvals and flexible design, this solution is a dependable choice for applications in water treatment, chemical processing, food and beverage, and bulk material handling.

Product Code: 7ML5340-0AA07-4AK3
