7ML5440-1HA00-1AC2 SIEMENS Exclusive SITRANS LR560 Radar Level Transmitter Original Brand New

7ML5440-1HA00-1AC2 SIEMENS Exclusive SITRANS LR560 Radar Level Transmitter Original Brand New

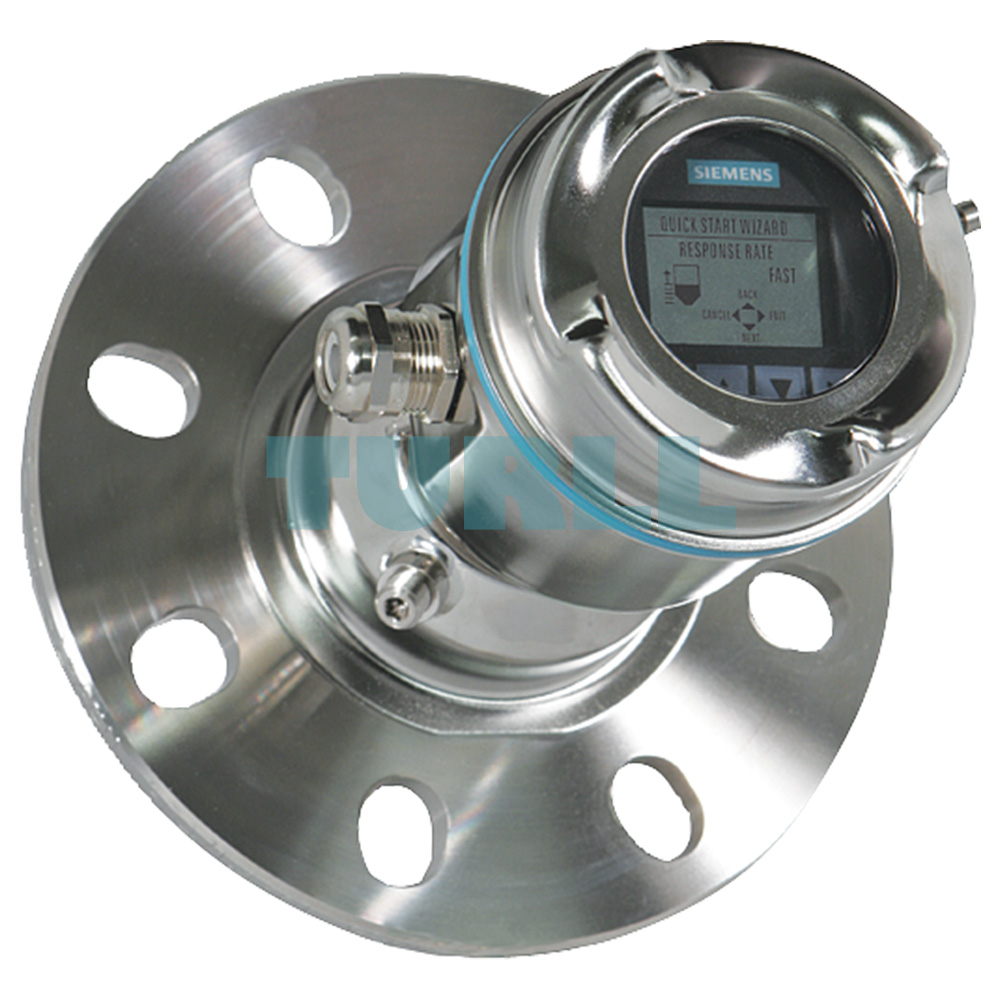

The SIEMENS 7ML5440-1HA00-1AC2 SITRANS LR560 is a premium radar level transmitter engineered for continuous, non-contact measurement of bulk solids in challenging industrial environments. With a maximum measuring range of 100 meters (328 feet), it provides reliable performance in applications such as cement, coal, grain, plastics, and other solid materials. Its stainless-steel enclosure, combined with a flush-mounted lens antenna, ensures long-term durability even under harsh process conditions with temperatures ranging from -40°C to +200°C.

This advanced radar device operates on a 78 GHz FMCW (frequency modulated continuous wave) principle, offering an exceptionally narrow beam angle that minimizes interference and maximizes accuracy. The lens antenna is designed to resist product build-up, while the integrated air purge connection allows for automatic cleaning when used in dusty or sticky applications. The unit is further enhanced with a local display interface (LDI) that simplifies programming, startup, and diagnostics, reducing commissioning time and improving operator efficiency.

Overview

The SITRANS LR560 is a robust 2-wire radar transmitter, ideally suited for both solids and select liquid applications. Its plug-and-play design ensures rapid installation and operation with minimal configuration required. Thanks to the aimer option, users can direct the radar beam precisely toward areas of interest, such as the draw point in storage silos, ensuring accurate level monitoring.

Benefits

• Rugged stainless steel construction built for industrial use
• 78 GHz technology for precise measurement and minimal nozzle interference
• Aimer for beam alignment to critical measurement zones
• Self-cleaning lens antenna with air purge connection
• Local Display Interface for quick setup and intuitive diagnostics

Application

The SITRANS LR560 delivers reliable level monitoring even under extreme dust and temperature conditions. Its intuitive Quick Start wizard and graphical echo profile display simplify commissioning and ongoing diagnostics. Applications include cement powder, fly ash, wood powder, coal, grain, and plastic pellets. With comprehensive certifications (ATEX, IECEx, UKEX, INMETRO, CE, RCM), the transmitter is suitable for global deployment across multiple industries.

Product Code: 7ML5440-1HA00-1AC2
