SIEMENS SITRANS TF320 transmitter with aluminum enclosure, HART communication, universal sensor input, and 2-wire isolated output for industrial applications.

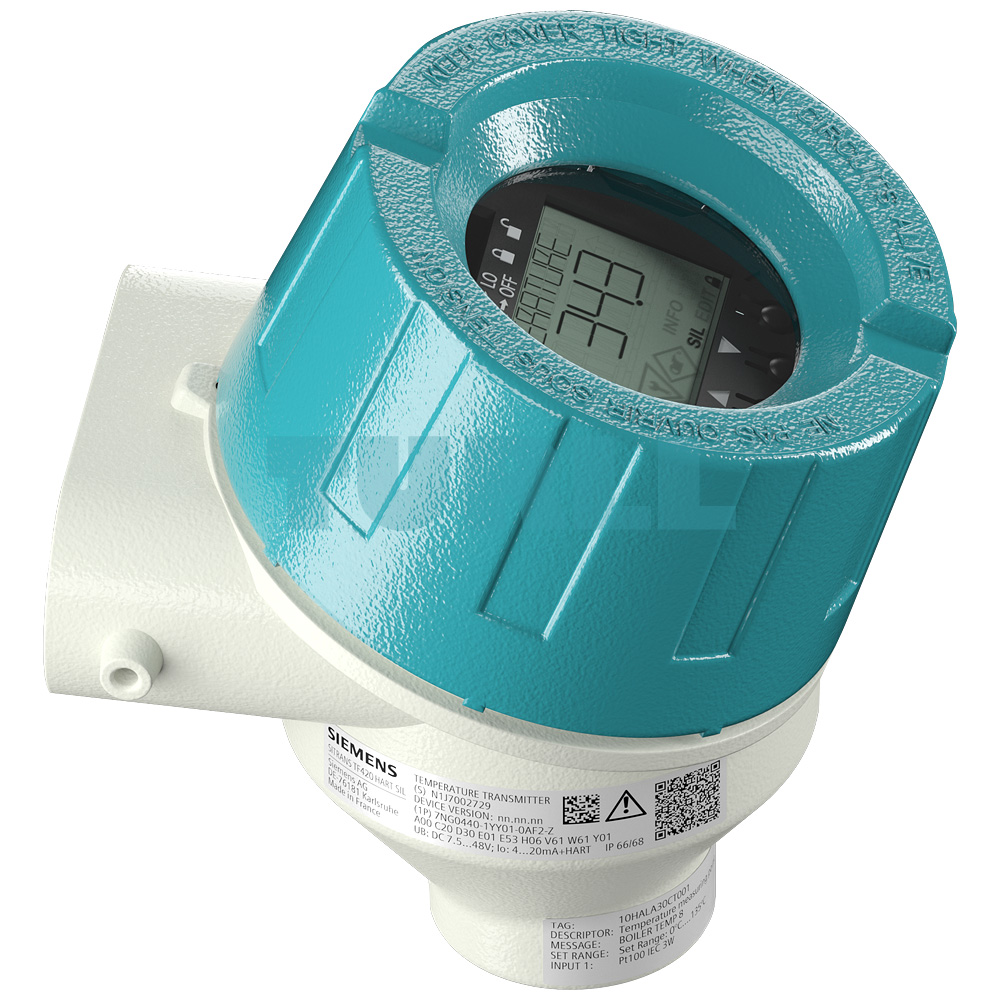

The SIEMENS 7NG0340-0BA01-0AF0-ZE00 SITRANS TF320 temperature transmitter is an advanced and reliable solution for accurate temperature measurement in industrial applications. Designed with a robust single-chamber die-cast aluminum enclosure, it is suitable for both wall and pipe mounting, making it versatile for different installation environments. This transmitter supports one configurable input and a galvanically isolated two-wire output, ensuring stable and interference-free performance.
Equipped with HART communication protocol (4 to 20 mA), the SITRANS TF320 provides seamless integration into modern automation systems. The universal input allows compatibility with a wide variety of temperature sensors, including RTD Pt100 according to IEC 60751, thermocouples, resistance measurements, and millivolt signals. Its intelligent design ensures that input signals are amplified and linearized while maintaining galvanic isolation between input and output, thus guaranteeing safety and reliability in demanding process conditions.
The SITRANS TF320 is available with and without HART functionality. Both models are equipped with a universal input, enabling connection to almost any type of temperature sensor. For the HART-enabled version, configuration and diagnostics can be carried out using a PC, HART communicator, or SIMATIC PDM software. The non-HART version can be configured via SIPROM T software using a dedicated modem. An optional local operation mode further enhances usability, enabling quick adjustments directly on the device.
This transmitter converts temperature-related signals into a standardized output of 4 to 20 mA. In addition to analog signal transmission, the HART model supports digital communication for advanced diagnostics, remote configuration, and real-time process monitoring. The integrated cold junction ensures precise measurements with thermocouples, while diagnostic features automatically detect sensor interruptions or short circuits.
Practical test terminals are integrated to facilitate direct measurement of loop current with an ammeter, without interrupting the process. The transmitter meets general approval standards such as CE, UKCA, and RCM, making it globally applicable. Its rugged construction and advanced communication features make it a reliable choice for industries requiring accurate and continuous temperature monitoring.
Product Code: 7NG0340-0BA01-0AF0-ZE00
More Siemens products at Turll.com
| SKU / Model | 7NG0340-0BA01-0AF0-ZE00 |
|---|---|
| Weight | 2.4 kg |
