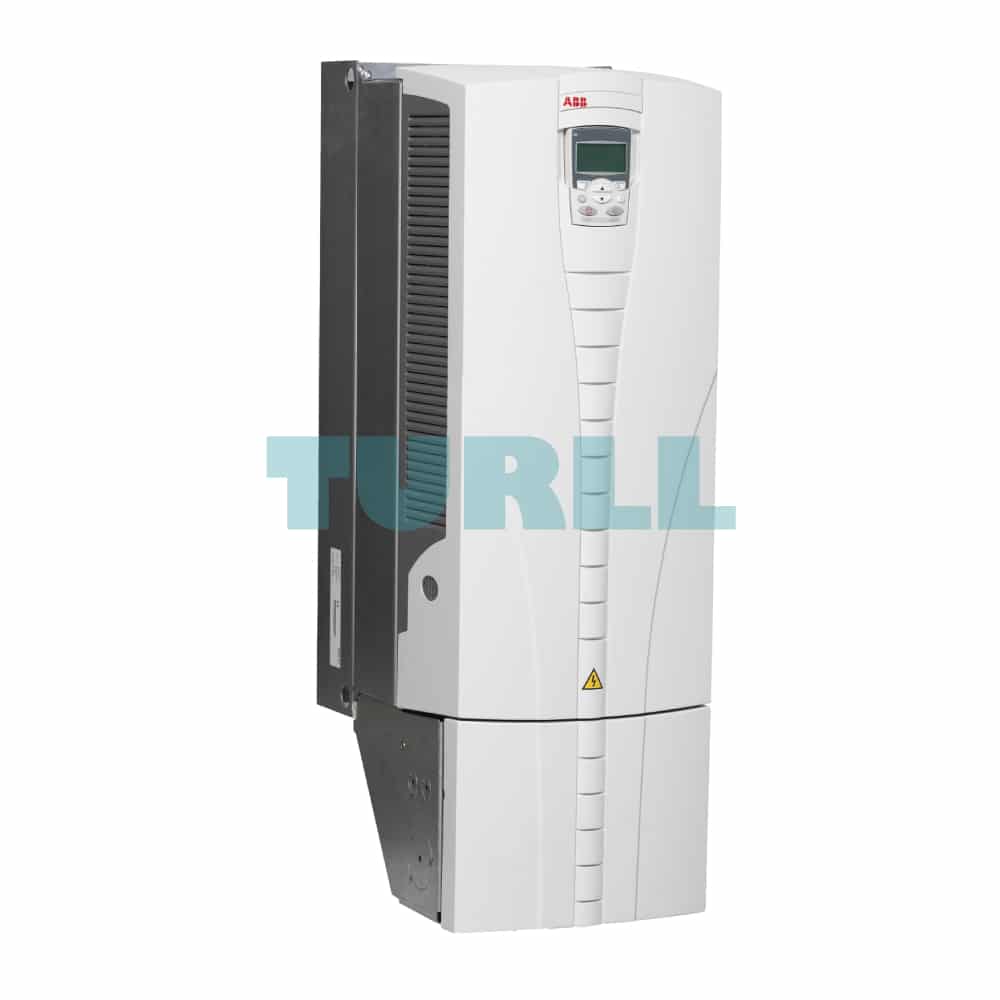

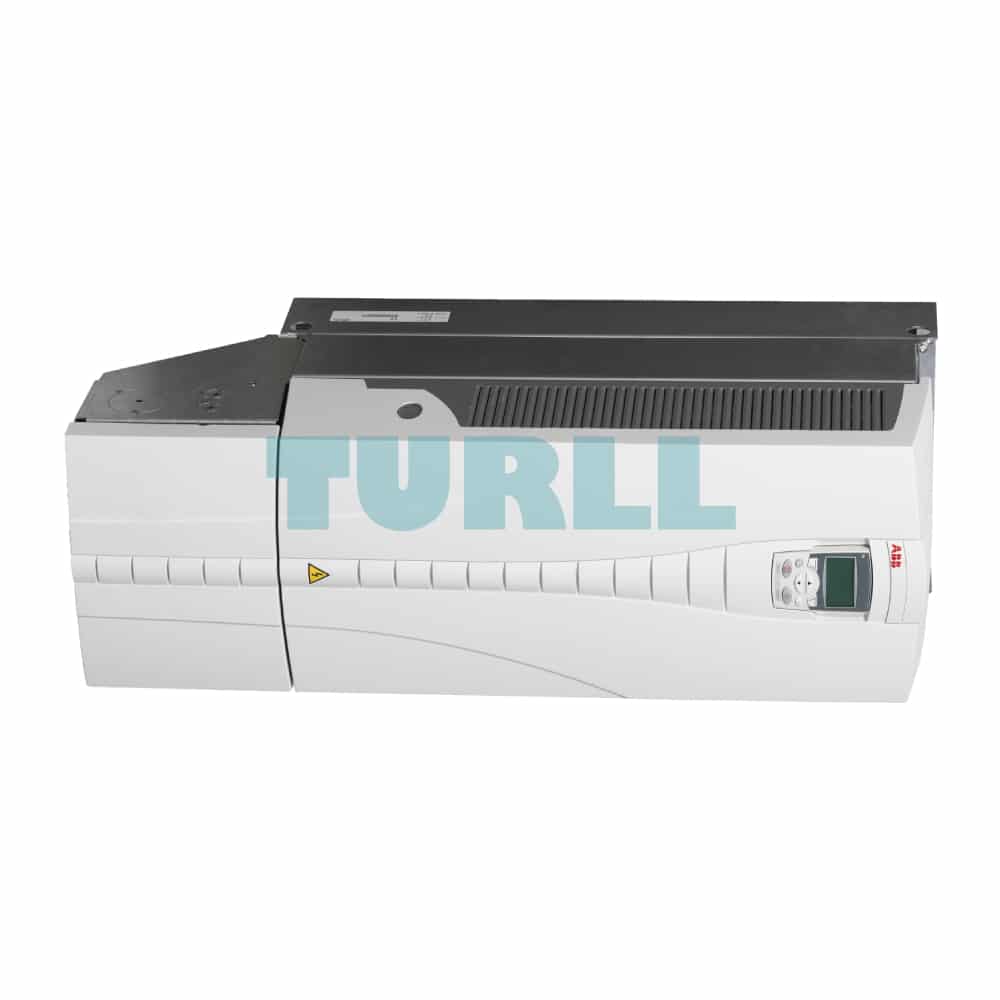

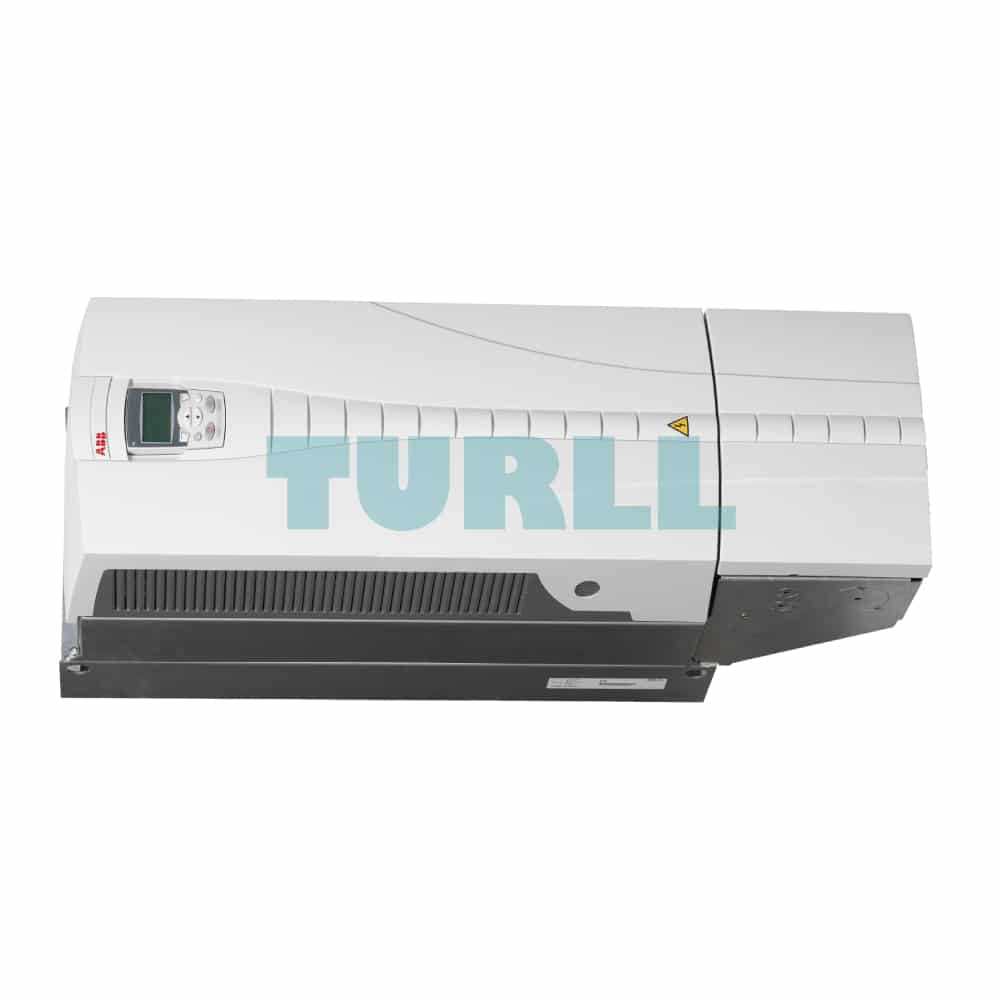

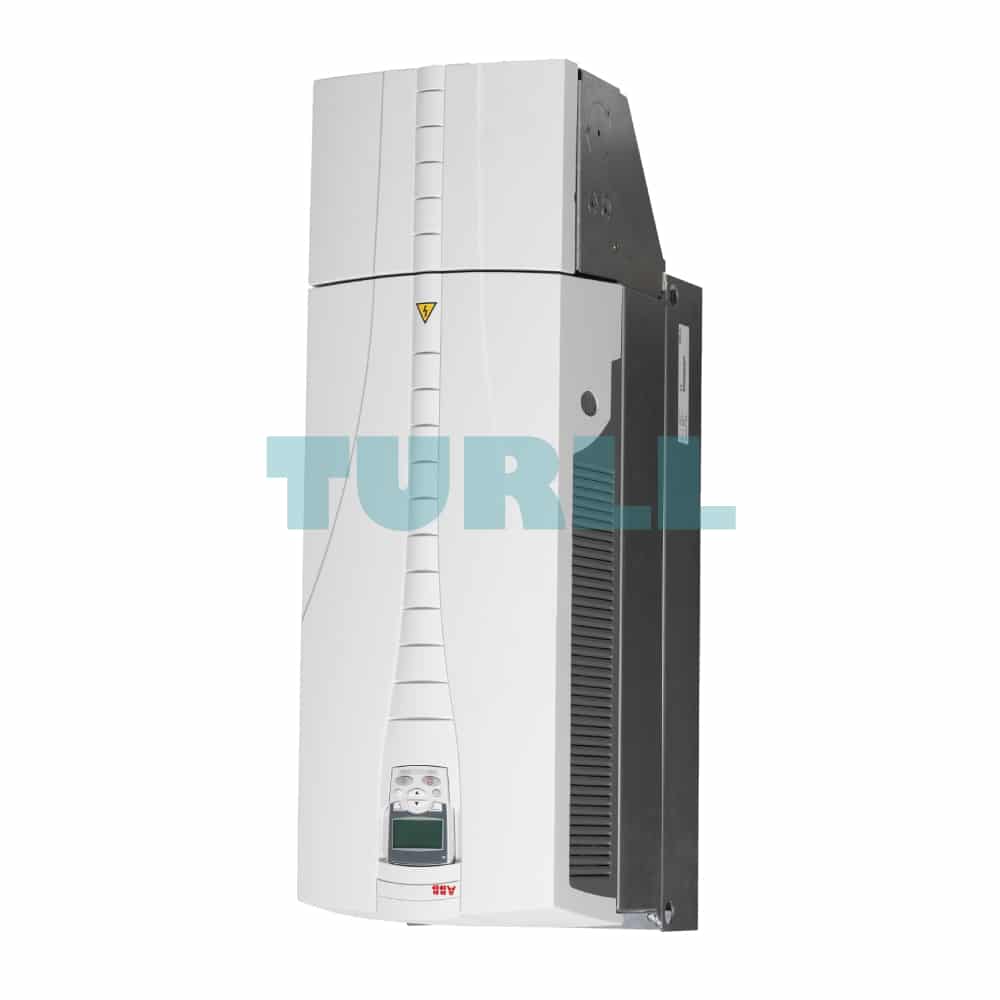

ACS510-01-180A-4 PN: 90 kW, IN: 180 A 3ABD00015757-D Original Brand New

Name: ACS510-01-180A-4 PN: 90 kW, IN: 180 A 3ABD00015757-D Original Brand New - TURLL Industrial Automation
SKU: ACS510-01-180A-4
Price: 2319.33 USD
Availability: InStock

Model / SKUACS510-01-180A-4

ACS510-01-180A-4

ACS510-01-180A-4,180A,380V,IP21

$2,319.33

In stockShips in 1–3 business days

ConditionOriginal Brand New
Warranty12 months

Request bulk quote Ask on WhatsApp

Genuine Products
Up to 1-Year Warranty
Global Shipping
Secure Payment
PI / Bank Transfer Available
Bulk Quote Support

Description

[ez-toc]

General Information

Global Commercial Alias: ACS510-01-180A-4

Product ID: 3ABD00015757-D

ABB Type Designation: ACS510-01-180A-4

Catalog Description: ACS510-01-180A-4,180A,380V,IP21

Long Description: ACS510-01-180A-4,180A,380V,IP21

Ordering

Country of Origin: China (CN)

Customs Tariff Number: 85044099

Invoice Description: ACS510-01-180A-4,180A,380V,IP21

Made To Order: No

Minimum Order Quantity: 1 piece

Order Multiple: 1 piece

Quote Only: No

Selling Unit of Measure: piece

Dimensions

Product Net Weight: 61 kg

Product Net Depth / Length: 955 mm

Product Net Height: 420 mm

Product Net Width: 350 mm

Package Level 1 Depth / Length: 970 mm

Package Level 1 Height: 560 mm

Package Level 1 Width: 370 mm

Package Level 1 Units: 1 crate

Technical

Number of Phases: 3

Degree of Protection: IP21

Enclosure Type NEMA: Type1

Frequency (f): 47.5 ... 63 Hz

Frame Size: R6

Input Voltage (U_in): 380 … 480 V

Mounting Type: Wall-mounted_NO UNIT$

Output Current, Normal Use (I_n): 180 A

Output Power, Normal Use (P_n): 90 kW

Apparent Power Output: 125 kV·A

Efficiency Level: IE2

Standby Loss: 32 W

Complete Drive Module Efficiency (61800-9-2):

Operating Point Frequency / Current	Absolute Loss	Relative Loss	Efficiency
0 / 25 %	647 W	0.5 %	91.3 %
0 / 50 %	875 W	0.7 %	93.7 %
0 / 100 %	1486 W	1.2 %	94.5 %
50 / 25 %	716 W	0.6 %	95.2 %
50 / 50 %	1011 W	0.8 %	96.4 %
50 / 100 %	1798 W	1.4 %	96.8 %
90 / 50 %	1223 W	1 %	97.6 %
90 / 100 %	2274 W	1.8 %	97.7 %

Temperature Rating: 40 °C

Classifications

UNSPSC: 39122001

Environmental

WEEE Category: Product Not in WEEE Scope

Additional Information

Product Name: Frequency Converter

Visit: ACS510-01-180A-4

For more our products visit turll.com

Specifications

SKU / Model	ACS510-01-180A-4
Weight	61 kg
Dimensions	970 × 560 × 370 mm
