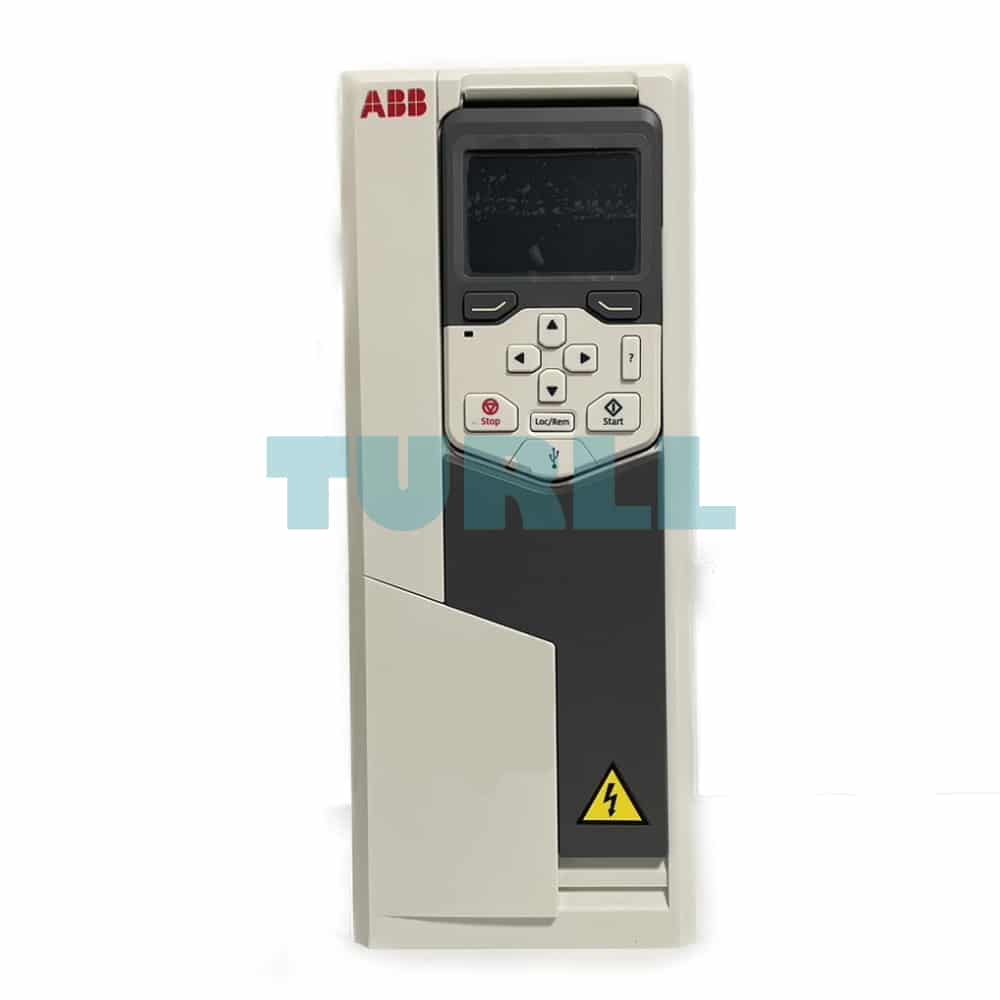

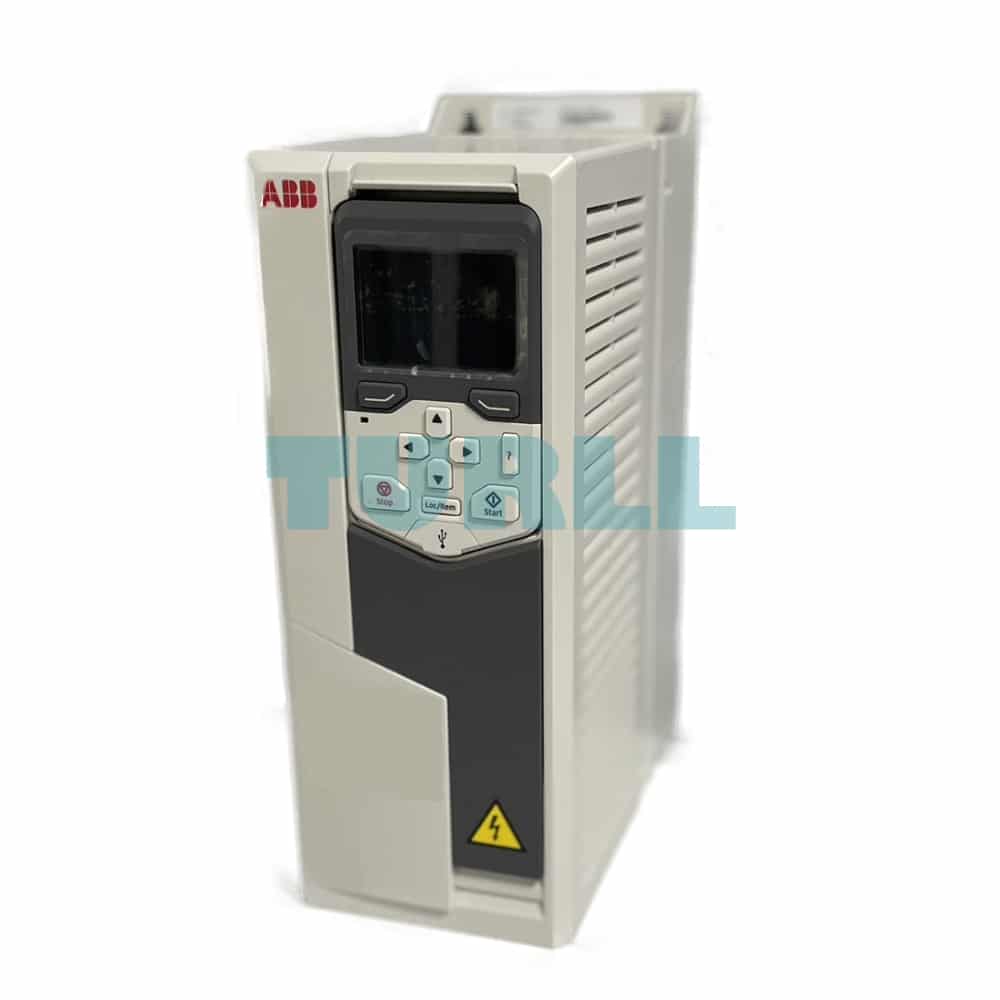

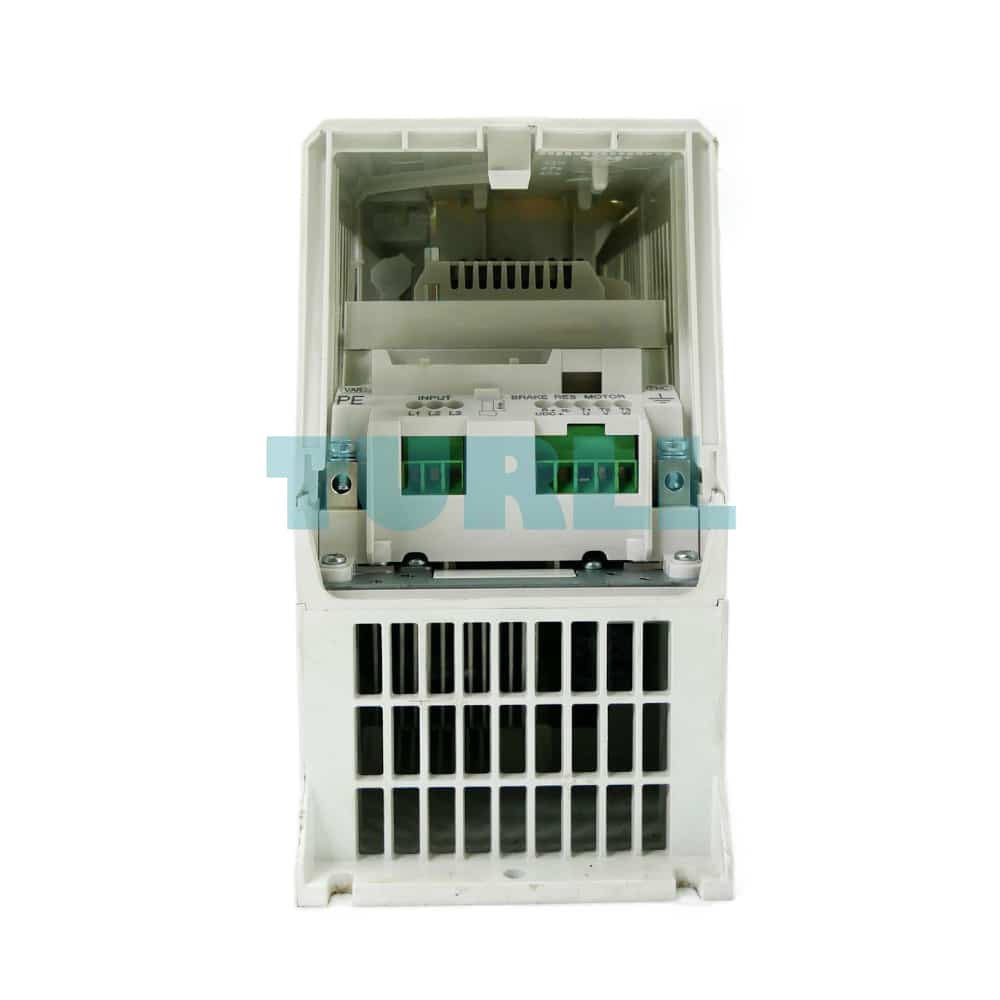

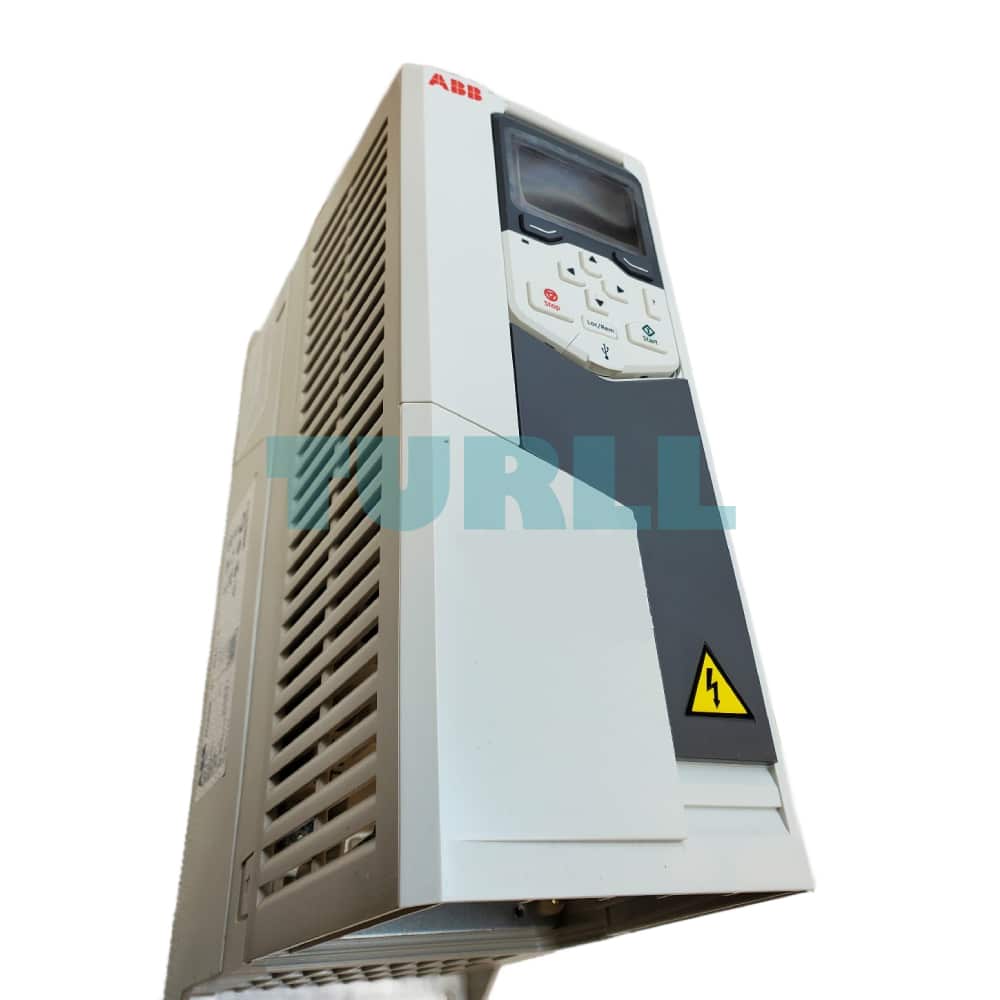

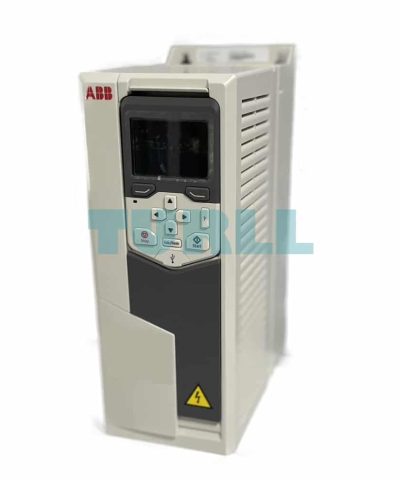

ACS580-01-018A-4 PN: 7.5 kW, IN: 17 A 3AXD50000038959 Original Brand New
$409.41
ACS580-01-018A-4
LV AC general purpose wall-mounted drive, IEC: Pn 7.5 kW, 17 A, 400 V (ACS580-01-018A-4)
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
General Information
Global Commercial Alias: ACS580-01-018A-4
Product ID: 3AXD50000038959
ABB Type Designation: ACS580-01-018A-4
EAN: 6438177459248
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 7.5 kW, 17 A, 400 V (ACS580-01-018A-4)
Long Description: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.
All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Ordering
Country of Origin:
Romania (RO)
Finland (FI)
China (CN)
Customs Tariff Number:
85044086
HS Code:
850440– Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description:
ACS580-01-018A-4 PN: 7.5 kW, IN: 17.0 A
Made To Order:
Yes
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece
Dimensions
Product Net Weight:
6.6 kg
14.551 lb
Product Net Depth / Length:
228.50 mm
9.02 in
Product Net Height:
473.00 mm
18.62 in
Product Net Width:
125.00 mm
4.92 in
Package Level 1 Depth / Length:
225.00 mm
8.858 in
Package Level 1 Height:
370.00 mm
14.567 in
Package Level 1 Width:
621.00 mm
24.449 in
Package Level 1 Units:
1 carton
Technical
Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Altitude:
1000 m
Operating Humidity (RHamb):
5 … 95
Sound dB (A):
64 dB(A)
Multiple Battery Information:
Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f):
47.5 … 63 Hz
Frame Size:
R2
Input Voltage (Uin):
380 … 480 V
Mounting Type:
Wall-mounted
Communication Protocol:
CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIBUS
PROFINET IO
TCP/IP
Number of Hardware Interfaces:
Industrial Ethernet 0
Other 2
Parallel 2
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:
Control unit
PC connection
Analog Inputs:
2
Analog Outputs:
2
Number of Digital In/Outputs:
6 / 3
Output Current, Heavy-Duty Use (IHD):
12.6 A
Output Current, Light-Overload Use (ILD):
16.2 A
Output Current, Normal Use (In):
17 A
Output Power, Heavy-Duty Use (PHD):
5.5 kW
Output Power, Light-Overload Use (PLD):
7.5 kW
Output Power, Normal Use (Pn):
7.5 kW
Apparent Power Output:
12 kV·A
Efficiency Level:
IE2
Standby Loss:
15 W
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Efficiency | Relative Loss |
|---|---|---|---|
|
0/25 %
|
91 W
|
87.2 %
|
0.8 %
|
|
0/50 %
|
114 W
|
91.4 %
|
1.0 %
|
|
0/100 %
|
189 W
|
92.7 %
|
1.6 %
|
|
50/25 %
|
96 W
|
93.1 %
|
0.8 %
|
|
50/50 %
|
124 W
|
95.3 %
|
1.1 %
|
|
50/100 %
|
210 W
|
96.0 %
|
1.8 %
|
|
90/50 %
|
134 W
|
97.1 %
|
1.1 %
|
|
90/100 %
|
240 W
|
97.4 %
|
2.0 %
|
Temperature Rating:
Maximum 40 °C
Minimum -15 °C
Classifications
ETIM 8: EC001857 – Frequency converter =< 1 kV
ETIM 9: EC001857 – Frequency converter =< 1 kV
UNSPSC: 39122001
Environmental
SCIP: 4a4ed2db-43e7-4612-8e9c-3921e4acd08b Finland (FI)
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Additional Information
Product Name: Frequency converter
Visit: ACS580-01-018A-4
For more our products visit turll.com
| Weight | 6.6 kg |
|---|---|
| Dimensions | 225 × 370 × 621 mm |
