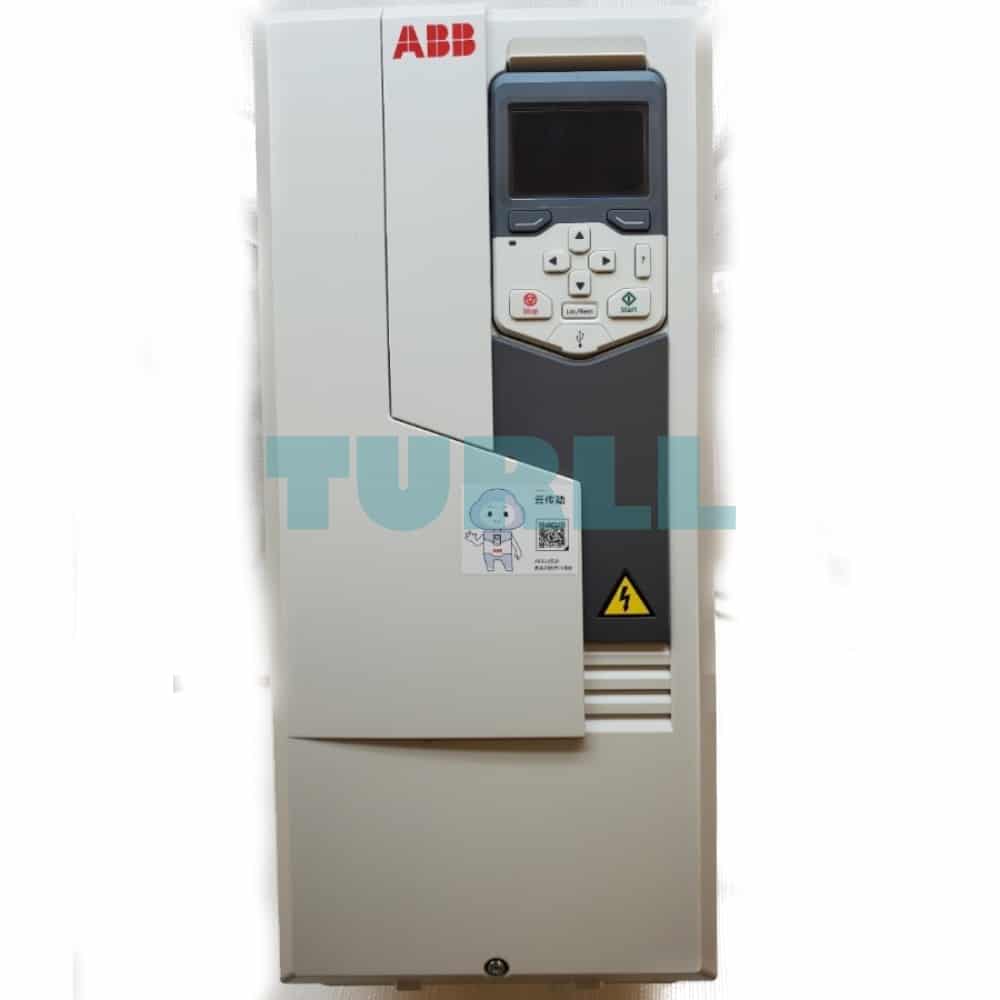

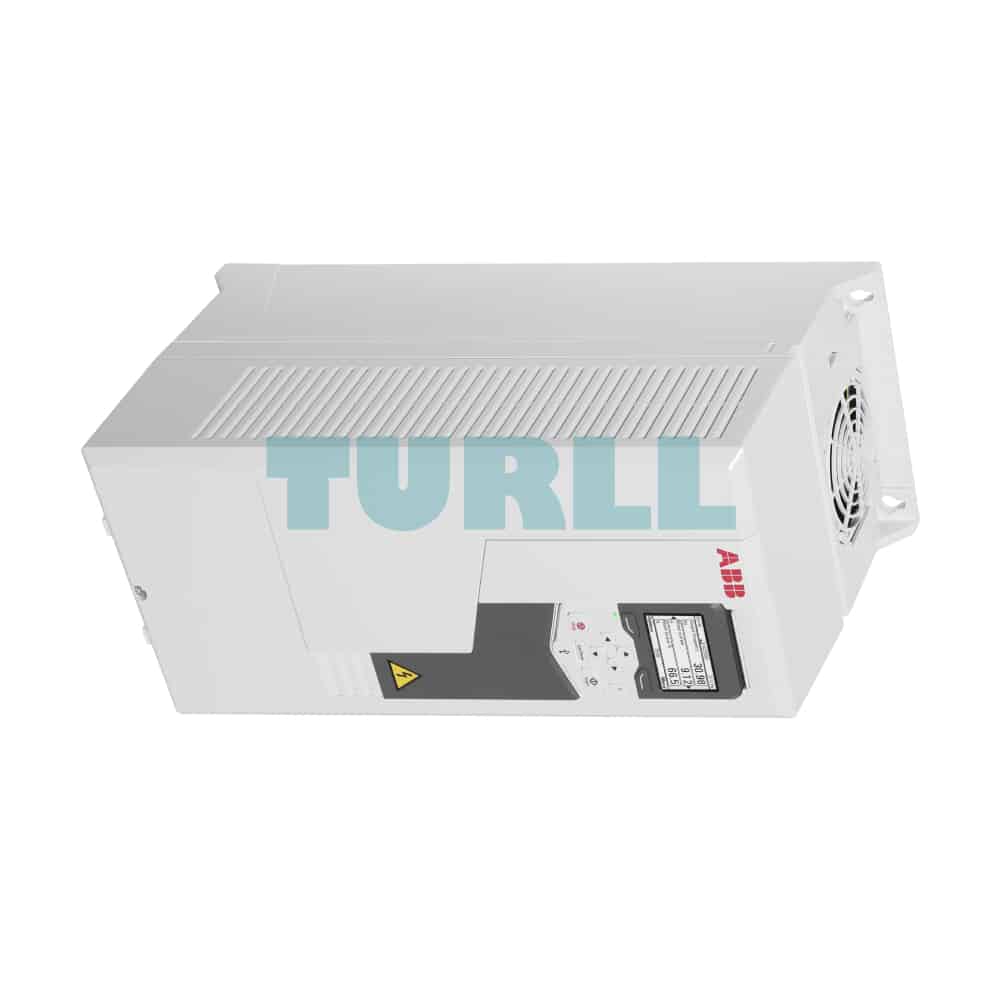

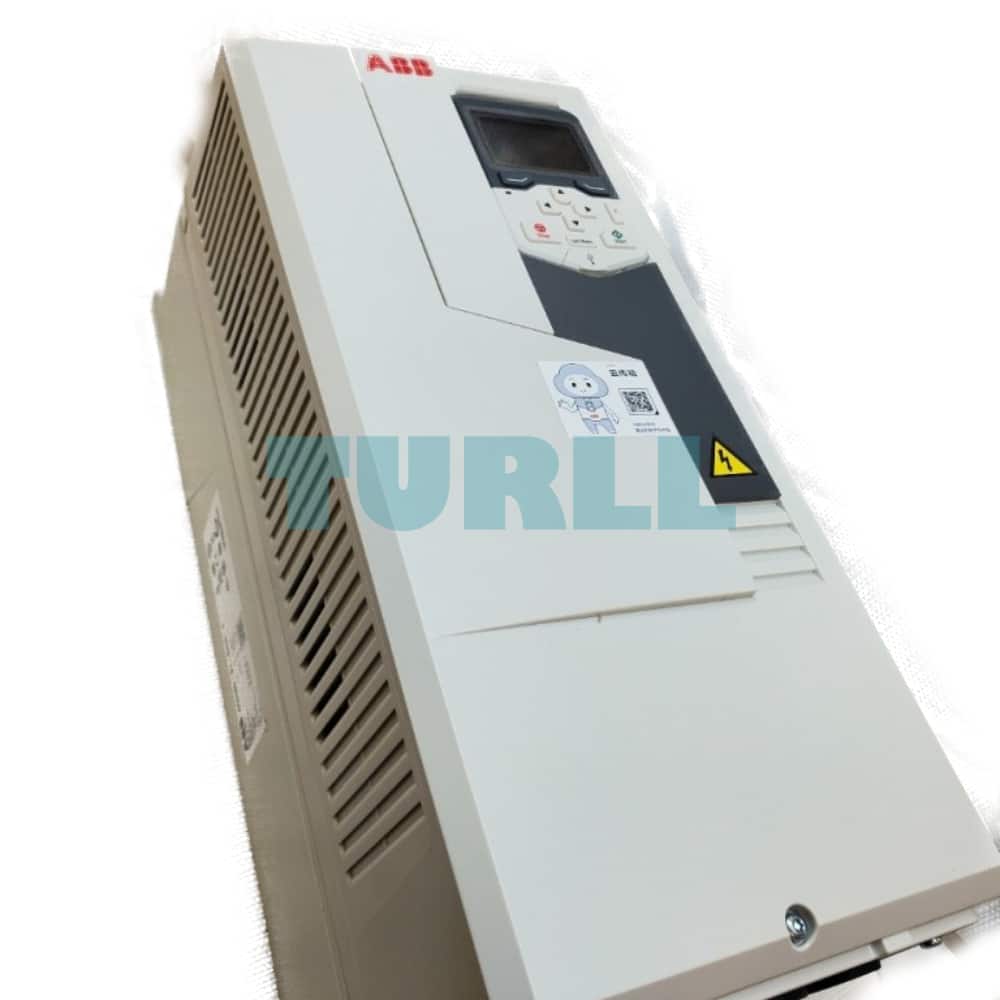

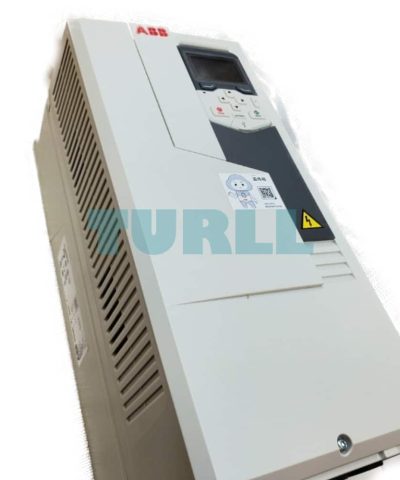

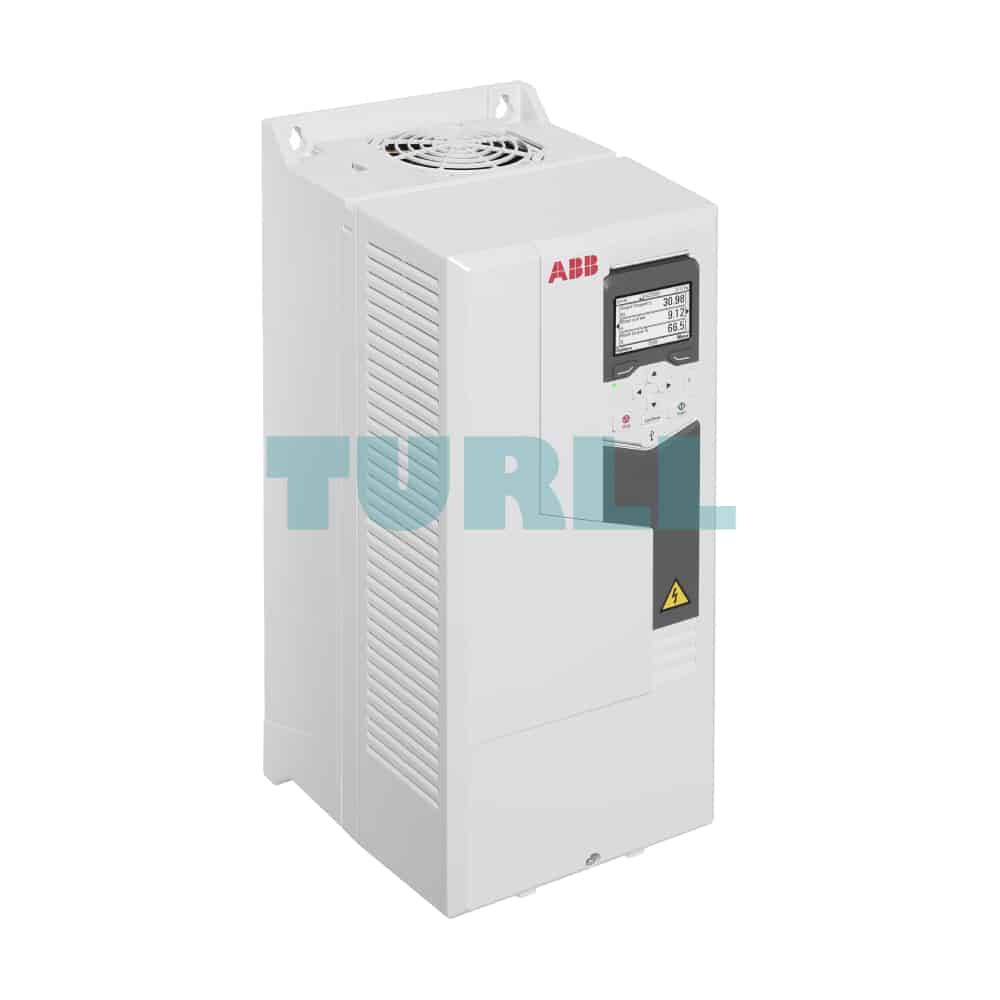

ACS580-01-039A-4 PN: 18.5 kW, IN: 38 A 3AXD50000038962 Original Brand New
$850.59
ACS580-01-039A-4
LV AC general purpose wall-mounted drive, IEC: Pn 18.5 kW, 38 A, 400 V (ACS580-01-039A-4)
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
[ez-toc]
General Information
Global Commercial Alias:
ACS580-01-039A-4
Product ID:
3AXD50000038962
ABB Type Designation:
ACS580-01-039A-4
EAN:
6438177459279
Catalog Description:
LV AC general purpose wall-mounted drive, IEC: Pn 18.5 kW, 38 A, 400 V (ACS580-01-039A-4)
Long Description:
The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.
All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Ordering
Country of Origin:
Romania (RO)
Finland (FI)
China (CN)
Customs Tariff Number:
85044086
HS Code:
850440– Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description:
ACS580-01-039A-4 PN: 18.5 kW, IN: 38 A
Made To Order:
Yes
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece
Dimensions
Product Net Weight:
11.8 kg
26.015 lb
Product Net Depth / Length:
229.00 mm
9.02 in
Product Net Height:
490.00 mm
19.29 in
Product Net Width:
203.00 mm
7.99 in
Package Level 1 Depth / Length:
295.00 mm
11.614 in
Package Level 1 Height:
390.00 mm
15.354 in
Package Level 1 Width:
600.00 mm
23.622 in
Package Level 1 Units:
1 carton
Technical
Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Altitude:
1000 m
Operating Humidity (RHamb):
5 … 95
Sound dB (A):
76 dB(A)
Multiple Battery Information:
Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f):
47.5 … 63 Hz
Frame Size:
R3
Input Voltage (Uin):
380 … 480 V
Mounting Type:
Wall-mounted
Communication Protocol:
CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIBUS
PROFINET IO
TCP/IP
Number of Hardware Interfaces:
Industrial Ethernet 0
Other 2
Parallel 2
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:
Control unit
PC connection
Analog Inputs:
2
Analog Outputs:
2
Number of Digital In/Outputs:
6 / 3
Output Current, Heavy-Duty Use (IHD):
31.6 A
Output Current, Light-Overload Use (ILD):
36.1 A
Output Current, Normal Use (In):
38 A
Output Power, Heavy-Duty Use (PHD):
15.0 kW
Output Power, Light-Overload Use (PLD):
18.5 kW
Output Power, Normal Use (Pn):
18.5 kW
Apparent Power Output:
26 kV·A
Efficiency Level:
IE2
Standby Loss:
16 W
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Efficiency | Relative Loss |
|---|---|---|---|
|
0/25 %
|
167 W
|
89.3 %
|
0.6 %
|
|
0/50 %
|
213 W
|
92.7 %
|
0.8 %
|
|
0/100 %
|
365 W
|
93.6 %
|
1.4 %
|
|
50/25 %
|
180 W
|
94.2 %
|
0.7 %
|
|
50/50 %
|
238 W
|
95.9 %
|
0.9 %
|
|
50/100 %
|
420 W
|
96.4 %
|
1.6 %
|
|
90/50 %
|
266 W
|
97.4 %
|
1.0 %
|
|
90/100 %
|
523 W
|
97.5 %
|
2.0 %
|
Temperature Rating:
Maximum 40 °C
Minimum -15 °C
Classifications
ETIM 8:
EC001857 – Frequency converter =< 1 kV
ETIM 9:
EC001857 – Frequency converter =< 1 kV
UNSPSC:
39122001
Environmental
SCIP:
8e1cd225-4cd2-4db1-8a7b-419a51ce1ae3 Finland (FI)
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Additional Information
Product Name:
Frequency converter
Visit: ACS580-01-039A-4
For more our products visit turll.com
| Weight | 11.8 kg |
|---|---|
| Dimensions | 295 × 390 × 600 mm |
