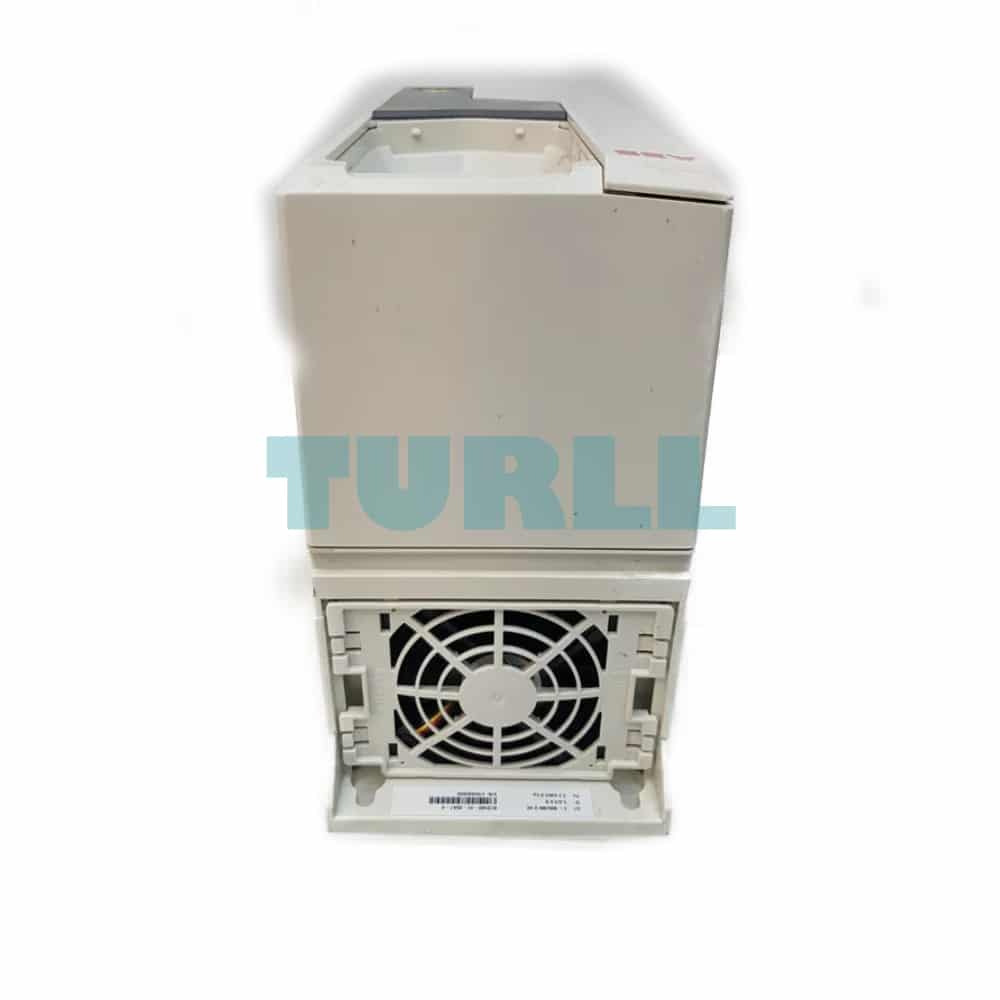

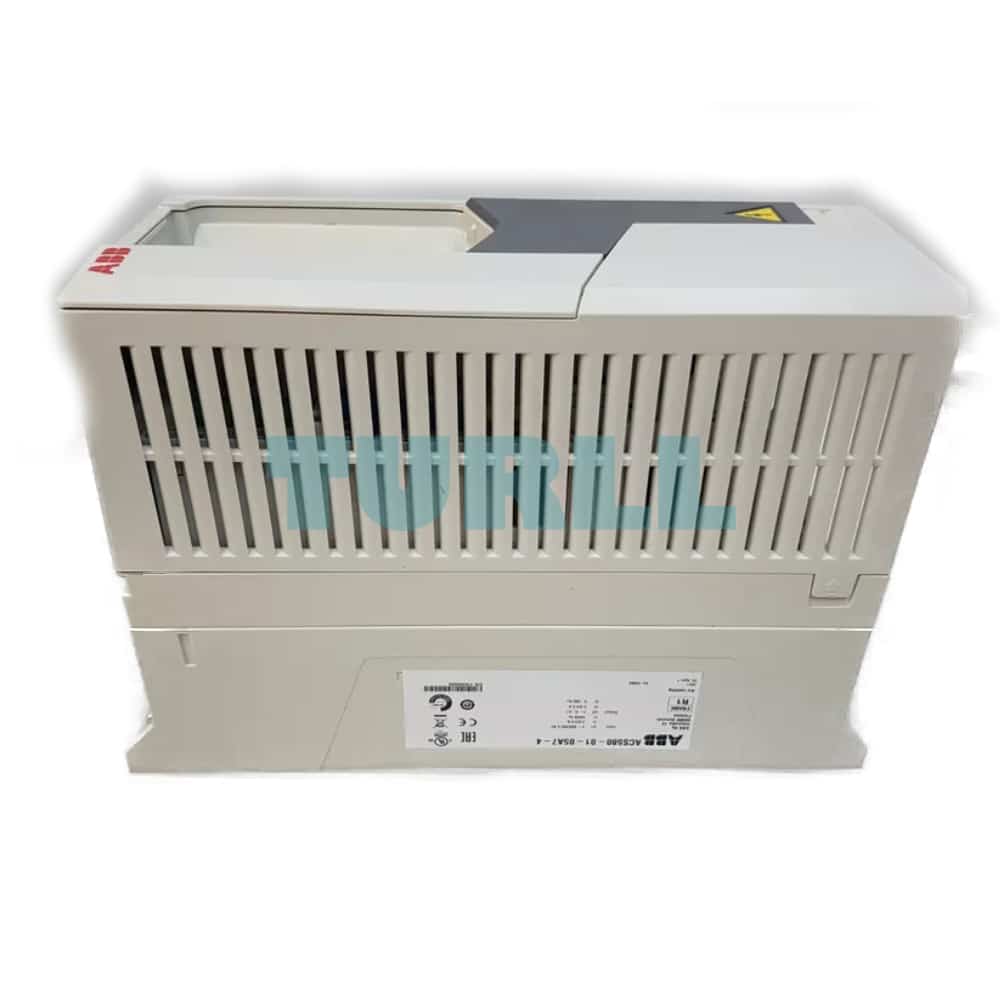

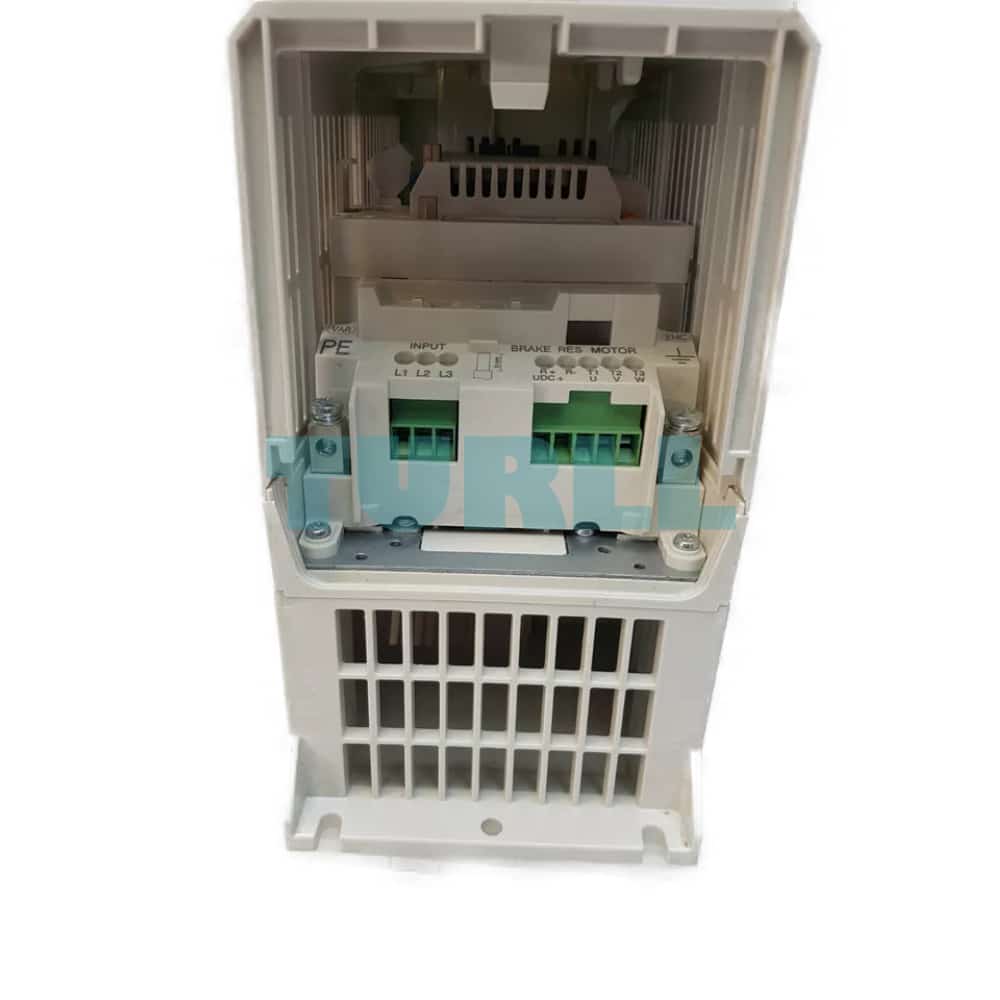

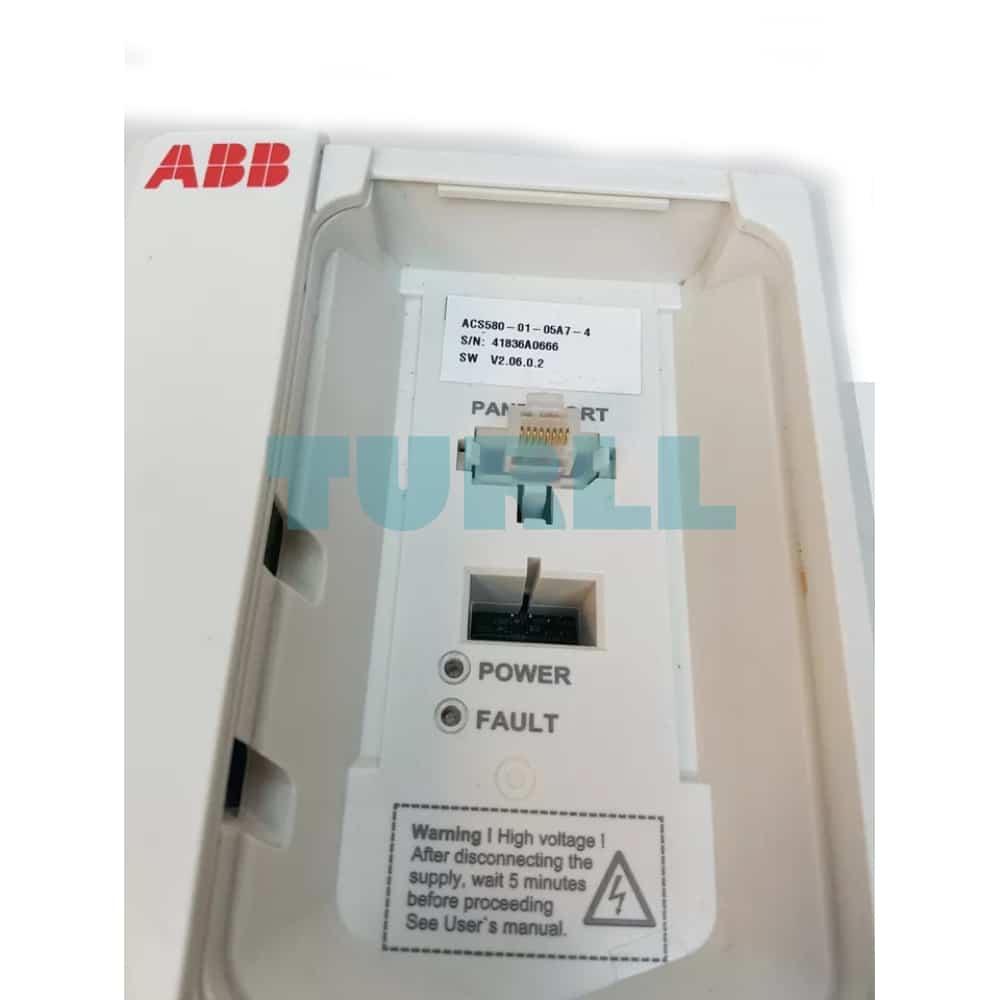

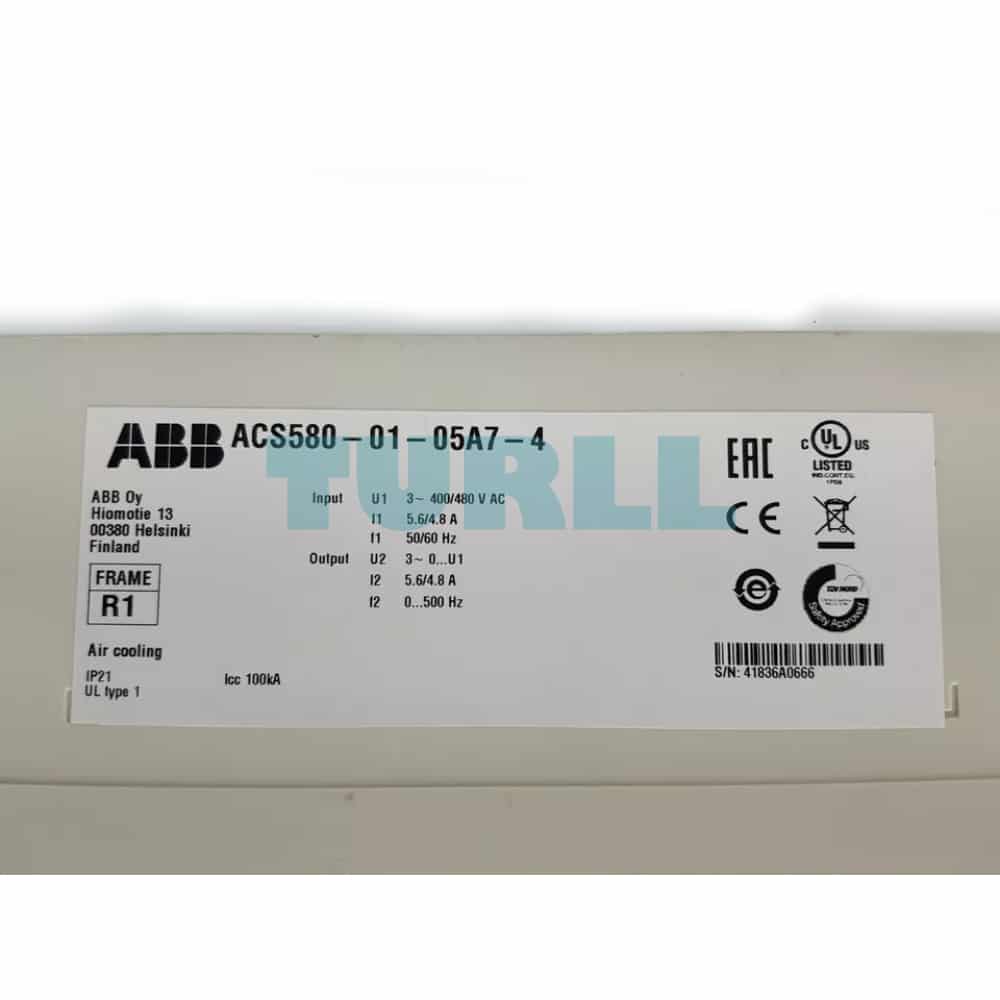

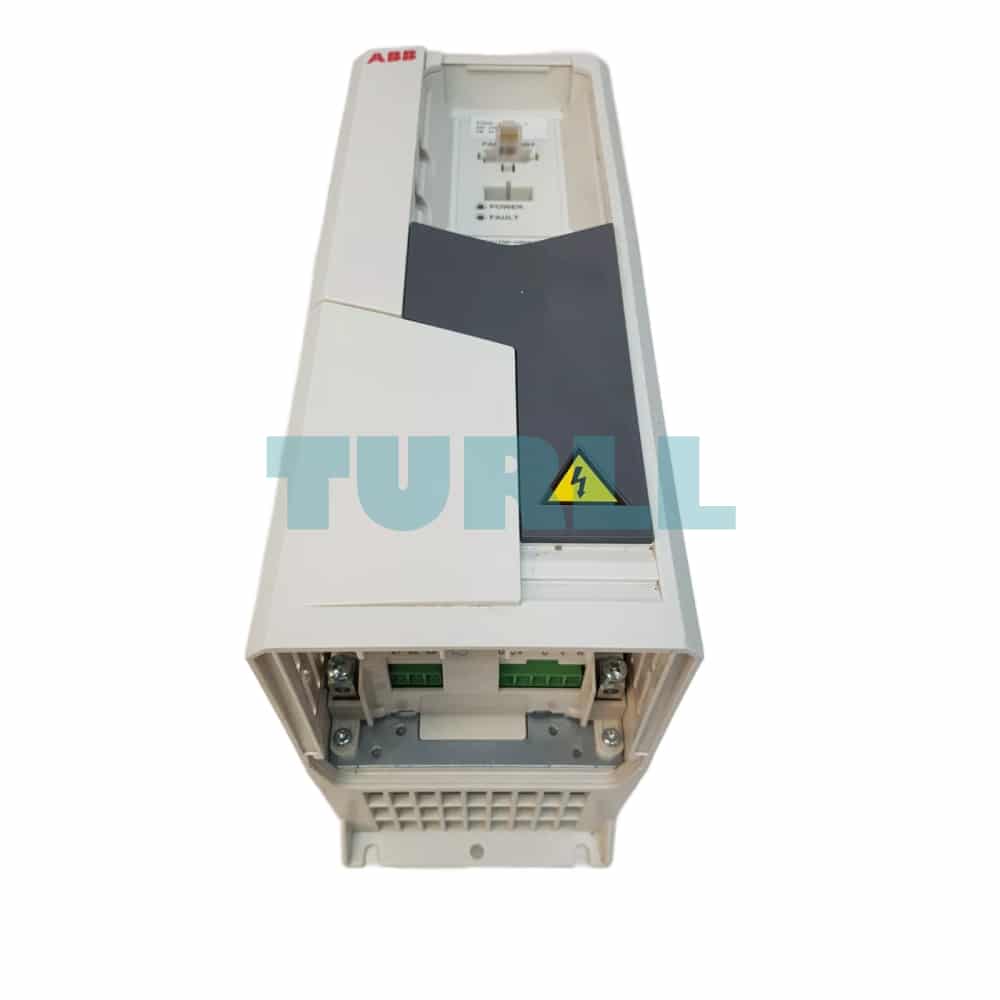

ACS580-01-05A7-4 PN: 2.2 kW, IN: 5.6 A 3ABD50000038940 Original Brand New
$250.59
ACS580-01-05A7-4
LV AC general purpose wall-mounted drive, IEC: Pn 2.2 kW, 5.6 A (ACS580-01-05A7-4)
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
[ez-toc]
General Information
Global Commercial Alias: ACS580-01-05A7-4
Product ID: 3ABD50000038940
ABB Type Designation: ACS580-01-05A7-4
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 2.2 kW, 5.6 A (ACS580-01-05A7-4)
Long Description: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Ordering
Country of Origin: China (CN)
Customs Tariff Number: 85044099
Invoice Description: ACS580-01-05A7-4 PN: 2.2kW, IN:5.6A
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece
Dimensions
Product Net Weight: 4.6 kg
Product Net Depth / Length: 223 mm
Product Net Height: 303 mm
Product Net Width: 125 mm
Package Level 1 Units: 0 carton
Technical
Number of Phases: 3
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Frequency (f): 47.5 … 63 Hz
Frame Size: R1
Input Voltage (Uin): 380 … 480 V
Mounting Type: Wall-mounted_NO UNIT$
Output Current, Heavy-Duty Use (IHD): 4 A
Output Current, Light-Overload Use (ILD): 5.3 A
Output Current, Normal Use (In): 5.6 A
Output Power, Heavy-Duty Use (PHD): 1.5 kW
Output Power, Light-Overload Use (PLD): 2.2 kW
Output Power, Normal Use (Pn): 2.2 kW
Efficiency Level: IE2
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Relative Loss |
Efficiency |
|---|---|---|---|
|
0 / 25 %
|
41 W
|
1.1 %
|
83.3 %
|
|
0 / 50 %
|
47 W
|
1.2 %
|
89.4 %
|
|
0 / 100 %
|
62 W
|
1.6 %
|
92.3 %
|
|
50 / 25 %
|
43 W
|
1.1 %
|
90.8 %
|
|
50 / 50 %
|
51 W
|
1.3 %
|
94.2 %
|
|
50 / 100 %
|
70 W
|
1.8 %
|
95.6 %
|
|
90 / 50 %
|
56 W
|
1.5 %
|
96.3 %
|
|
90 / 100 %
|
85 W
|
2.2 %
|
97.0 %
|
Classifications
UNSPSC: 39122001
Environmental
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Additional Information

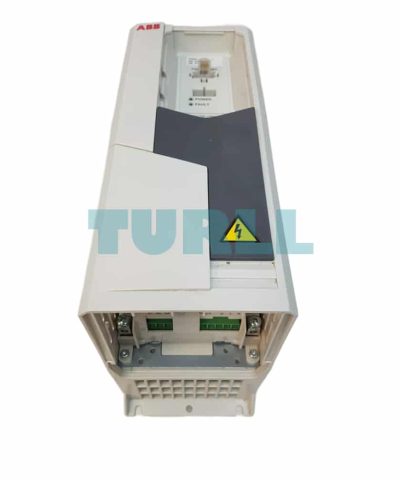

Product Name: Frequency Converter
Visit: ACS580-01-05A7-4
For more our products visit turll.com
| Weight | 4.6 kg |
|---|---|
| Dimensions | 223 × 303 × 125 mm |
