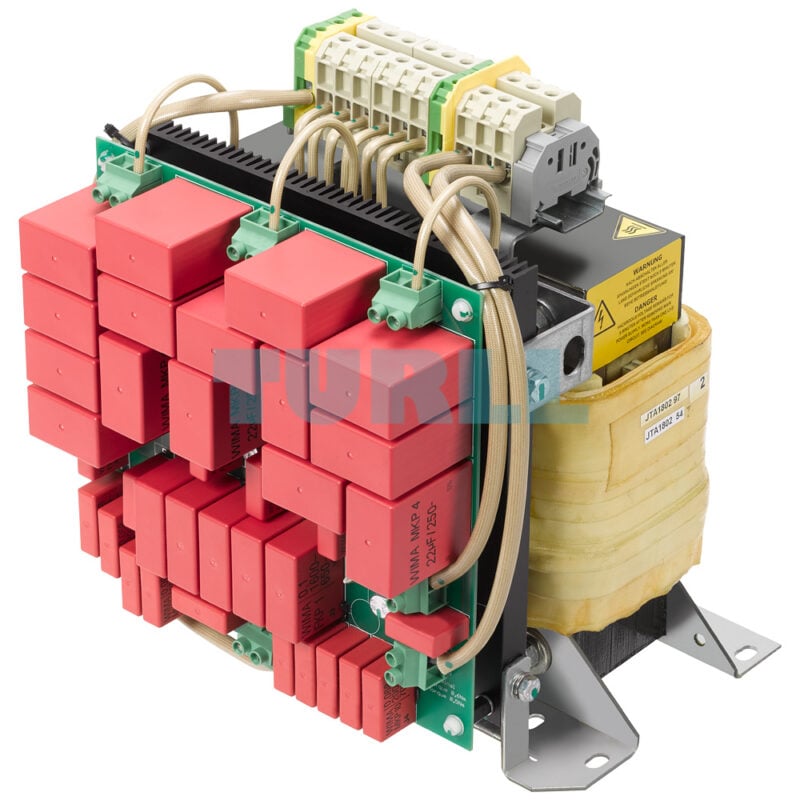

JTATEF1203-0HB SIEMENS Exclusive Mdexx dv/dt Filter with VPL Original Brand New

JTATEF1203-0HB SIEMENS Exclusive Mdexx dv/dt Filter with VPL Original Brand New

The SIEMENS JTATEF1203-0HB Mdexx dv/dt Filter with VPL is designed to optimize the performance and durability of motors operated with SINAMICS G120 and G220 drive systems. This advanced filter is essential for applications where voltage peaks and fast voltage rise times can stress motor insulation. By integrating the dv/dt filter and a voltage peak limiter (VPL), it ensures reliable system performance, extending the operational life of motors while reducing maintenance requirements in industrial environments.

With a voltage peak limit of 690V for ranges between 22 kW and 37 kW, and compatibility with 400V motors from 11 kW to 18.5 kW, this solution provides flexibility across a variety of installations. The filter complies with IEC/TS 60034-17:2006 standards, effectively limiting voltage peaks to less than 1350 V phase/phase and less than 1100 V phase/ground at the motor terminals with a nominal DC link voltage of 935 V. This allows the safe use of standard motors with standard insulation, eliminating the need for insulated bearings when operated with the dv/dt filter plus VPL.

Overview

The dv/dt filter with VPL combines two protective technologies: limiting the rate of voltage rise to below 500 V/μs and cutting off harmful peaks. Energy from the voltage limiting process is redirected to the DC link, ensuring efficiency and protecting sensitive equipment. Designed for compatibility with SINAMICS Pool Software V4.7 SP10 or higher for G120 applications and V5.1 SP1 or higher for S120 applications, it guarantees smooth integration within modern drive systems.

Design

Structurally, the JTATEF1203-0HB consists of two main elements: a dv/dt reactor and a voltage limiting network. The dv/dt reactor reduces the stress on insulation systems, while the voltage limiting network absorbs and redirects excess energy safely. This dual function creates a robust filtering solution that enhances reliability and minimizes unexpected downtime in motor-driven systems.

Product Code: JTATEF1203-0HB
