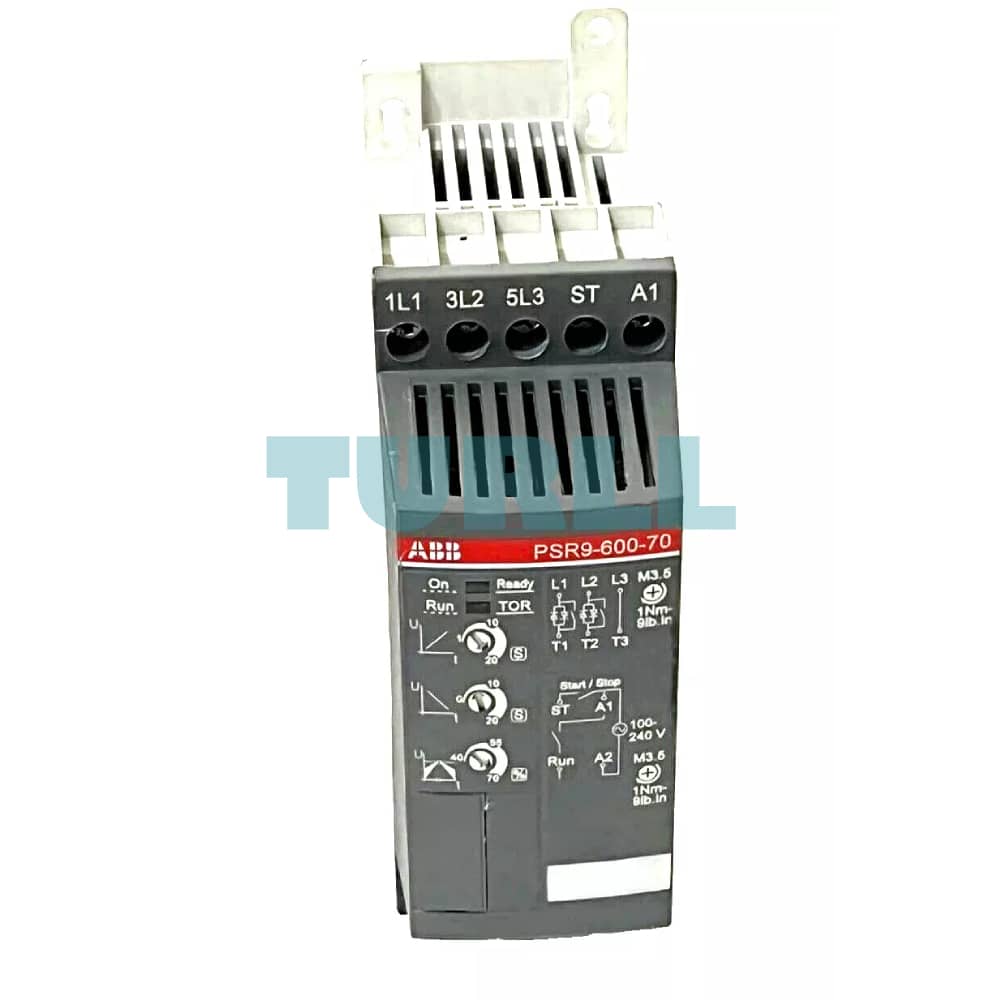

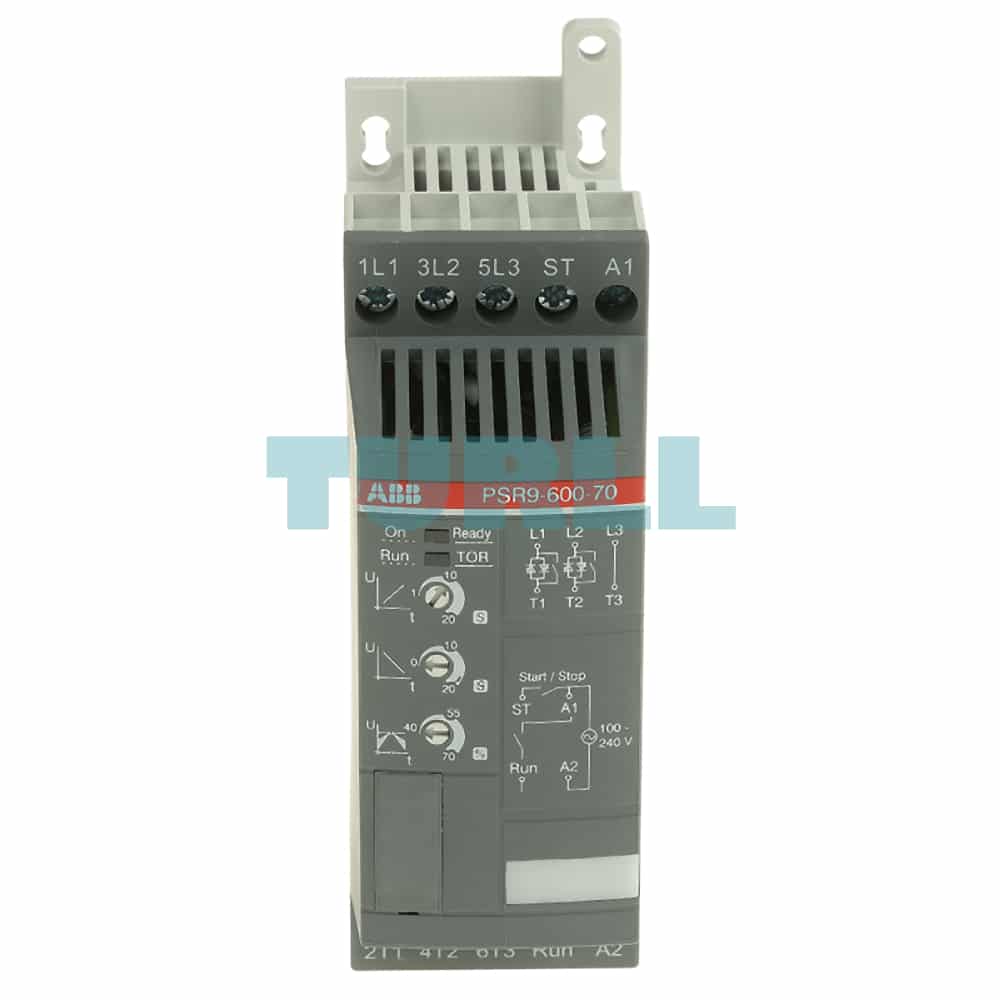

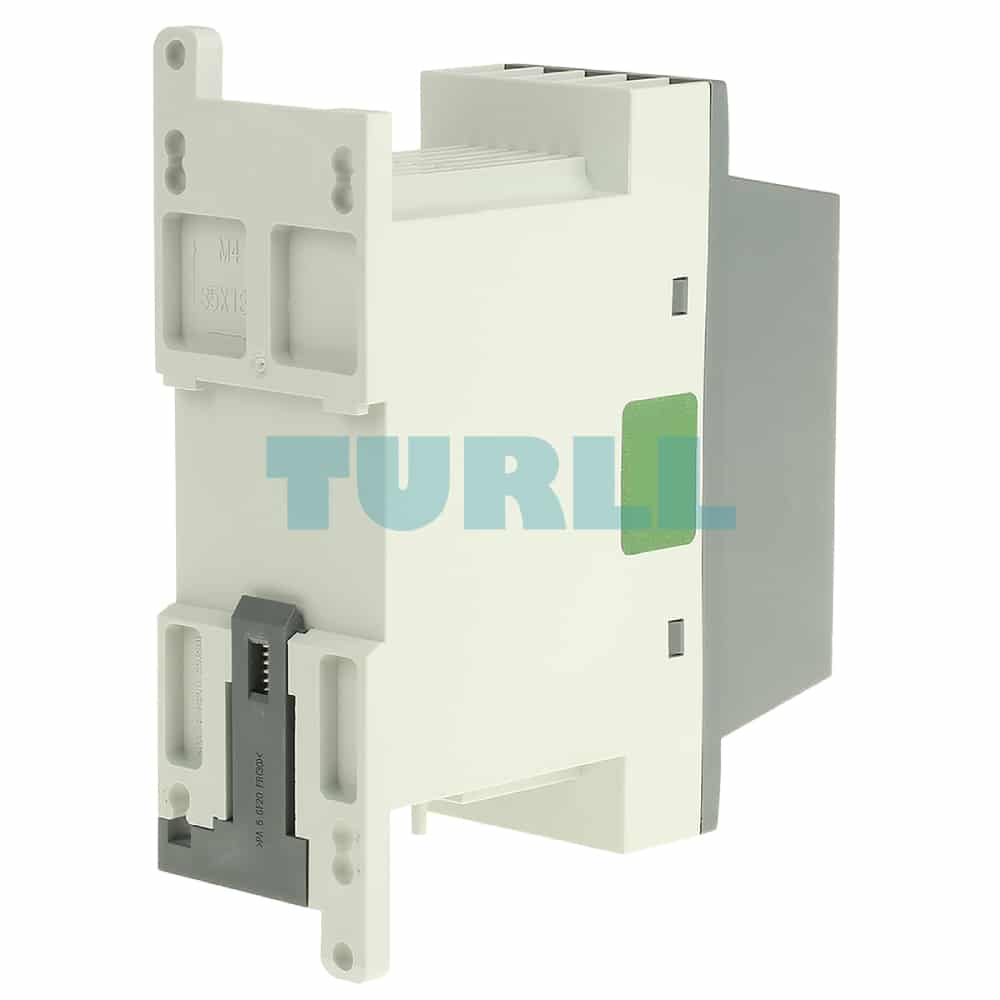

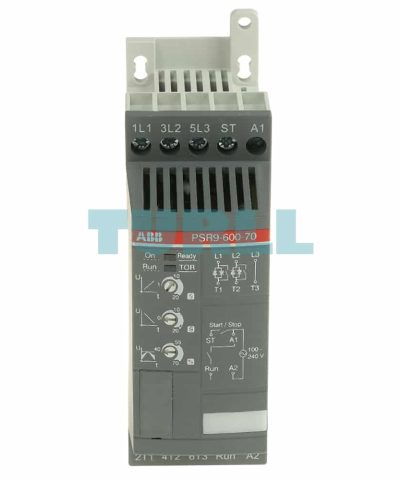

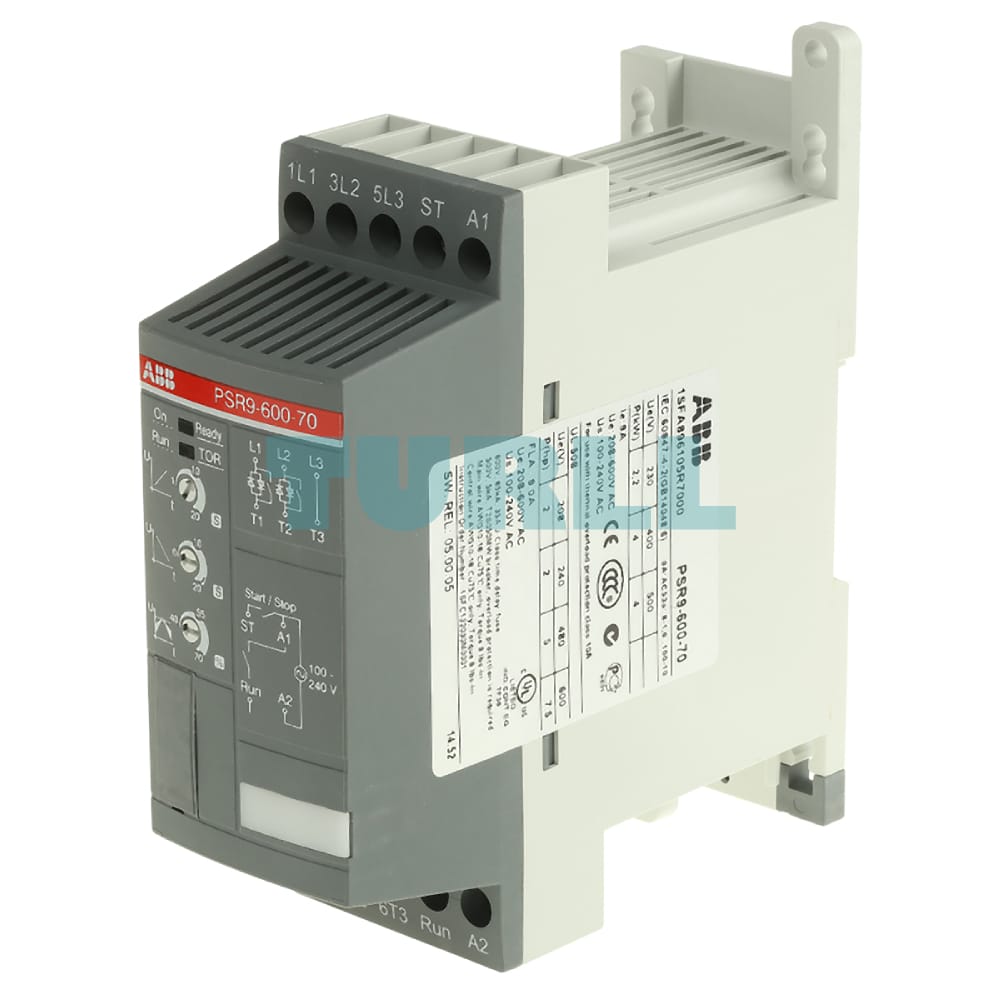

PSR9-600-70 1SFA896105R7000 ABB Softstarter Original Brand New

PSR9-600-70

1SFA896105R7000

The softstarter PSR9-600-70 has a rated maximum operational current of 9 A with an operating voltage span from 208…600 V AC. The rated control voltage is between 100…240 V AC at 50/60 Hz. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3…105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.
