Siemens 1FL6064-1AC61-2LB1 SIMOTICS S-1FL6 Servo Motor 1.5 kW, 2000 RPM, IP65 Original Brand New

Overview

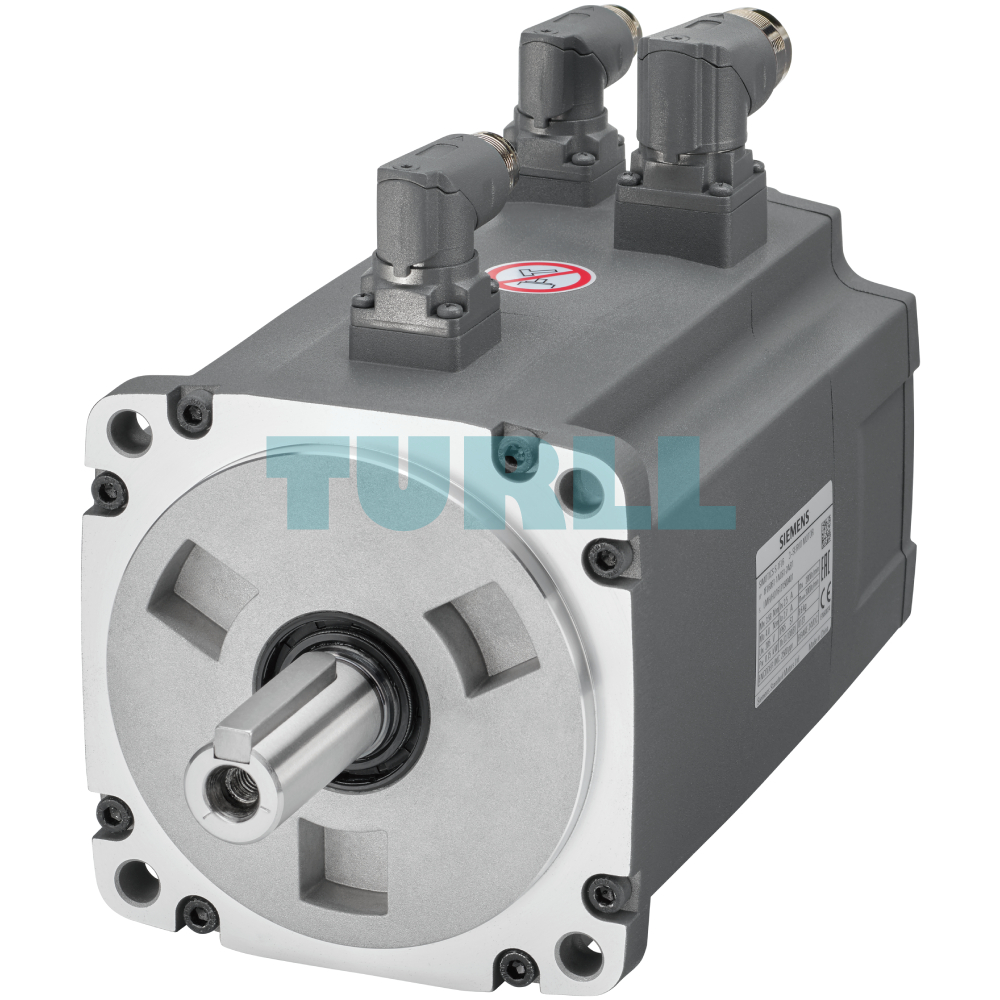

The Siemens SIMOTICS S-1FL6 Servo Motor (1FL6064-1AC61-2LB1) is a high-performance AC servo motor designed for precision motion control applications. Operating at 3-phase 400 V, this motor delivers 1.5 kW rated power and a rated speed of 2000 RPM, ensuring reliable torque output and smooth operation.

Equipped with a 20-bit absolute encoder (12-bit multi-turn), holding brake, and IP65 protection, this servo motor is ideal for industrial automation environments requiring accuracy, durability, and seamless integration with SINAMICS V70 and V90 converters.

Key Benefit

• High Precision: Equipped with a 20-bit absolute encoder for exact positioning and motion control.

• Rugged Protection: Rated at IP65 with a sealing ring, ensuring resistance to dust and low-pressure water jets.

• Integrated Safety: Features a built-in holding brake to prevent axis dropping during power loss or emergency stops.

• Seamless Integration: Fully compatible with Siemens SINAMICS V70 and V90 drives for a "plug-and-play" experience.

Function & Features

• Rated Power (Pn): 1.5 kW

• Rated Speed (Nn): 2000 RPM

• Rated Torque (MN): 7.16 Nm

• Standstill Torque (M0): 8 Nm

• Operating Voltage: 3AC 400 V

• Encoder Type: Absolute encoder, 20-bit (12-bit multi-turn)

• Shaft Height: 65 mm

• Shaft Type: Feather key, tolerance N

• Brake: Integrated holding brake

• Degree of Protection: IP65 with sealing ring

• Connection Type: Angle plug

• Drive Compatibility: SINAMICS V70 & SINAMICS V90
