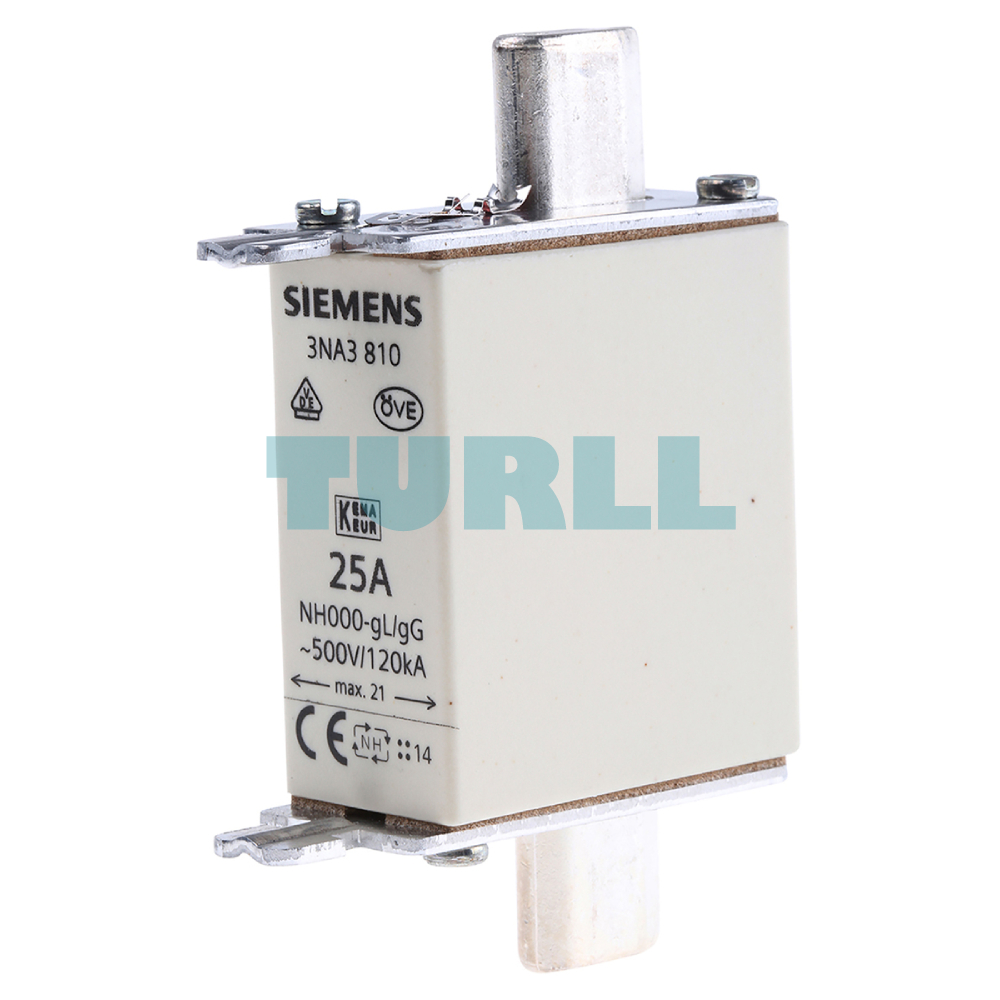

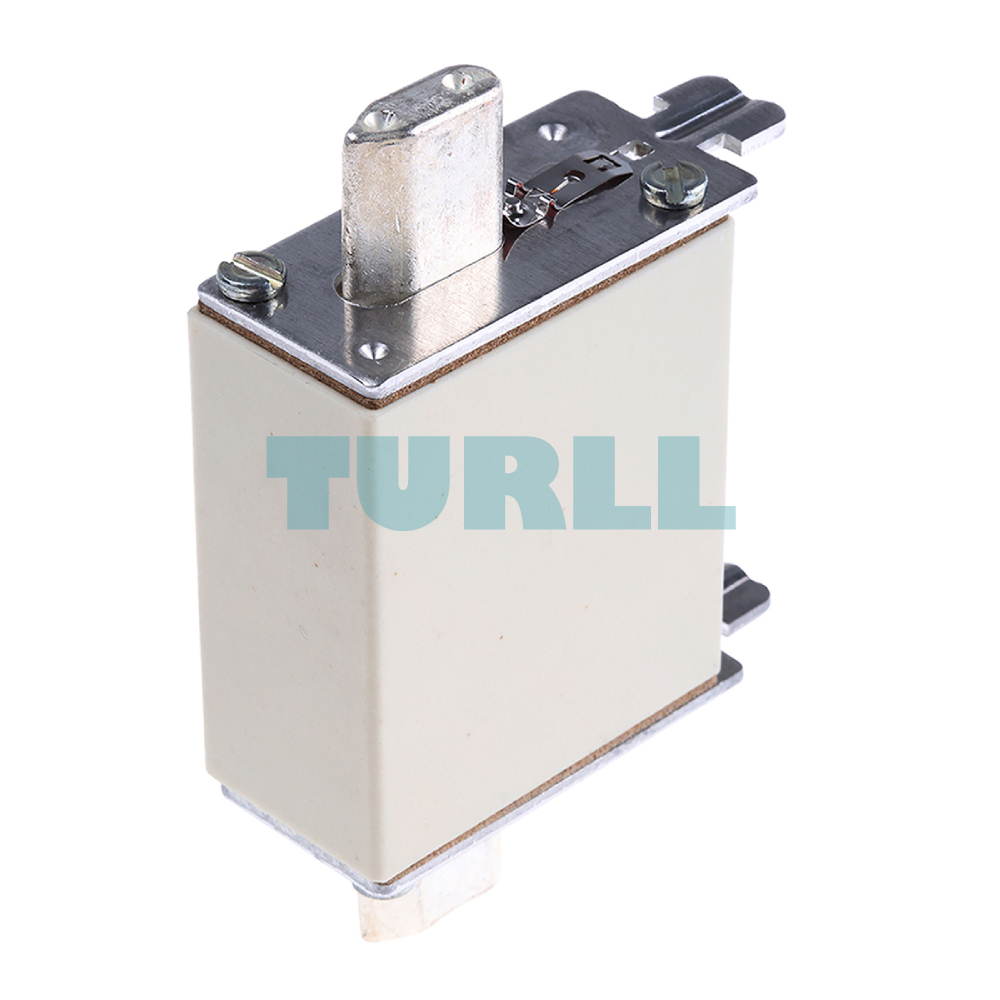

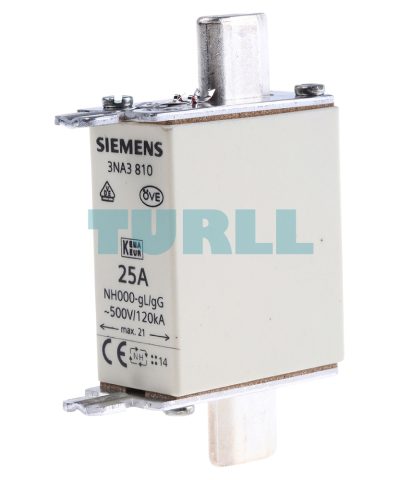

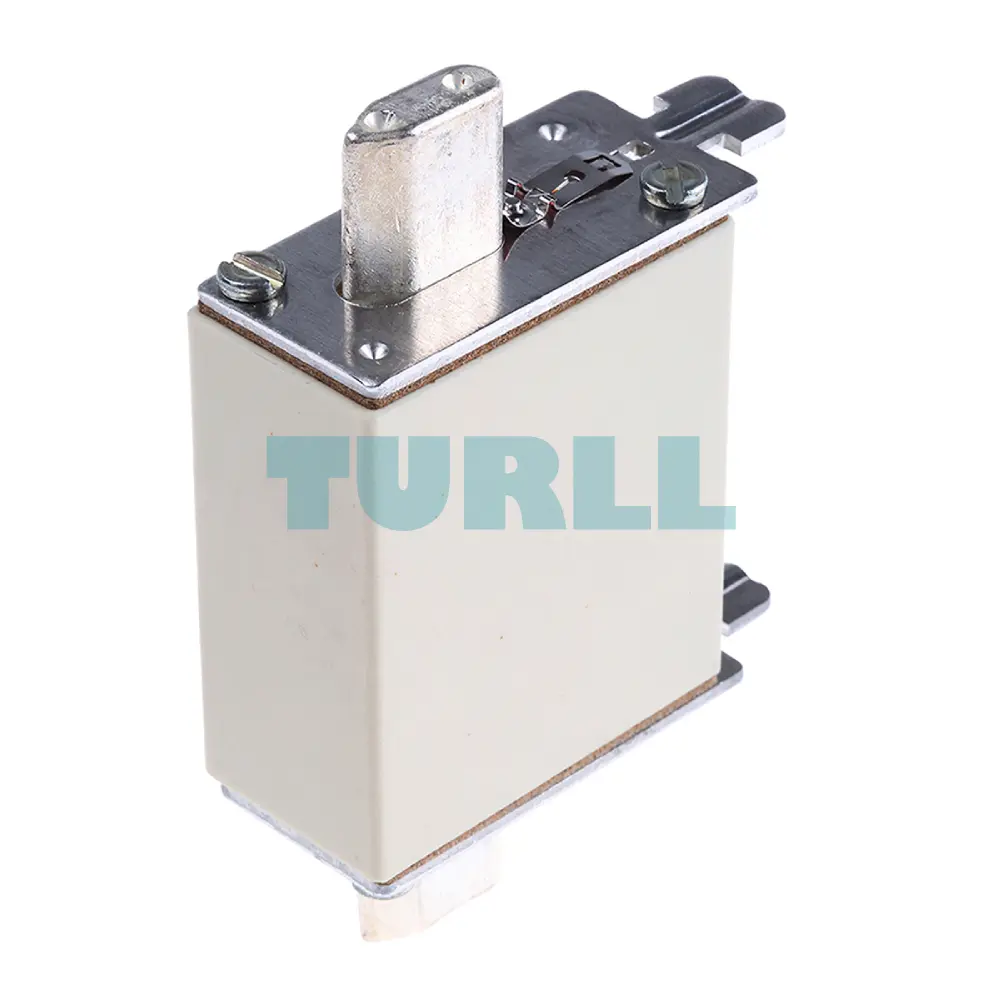

Siemens 3NA3810 LV HRC Fuse Link, Size NH000, 25A, gG Utilization, 500V AC Original Brand New

Model / SKU3NA3810

High-performance LV HRC (Low Voltage High Rupturing Capacity) fuse element designed for reliable circuit protection. This NH000 size fuse features a 25A rated current, gG operating characteristics for general-purpose cable and line protection, and a front indicator for easy status monitoring.

$27.92
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3NA3810 belongs to the trusted SENTRON series of protection components. Engineered for industrial and commercial electrical systems, this NH-type fuse link provides superior short-circuit and overload protection. Its compact NH000 design allows for high-density installation in fuse switch disconnectors and fuse bases.

Key Benefit

  • High Reliability: Precision-engineered by Siemens to ensure consistent tripping characteristics and long-term stability.

  • Visual Monitoring: Equipped with a front indicator (top indicator) for rapid identification of blown fuses, minimizing downtime.

  • Safety First: Features live grip lugs for secure handling and installation within compatible LV HRC fuse systems.

  • Dual Voltage Rating: Versatile application range with ratings for both AC (500V) and DC (250V) environments.

Function & Features

  • Type: LV HRC Fuse Element

  • Size: NH000

  • Rated Current (In): 25 A

  • Fuse Characteristic: gG (general purpose)

  • Rated Voltage: AC: 500V, DC: 250V

  • Front Indicator: Yes, for fuse status monitoring

  • Live Grip Lugs: Yes, for safe installation and removal

  • Applications: Industrial panels, switchgear, motor protection, control circuits

Application

The Siemens 3NA3810 is ideal for:

  • General cable and line protection in industrial plants.

  • Main and distribution boards.

  • Switchgear and control cabinet installations.

  • Protecting motors and power distribution systems against short circuits.

Visit 3NA3810 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model3NA3810
BrandSIEMENS
product brand nameSENTRON
product designationLV HRC fuse link
design of the productWith blade contacts
design of an identification indicatorFront indicators
design of the switching contactNon-corroding, silver-plated
design of the fuse linkLV HRC fuse link
size of fuse system / acc. to DIN EN 60269-1NH000
operating class of the fuse linkgG
mounting typenon-insulated grip lugs
type of voltage / of the operating voltageAC/DC
supply voltage-
● at DC250 V
protection class IPIP20, with connected conductors
switching capacity current-
● at DC / acc. to IEC 60947-2 / rated value25 kA
● acc. to IEC 60947-2 / rated value120 kA
power loss [W]2.3 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole2.3 W
operational current-
● at 30 °C / rated value24.5 A
● at 40 °C / rated value23.75 A
● at 45 °C / rated value23 A
● at 50 °C / rated value22.5 A
● at 55 °C / rated value22 A
● at 60 °C / rated value21.5 A
● at AC / rated value25 A
width / of the enclosure21 mm
mounting positionAny, preferably vertical
ambient temperature / during operation-
● minimum-5 °C
● maximum40 °C
environmental category-20 to +50 at 95% relative humidity
environmental category / during storage90% at 20°C
Weight0.130 kg

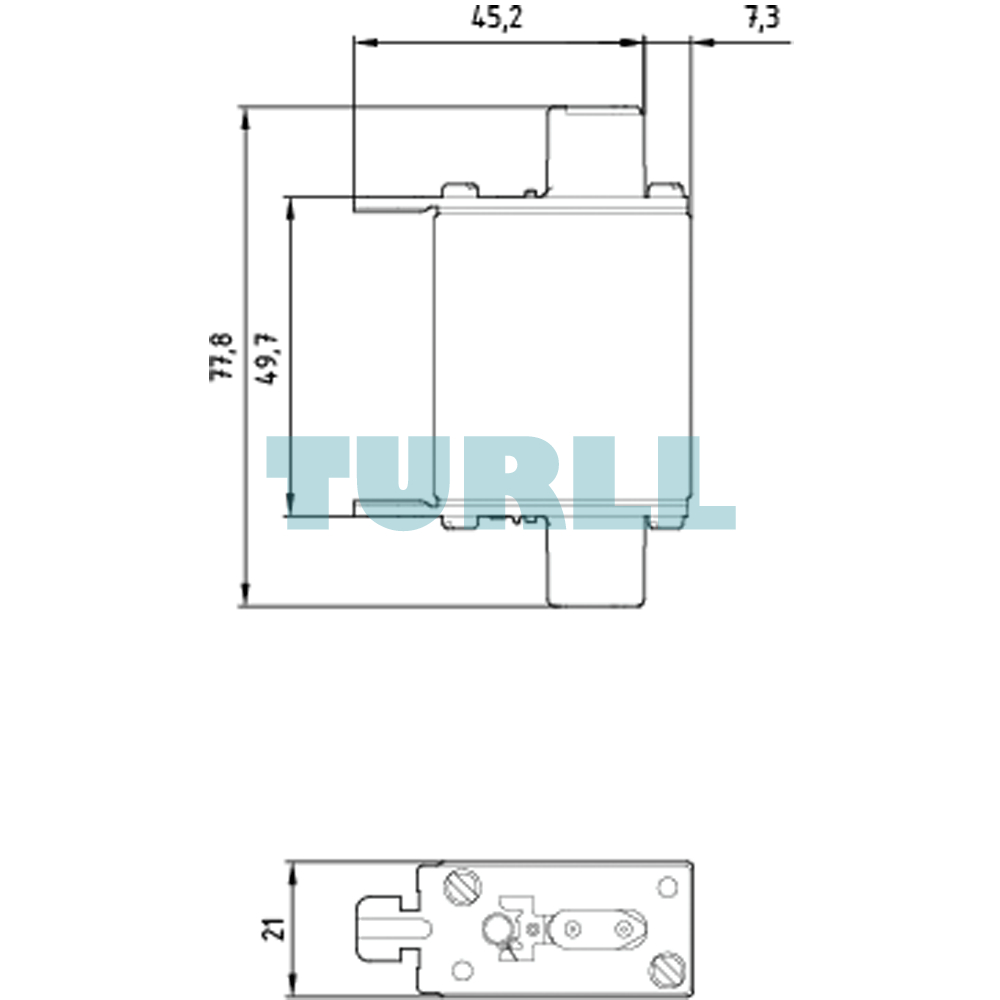

Dimensions65.00 × 84.00 × 62.00 mm
