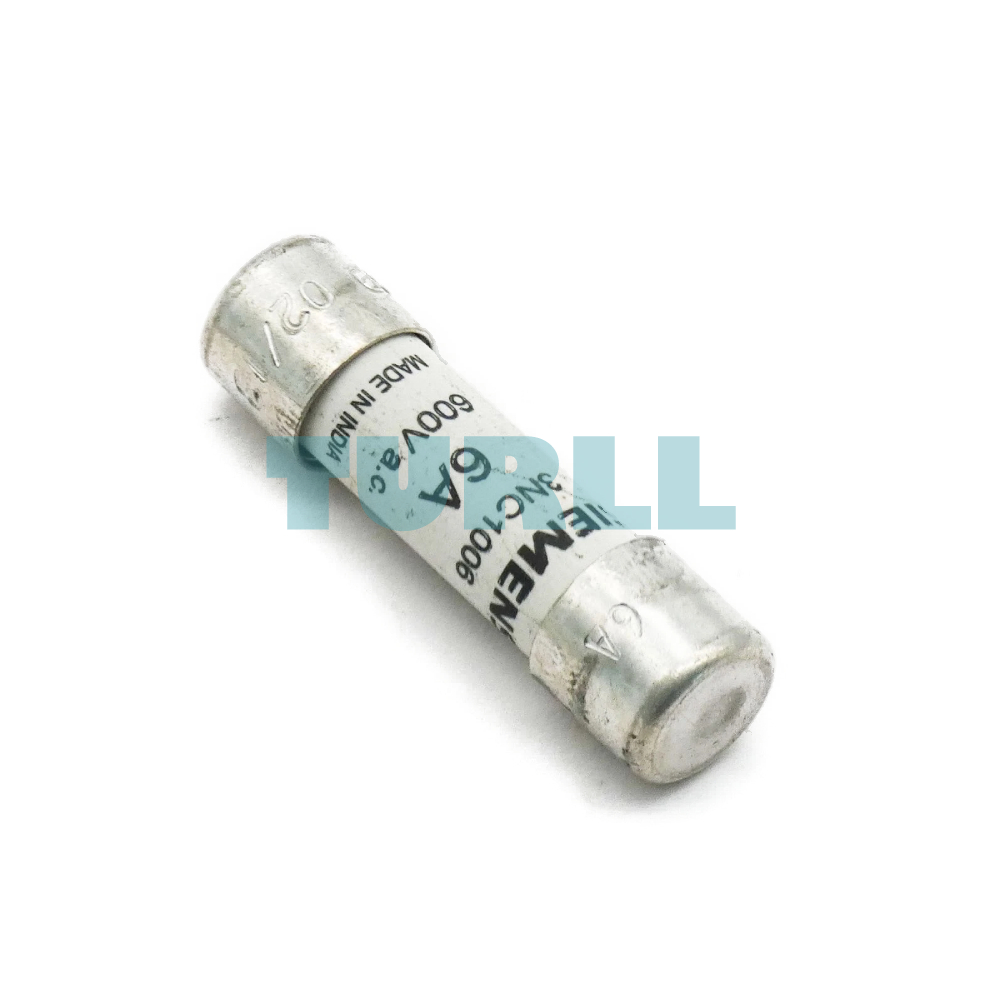

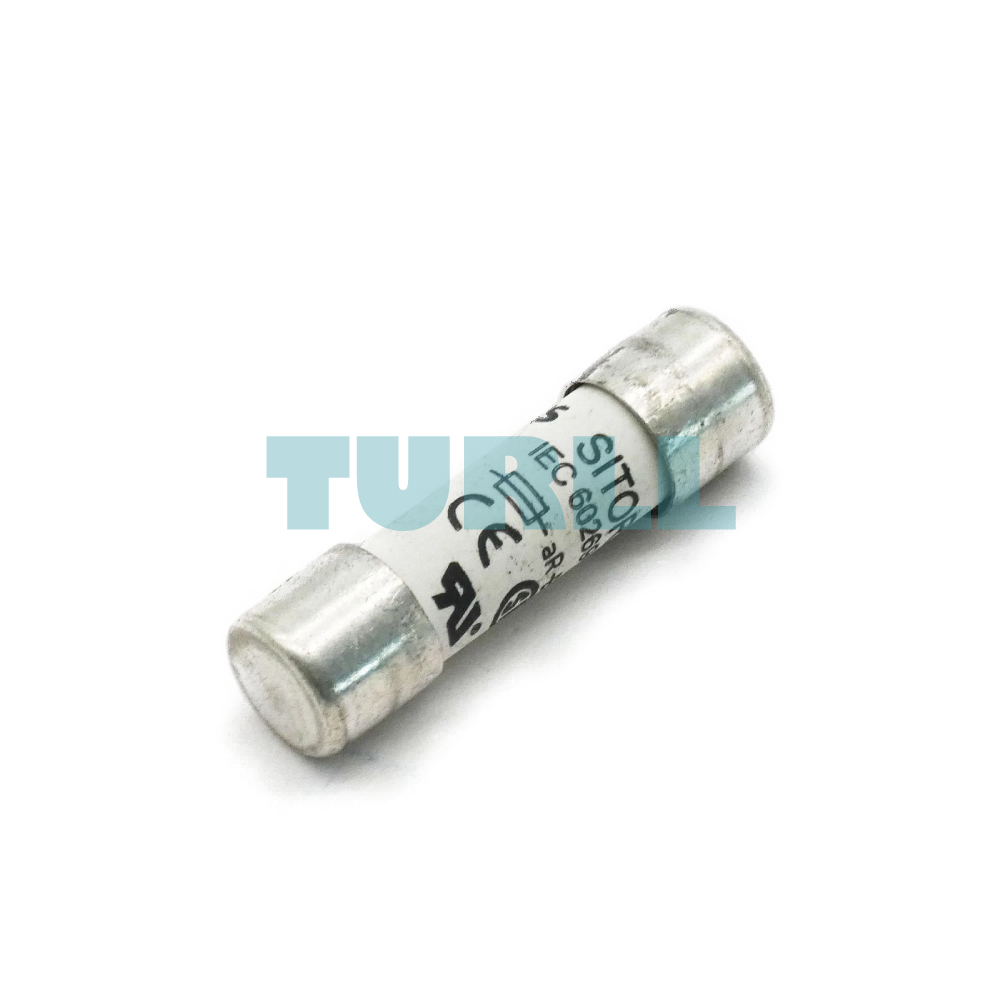

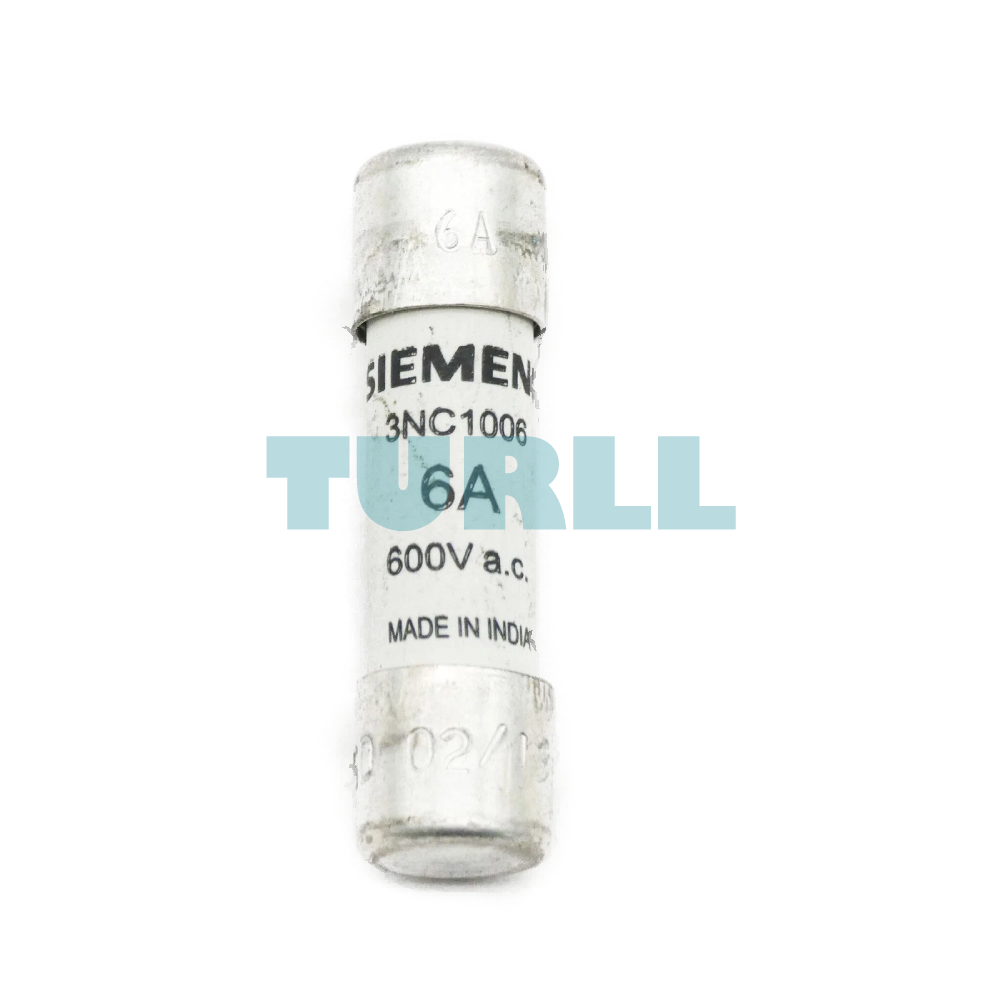

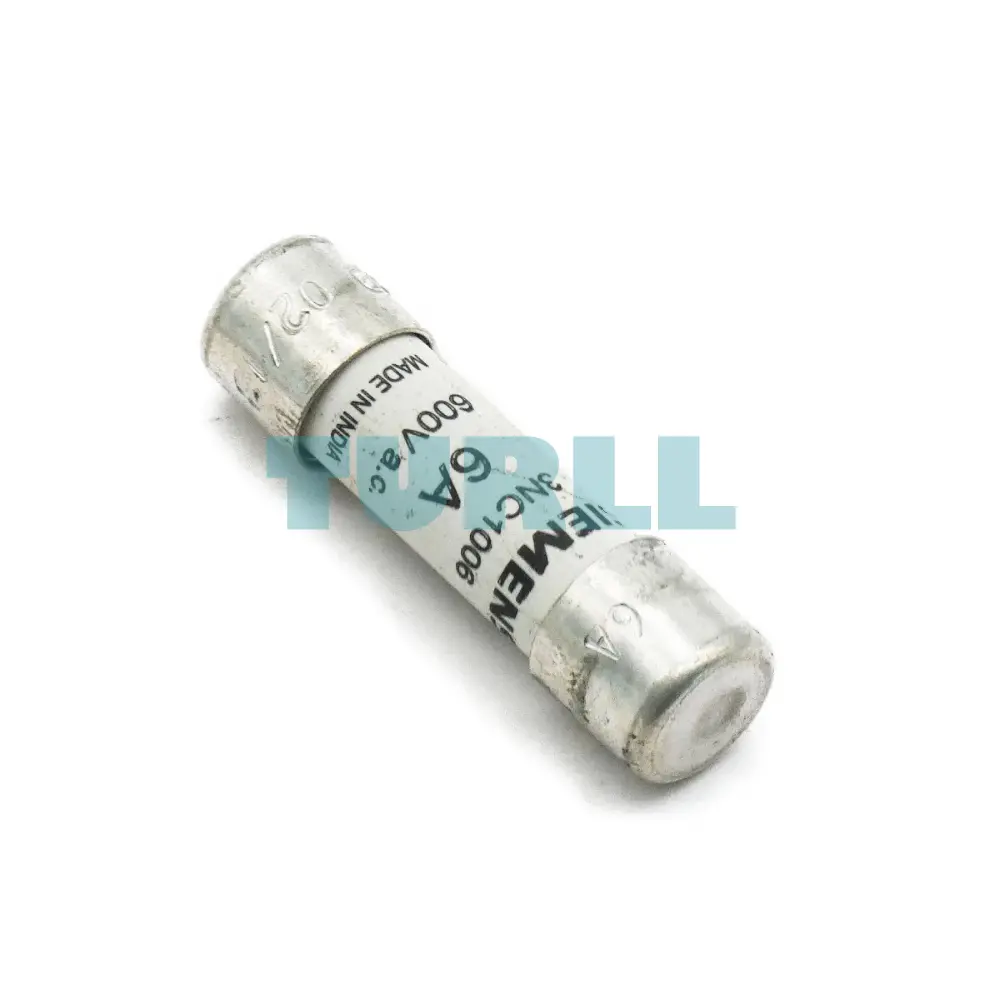

Siemens 3NC1006 SITOR Cylindrical Fuse Link, 6A, 600V AC / 700V DC, 10x38mm Original Brand New
$12.28
High-performance Siemens 3NC1006 SITOR cylindrical fuse link. Rated for 6A with a size of 10 x 38 mm. Designed for semiconductor protection (aR) with high-voltage capabilities up to 600V AC and 700V DC.
Availability: In stock
Overview
The Siemens 3NC1006 SITOR fuse link is a precision-engineered cylindrical fuse designed to provide reliable circuit protection for industrial and commercial electrical systems. Measuring 10 x 38 mm and rated at 6A (aR), this fuse is ideal for both AC and DC applications, offering a voltage rating of AC 600V and DC 700V. Manufactured according to UL standards for DC, it ensures safety, durability, and performance under demanding conditions.
Key Benefit
-
Precision Protection: Optimized for the protection of high-end power semiconductors.
-
Compact Design: The 10 x 38 mm form factor allows for high-density installation in control cabinets.
-
Dual Voltage Rating: Operates reliably across both AC (600V) and DC (700V) environments.
-
Siemens Reliability: Part of the trusted SITOR family, known for consistent performance and safety.
Technical Function
-
Operating Class aR: Provides partial-range protection for semiconductors (short-circuit protection only).
-
High Breaking Capacity: Safely interrupts high fault currents to prevent equipment fire or failure.
-
Standardized Fit: Compatible with standard 10 x 38 mm fuse holders and disconnectors.
Features
-
Cylindrical fuse link, 10 x 38 mm
-
Rated current: 6A, aR (partial-range)
-
Voltage rating: AC 600V / DC 700V
-
UL-certified for DC applications
-
Reliable and fast-acting protection
Visit 3NC1006 for more detail info
For more our products visit turll
Download
| Weight | 0.009 kg |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | SITOR cylindrical fuse link |
| design of the product | DC acc. to UL |
| operating class of the fuse link | aR |

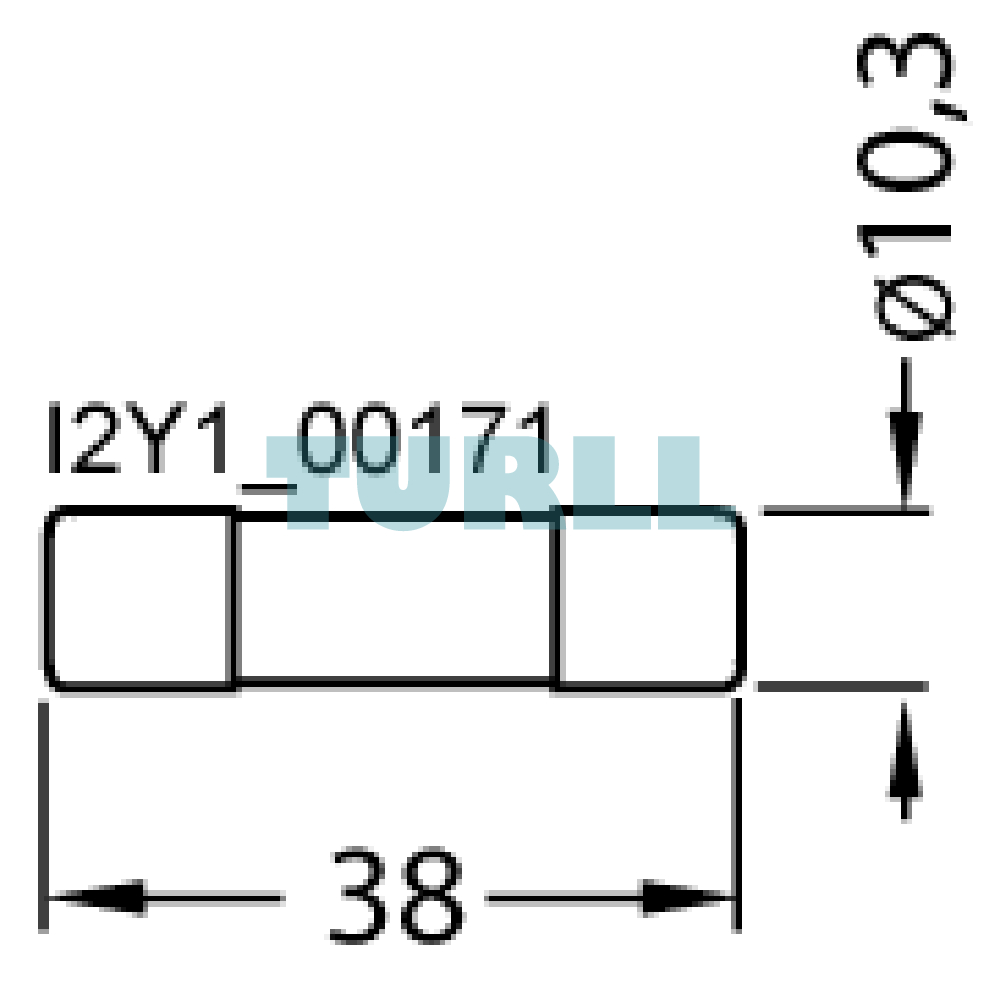

| size of the fuse link | 10×38 mm |
| type of voltage / of the operating voltage | AC |
| supply voltage / at DC | 700 V |
| operating voltage / at AC / rated value | 600 V |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.5 W |
| operational current / at AC / rated value | 6 A |
| operational current / rated value | 6 A |
| product component / striker | No |
| mounting position | Any, preferably vertical |
