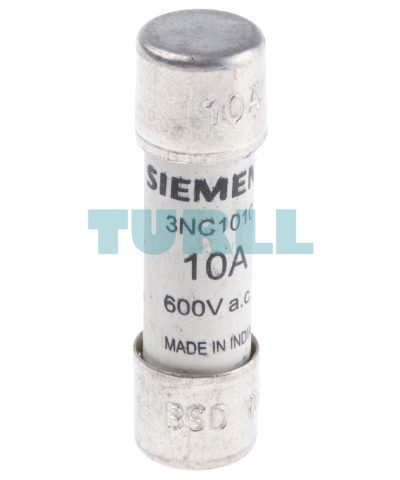

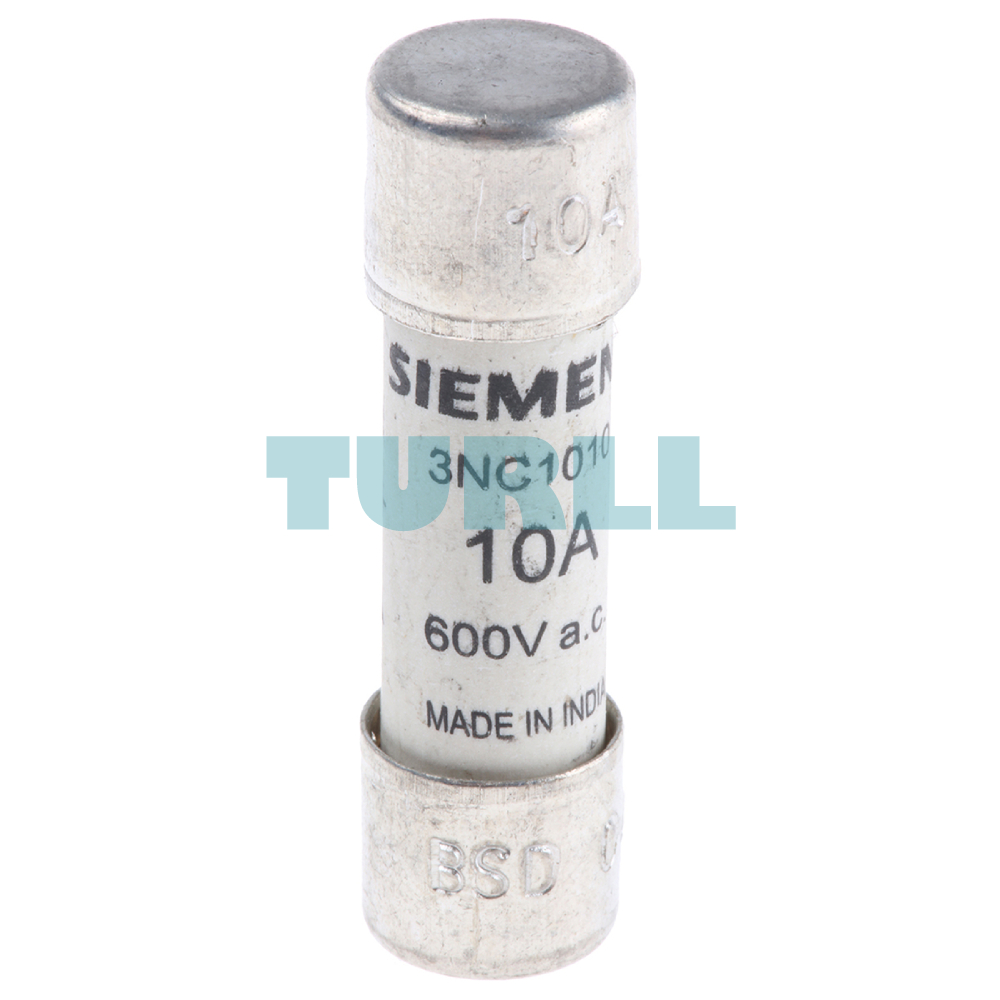

Siemens 3NC1010 SITOR Cylindrical Fuse Link 10x38mm, 10A, 600V AC / 700V DC Original Brand New
$14.87
High-performance SITOR cylindrical fuse link designed for semiconductor protection. Measuring 10 x 38 mm, this 10A fuse features an aR utilization category, providing rapid response times for AC (600V) and DC (700V) applications. UL-certified for reliability in demanding industrial environments.
Availability: In stock
Overview
The Siemens 3NC1010 belongs to the SITOR family, specifically engineered to protect power semiconductors from the effects of short circuits. Because semiconductors have low thermal capacity, the ultra-fast-acting (aR) characteristic of this fuse is essential for preventing costly equipment downtime.
Key Benefit
-
Ultra-Fast Protection: The aR characteristic ensures high-speed tripping to safeguard sensitive rectifiers and thyristors.
-
Compact Design: The standard 10 x 38 mm cylindrical form factor allows for easy integration into standard fuse holders.
-
Dual Voltage Versatility: Optimized for both 600V AC and 700V DC systems, making it ideal for modern power electronics and UPS systems.
-
Global Standards: Fully compliant with UL standards, ensuring safety and acceptance in international markets.
Function
-
Protects electrical installations in industrial and commercial equipment.
-
Suitable for AC and DC applications, including motor circuits and control panels.
-
Ensures safe operation of electrical components by preventing overcurrent damage.
Technical Specification
-
Model Number: Siemens 3NC1010
-
Type: SITOR Cylindrical Fuse Link
-

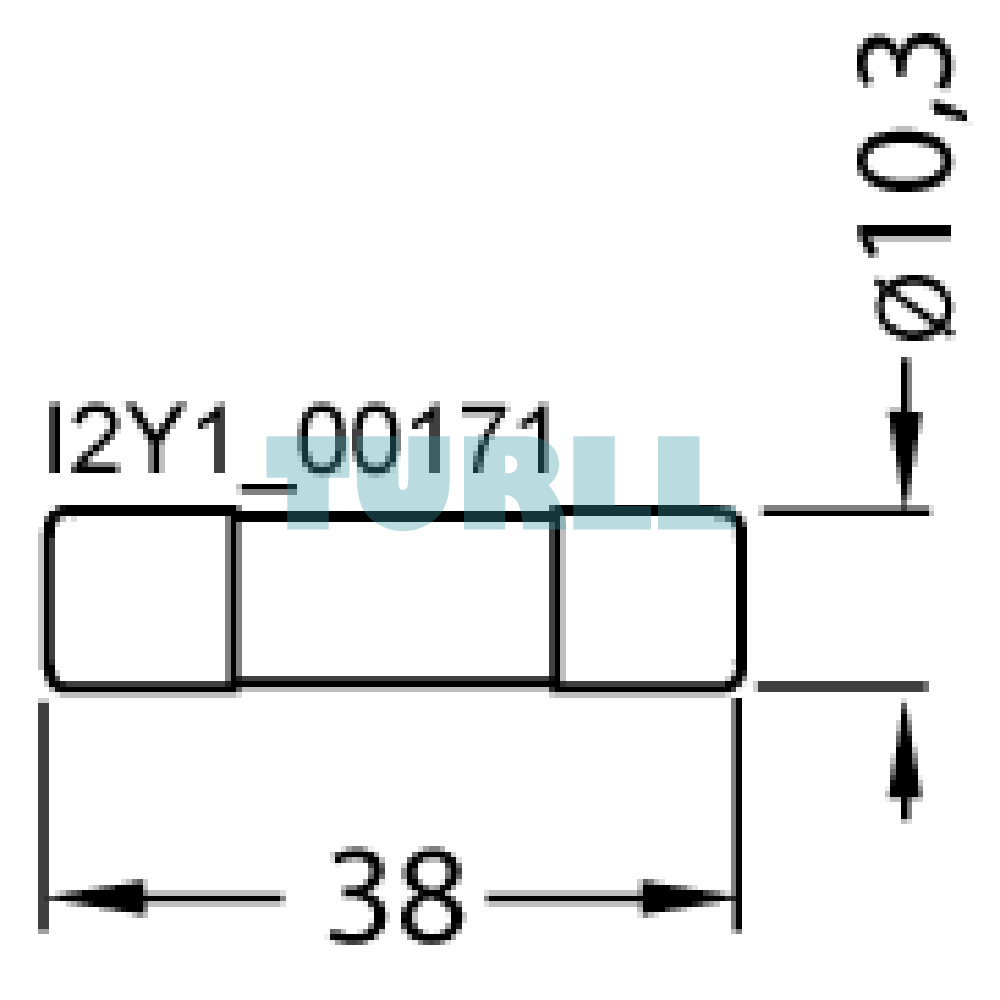

Dimensions: 10 x 38 mm
-
Rated Current: 10 A
-
Rated Voltage (AC): 600 V
-
Rated Voltage (DC): 700 V
-
Characteristic: aR (Partial range breaking capacity)
-
Certification: UL
Visit 3NC1010 for more detail info
For more our products visit turll
Download
| Weight | 0.009 kg |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | SITOR cylindrical fuse link |
| design of the product | DC acc. to UL |
| operating class of the fuse link | aR |
| size of the fuse link | 10×38 mm |
| type of voltage / of the operating voltage | AC |
| supply voltage / at DC | 700 V |
| operating voltage / at AC / rated value | 600 V |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 2.5 W |
| operational current / at AC / rated value | 10 A |
| operational current / rated value | 10 A |
| product component / striker | No |
| mounting position | Any, preferably vertical |
| UK Declaration of Conformity | Miscellaneous |
